Operating Light Control Rheostat Does Not Change Light Brightness

Operating Light Control Rheostat does not Change Light Brightness

DESCRIPTION
- The meter CPU receives signals for adjusting illumination on the meter and instrument panel from this circuit
- The meter CPU detects the illumination level selected by the user according to the position of the rheostat knob.

HINT:
- This model is equipped with an Optitron meter, therefore the meter illuminates even in the daytime.
- The meter illumination level can be adjusted by turning the rheostat.
- The meter illumination dims when the light control switch is turned to the TAIL or HEAD position at night.
- Turning the rheostat knob fully clockwise cancels the above dimmer control.
- During light control switch TAIL/HEAD position, turn the rheostat knob fully counterclockwise, then the meter illumination turns off.

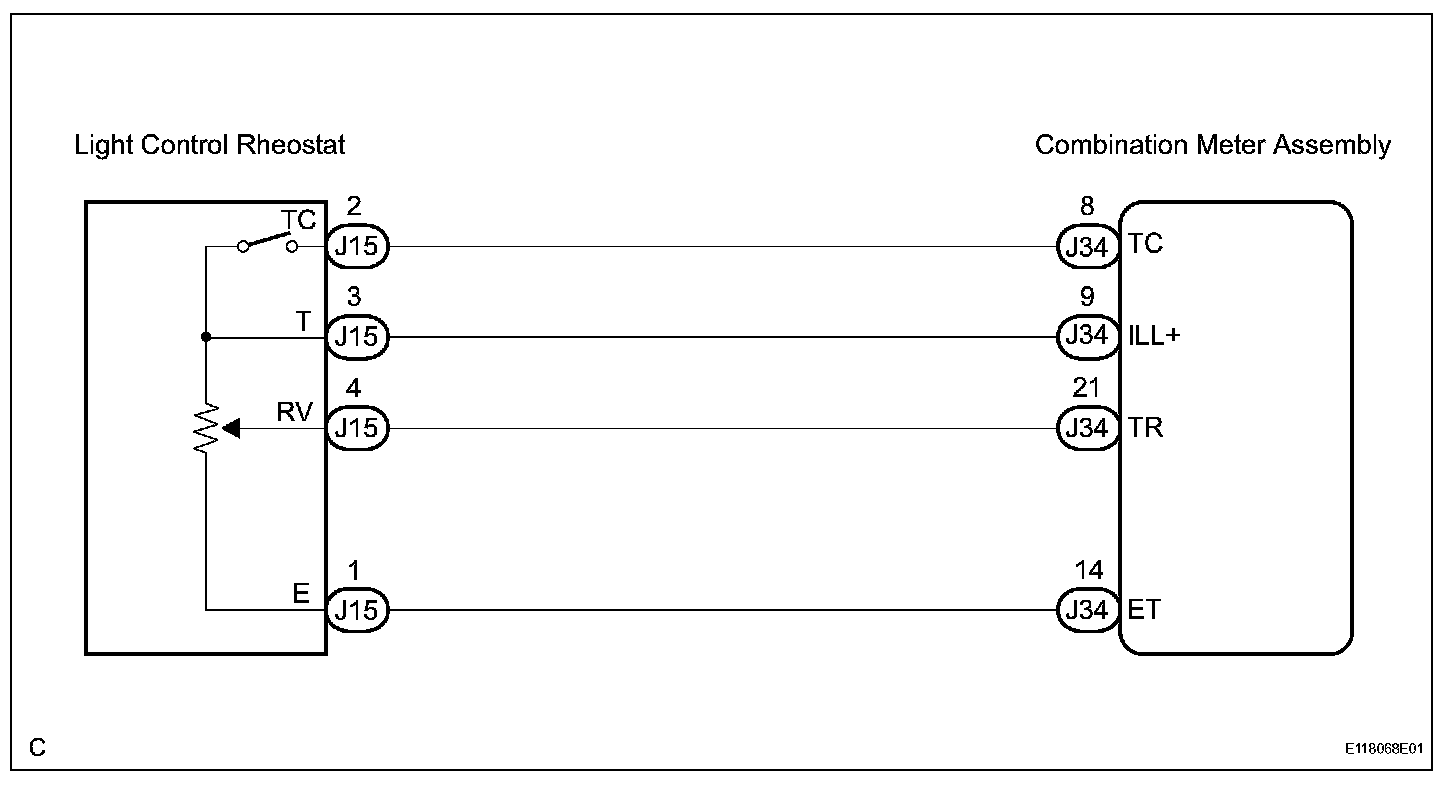

Wiring Diagram:

Step 1:

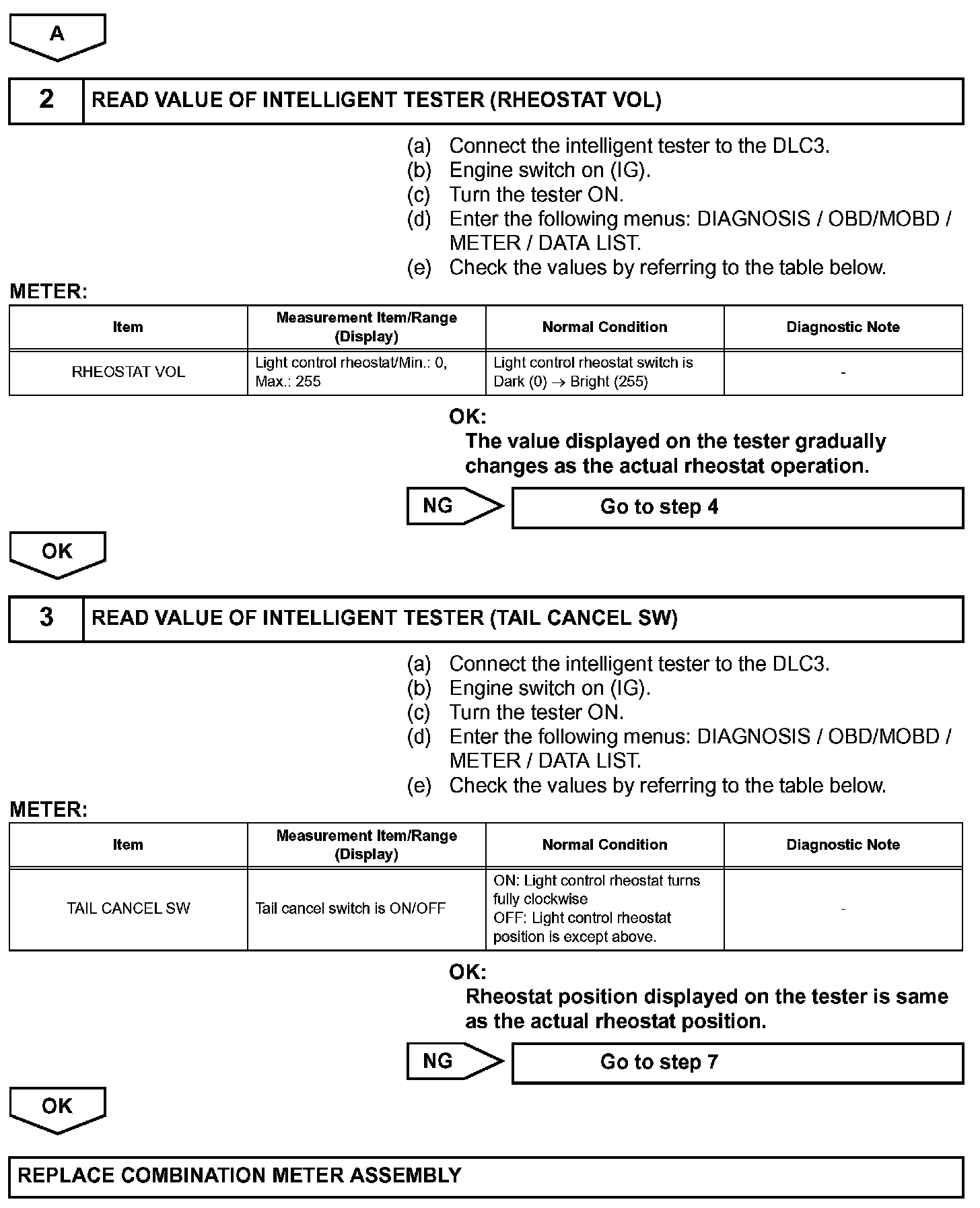

Step 1 (Continued)-3:

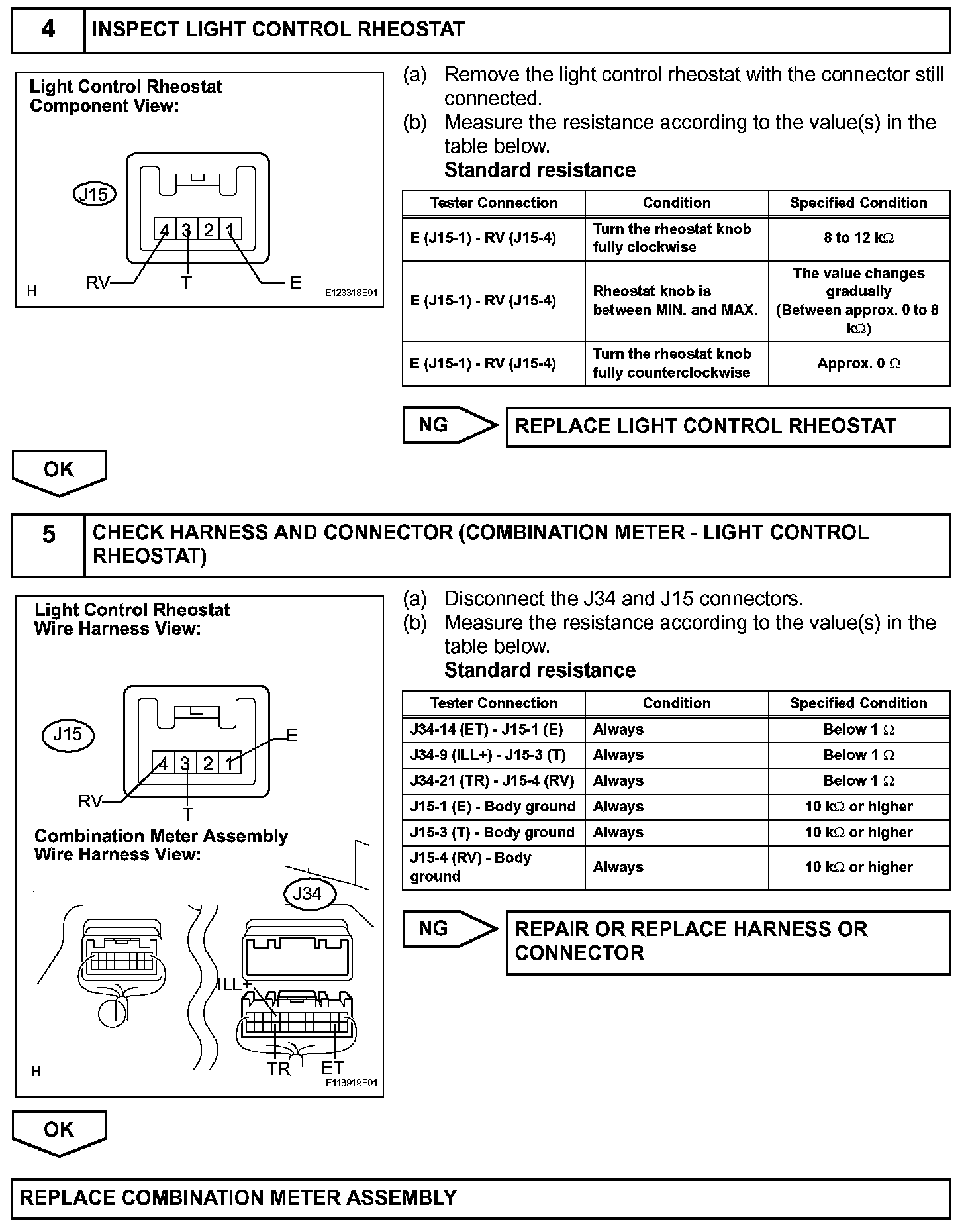

Step 4-5:

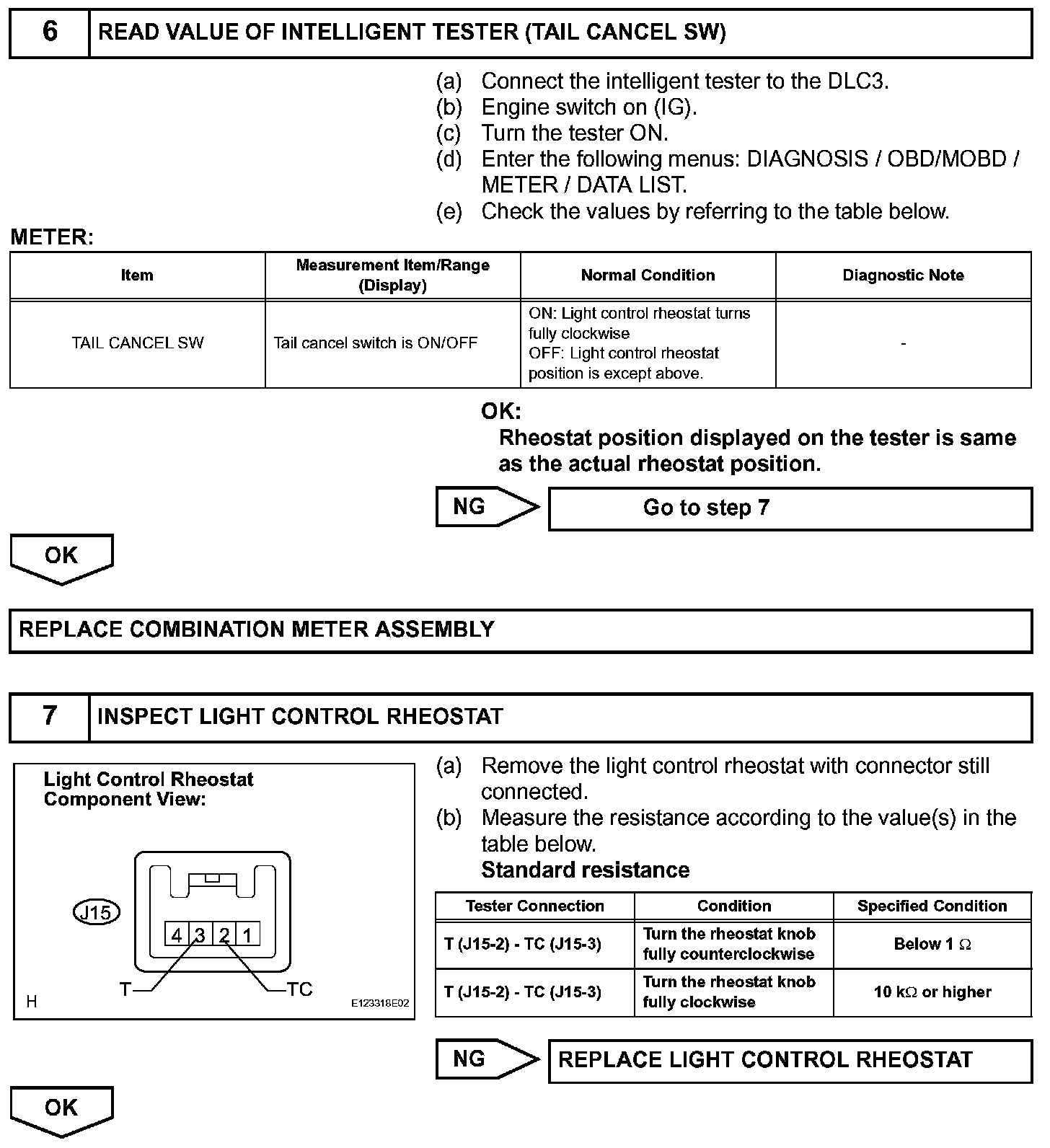

Step 6-7:

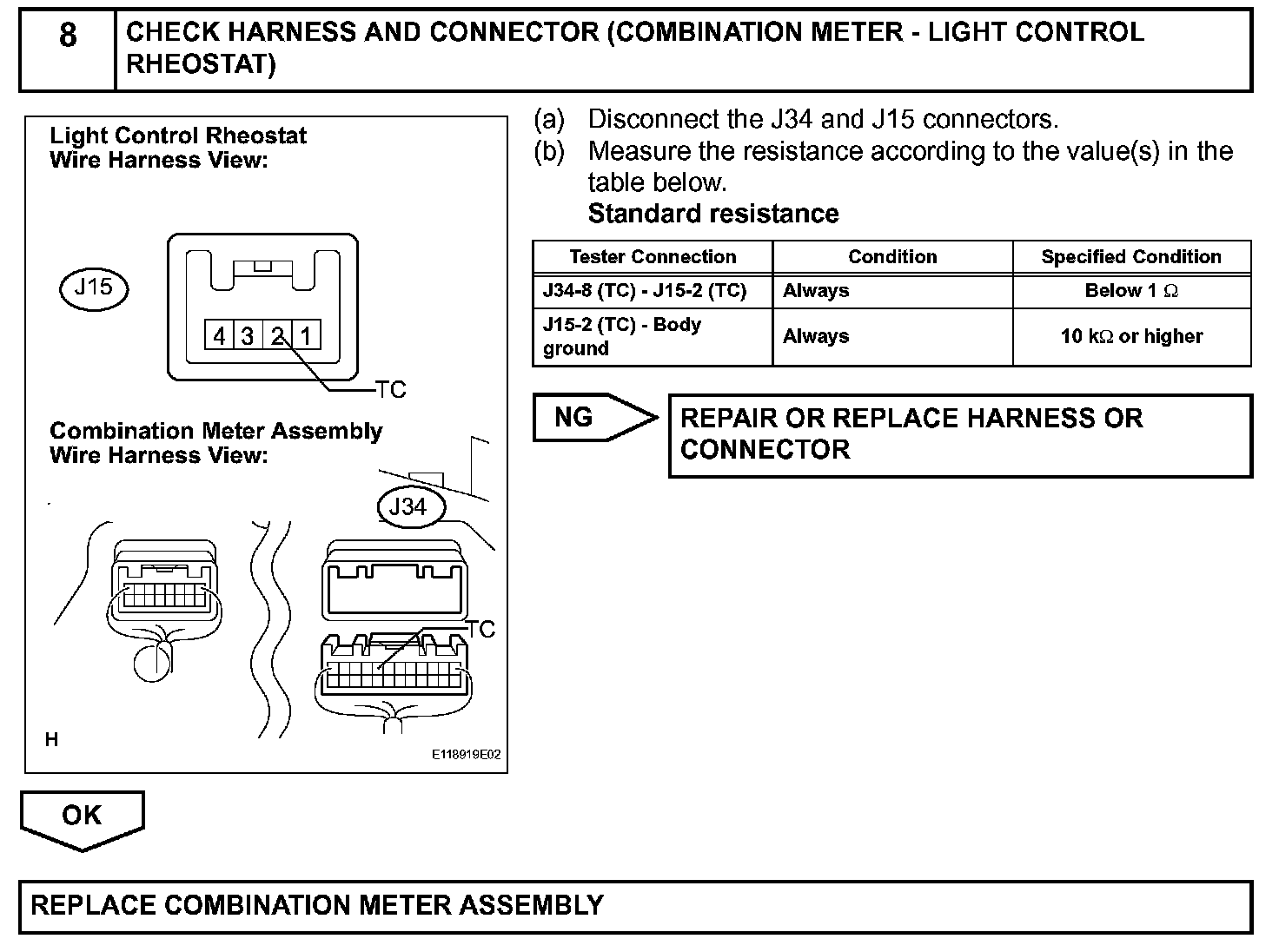

Step 8:

INSPECTION PROCEDURE
