Data List

DATA LIST

HINT: Using the intelligent tester to read the DATA LIST allows the values or states of switches, sensors, actuators, and other items to be read without removing any parts. This non intrusive inspection can be very useful as intermittent conditions or signals may be discovered before parts or wiring is disturbed. Reading the DATA LIST information early in troubleshooting is one way to save diagnostic time.

a. Warm up the engine.
b. Engine switch off.

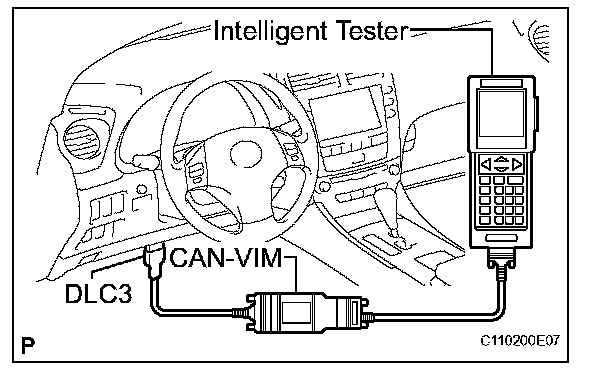

c. Connect the intelligent tester to the DLC3.
d. Engine switch on (IG) position.
e. Turn the tester ON.

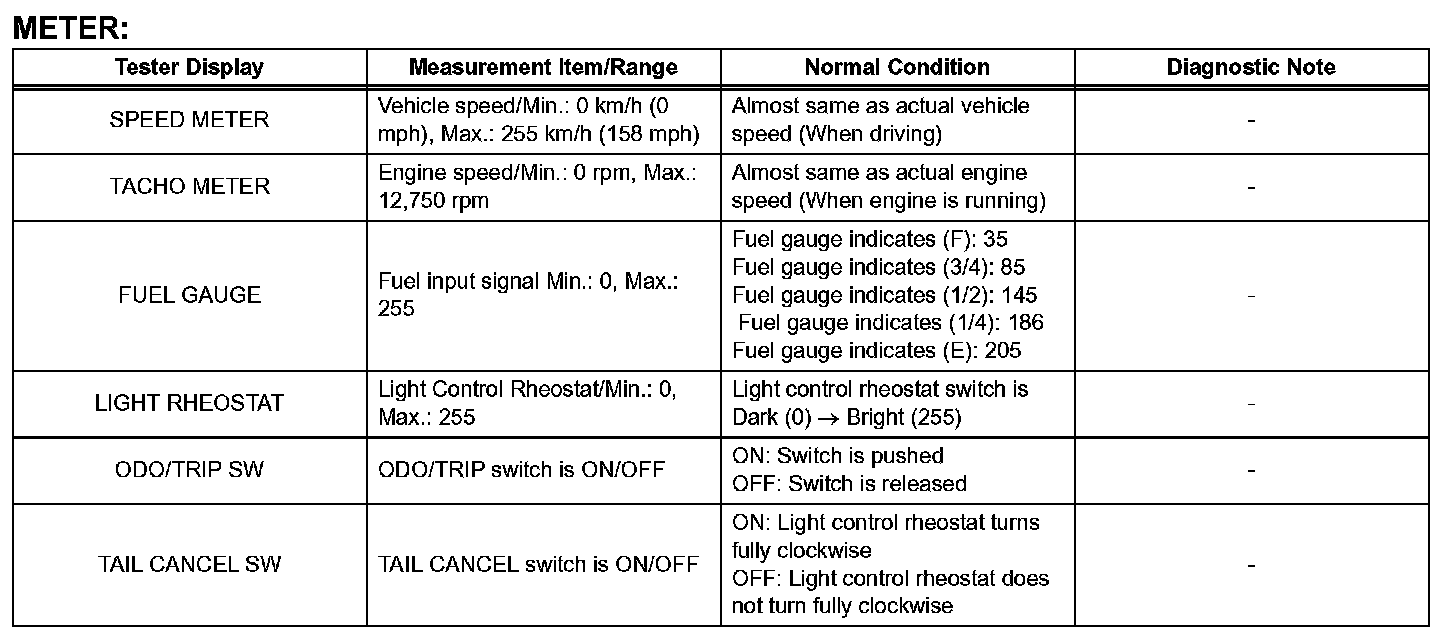

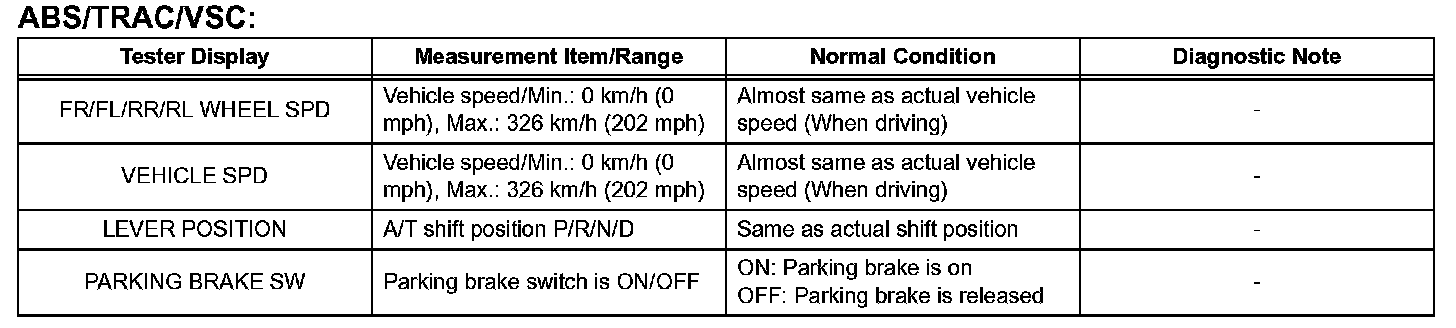

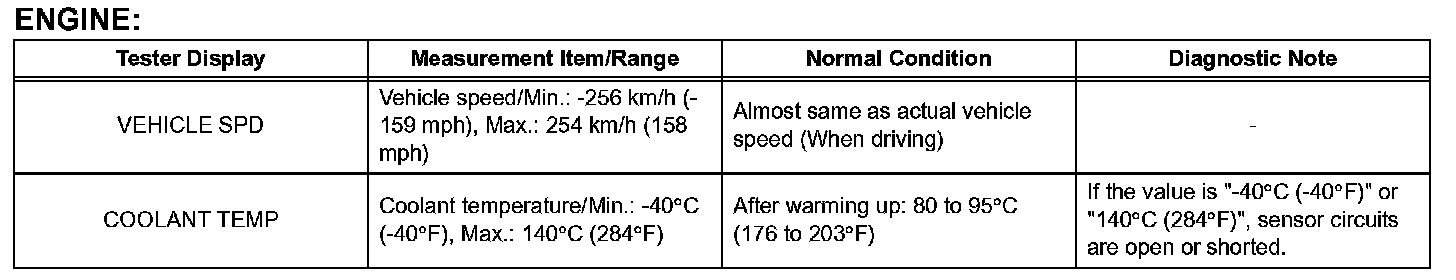

f. Enter following menus: DIAGNOSIS / OBD / MOBD / METER / DATA LIST




g. Check the values by referring to the table given.









HINT: The tail cancel switch is used to cancel the link between taillight operation and dimming of the combination meter.
