Pinout Values and Diagnostic Parameters

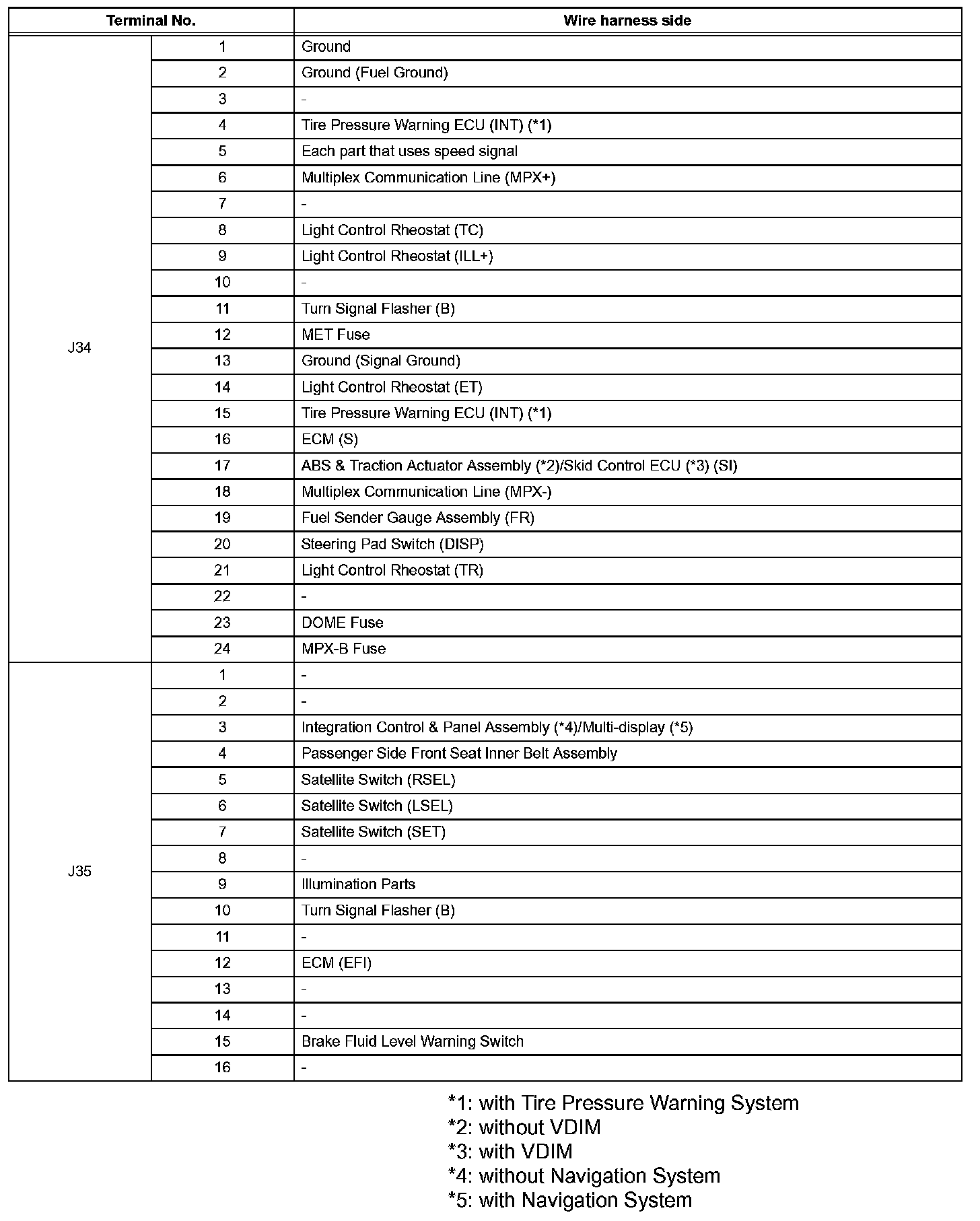

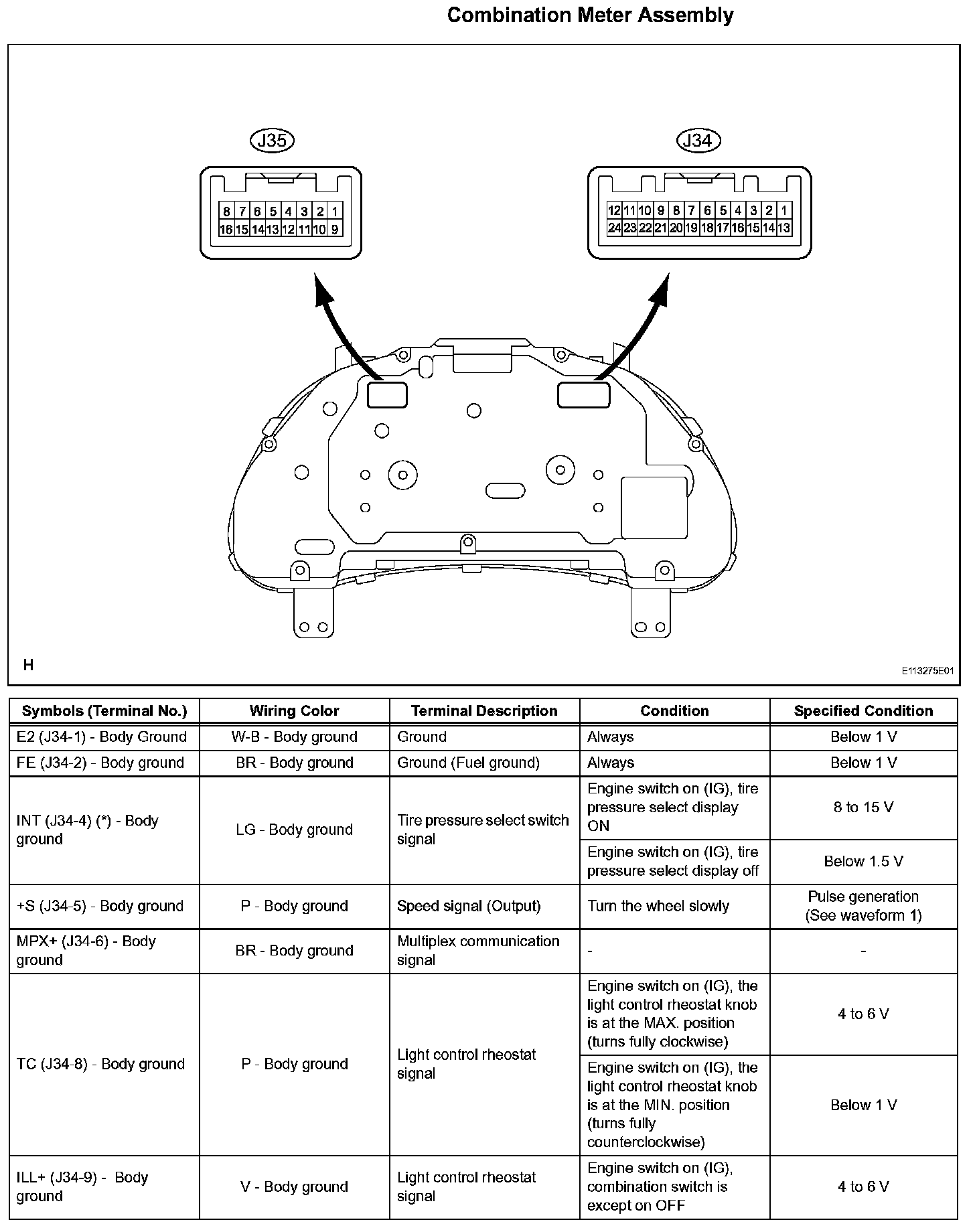

Terminals Of Control Module/Pinouts - Combination Meter Assembly (Part 1):

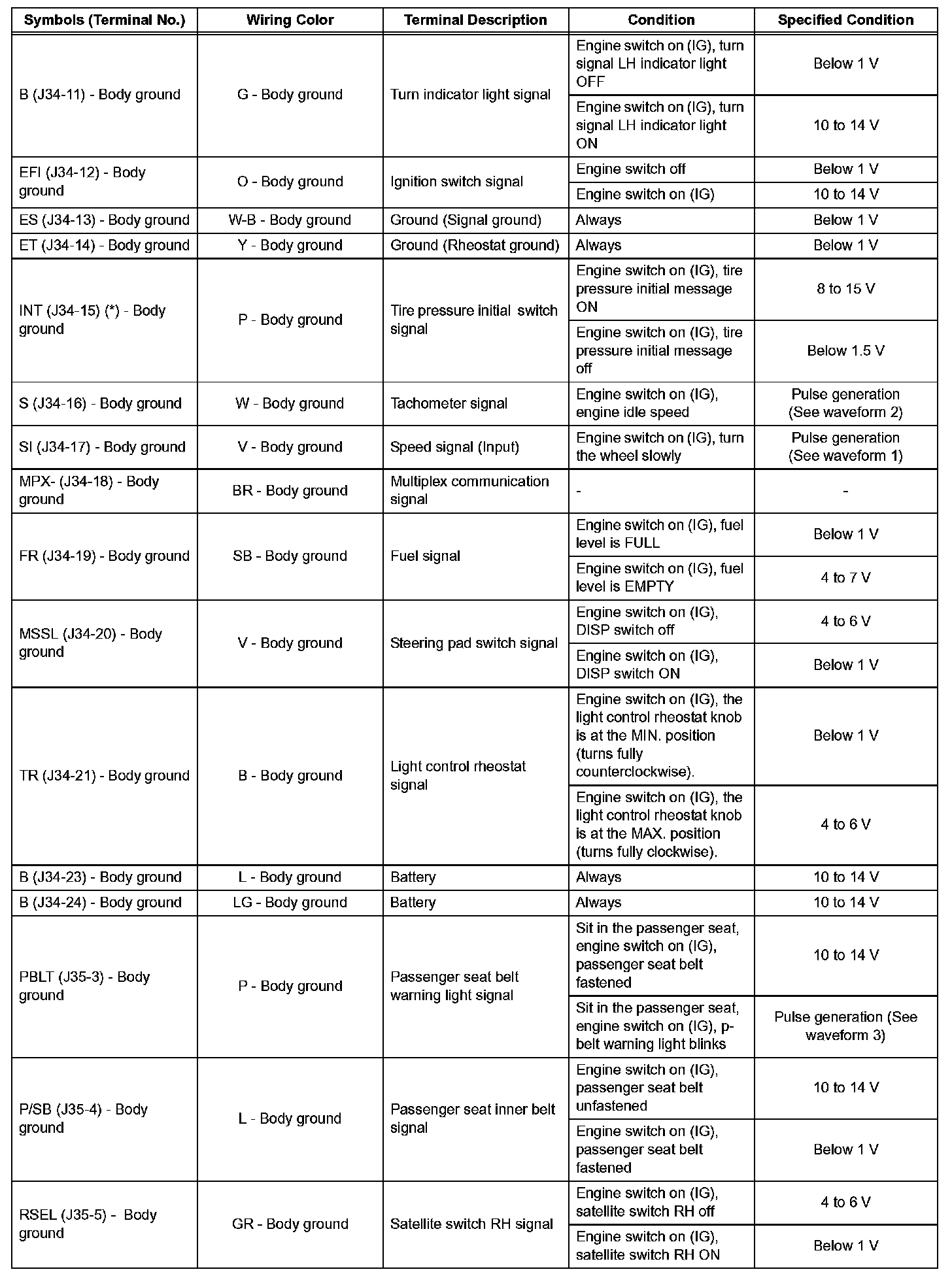

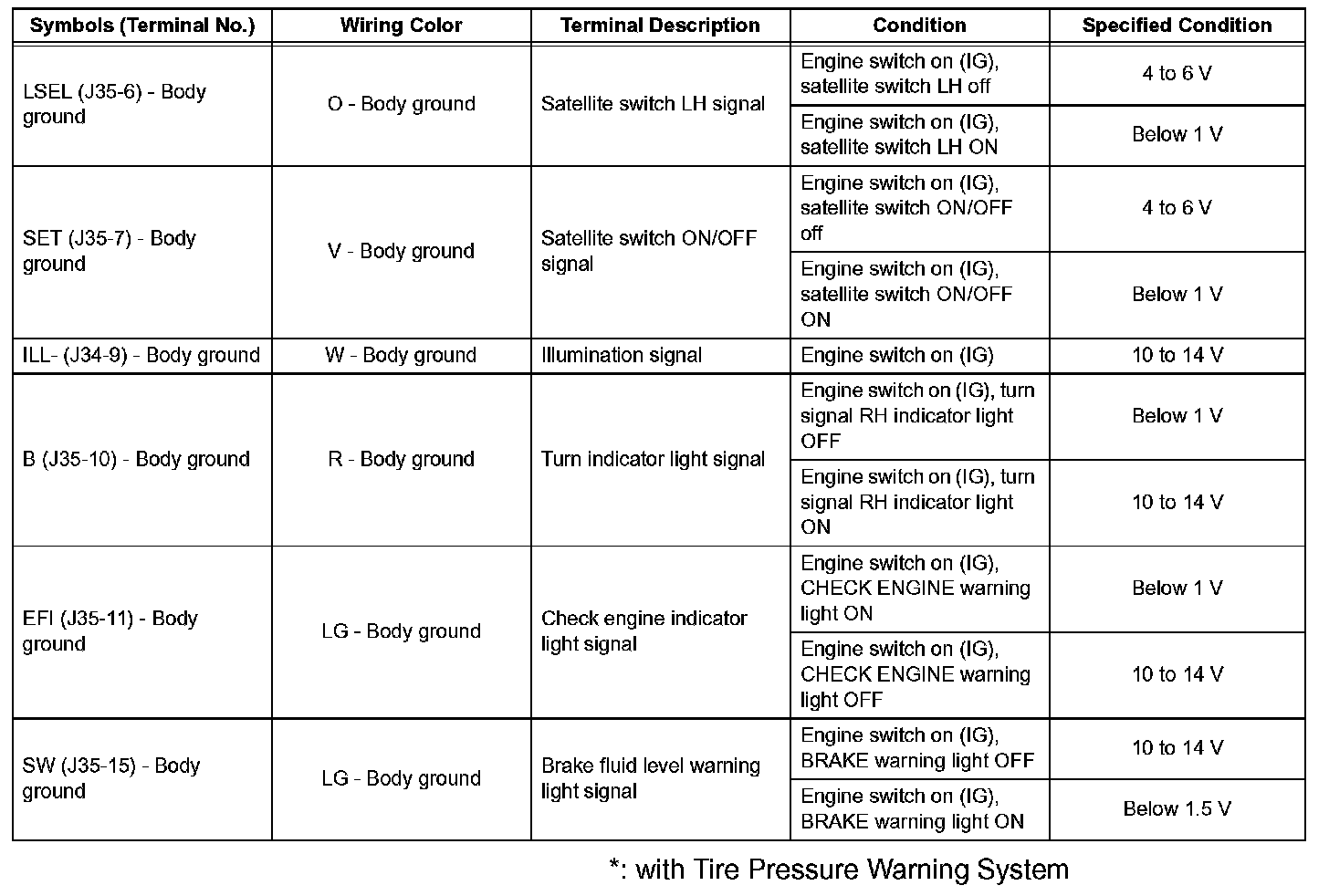

Terminals Of Control Module/Pinouts - Combination Meter Assembly (Part 2):

Terminals Of Control Module/Pinouts - Combination Meter Assembly (Part 3):

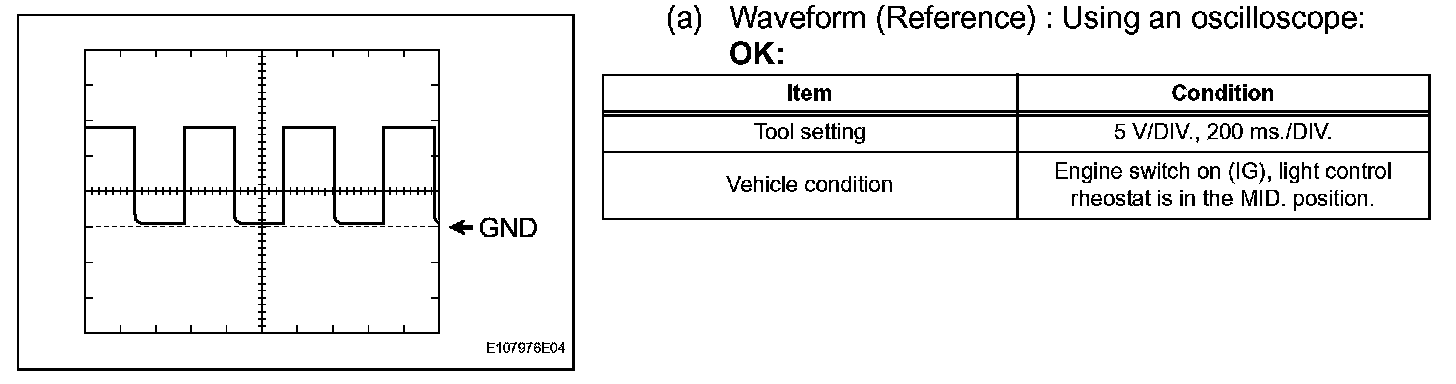

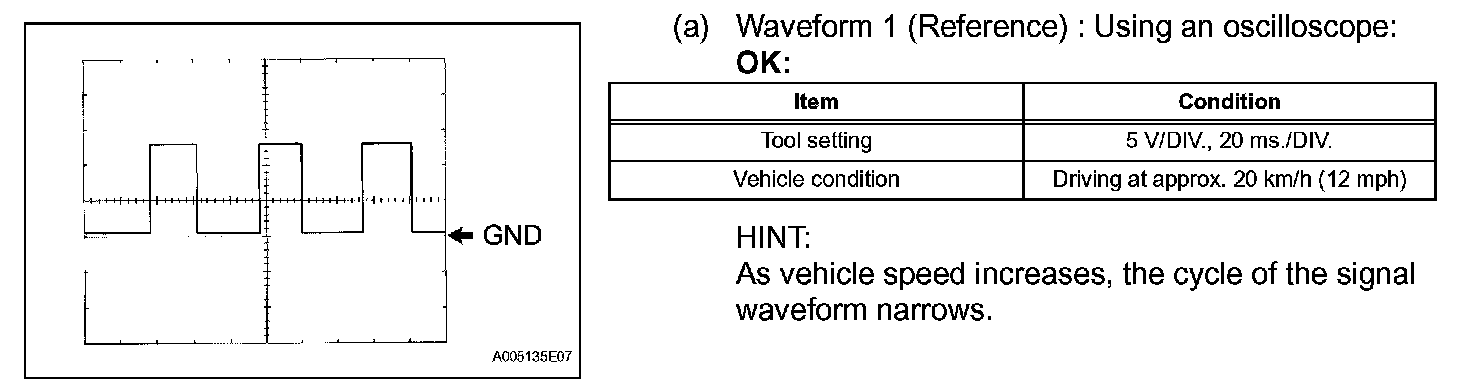

Oscilloscope Waveform:

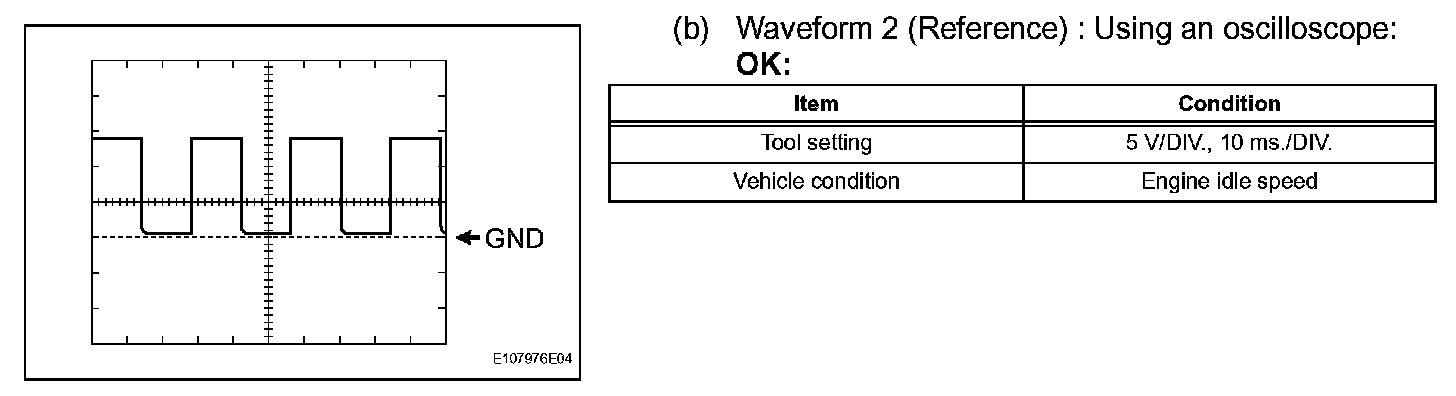

Oscilloscope Waveform:

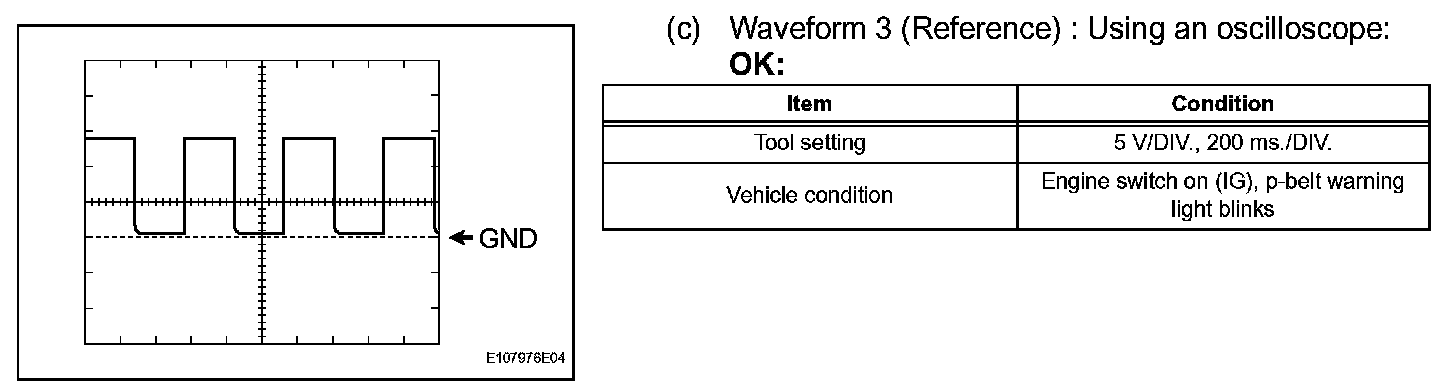

Oscilloscope Waveform:

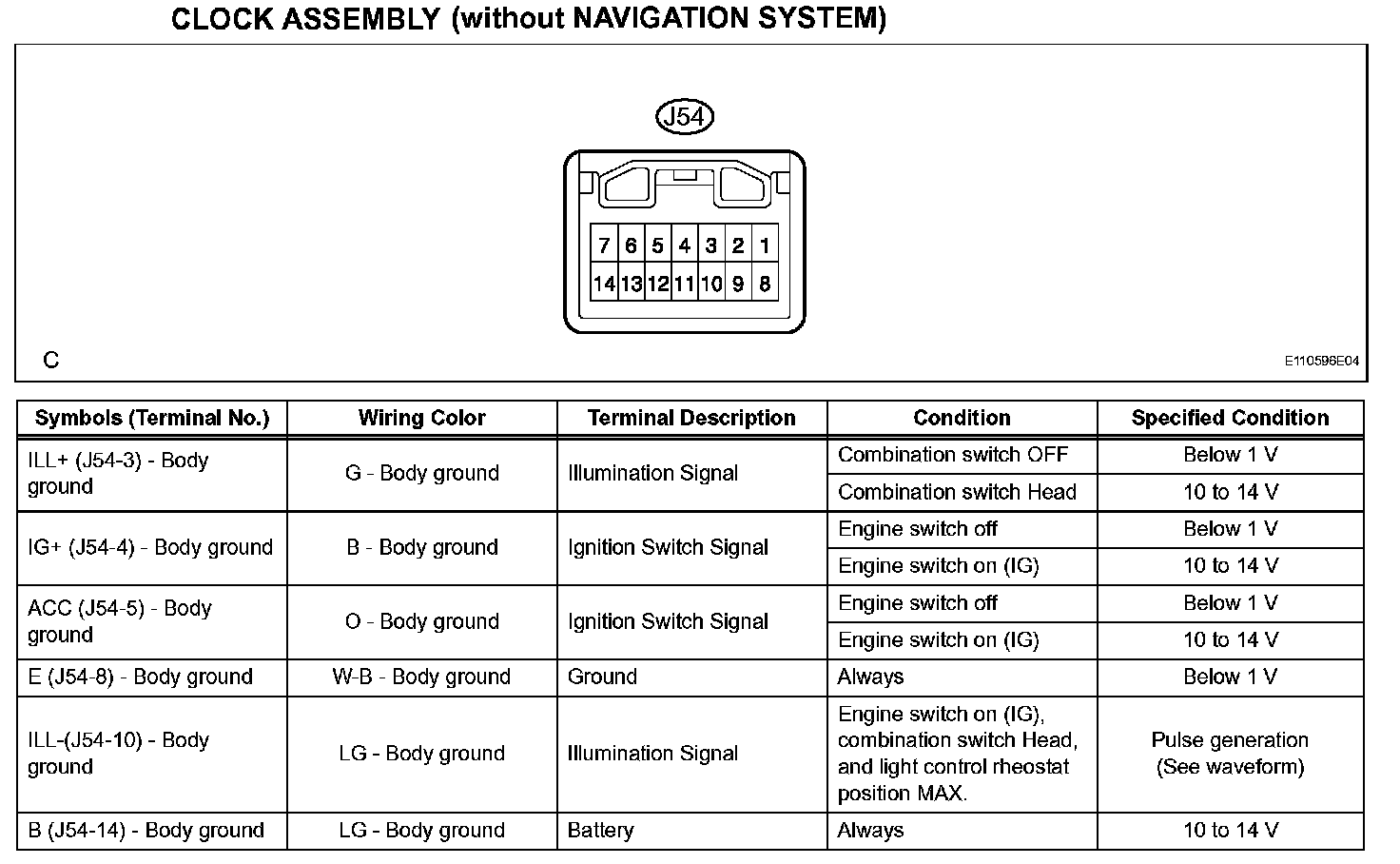

Terminals Of Control Module/Pinouts - Clock Assembly (without Navigation System):

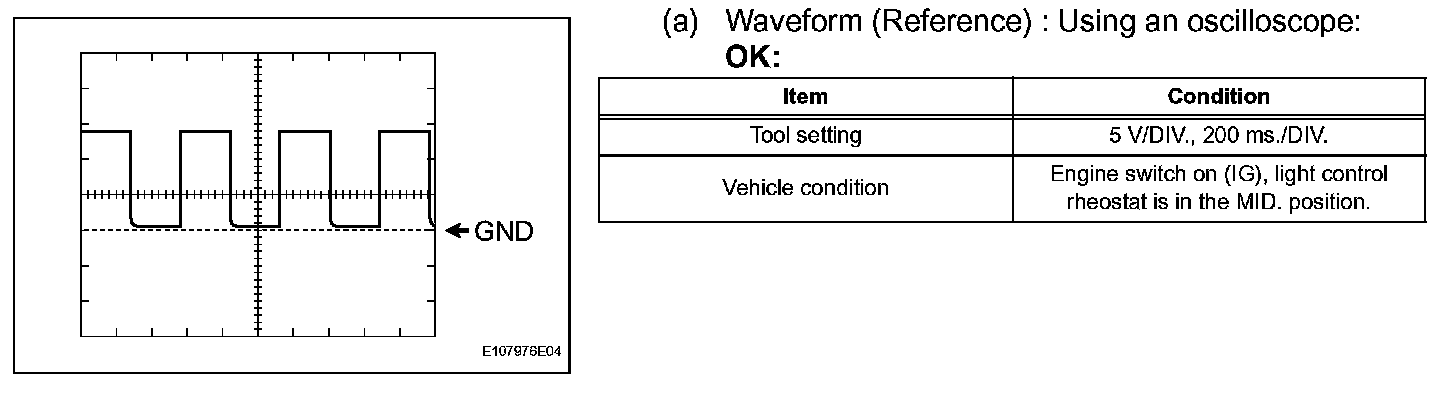

Oscilloscope Waveform:

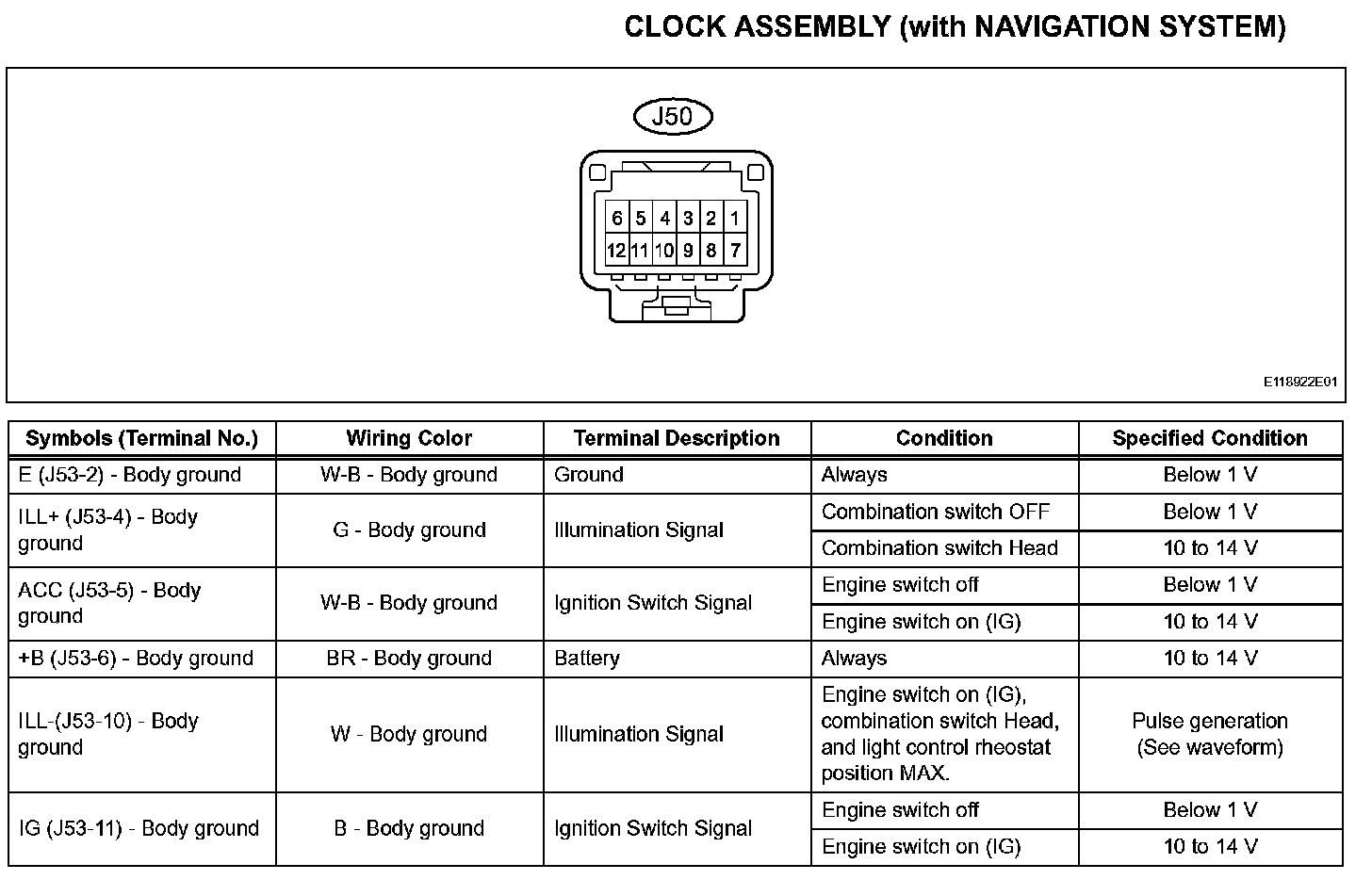

Terminals Of Control Module/Pinouts - Clock Assembly (with Navigation System):

Oscilloscope Waveform:

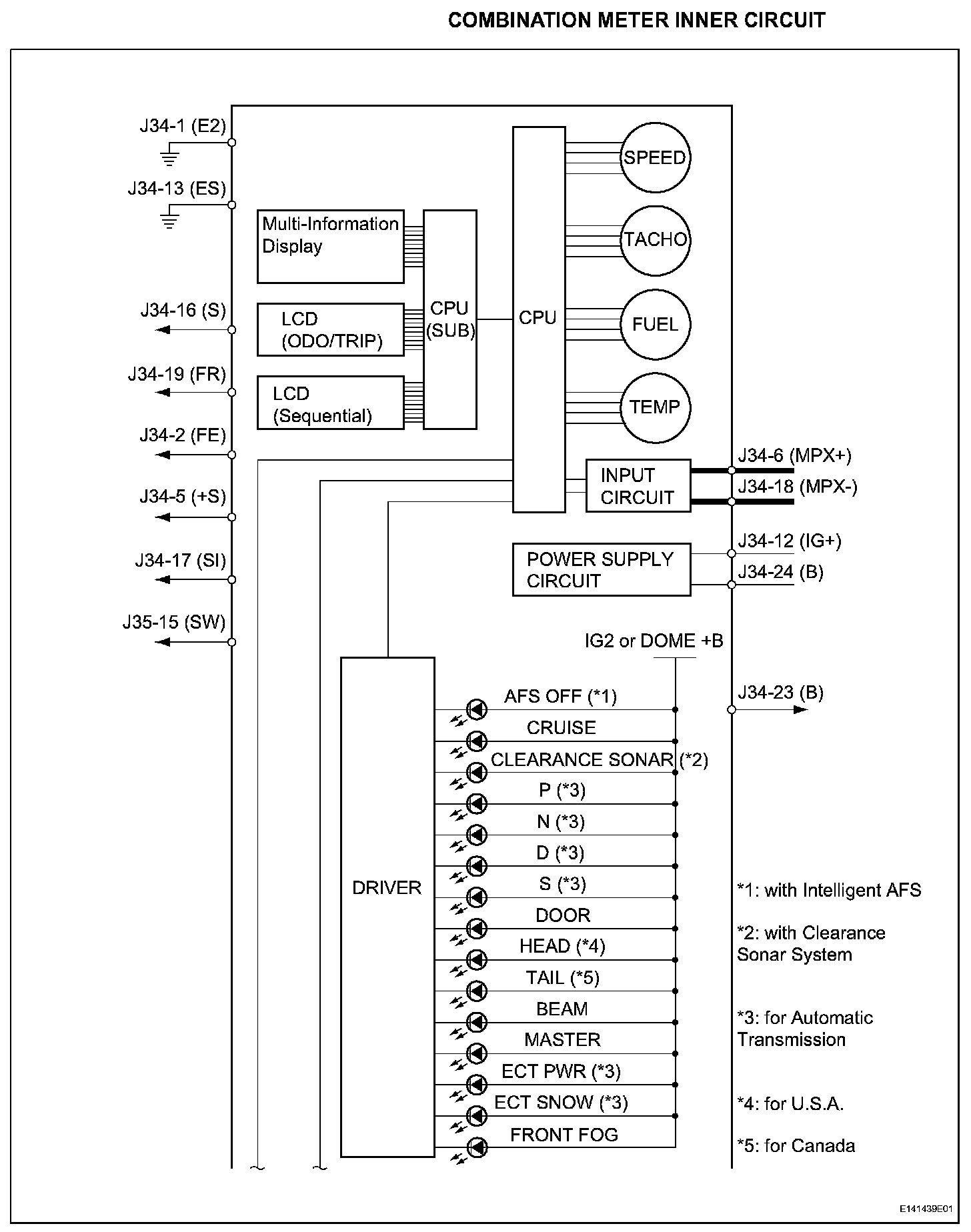

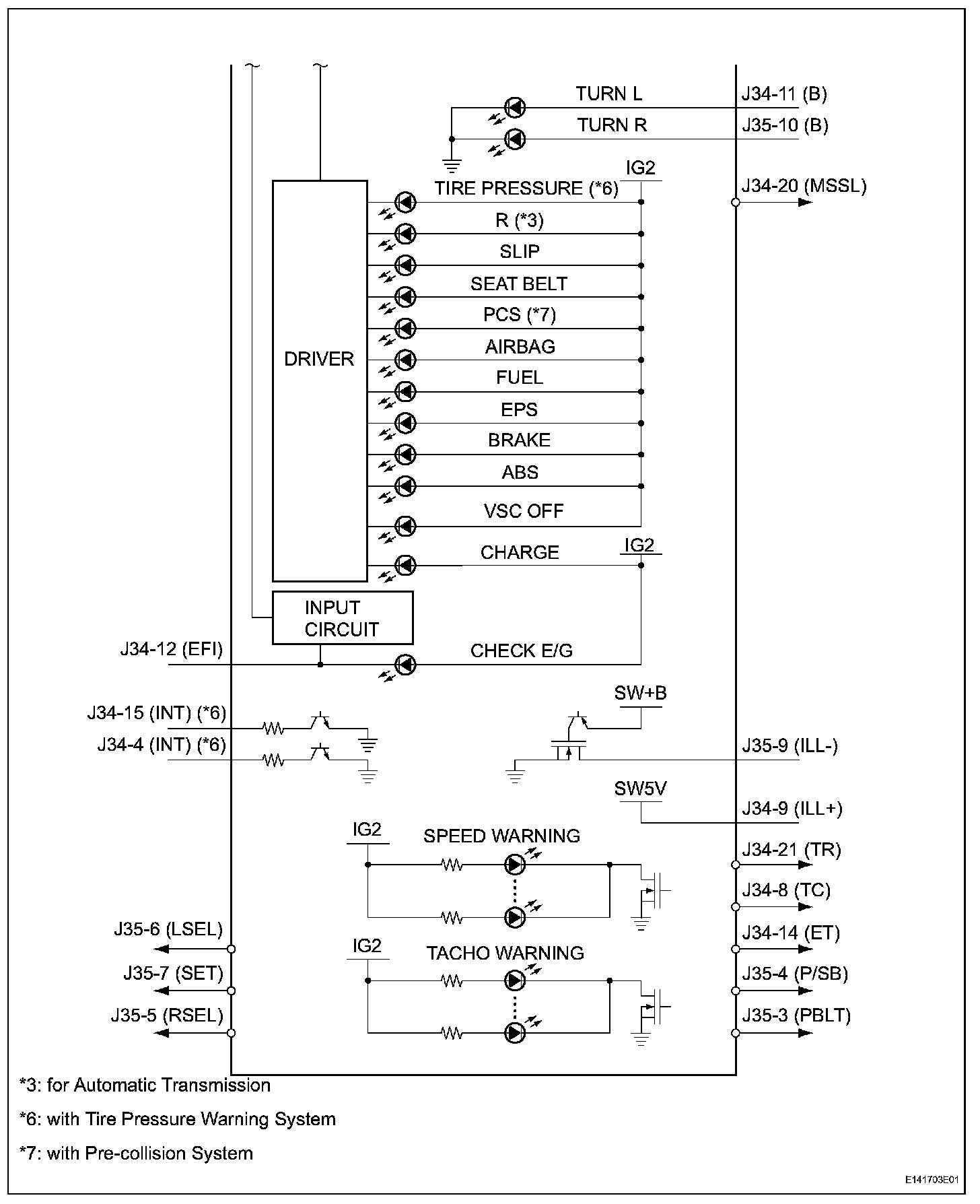

Terminals Of Control Module/Pinouts - Combination Meter Inner Circuit (Part 1):

Terminals Of Control Module/Pinouts - Combination Meter Inner Circuit (Part 2):

Terminals Of Control Module/Pinouts - Combination Meter Inner Circuit (Part 3):
