Tachometer Malfunction
Tachometer MalfunctionDESCRIPTION
- The meter CPU receives engine speed signals from the ECM in this circuit.
- The ECM transmits engine speed signals as pulses to the meter CPU.
- The meter CPU calculates the engine speed converting 3 pulses to 1 revolution.

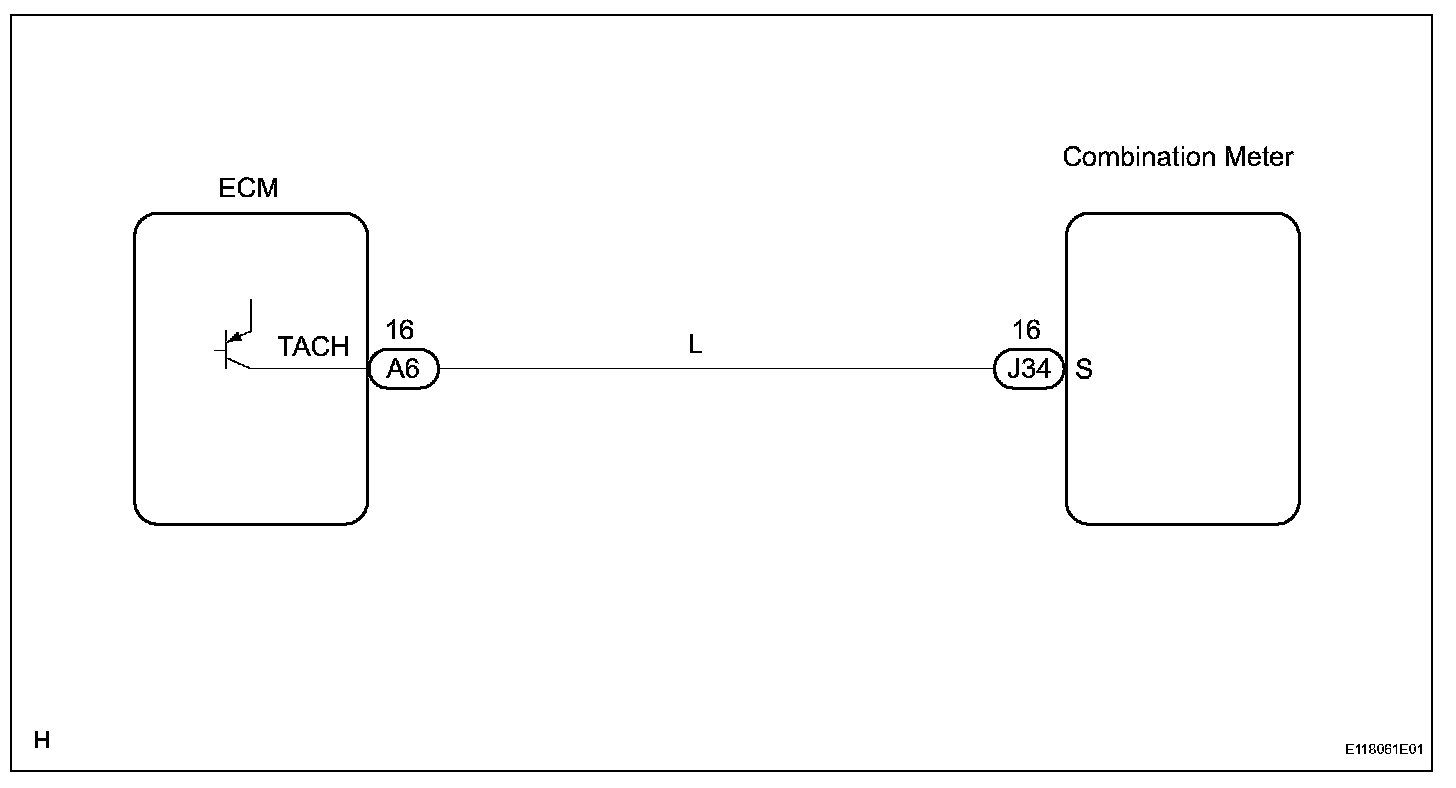

Wiring Diagram:

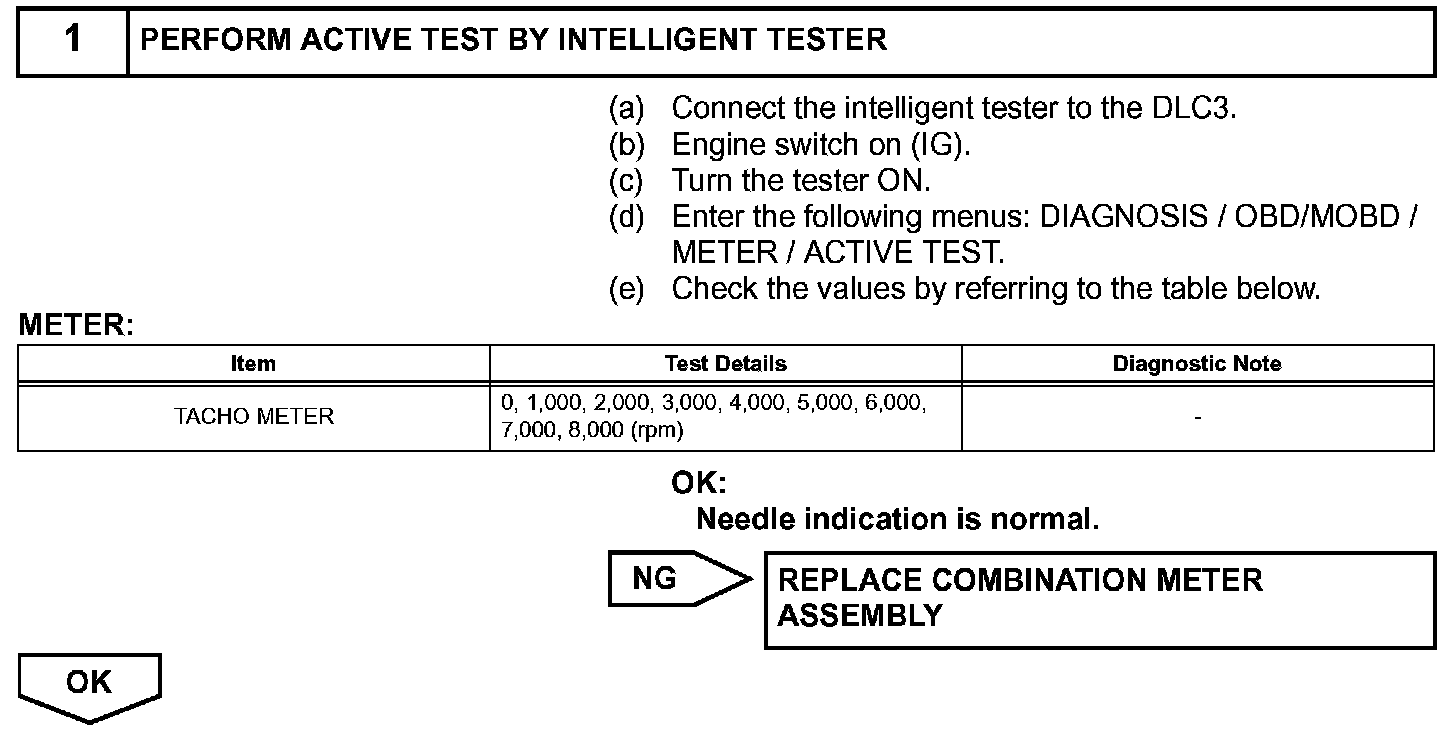

Step 1:

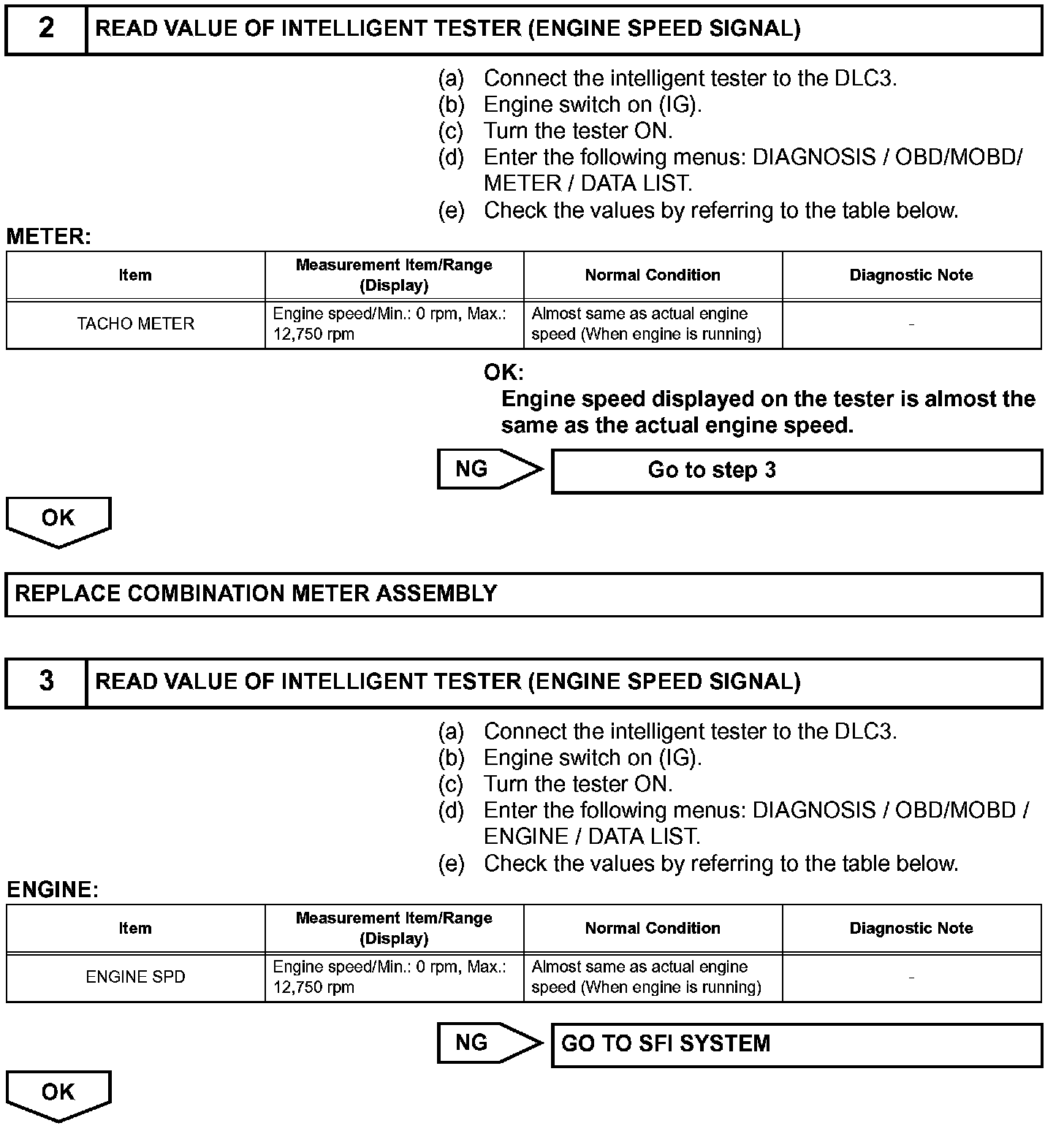

Step 2-3:

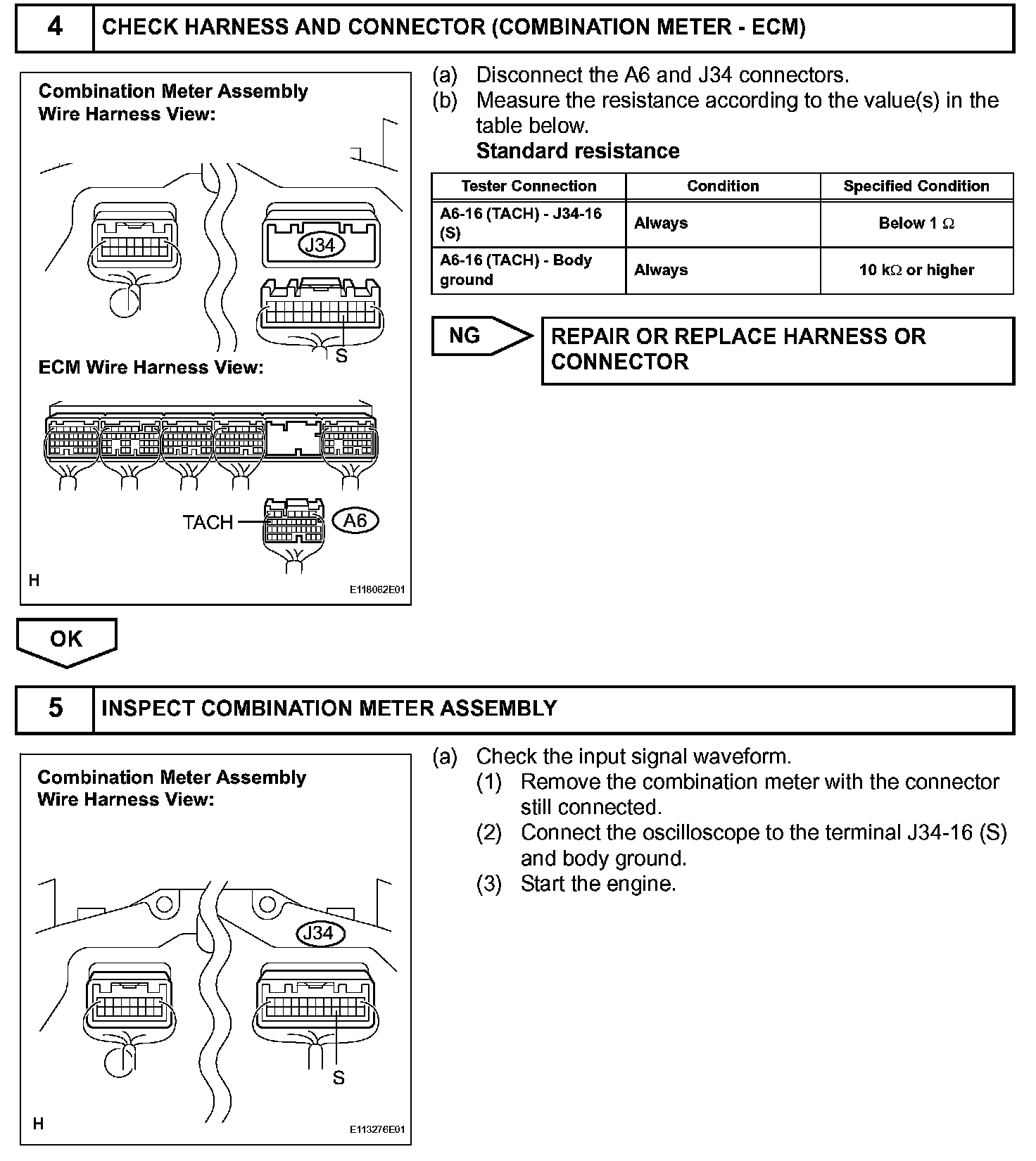

Step 4-5:

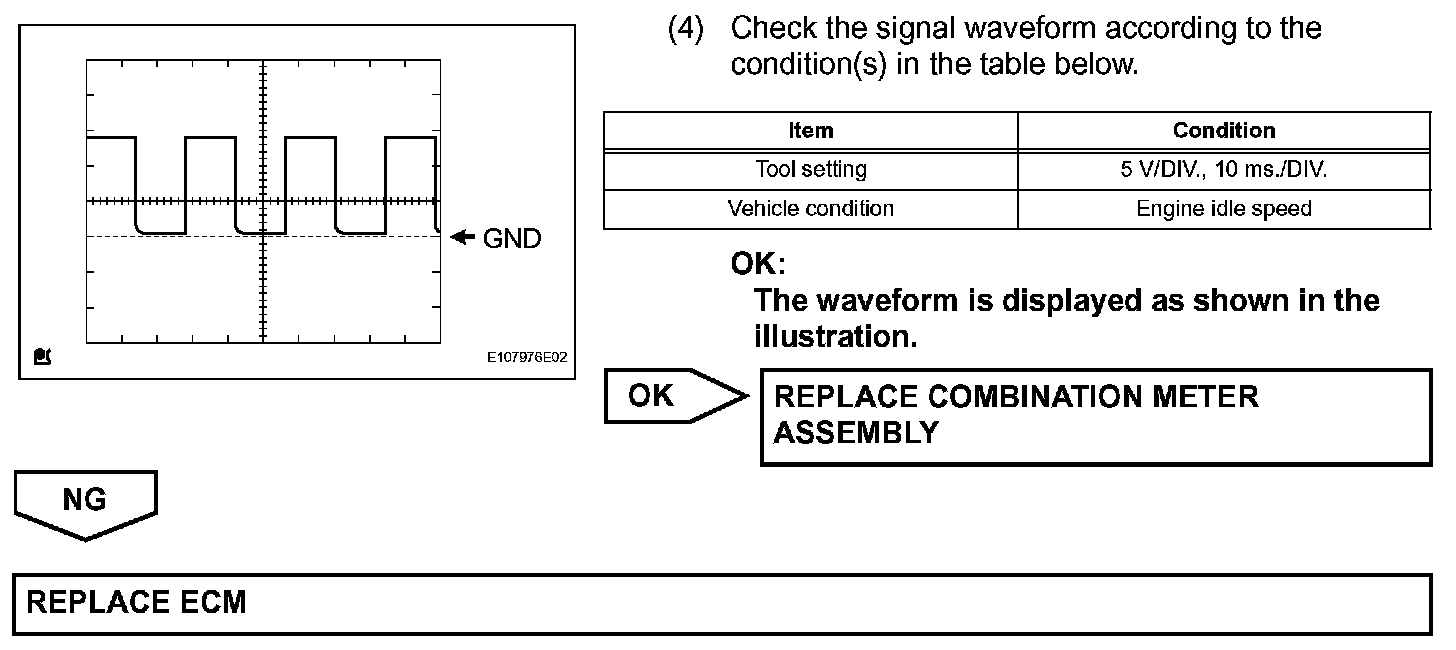

Step 5 (Continued):
INSPECTION PROCEDURE
