Satellite Switch Circuit

Satellite Switch Circuit

DESCRIPTION
- The meter CPU receives satellite switch signals from the satellite switch in this circuit.
- The meter CPU sends satellite switch signals to the tire pressure warning ECU, AFS ECU, and clearance sonar ECU using the BEAN lines. Each ECU controls every system based on these signals.

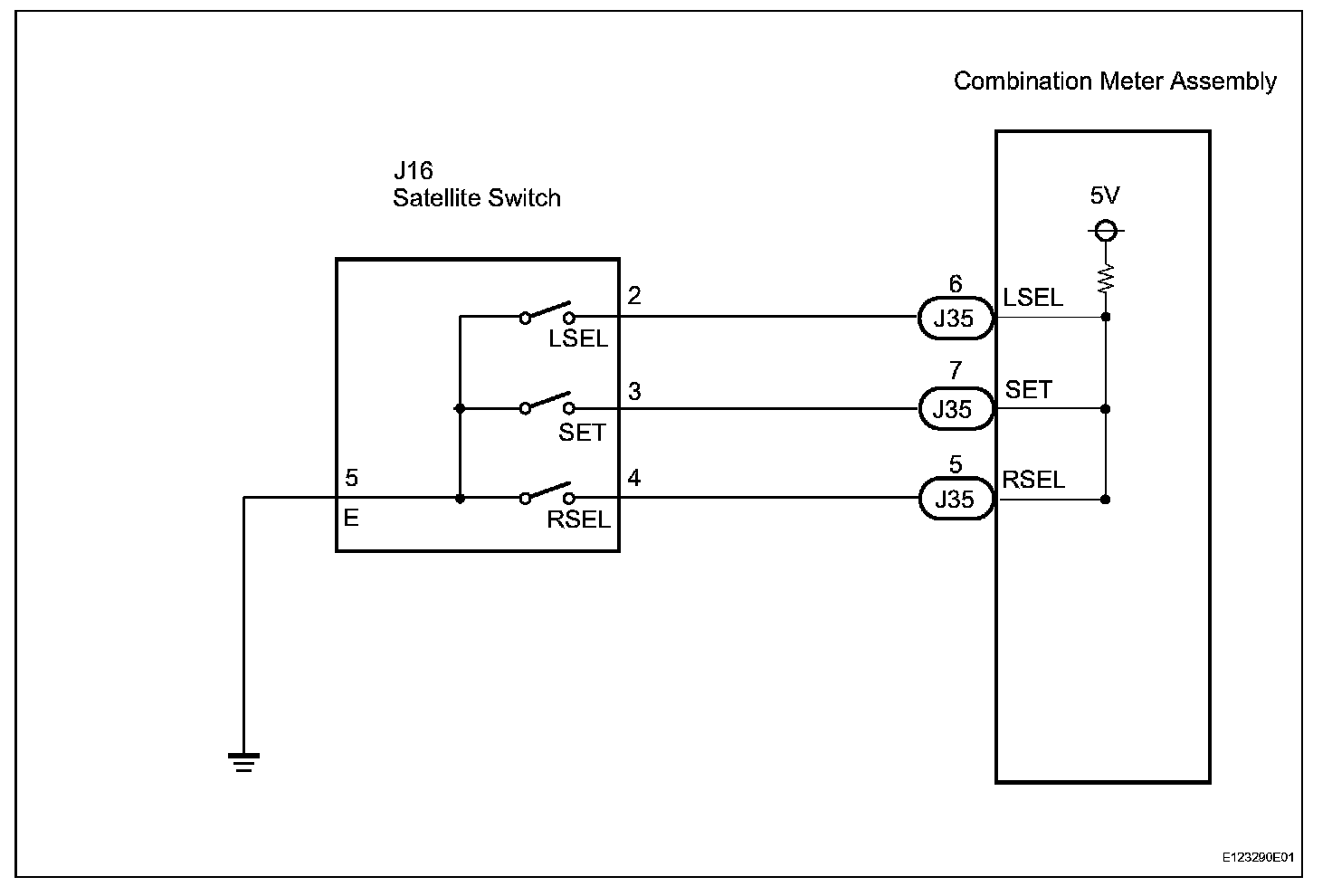

Wiring Diagram:

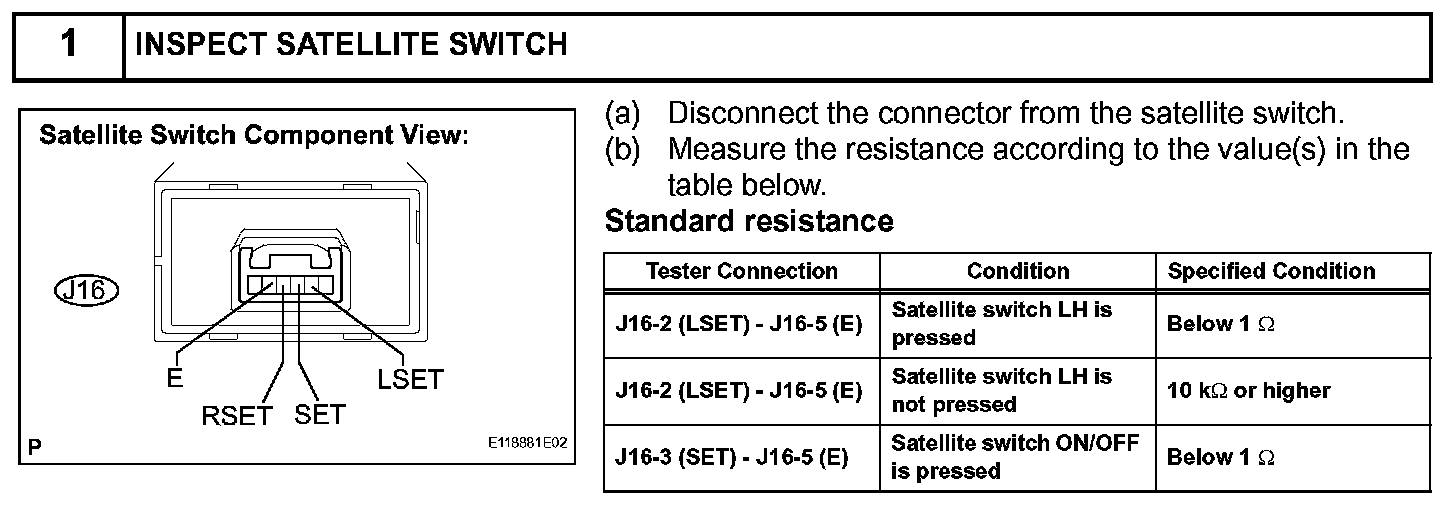

Step 1:

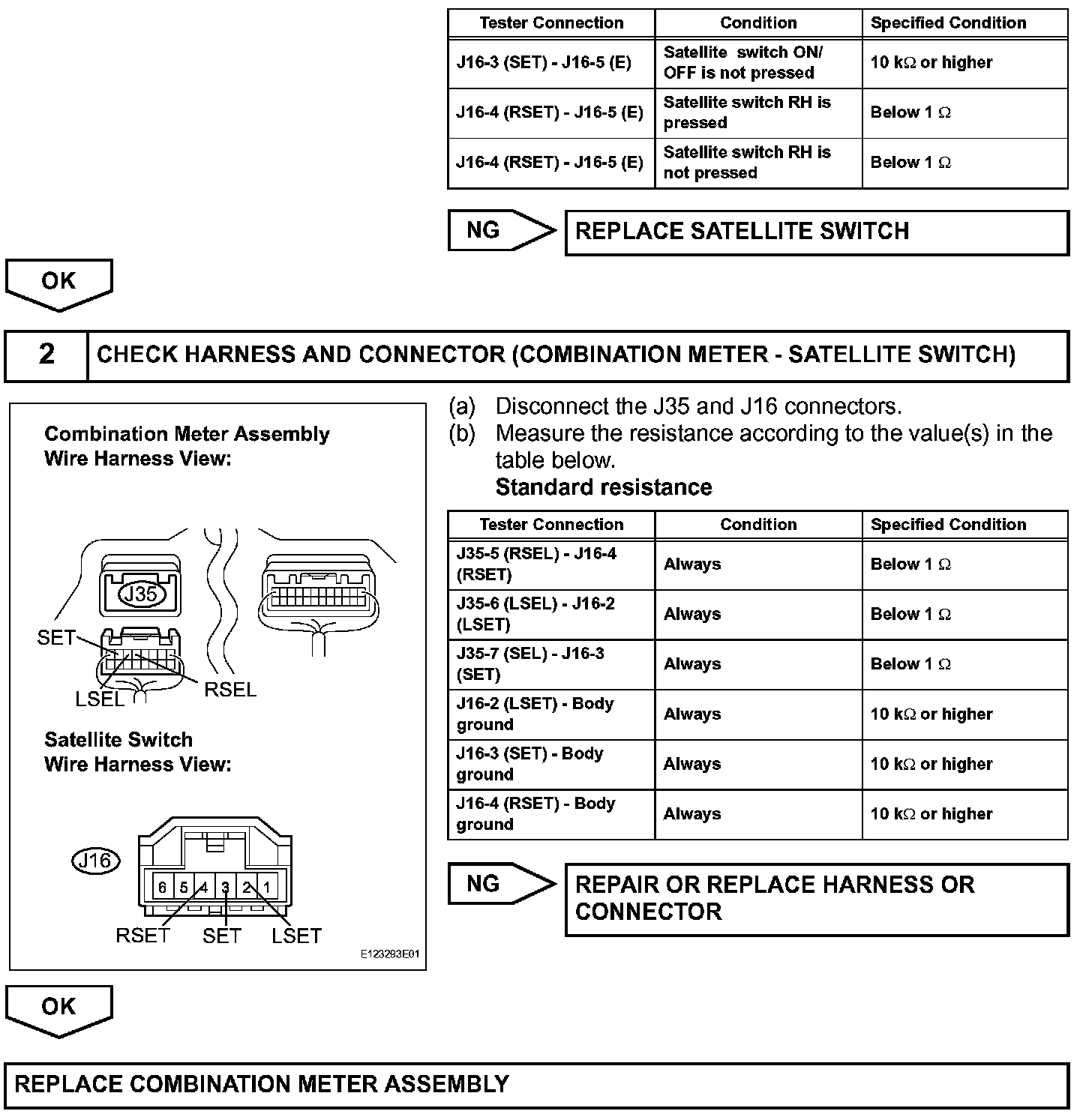

Step 1 (Continued)-2:

INSPECTION PROCEDURE
