DTC Check

DTC CHECK USING INTELLIGENT TESTER

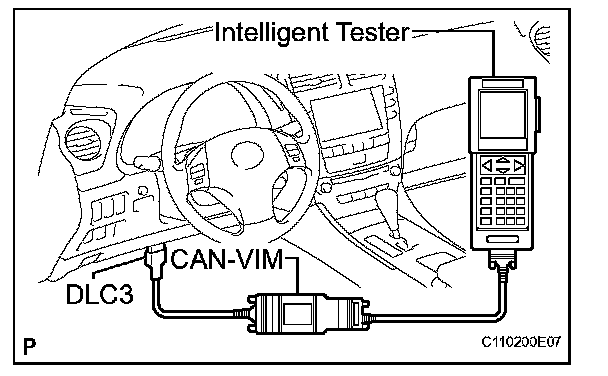

a. Connect the intelligent tester to the DLC3.
b. Turn the engine switch on (IG).
c. Turn the tester ON.
d. Enter the following menu items: DIAGNOSIS / OBD/ MOBD / DTC INFO / CURRENT CODES.

HINT: Refer to the intelligent tester operator's manual for further details.

e. Check the details of the DTCs.
