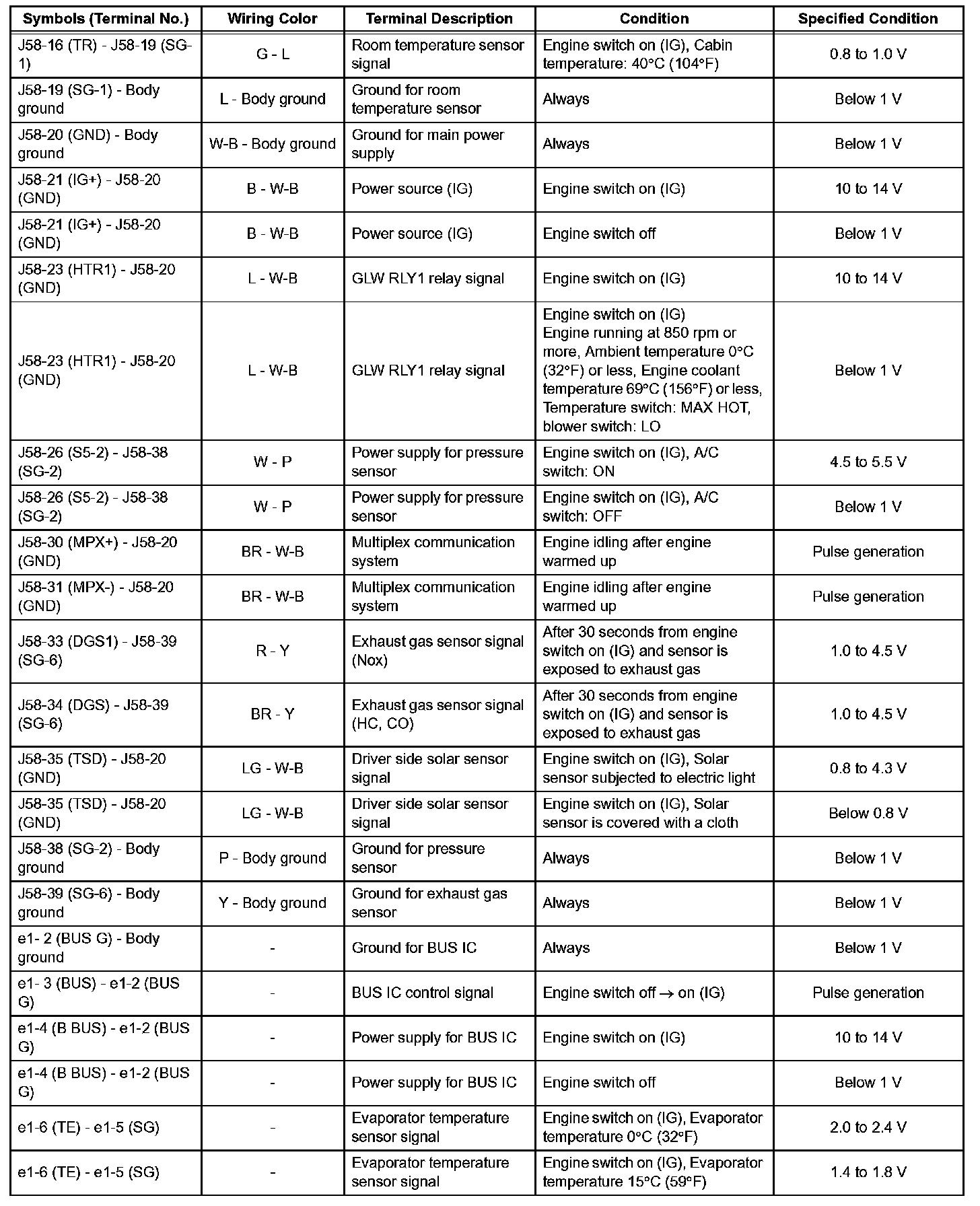

Pinout Values and Diagnostic Parameters

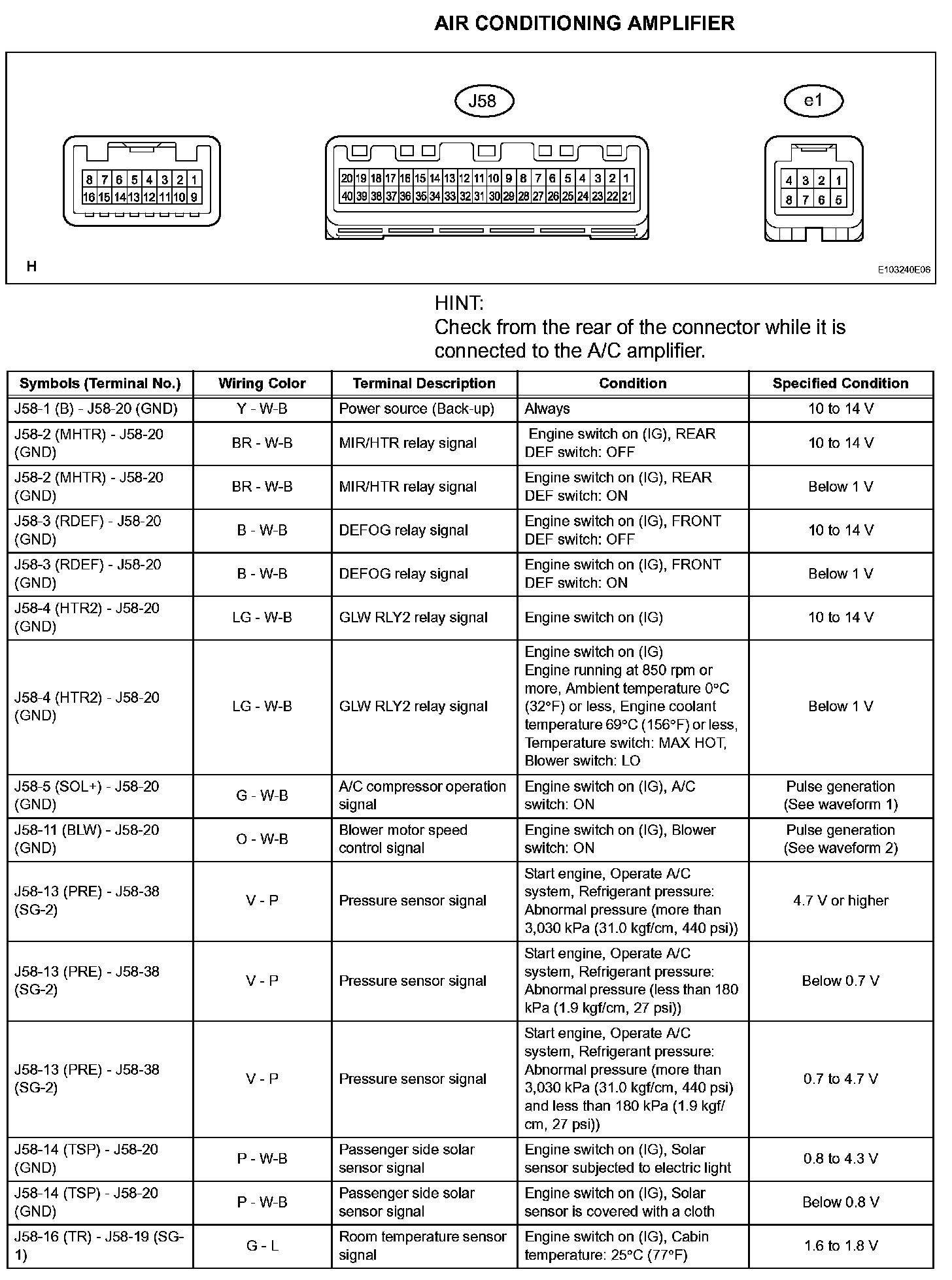

Terminals Of Control Module/Pinouts - Air Conditioning Amplifier (Part 1):

Terminals Of Control Module/Pinouts - Air Conditioning Amplifier (Part 2):

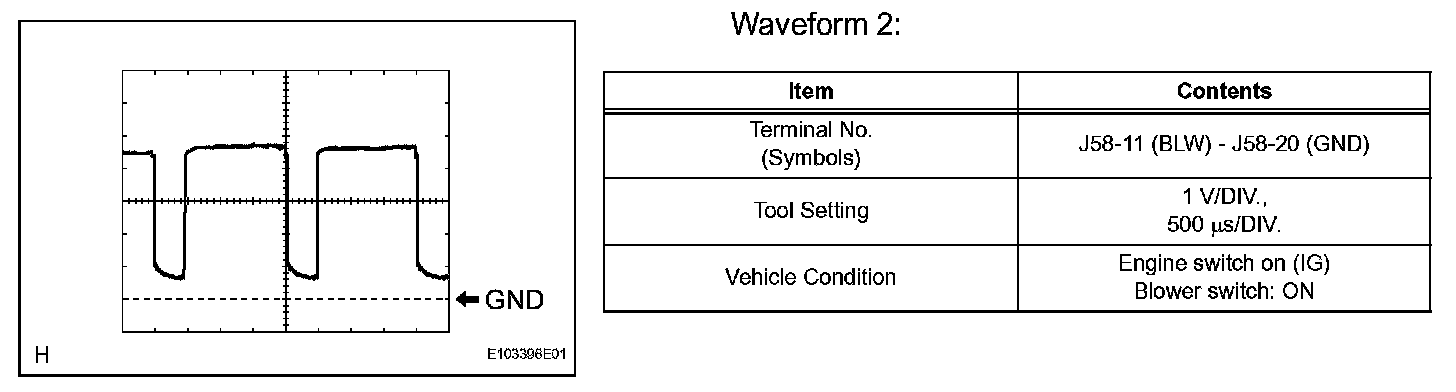

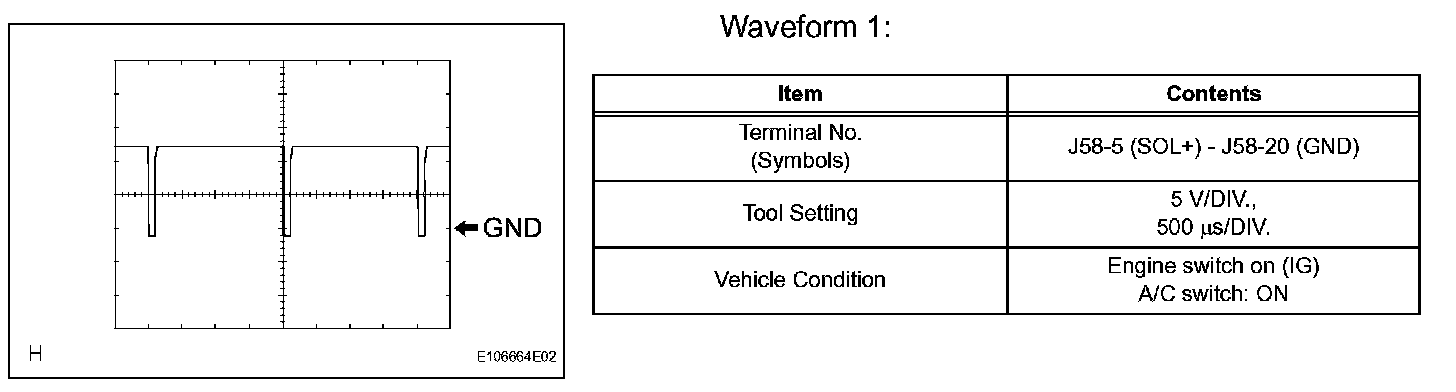

Oscilloscope Waveform:

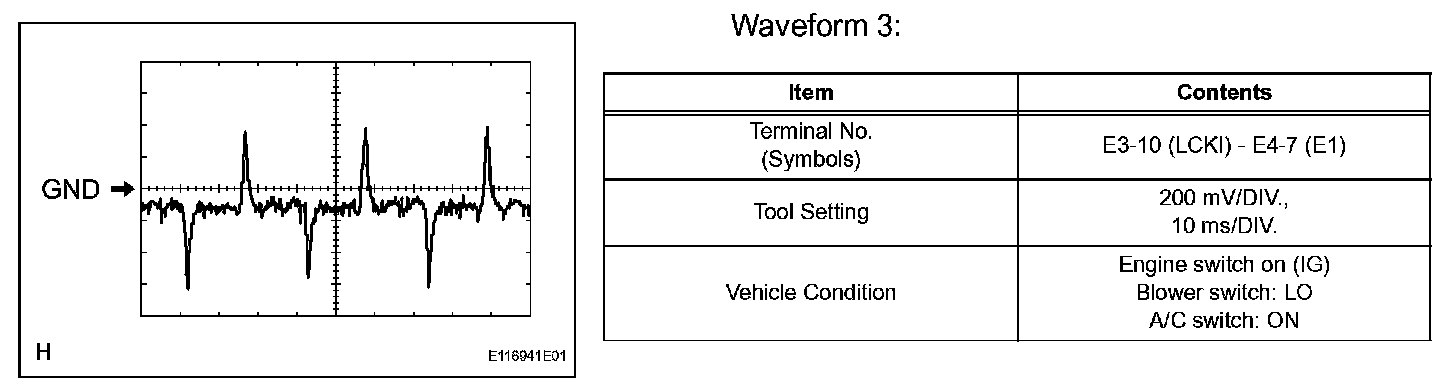

Oscilloscope Waveform:

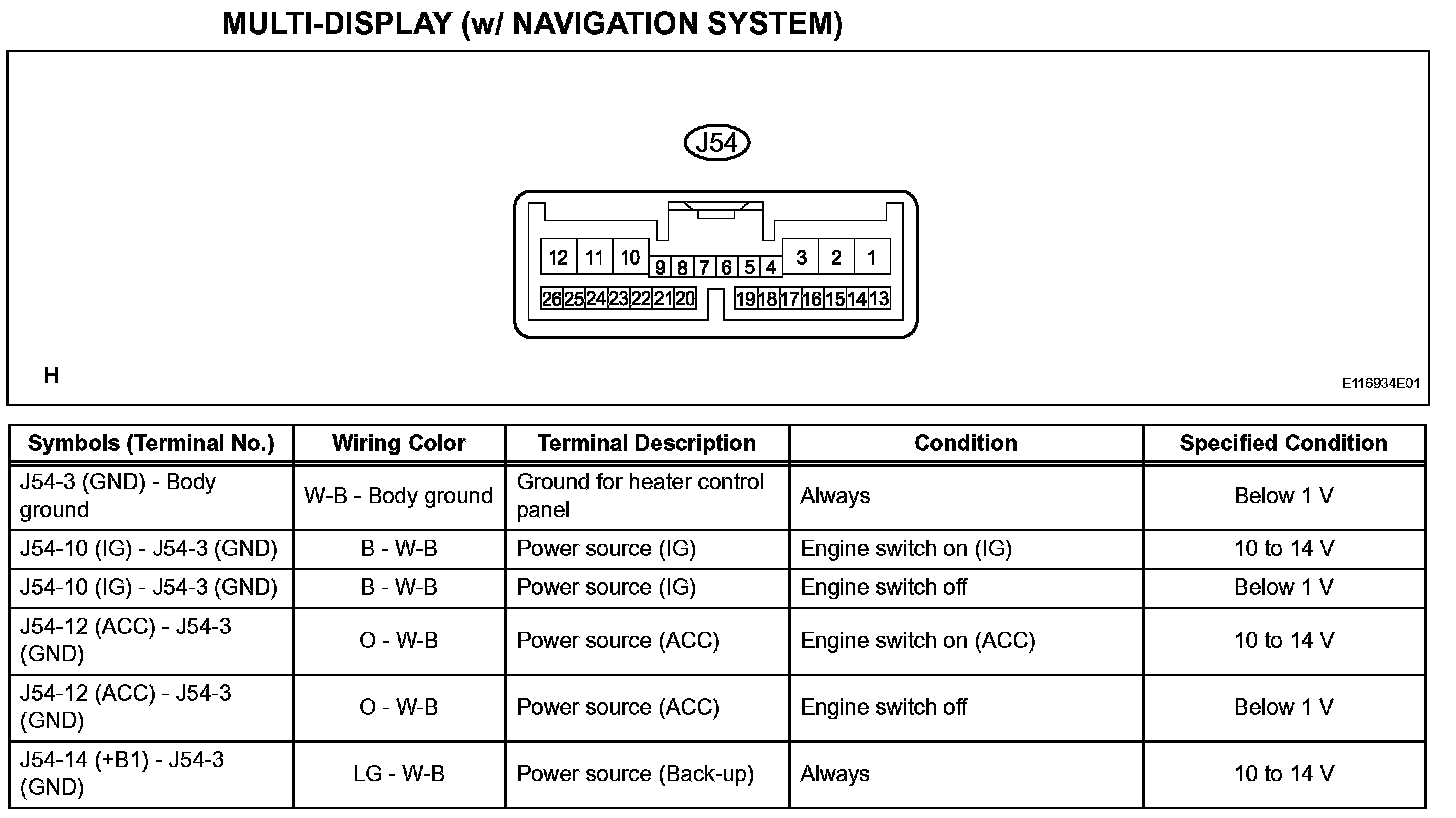

Terminals Of Control Module/Pinouts - Multi-Display (w/ Navigation System):

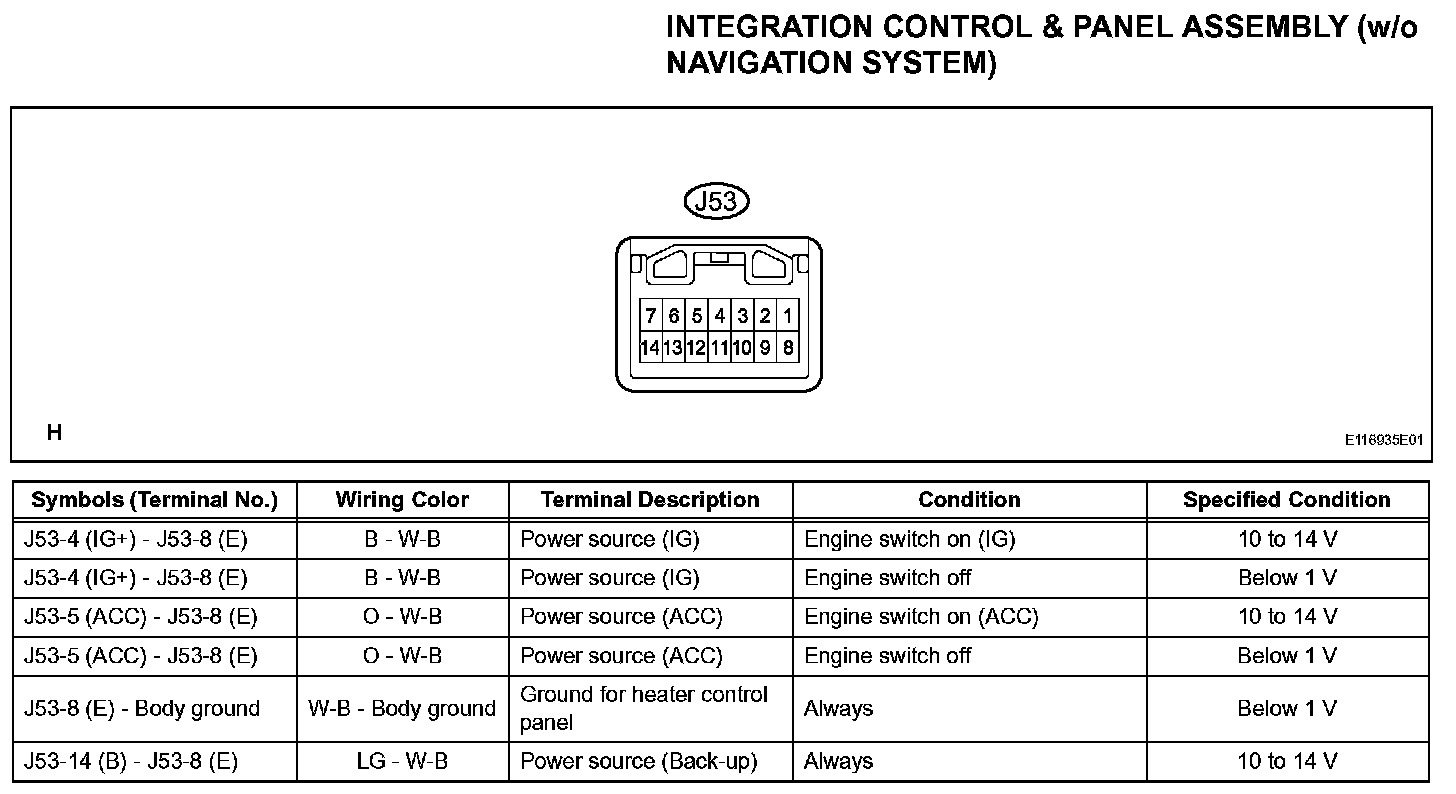

Terminals Of Control Module/Pinouts - Integration Control & Panel Assembly (w/o Navigation System):

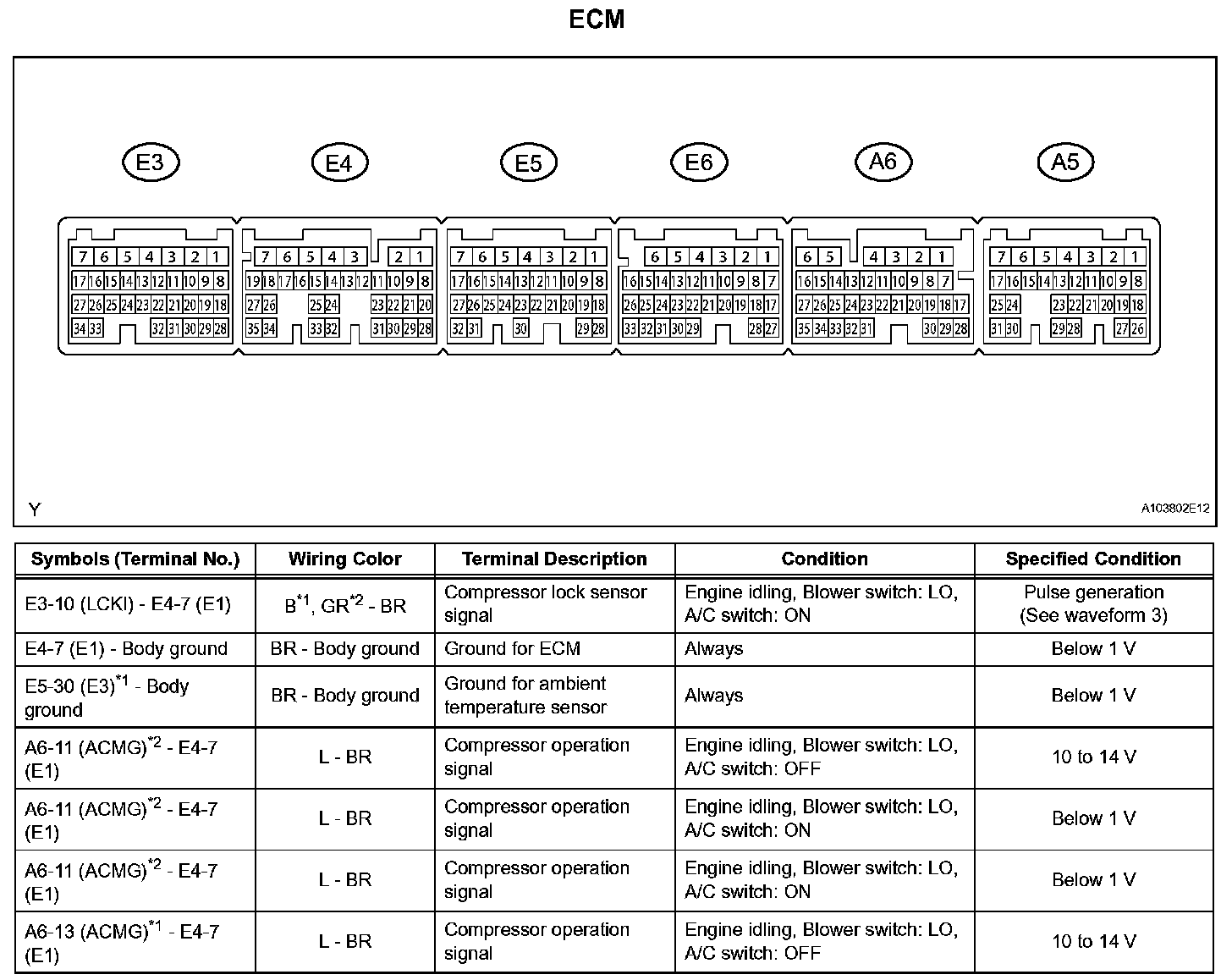

Terminals Of Control Module/Pinouts - ECM (Part 1):

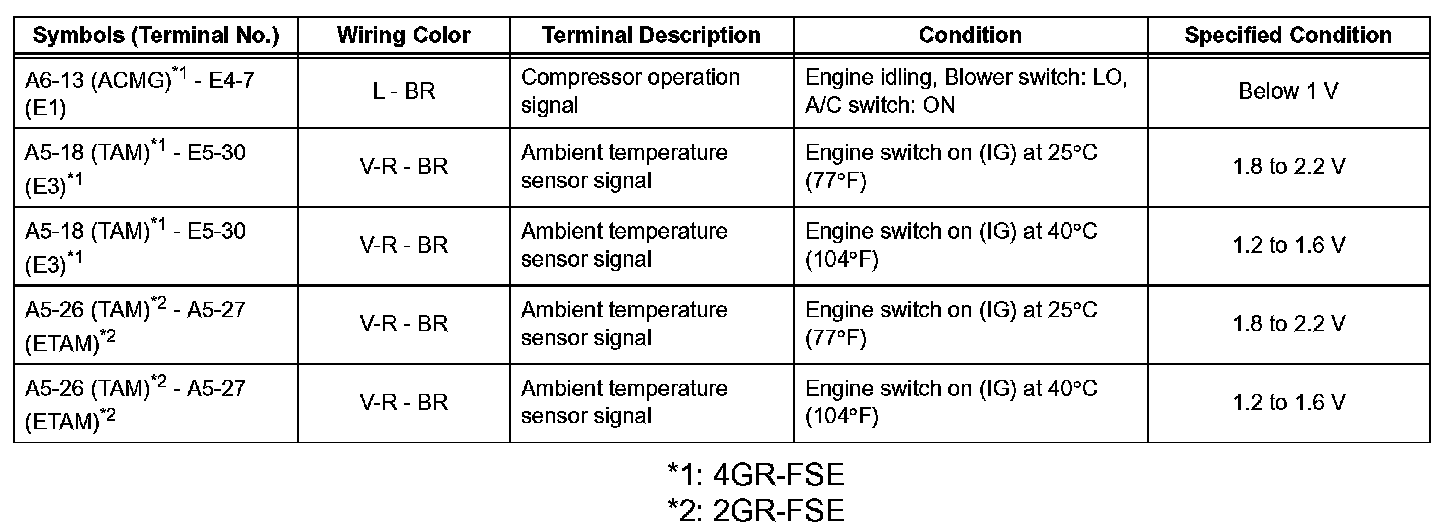

Terminals Of Control Module/Pinouts - ECM (Part 2):

Oscilloscope Waveform:
