PTC Heater Circuit

PTC Heater Circuit

DESCRIPTION

The GLW RLY turns on when it receives a signal from the A/C amplifier. As a result, power is supplied to the heater glow plug.

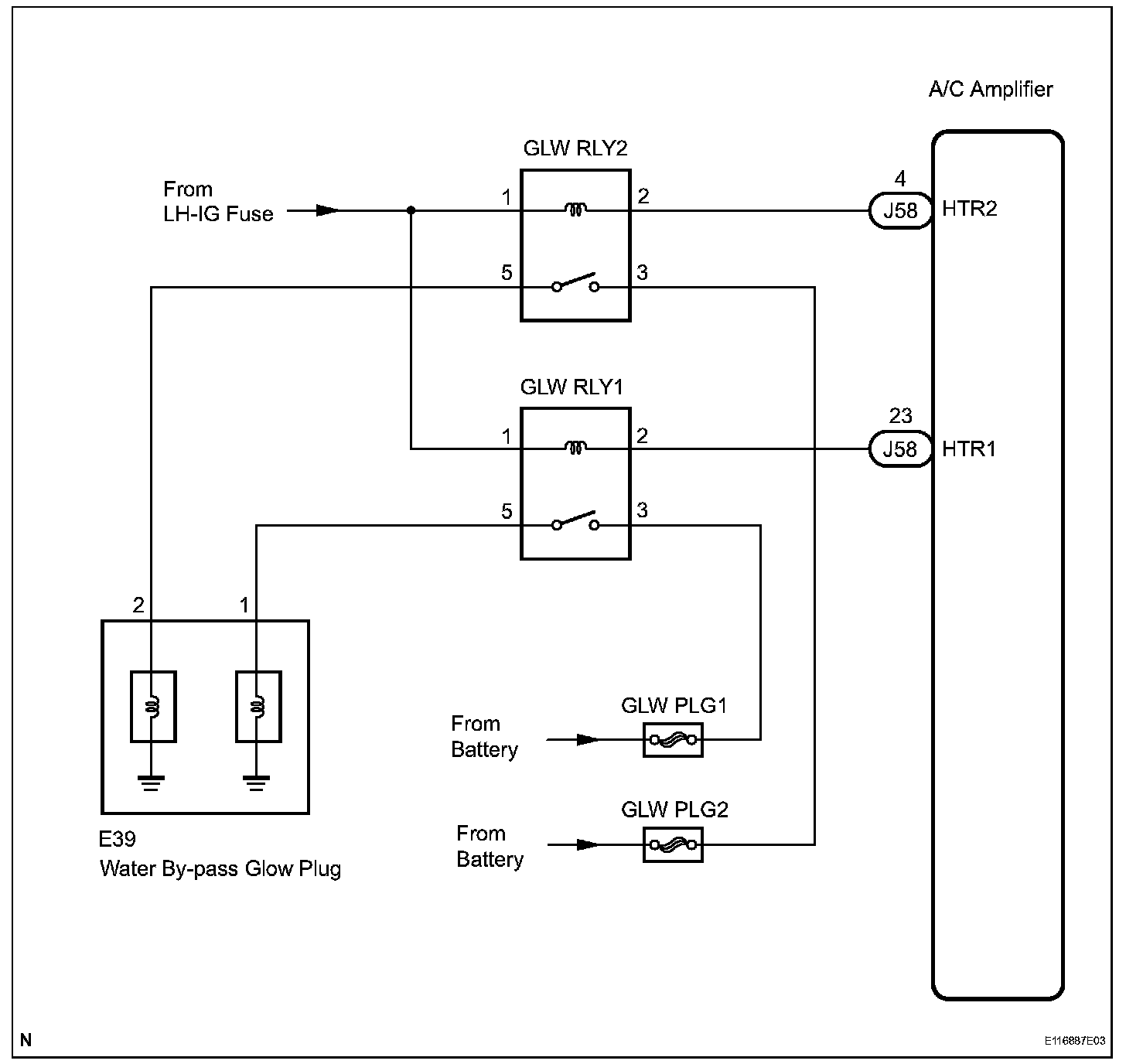

Wiring Diagram:

Step 1-2:

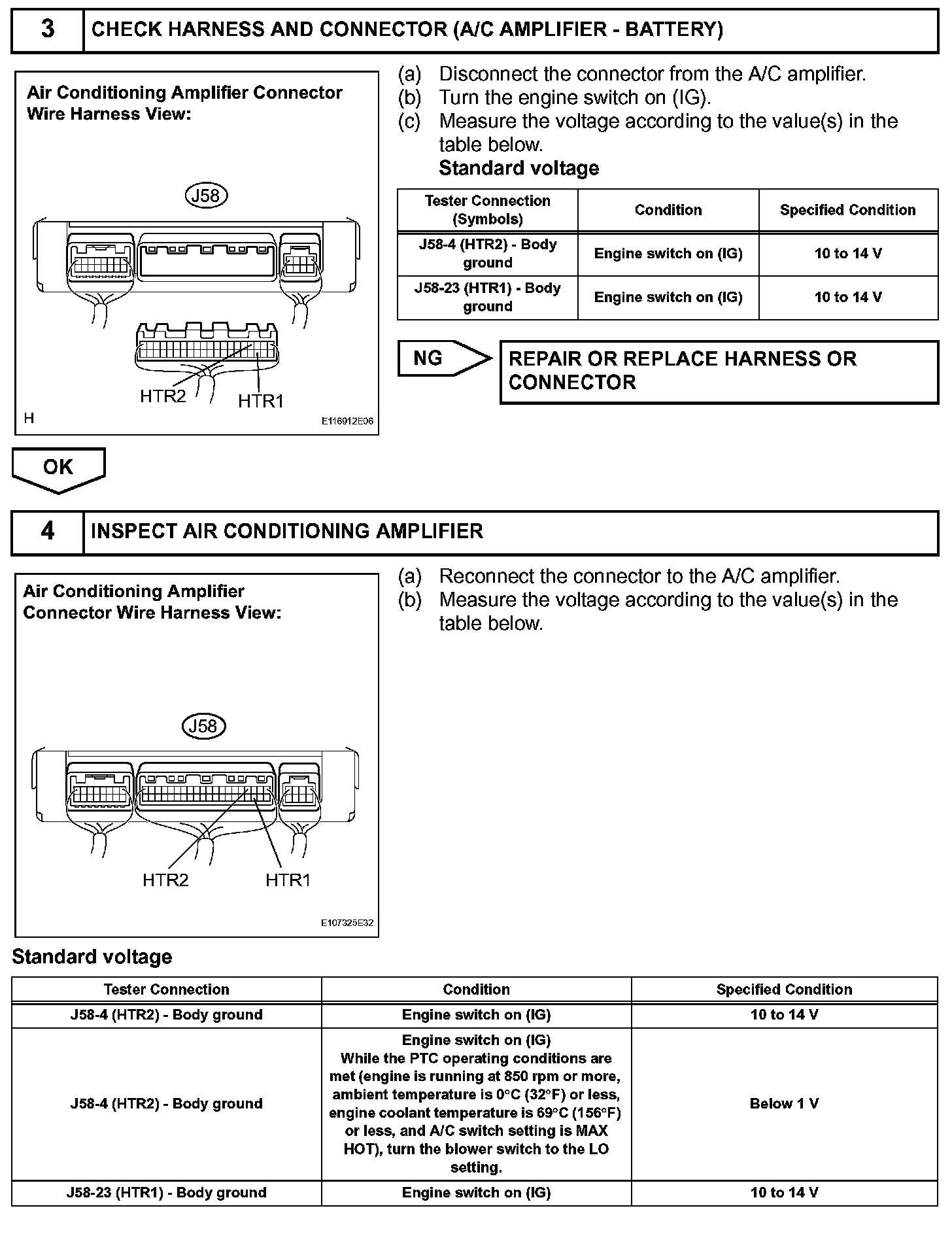

Step 3-4:

Step 4 (Continued)-6:

Step 6 (Continued):

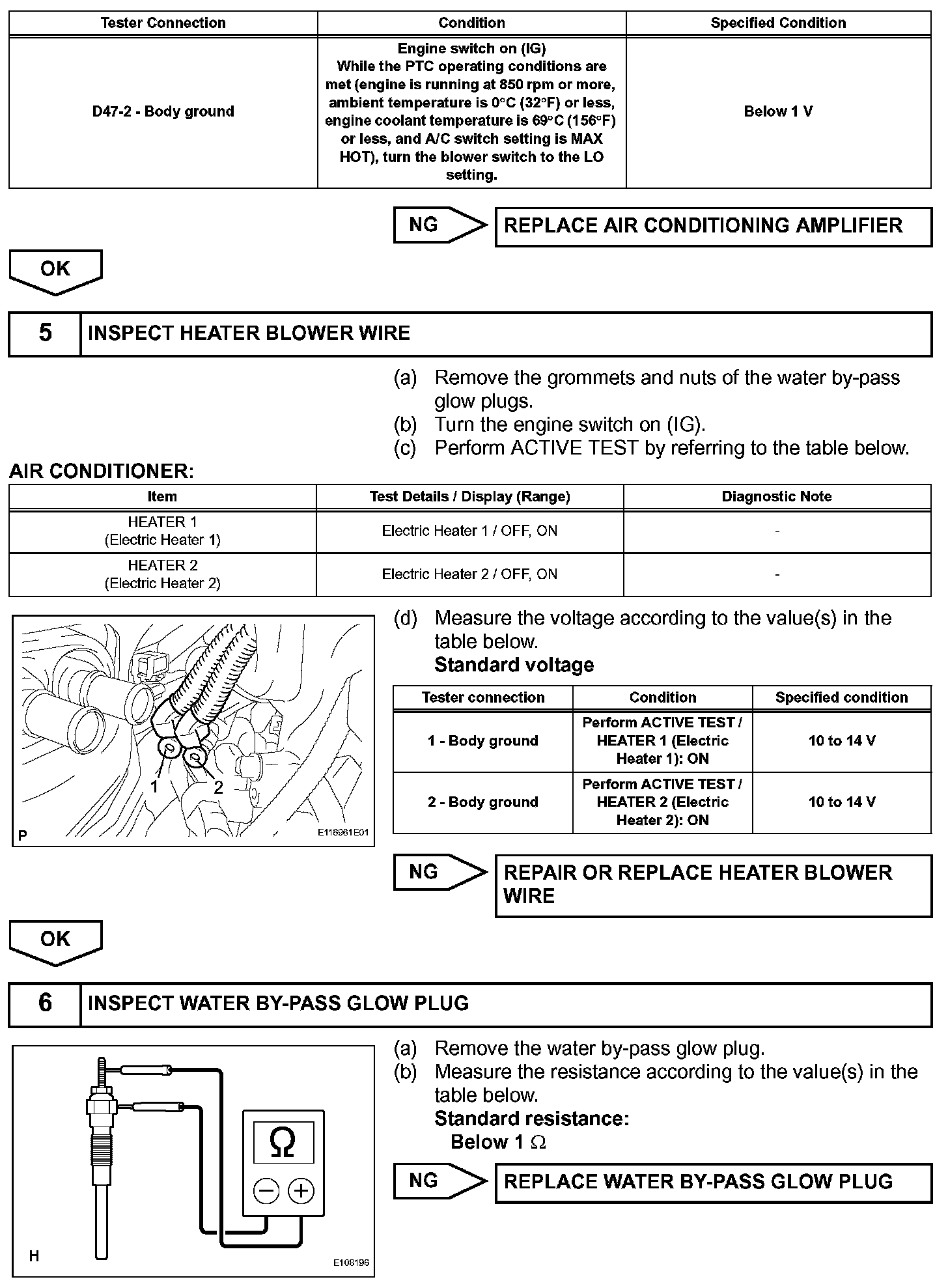

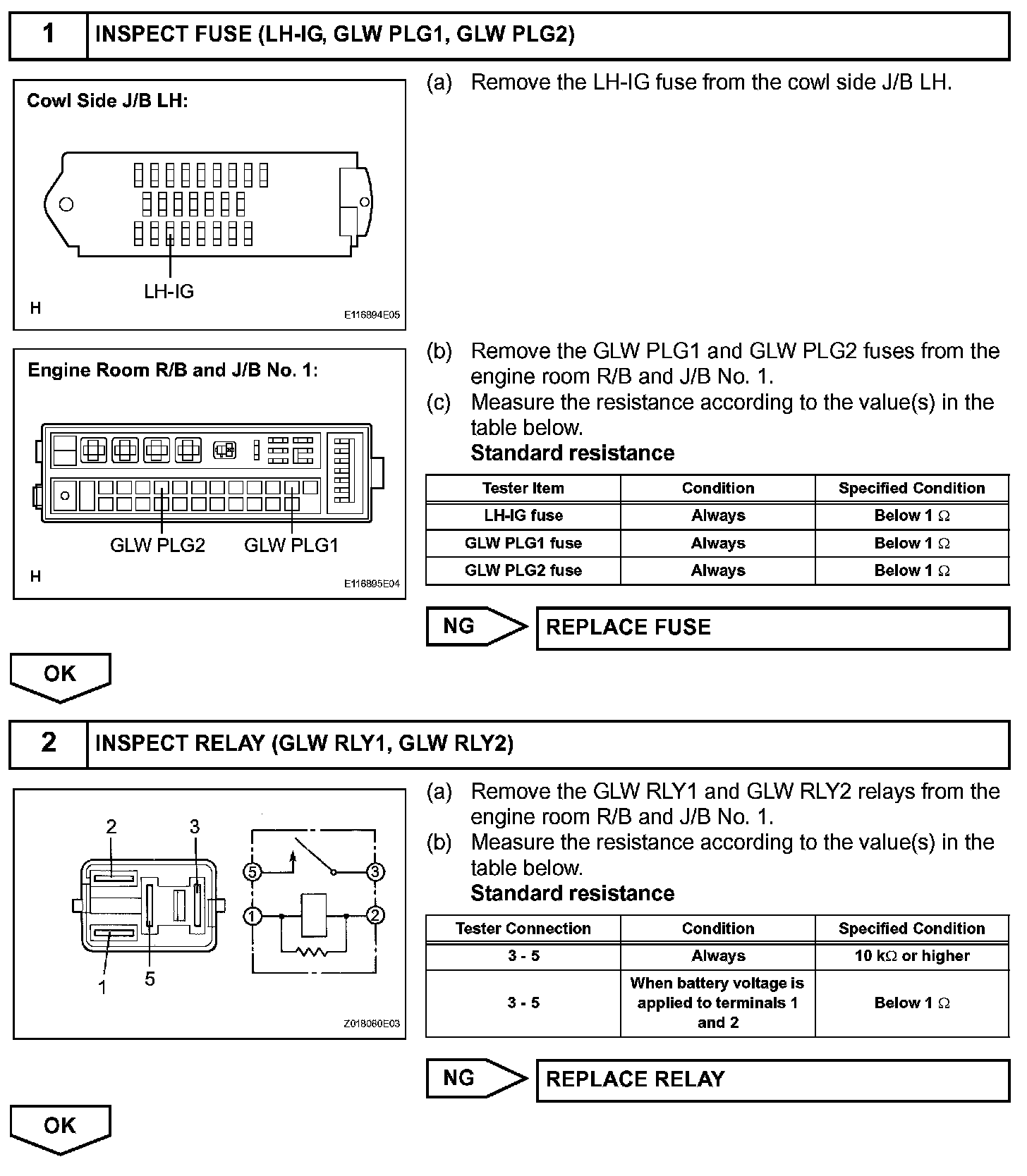

INSPECTION PROCEDURE
