Low Pressure Sensor Circuit
Low Pressure Sensor CircuitDESCRIPTION
The low pressure sensor reduces the capacity of the compressor when the compressor is operating at high speed. This sensor monitors the pressure on the low pressure side at terminal CUT+ and sends a signal to terminal PSW of the A/C amplifier, which increases the accuracy of compressor control.

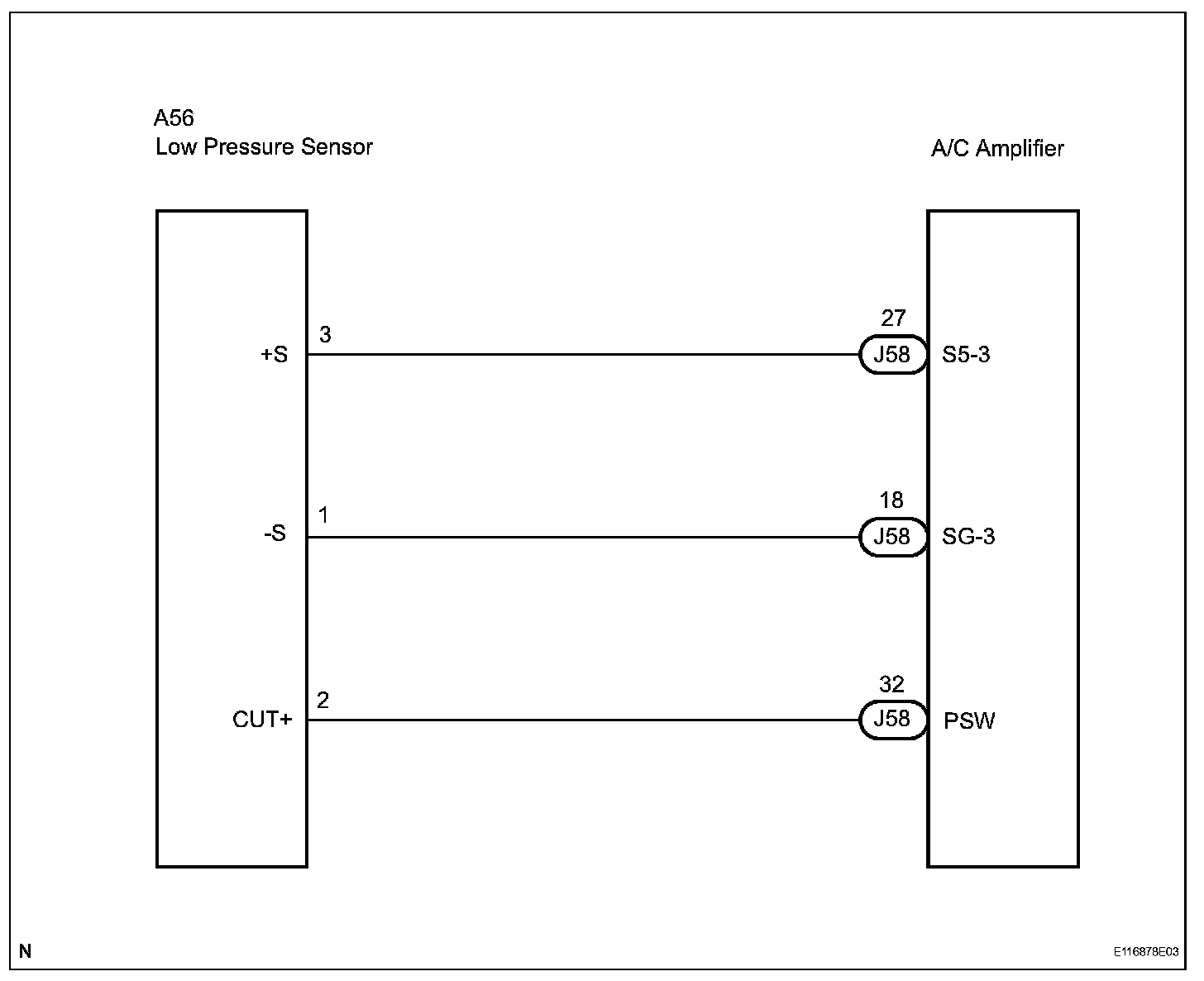

Wiring Diagram:

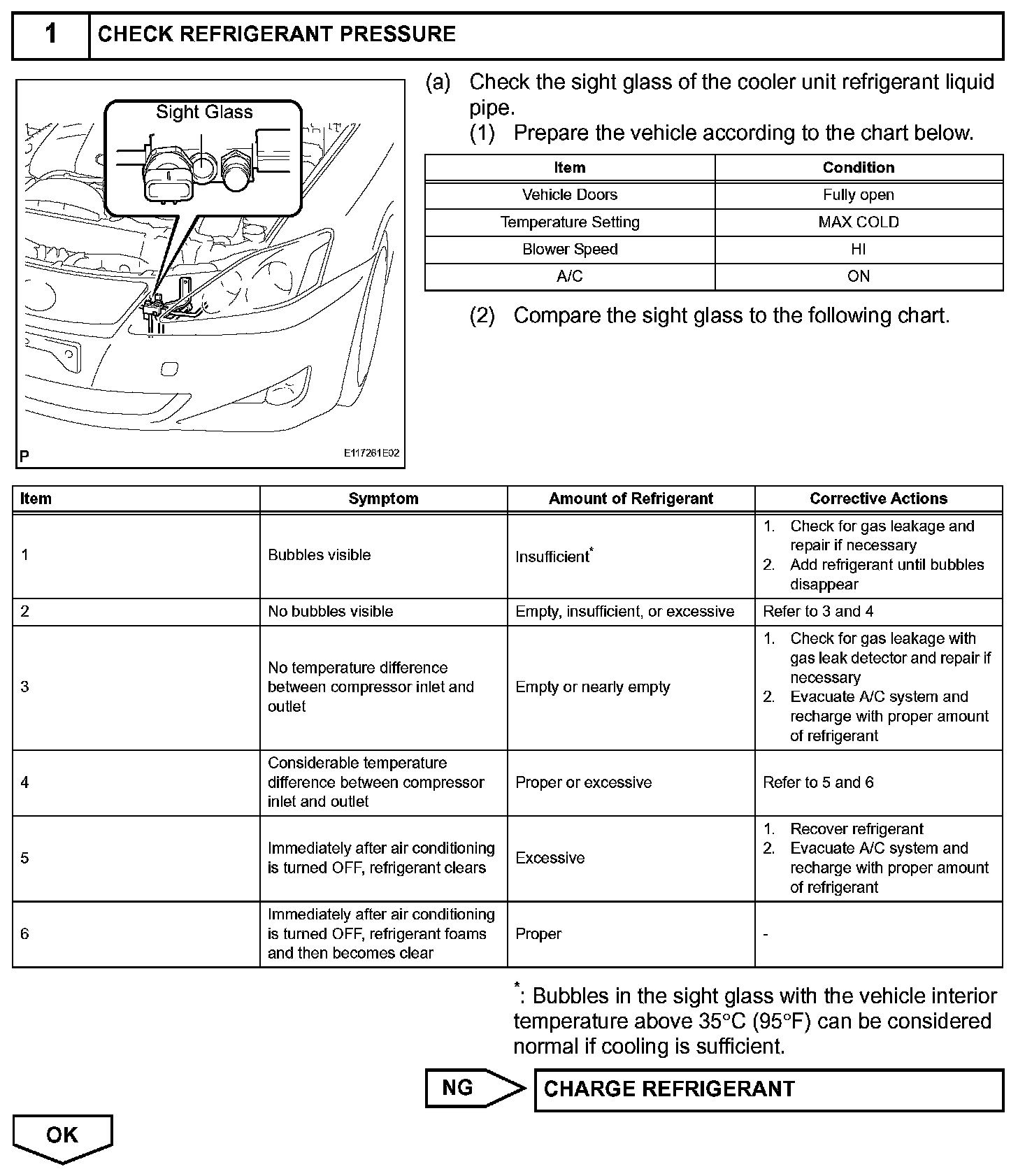

Step 1:

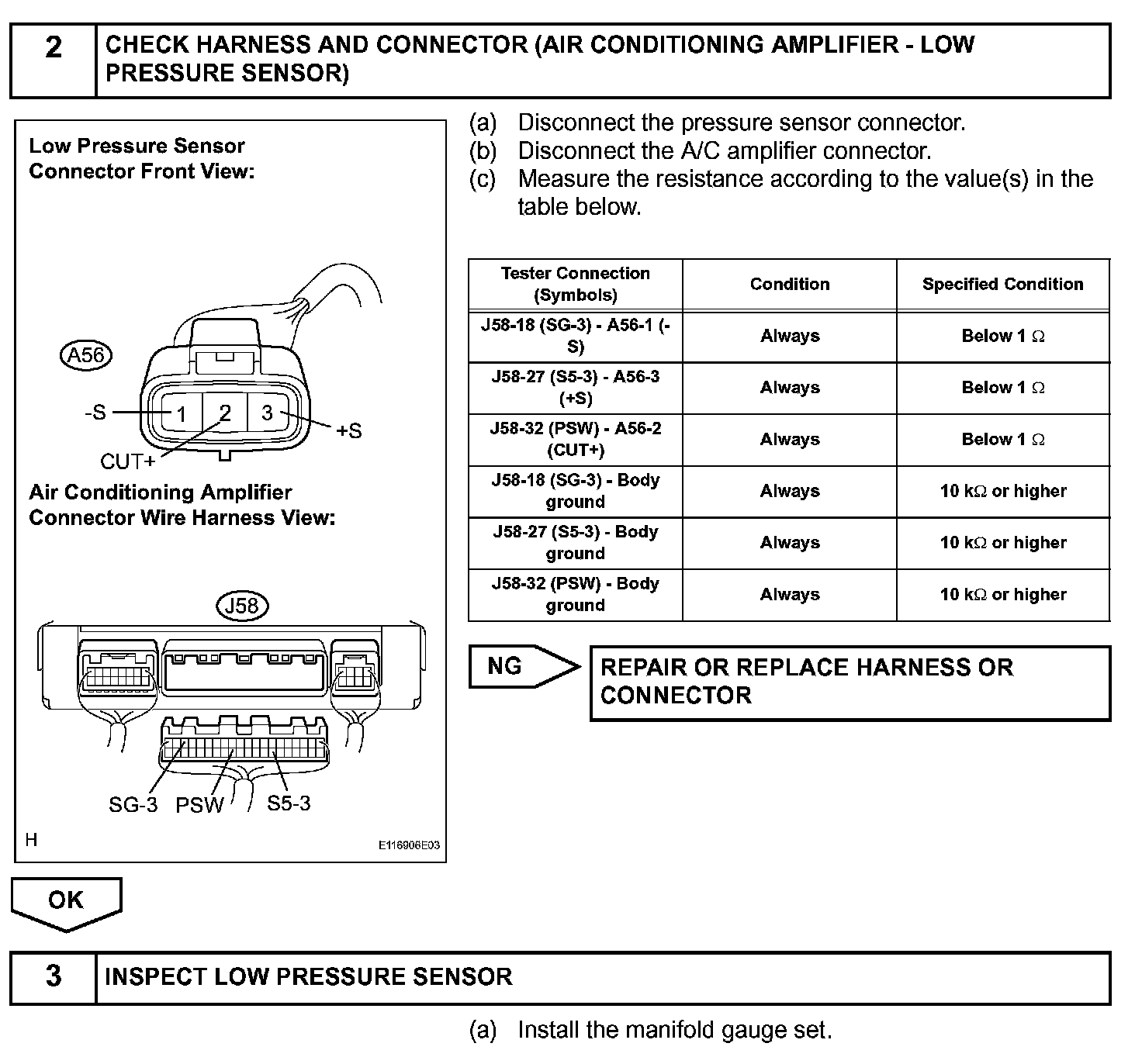

Step 2-3:

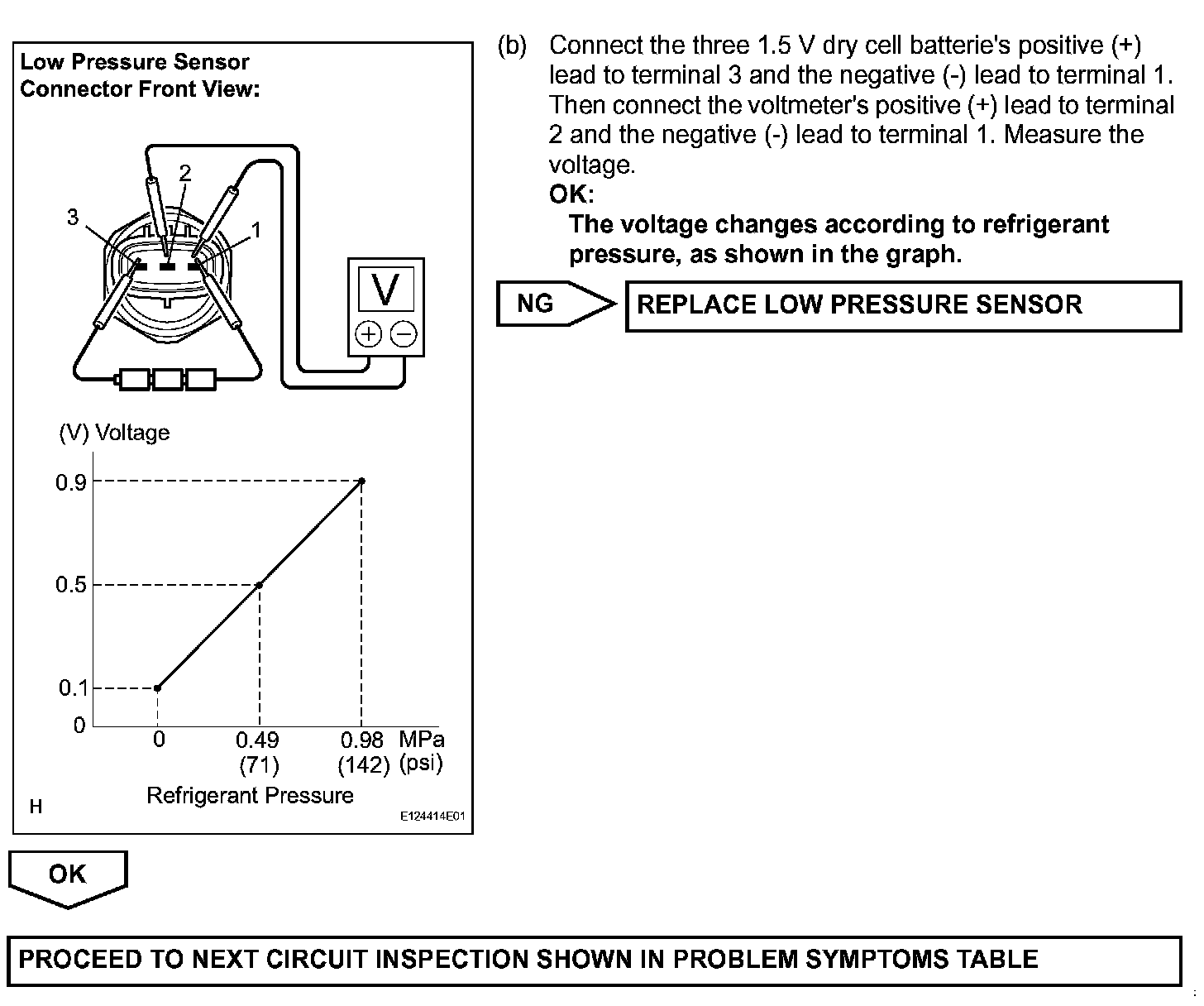

Step 3 (Continued):
INSPECTION PROCEDURE
