IG Power Source Circuit

IG Power Source Circuit

DESCRIPTION

The main power source is supplied to the A/C amplifier when the engine switch on (IG).

The power source is used for operating the A/C amplifier and servo motor, etc.

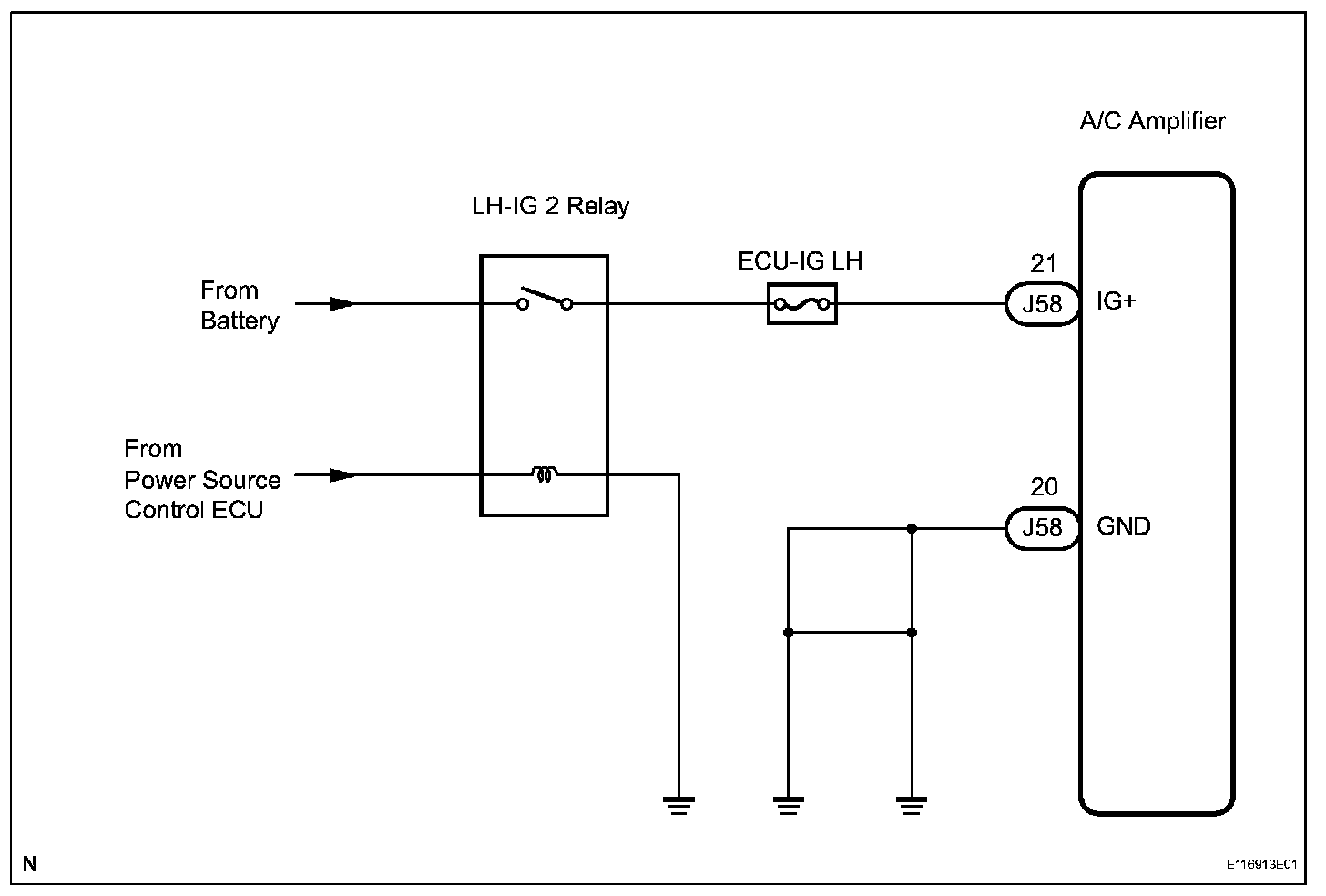

Wiring Diagram:

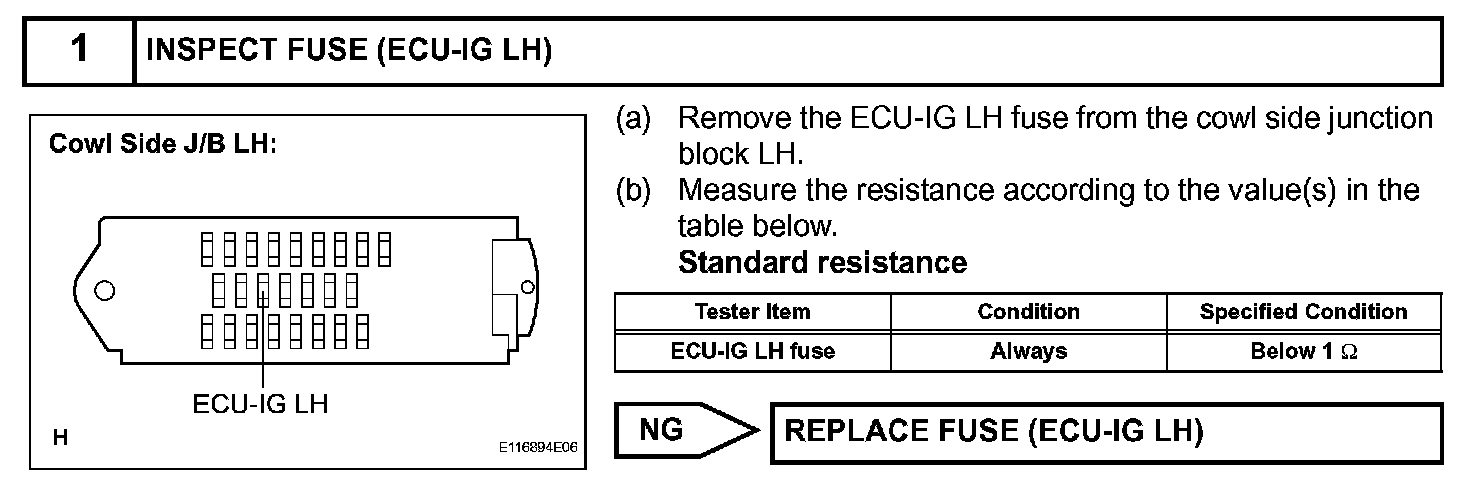

Step 1:

Step 1 (Continued)-3:

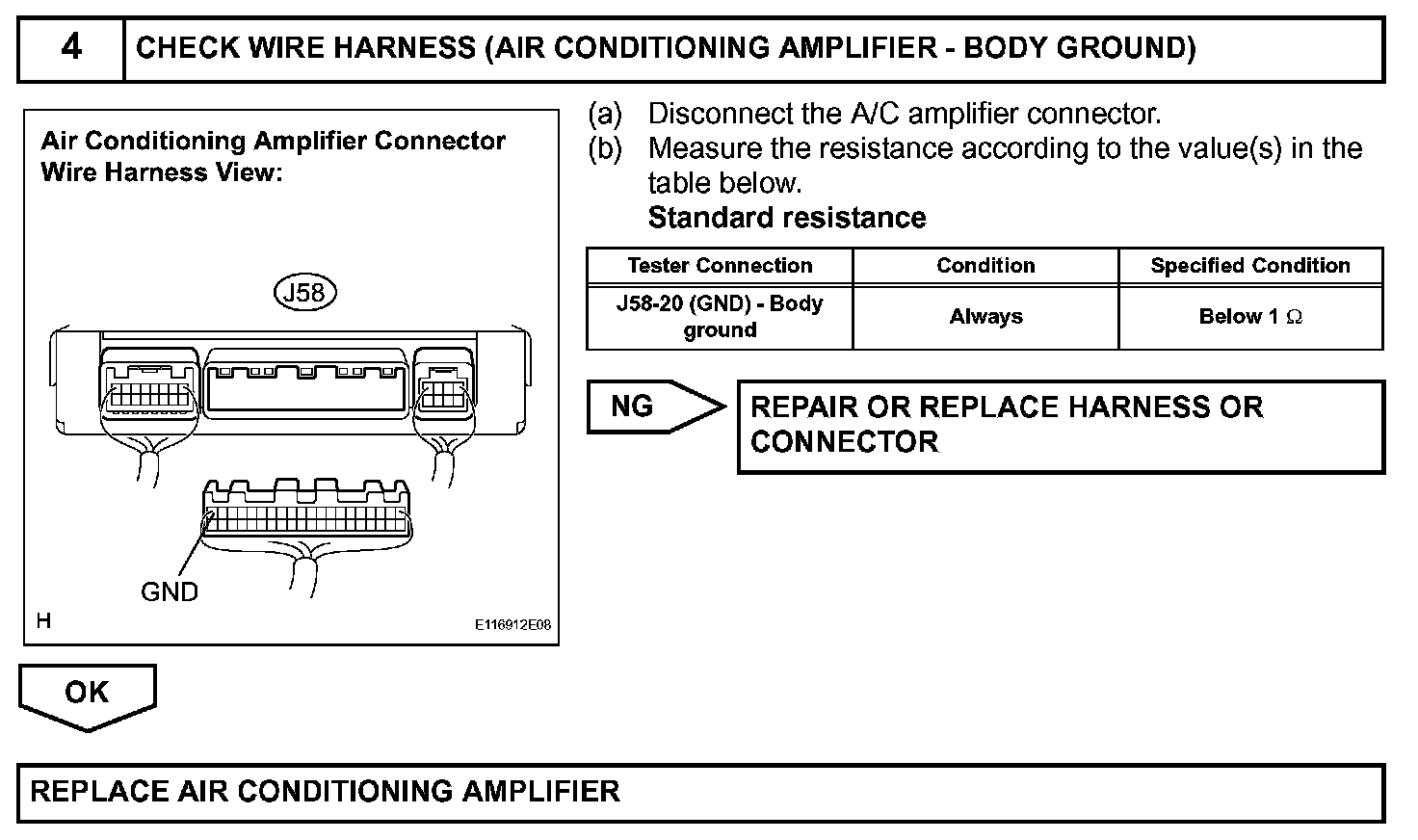

Step 4:

INSPECTION PROCEDURE

HINT: Start the engine before inspection. Check the IG1 relay or battery if the engine does not start.
