Blower Motor Circuit

Blower Motor Circuit

DESCRIPTION




The blower motor is operated by signals from the A/C amplifier. The blower motor speed is controlled using various duty ratios.

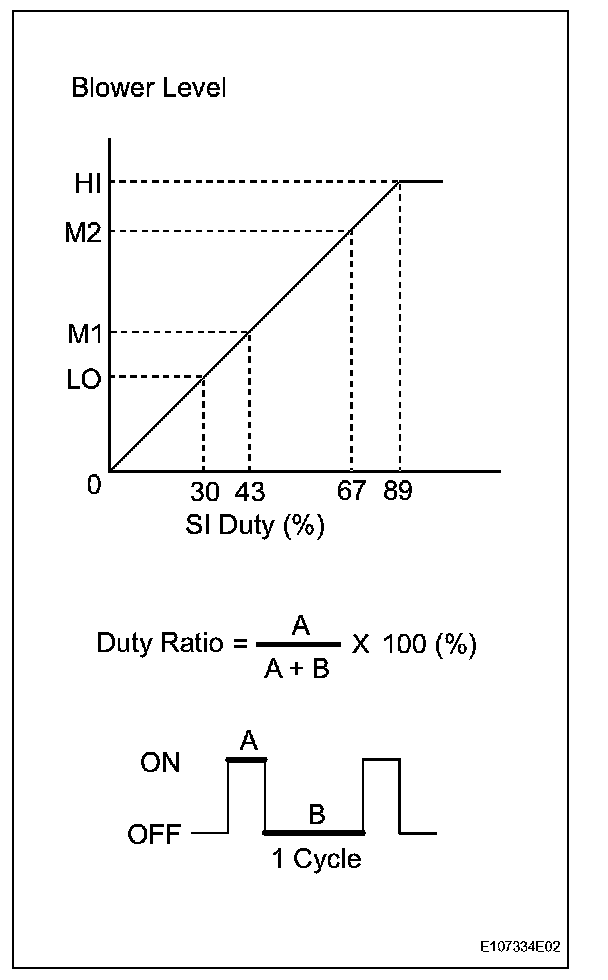

Duty Ratio:
The duty ratio is the ratio of the blower motor ON time (A) to the total of the blower motor ON and OFF time (A + B).

The blower motor controller controls the blower motor speed.

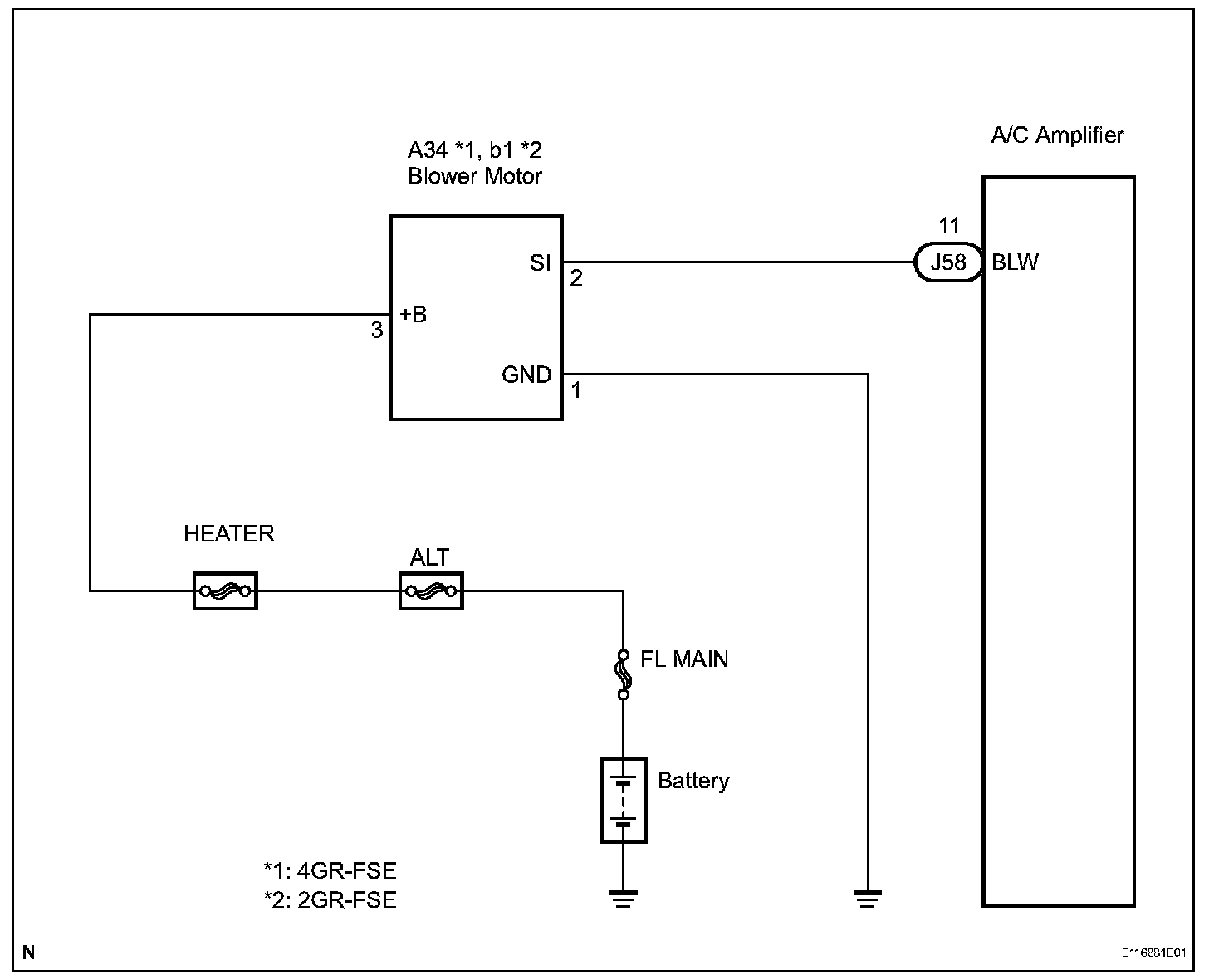

Wiring Diagram:

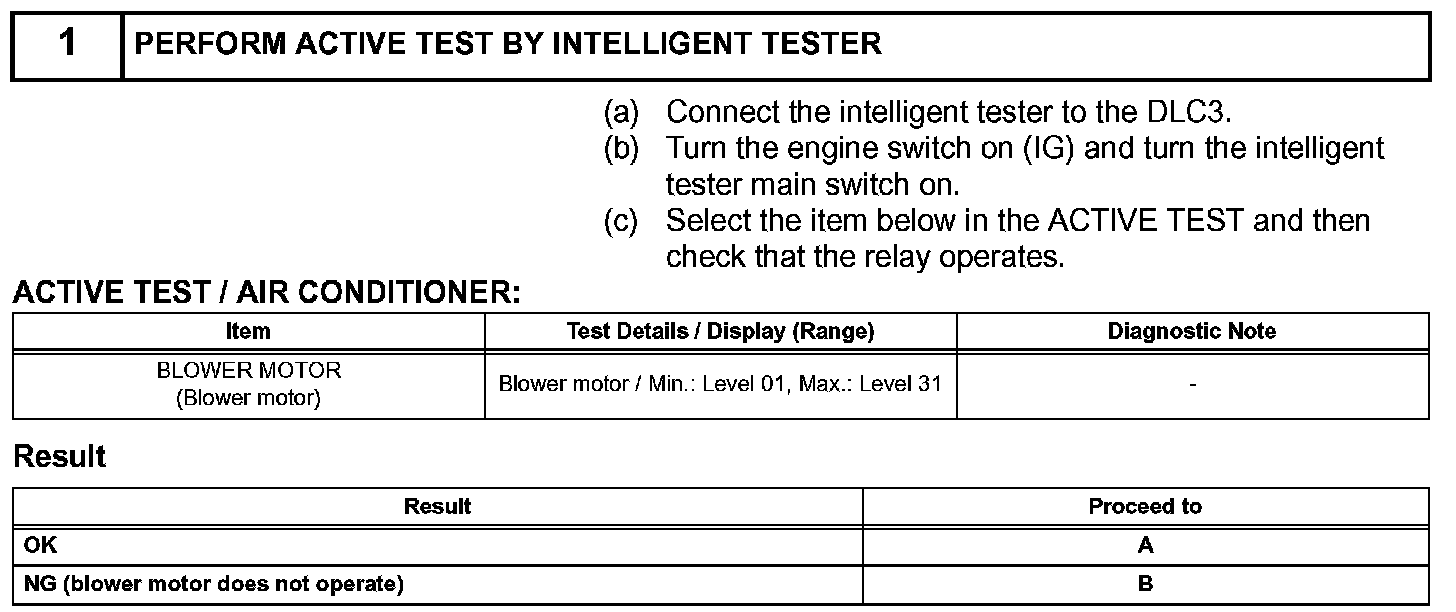

Step 1:

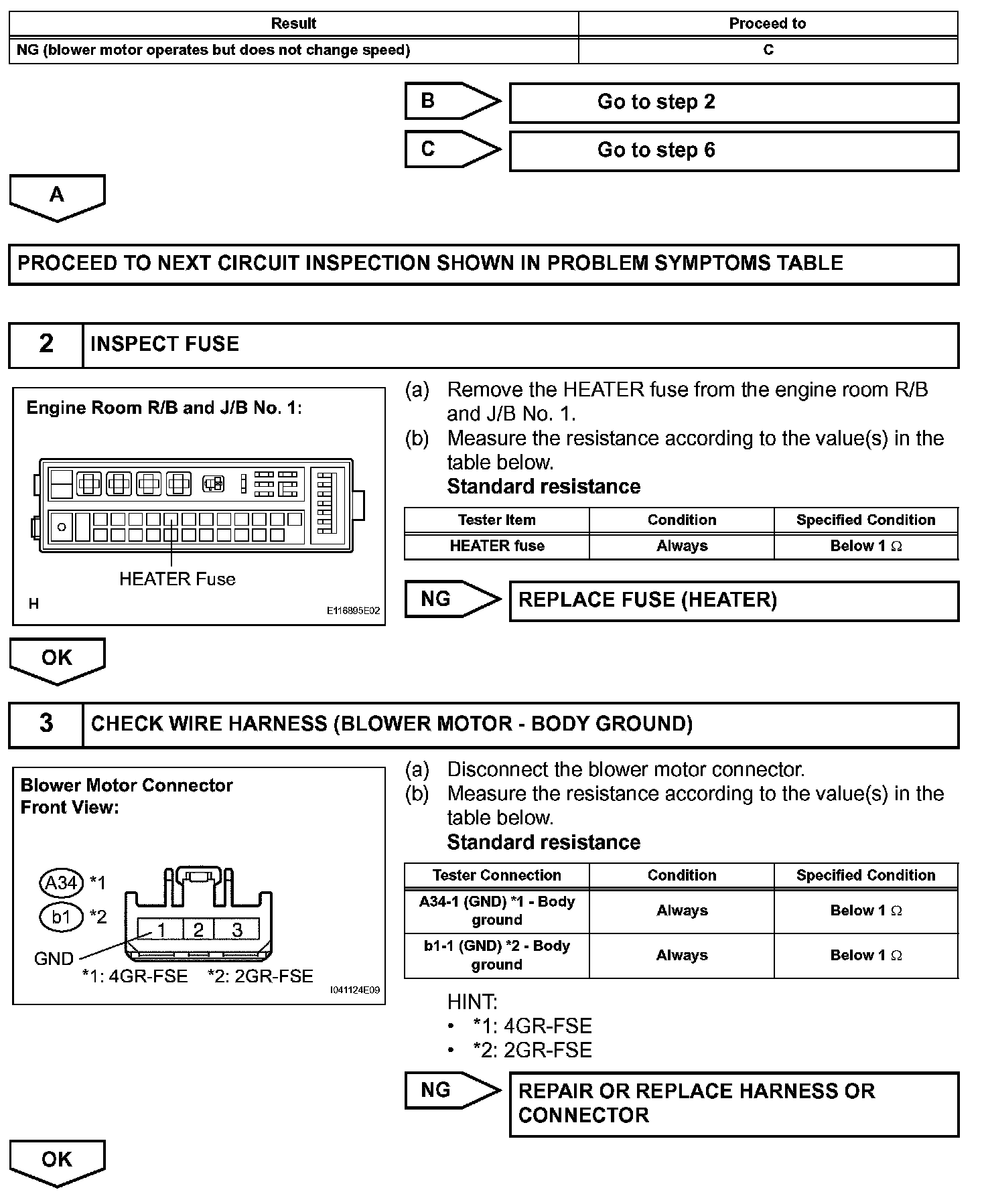

Step 1 (Continued)-3:

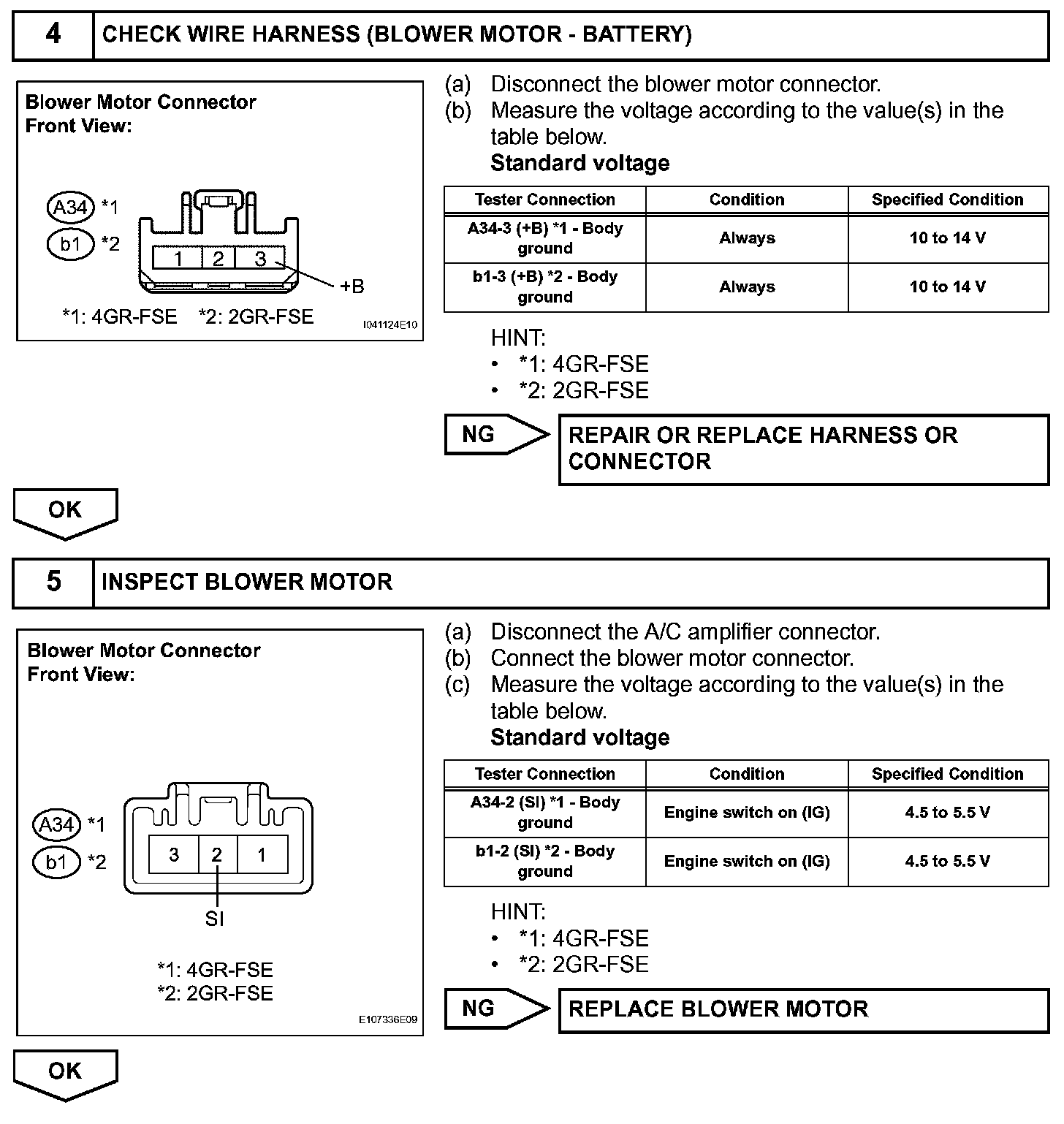

Step 4-5:

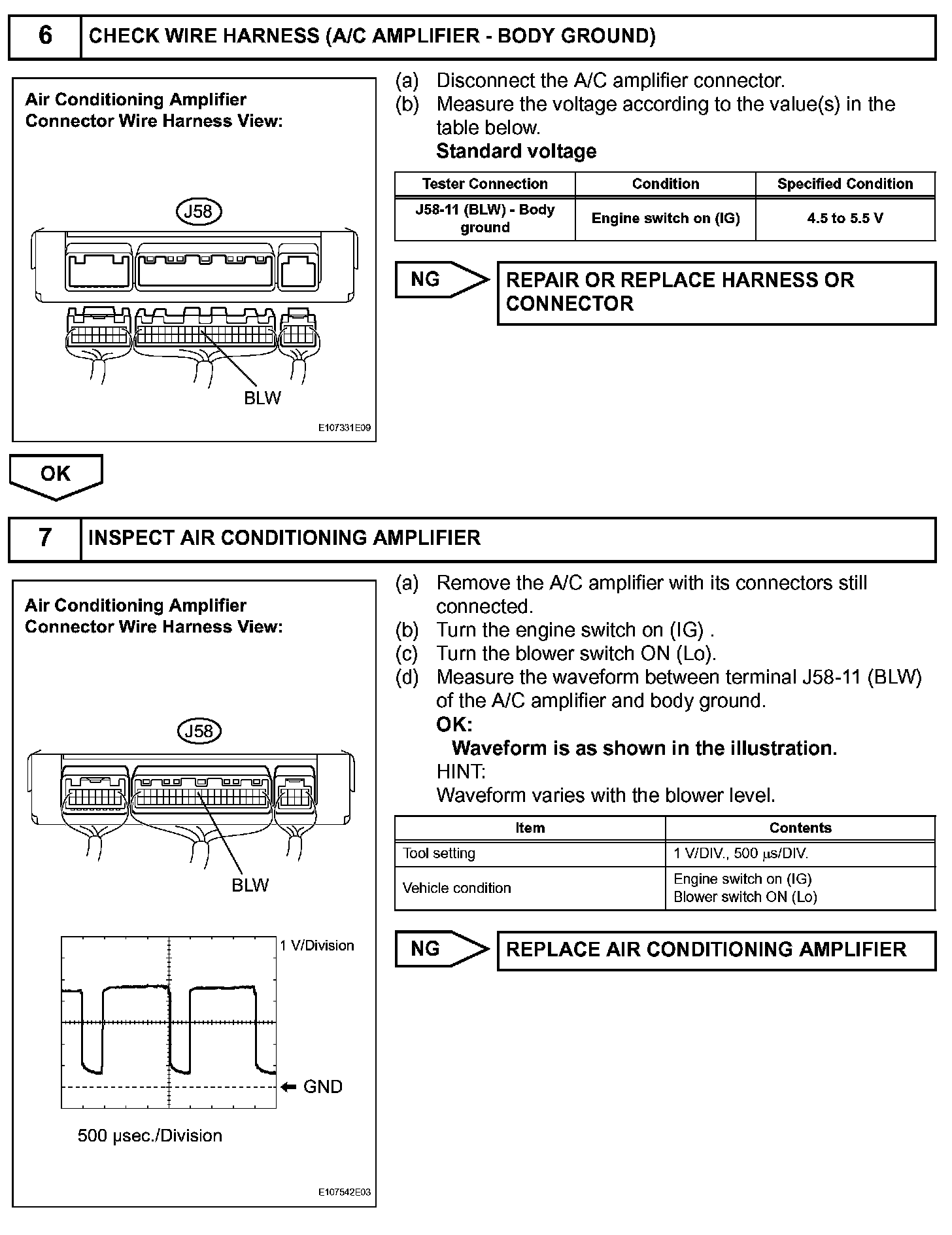

Step 6-7:

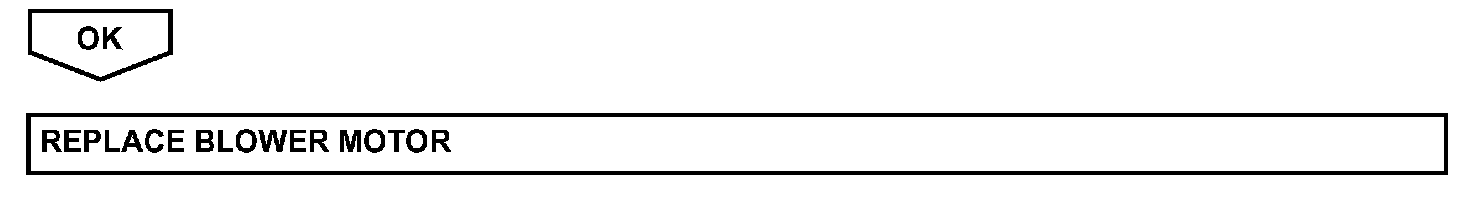

Step 7 (Continued):

INSPECTION PROCEDURE
