Air Conditioning Compressor Magnetic Clutch Circuit
Air Conditioning Compressor Magnetic Clutch CircuitDESCRIPTION
The A/C amplifier sends a magnetic clutch ON command signal to the ECM through the BEAN line and CAN line. Then the ECM turns the A/C COMP relay on to turn the magnetic clutch on.

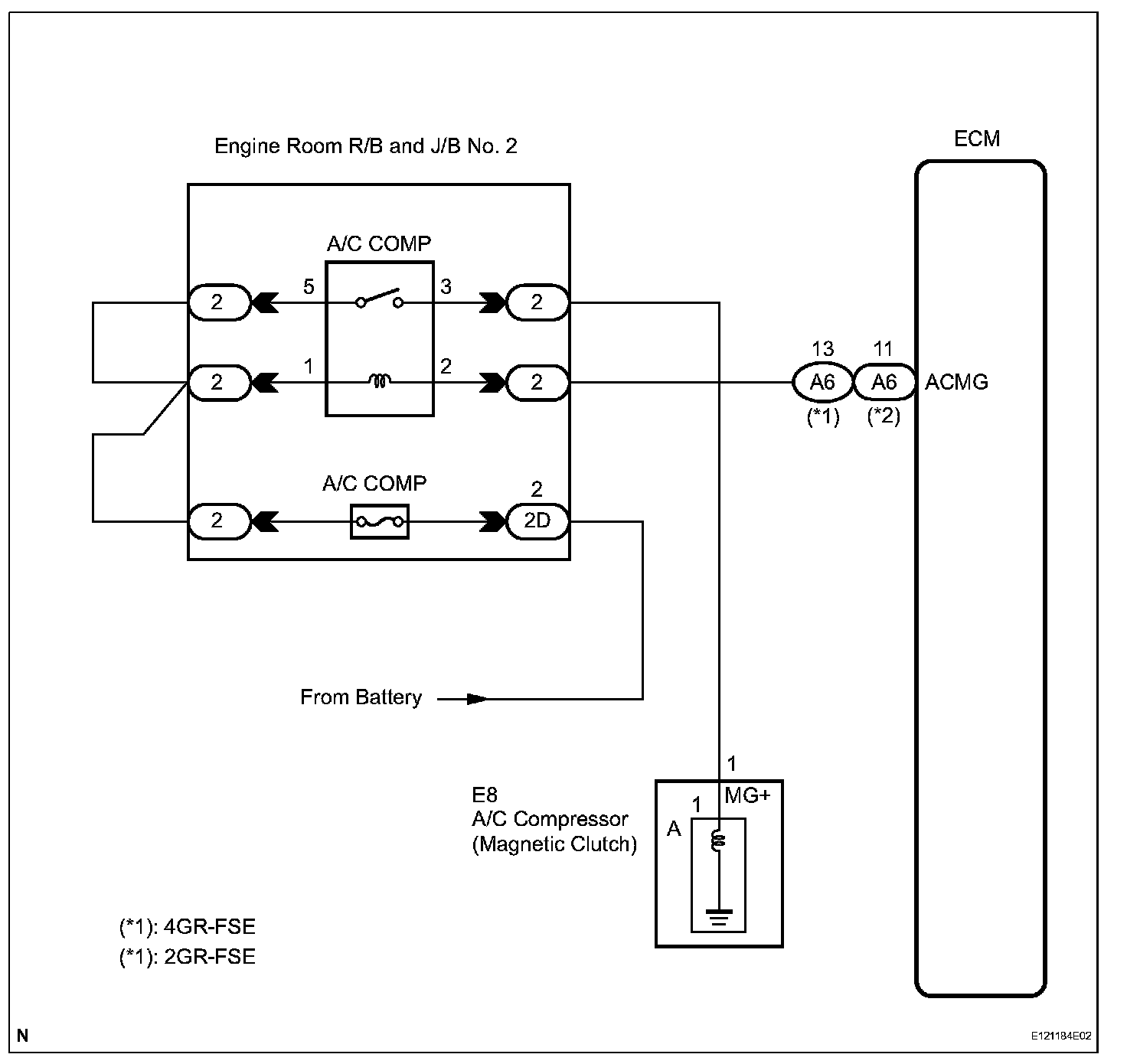

Wiring Diagram:

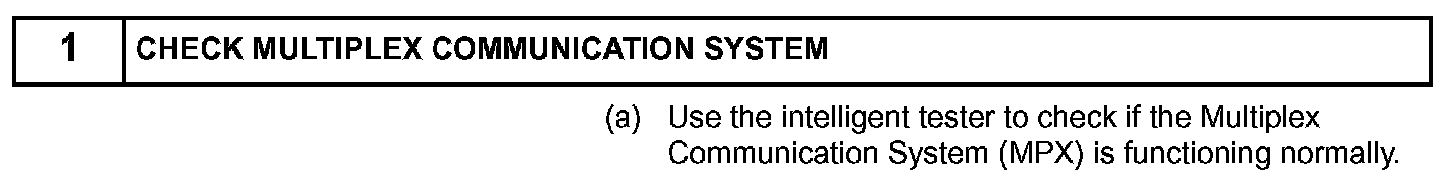

Step 1:

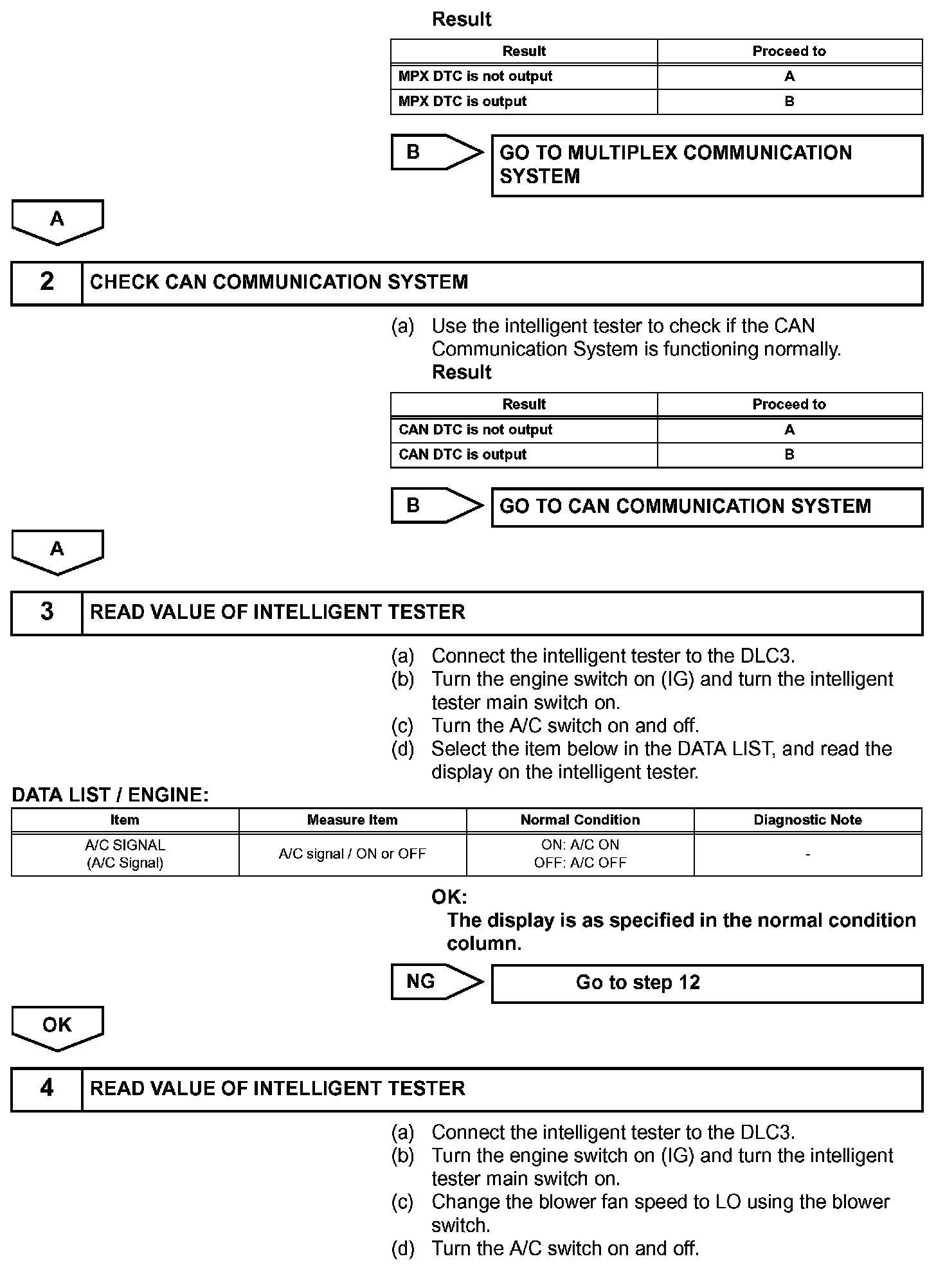

Step 1 (Continued)-4:

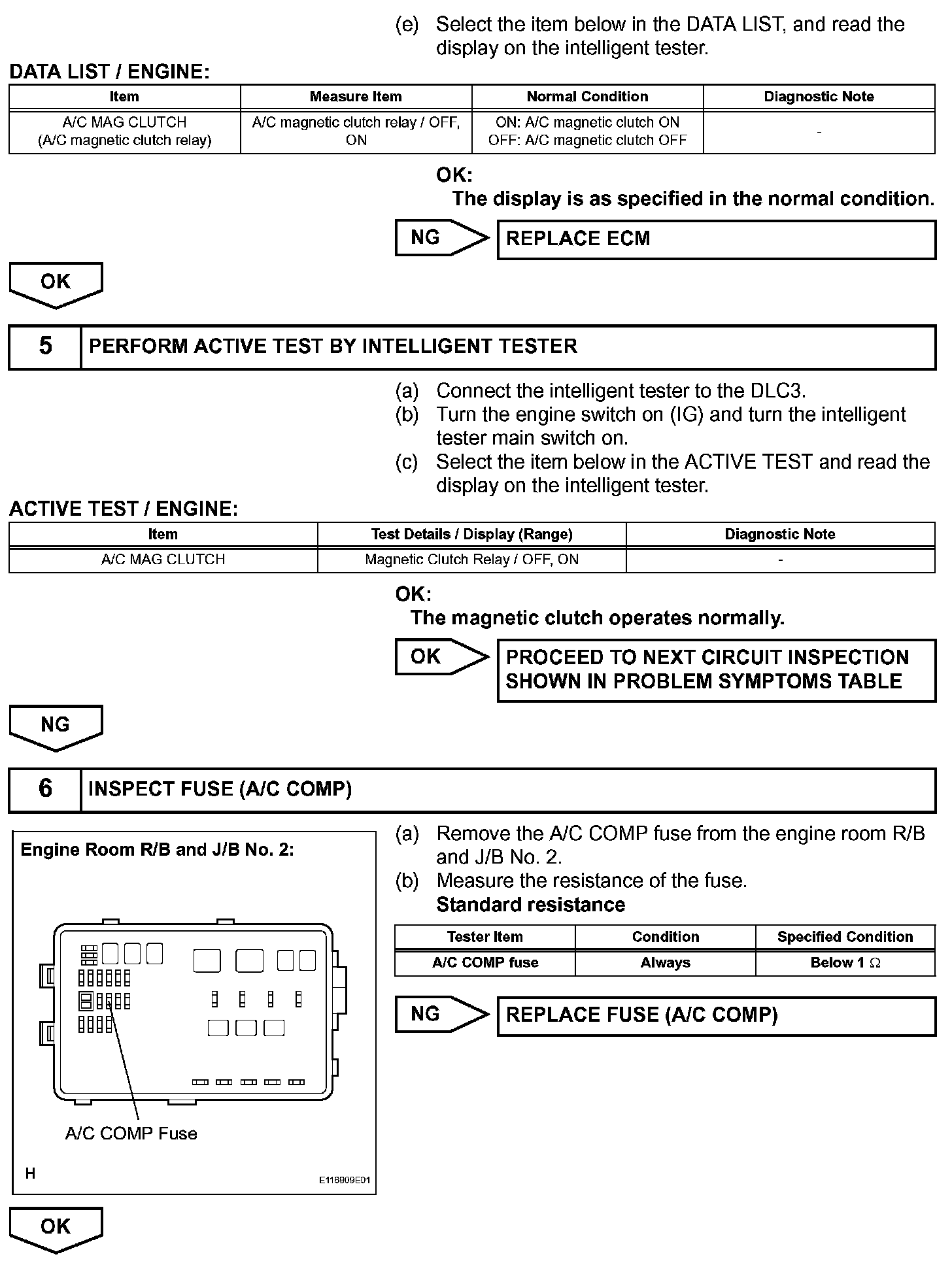

Step 4 (Continued)-6:
Step 7-8:

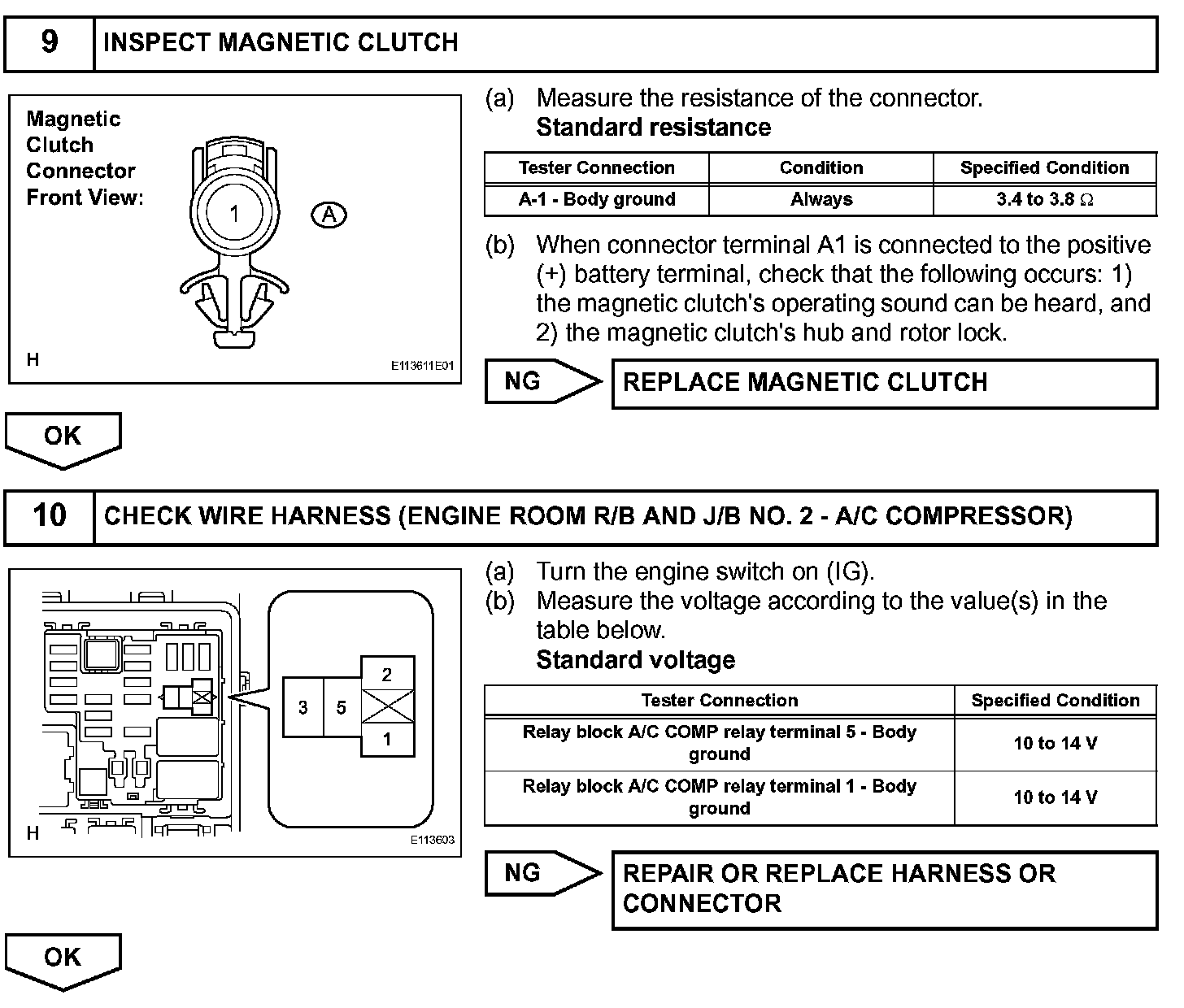

Step 9-10:

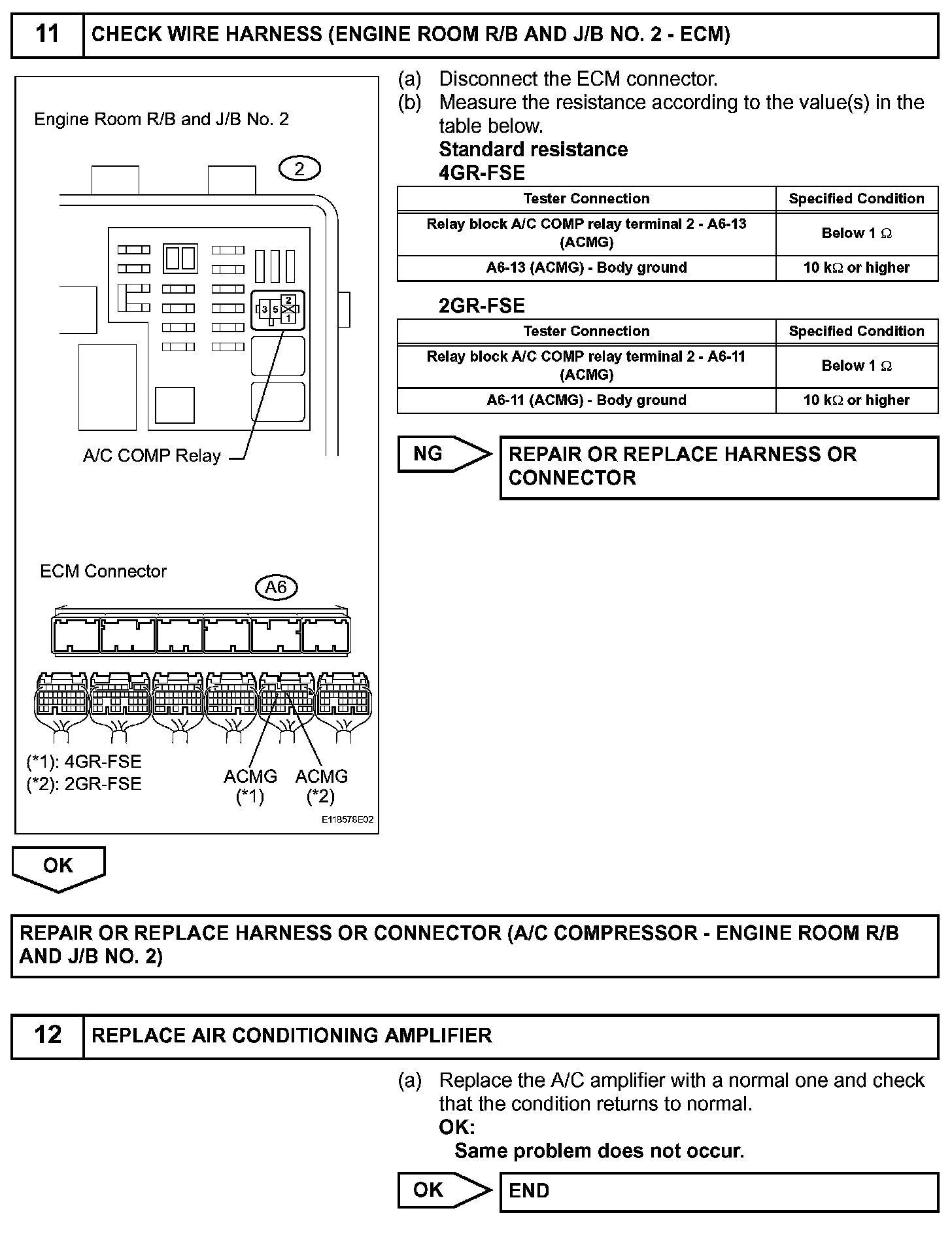

Step 11-12:

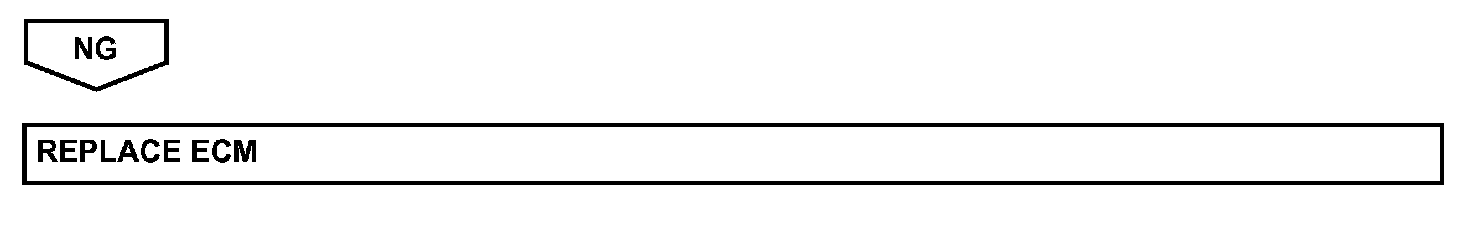

Step 12 (Continued):
INSPECTION PROCEDURE
