Blower Unit

DISASSEMBLY




1. REMOVE INLET CONTROL SERVO MOTOR

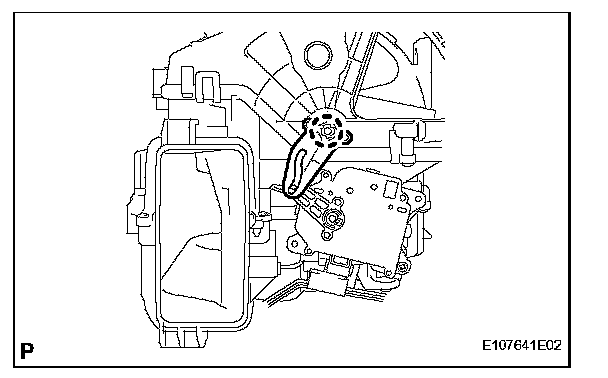

a. Detach the claw and remove the lever.

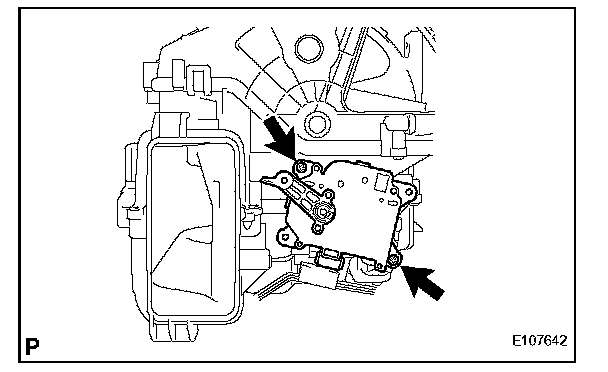

b. Remove the 2 screws and inlet control servo motor.




2. REMOVE CLEAN AIR FILTER

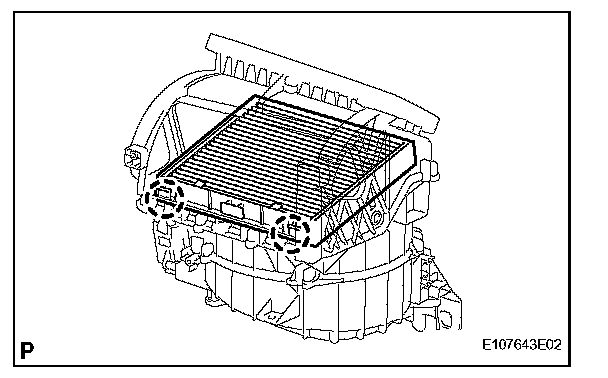

a. Detach the 2 claws and remove the air filter.

HINT: Be sure to turn the engine switch on (IG) and set the A/C to RECIRCULATION mode before removing the air filter.




3. REMOVE COOLING UNIT WITH FAN MOTOR SUB-ASSEMBLY

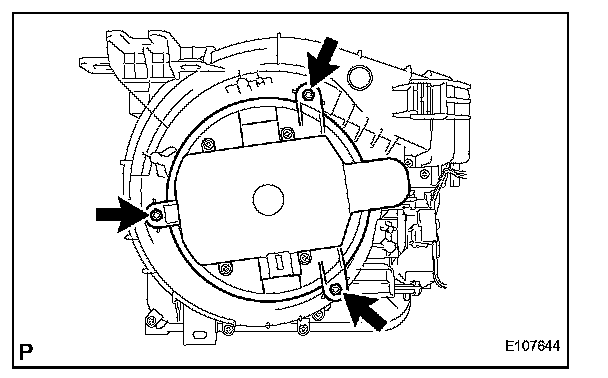

a. Remove the 3 screws and fan motor.

REASSEMBLY




1. INSTALL COOLING UNIT WITH FAN MOTOR SUB-ASSEMBLY
a. Install the fan motor with the 3 screws.




2. INSTALL CLEAN AIR FILTER

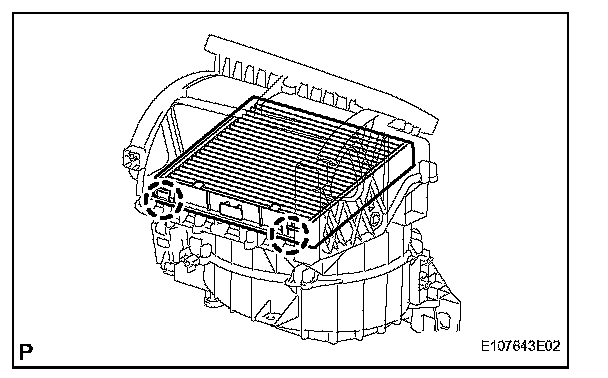

a. Attach the 2 claws to install the air filter.




3. INSTALL INLET CONTROL SERVO MOTOR
a. Install the inlet control servo motor with the 2 screws.

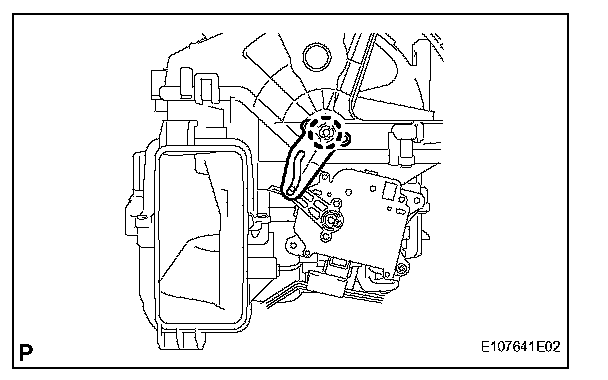

b. Attach the claw and install the lever.
