Ride Height Sensor, Suspension Control
Ride Height Sensor, Suspension Control

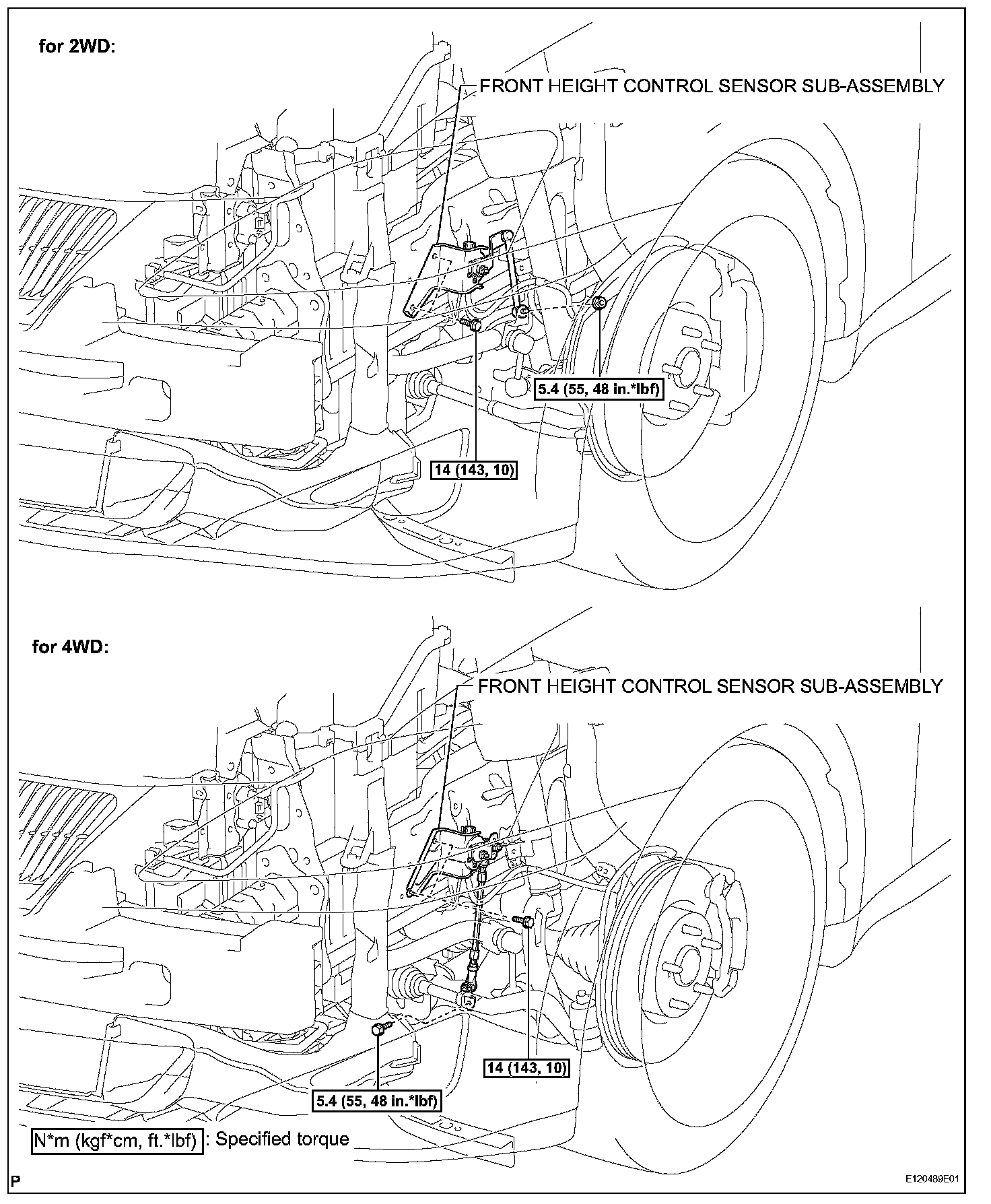

Height Control Sensor:
Height Control Sensor:
