Adaptive Front-Lighting System

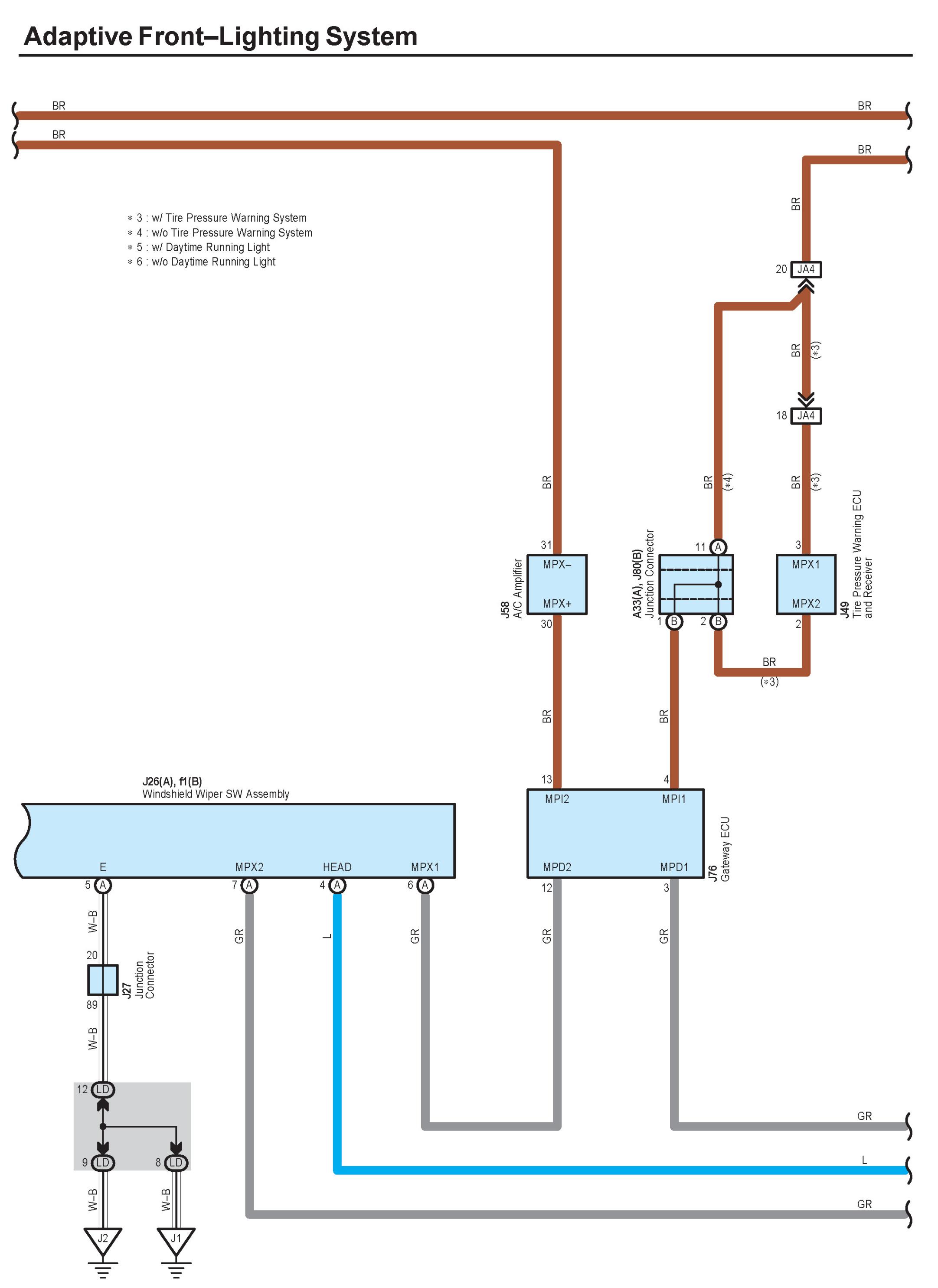

Adaptive Front-Light System Part 1:

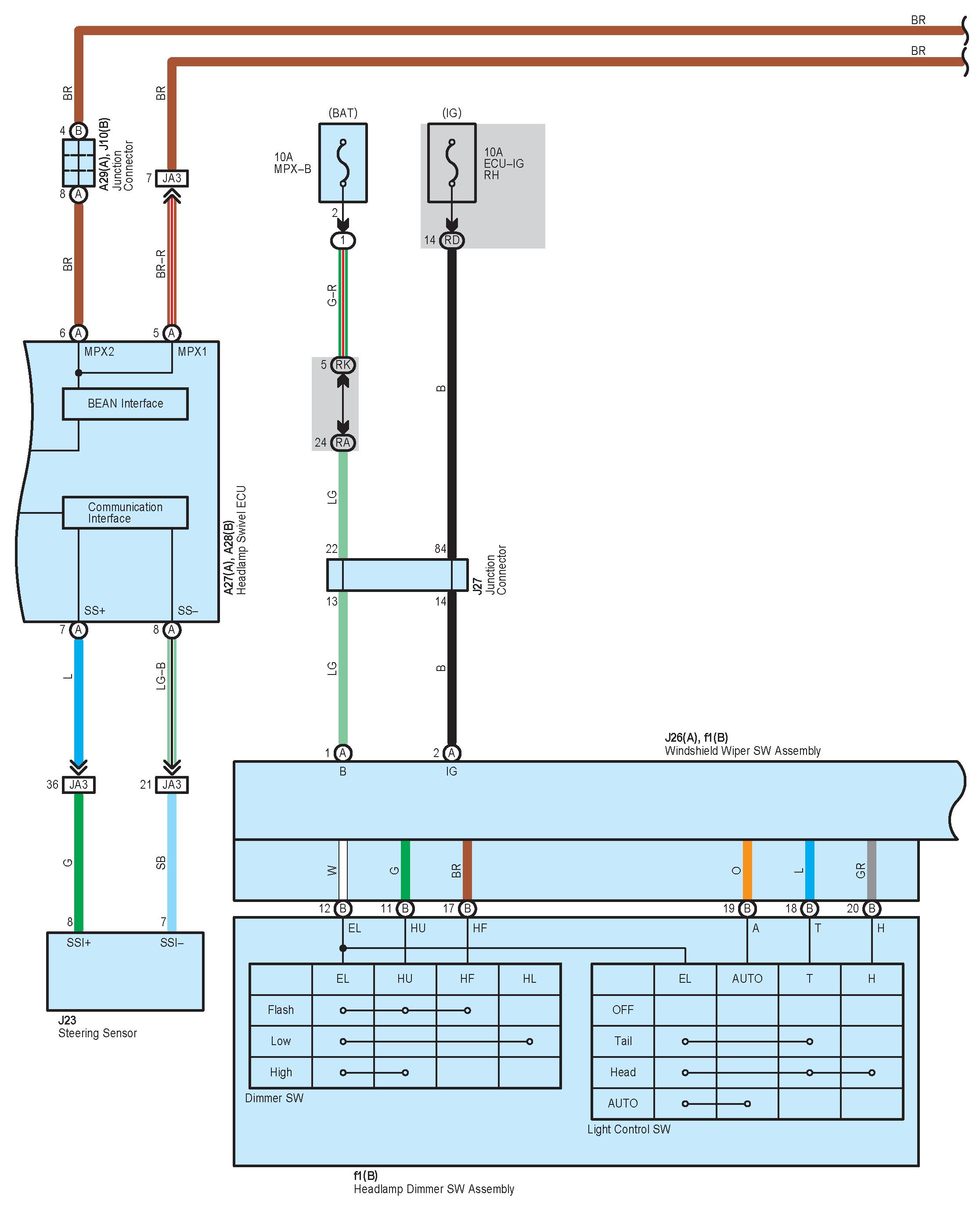

Adaptive Front -light System Part 2:

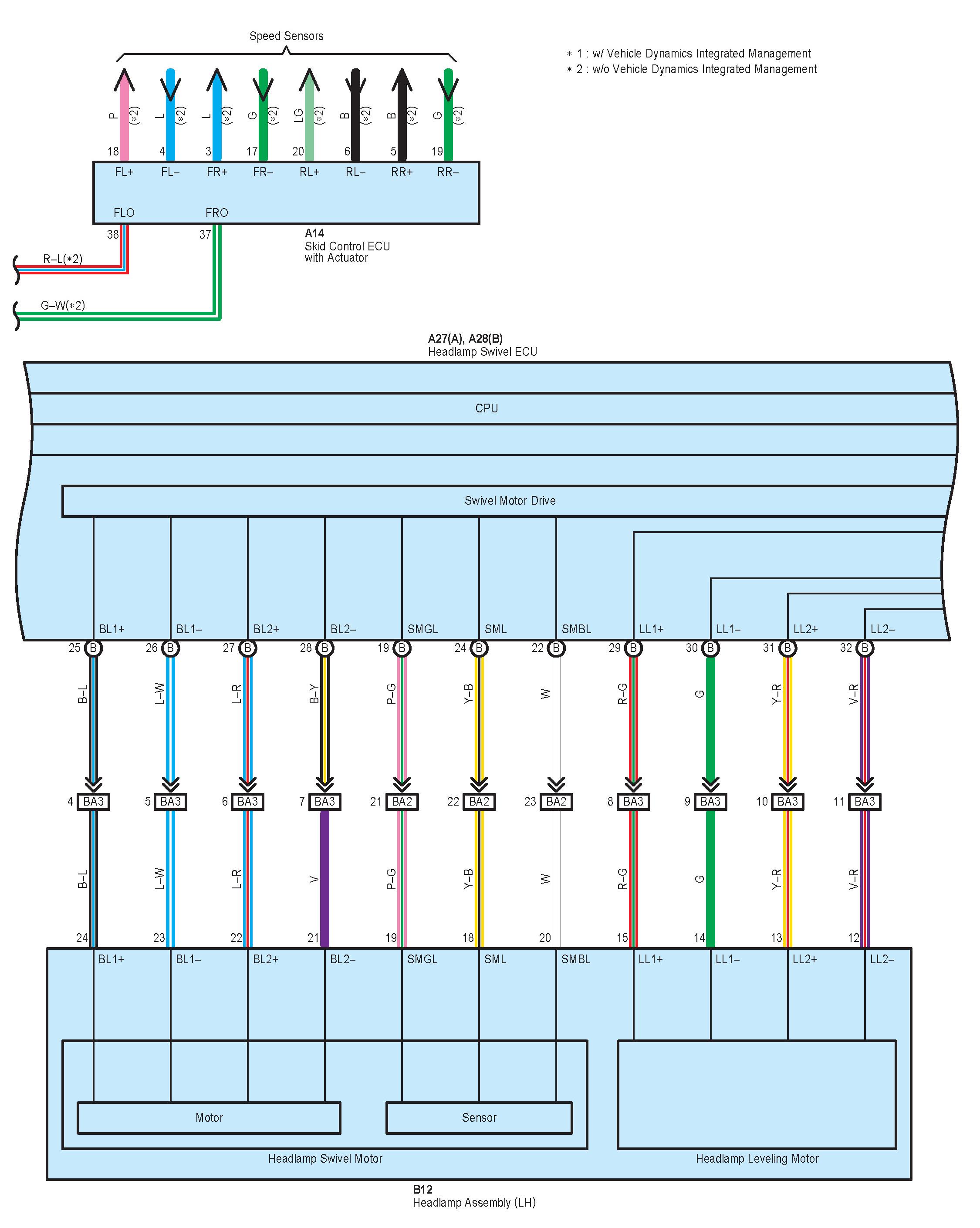

Adaptive Front -light System Part 3:

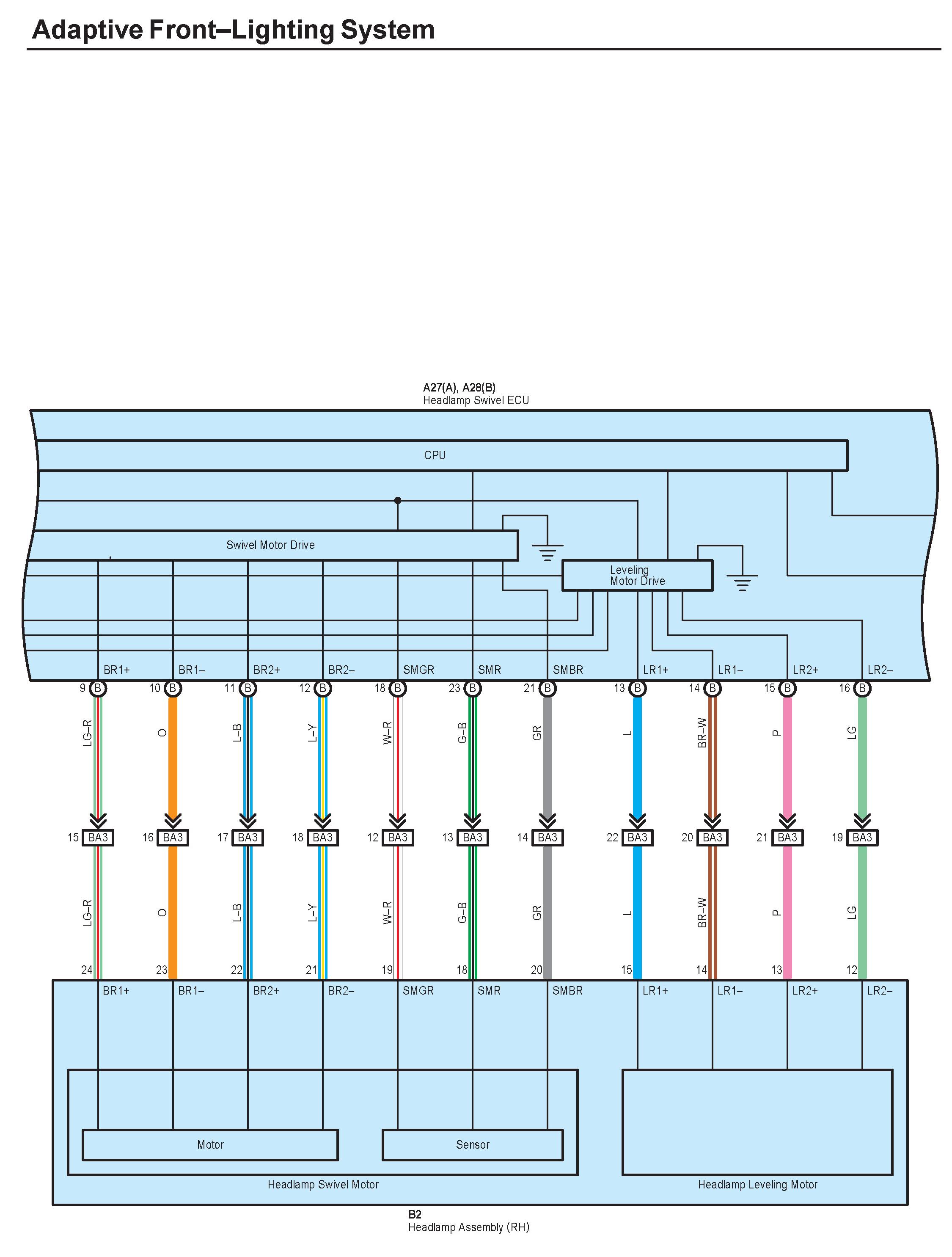

Adaptive Front -light System Part 4:

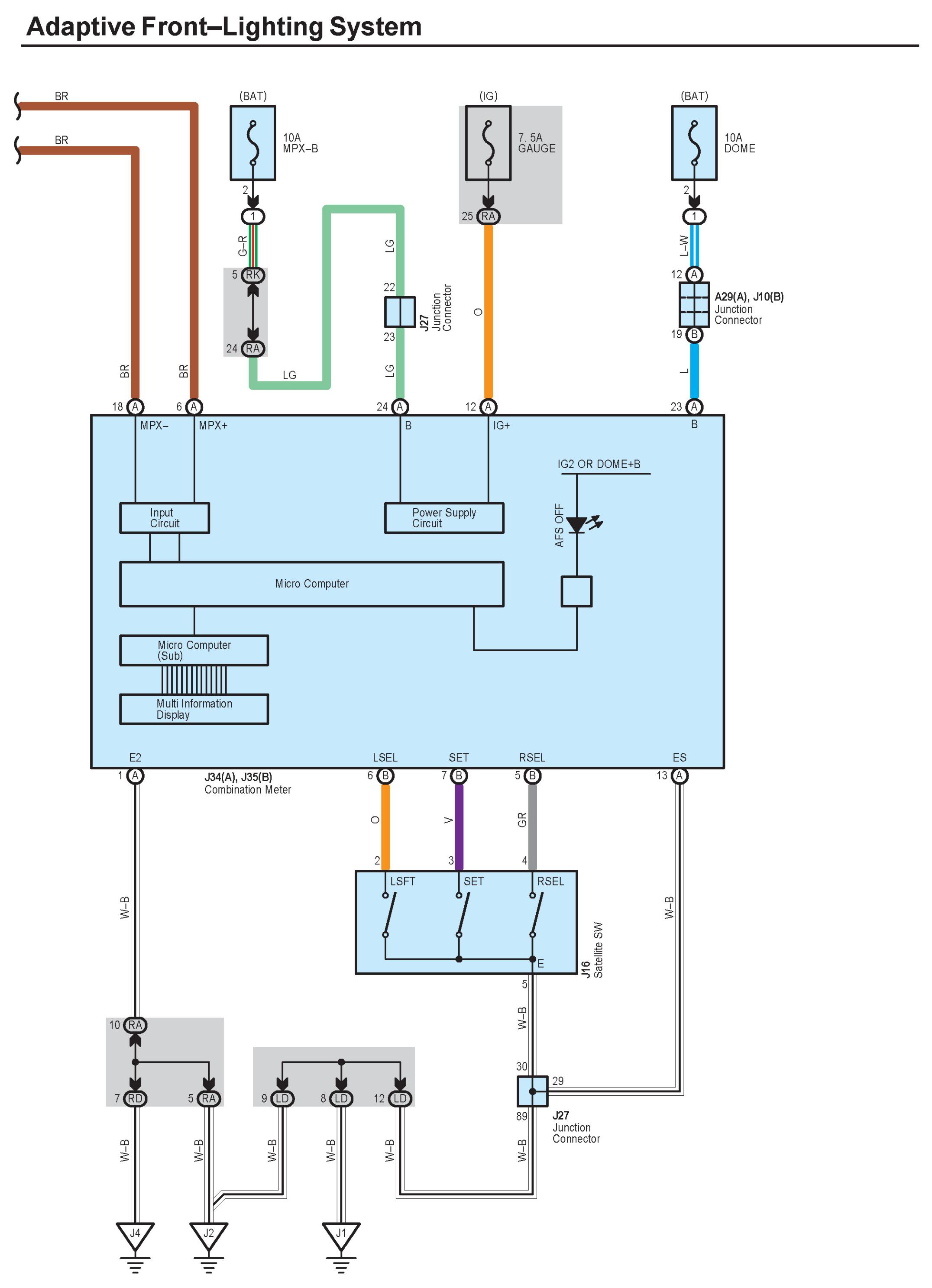

Adaptive Front -light System Part 5:

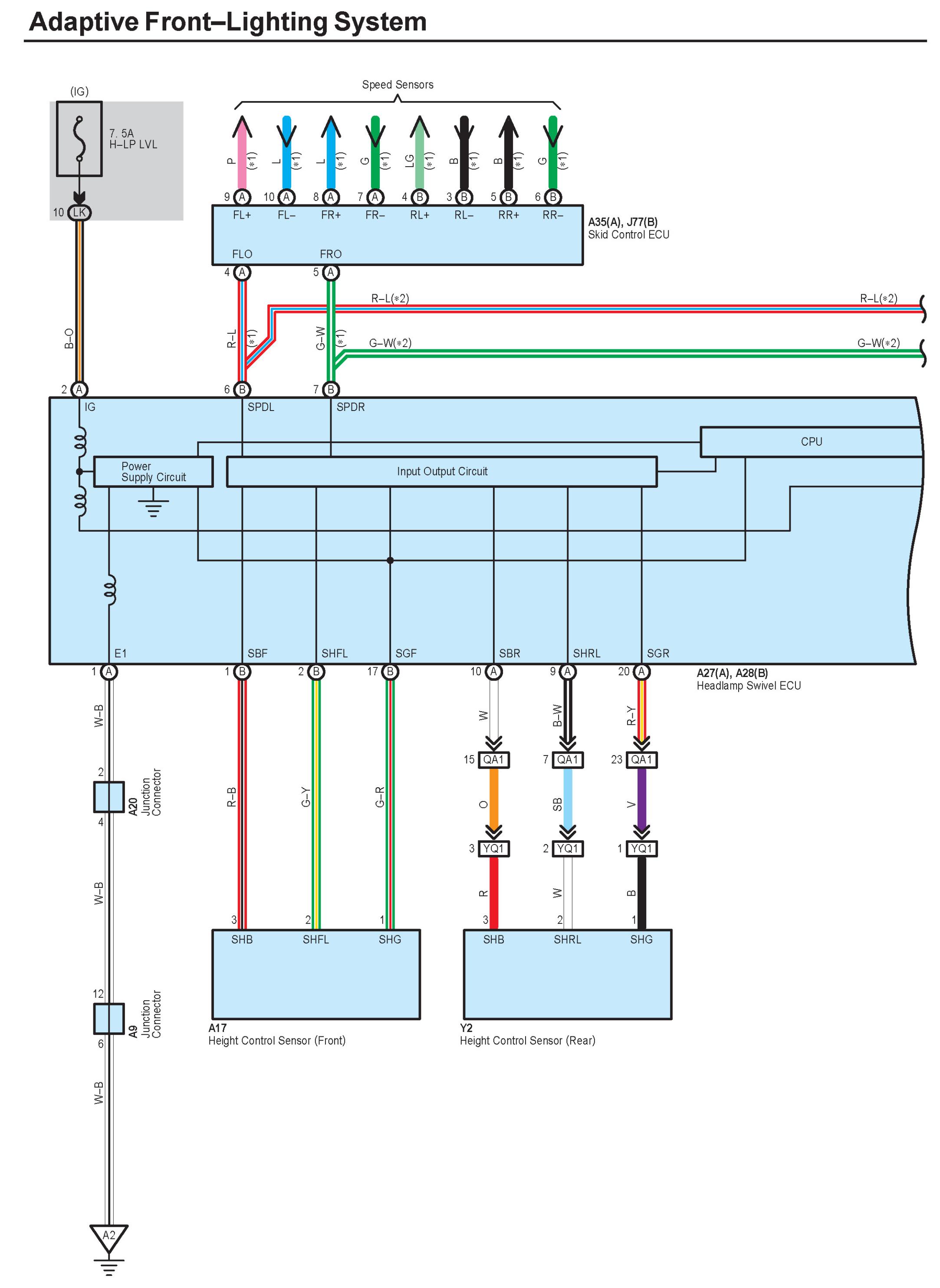

Adaptive Front -light System Part 6:

Adaptive Front -light System Part 7:

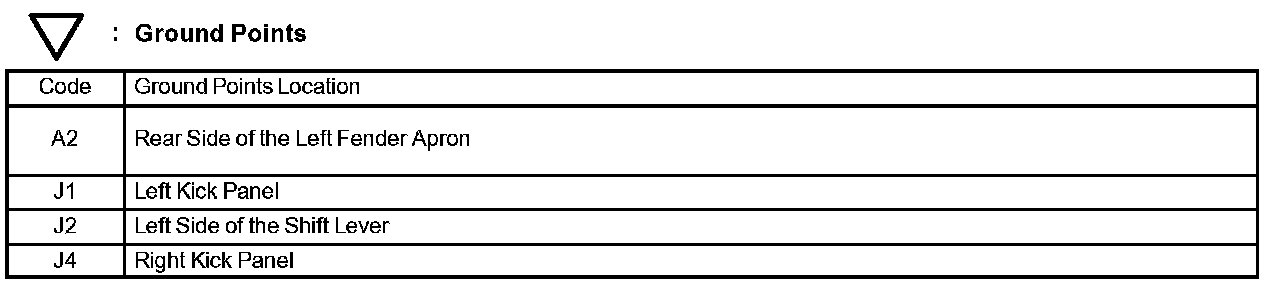

Diagram Legend Part 1:

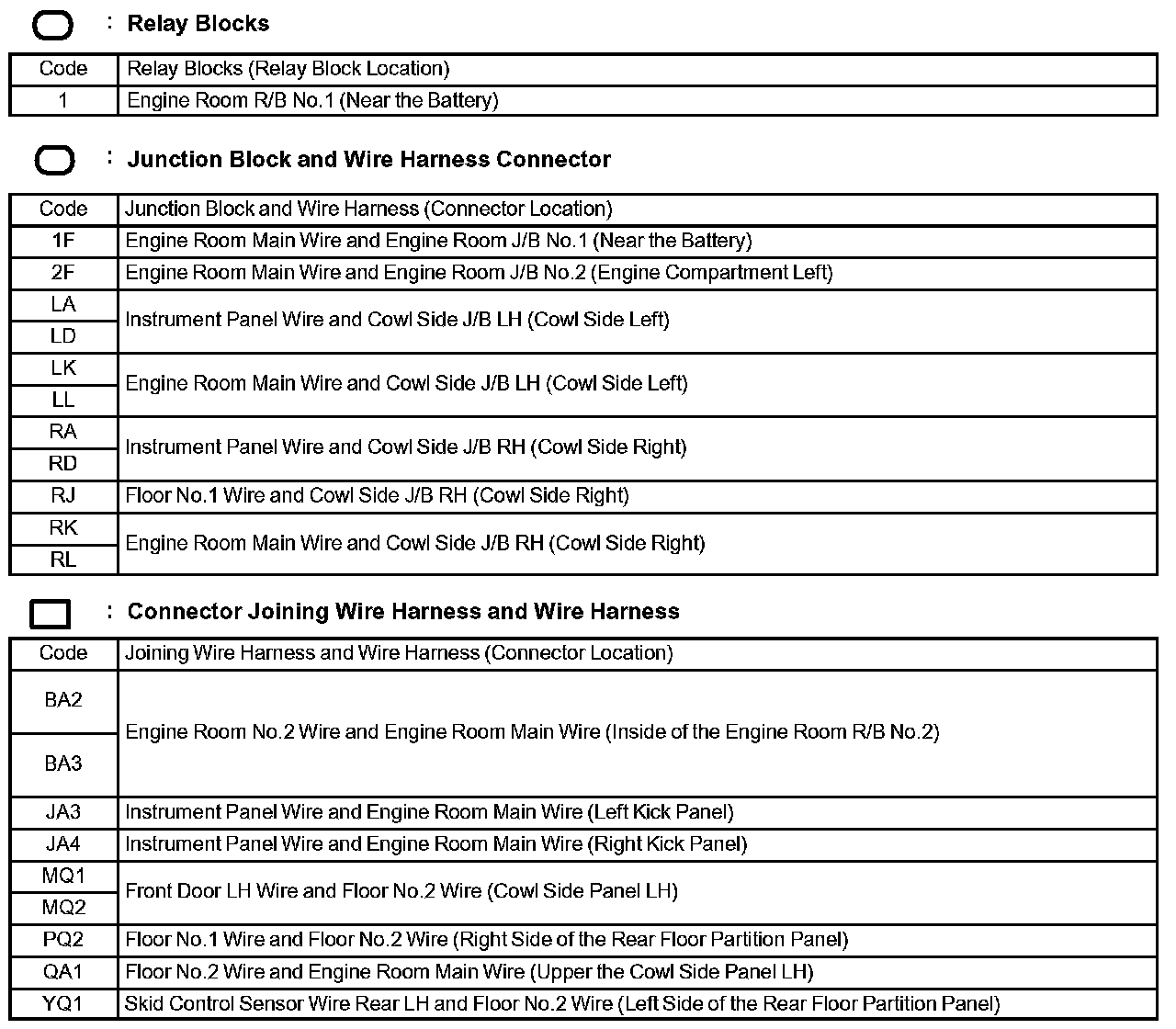

Diagram Legend Part 2:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at Vehicle level Connector Views. Connector Views
