Data List

READ DATA LIST

HINT: Using the intelligent tester's DATA LIST allows switch, sensor, actuator, and other item values to be read without removing any parts. Reading the DATA LIST early in troubleshooting is one way to save time.

a. Connect the intelligent tester to the DLC3.
b. Turn the engine switch on (IG).

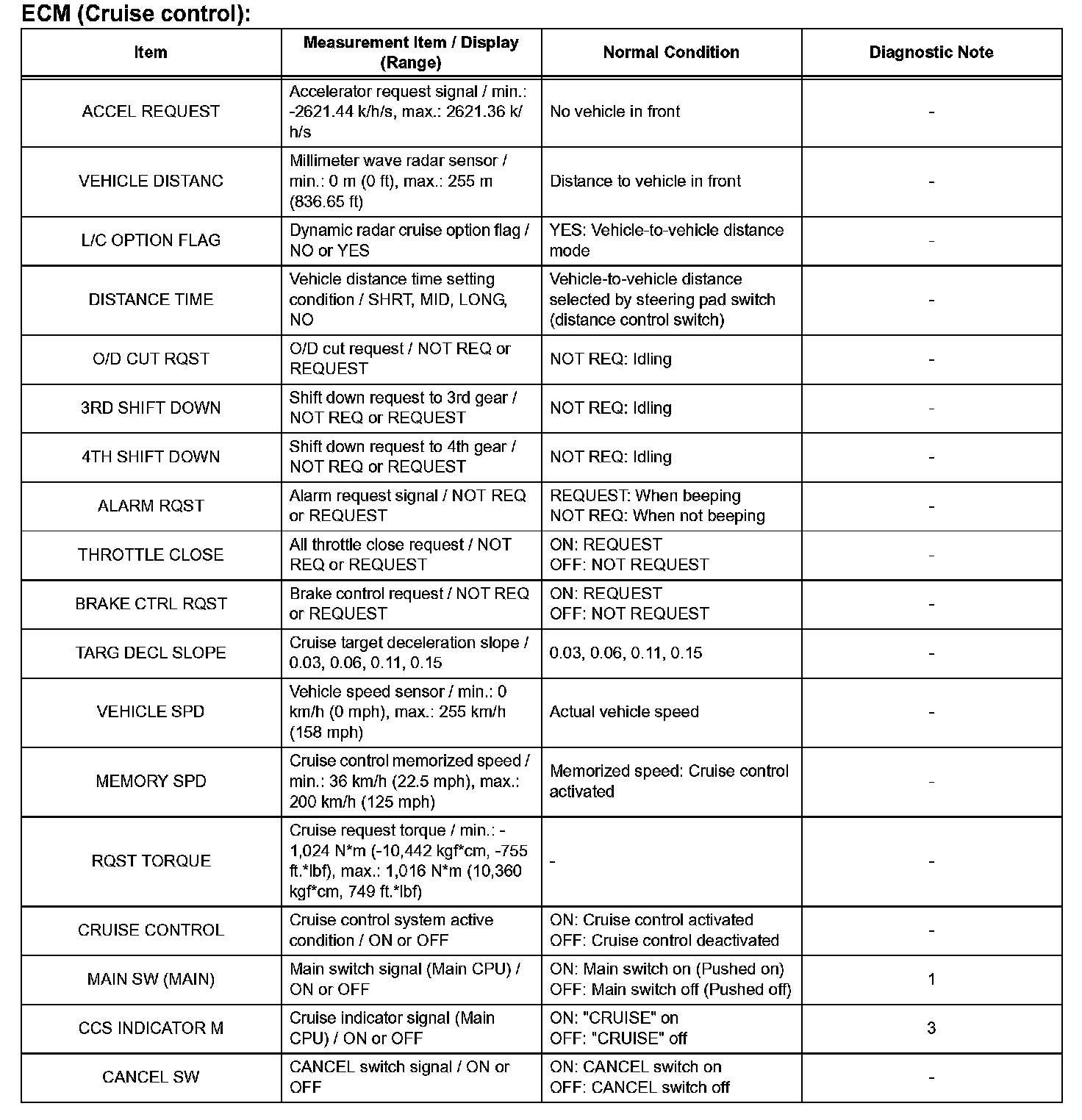

Part 1:

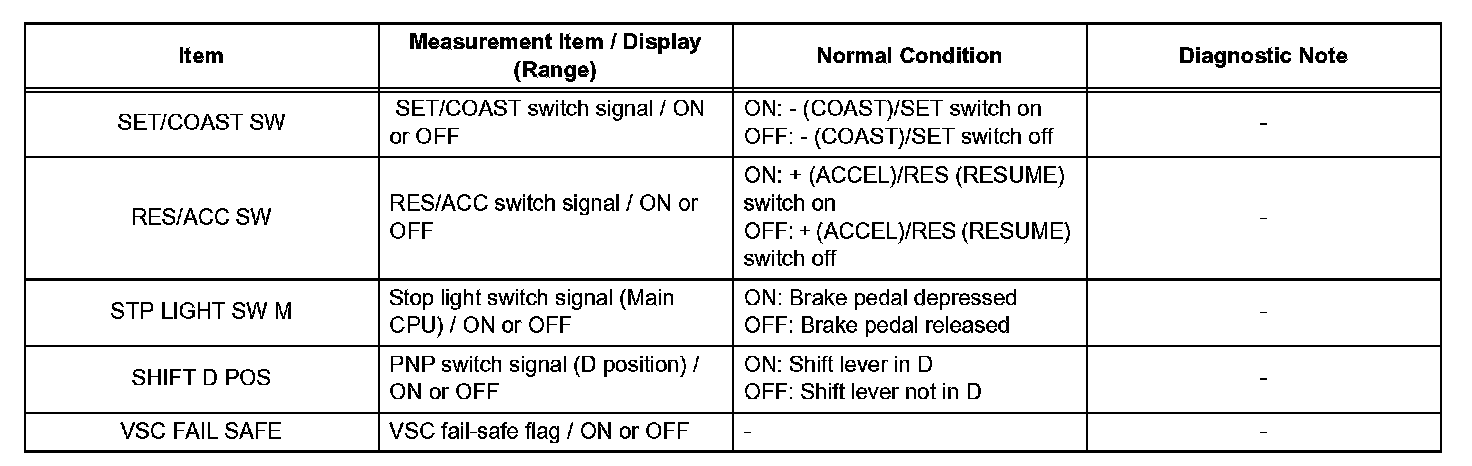

Part 2:

c. Read the DATA LIST according to the display on the tester.

HINT:
- 1 is OK, but 2 is NG -> ECM failure
- 2 is OK, but 3 is NG -> DTC output or ECM failure
- 1 is OK, but CRUISE main indicator light does not illuminate -> Cruise main indicator light, wire harness, or ECM failure
