Dynamic Radar Cruise Control System

Terminals Of Control Module/Pinouts - Check Distance Control ECU:

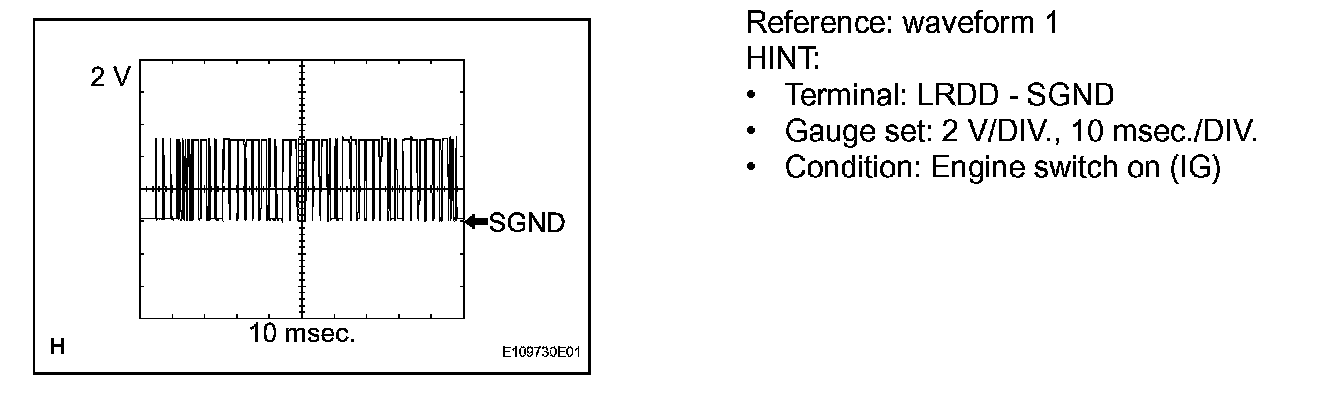

Oscilloscope Waveform:

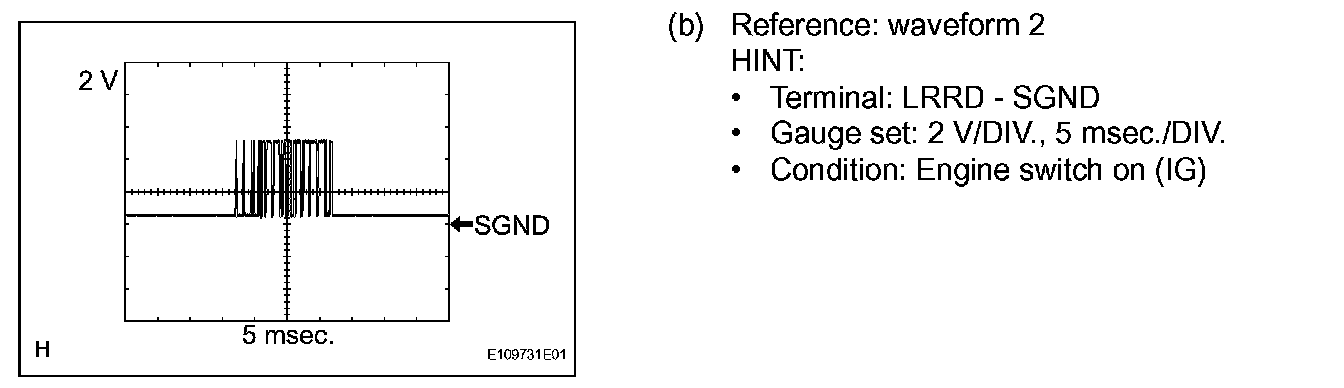

Oscilloscope Waveform:

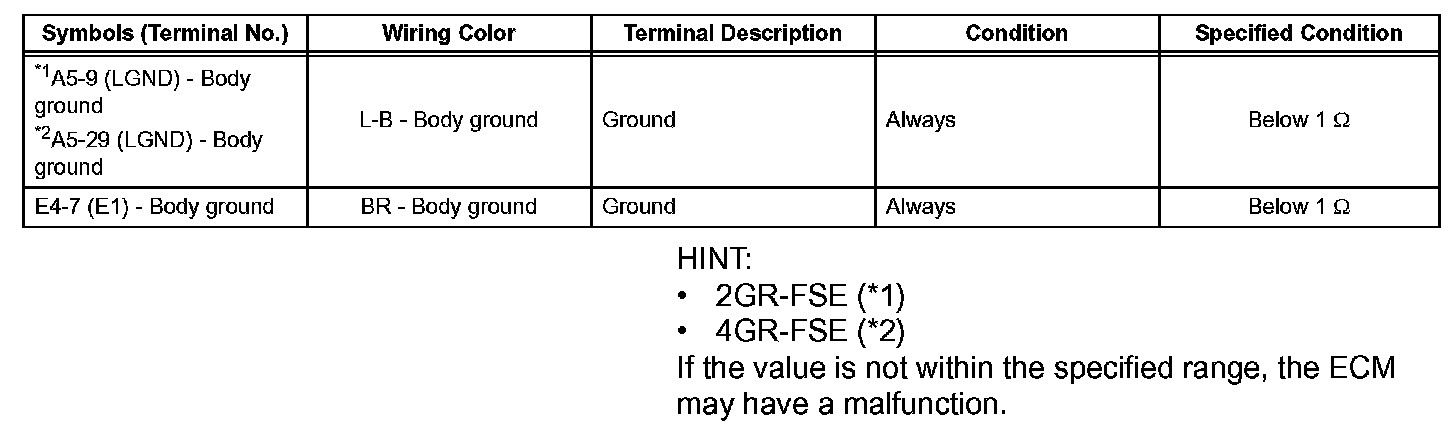

Terminals Of Control Module/Pinouts - Check ECM (Part 1):

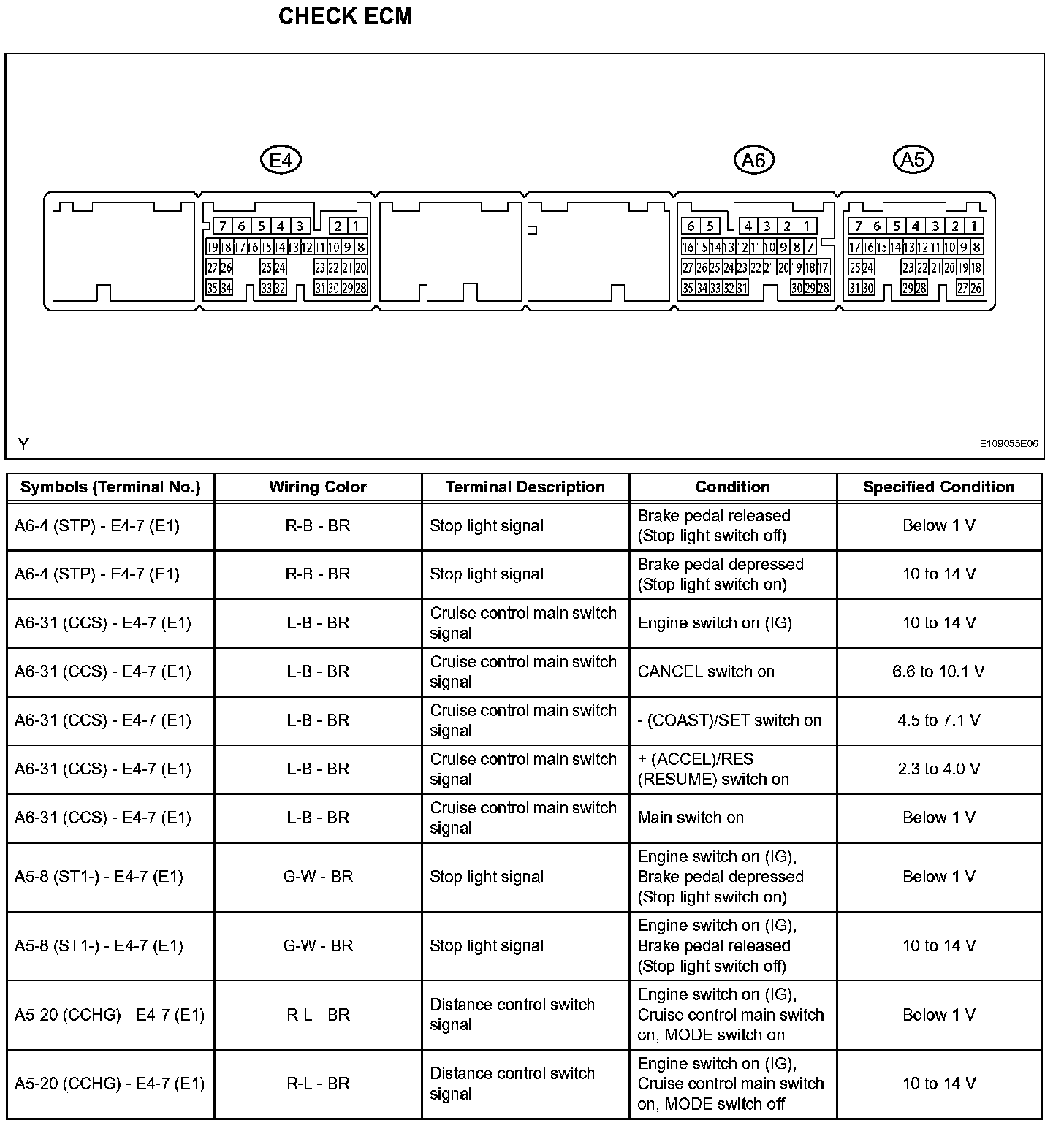

Terminals Of Control Module/Pinouts - Check ECM (Part 2):

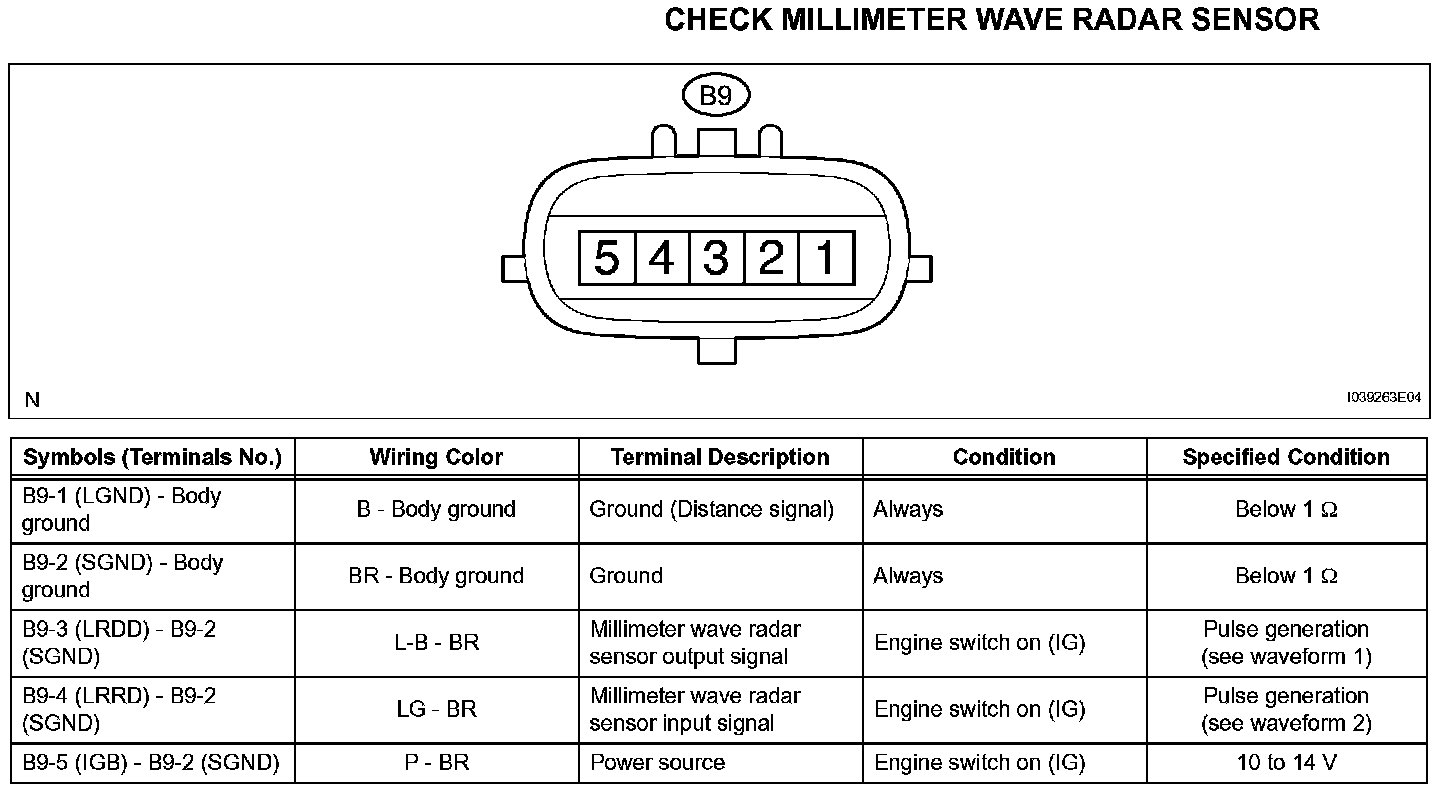

Terminals Of Control Module/Pinouts - Check Millimeter Wave Radar Sensor:

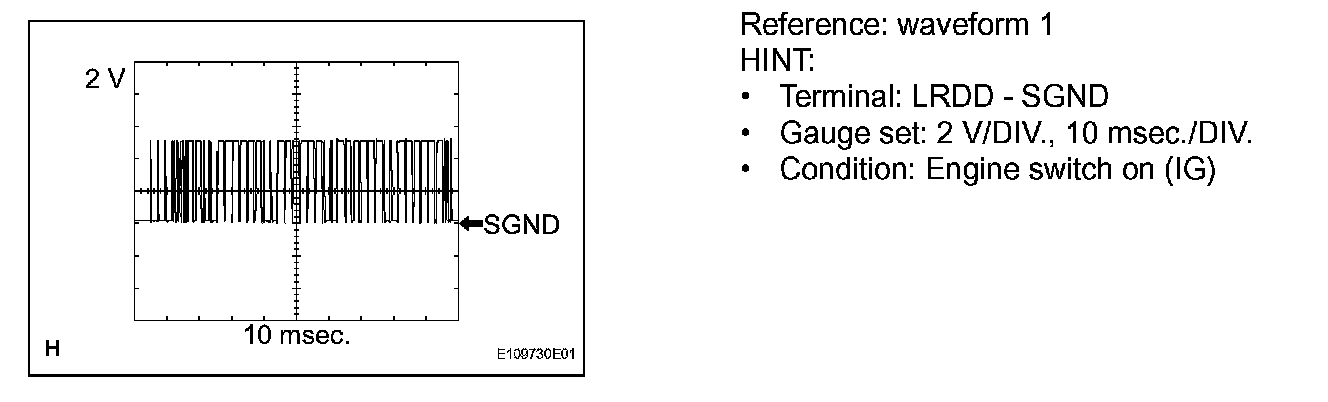

Oscilloscope Waveform:



Oscilloscope Waveform:
