Clutch Switch Circuit

Clutch Switch Circuit

DESCRIPTION

Clutch switch circuit inspection is necessary for M/T vehicles.

When the clutch pedal is released, the ECM receives positive (+) battery voltage through the LH-IG fuse. While depressing the clutch pedal, the clutch switch sends a signal to terminal CLSW of the ECM. The ECM cancels cruise control drive when terminal CLSW receives the signal.

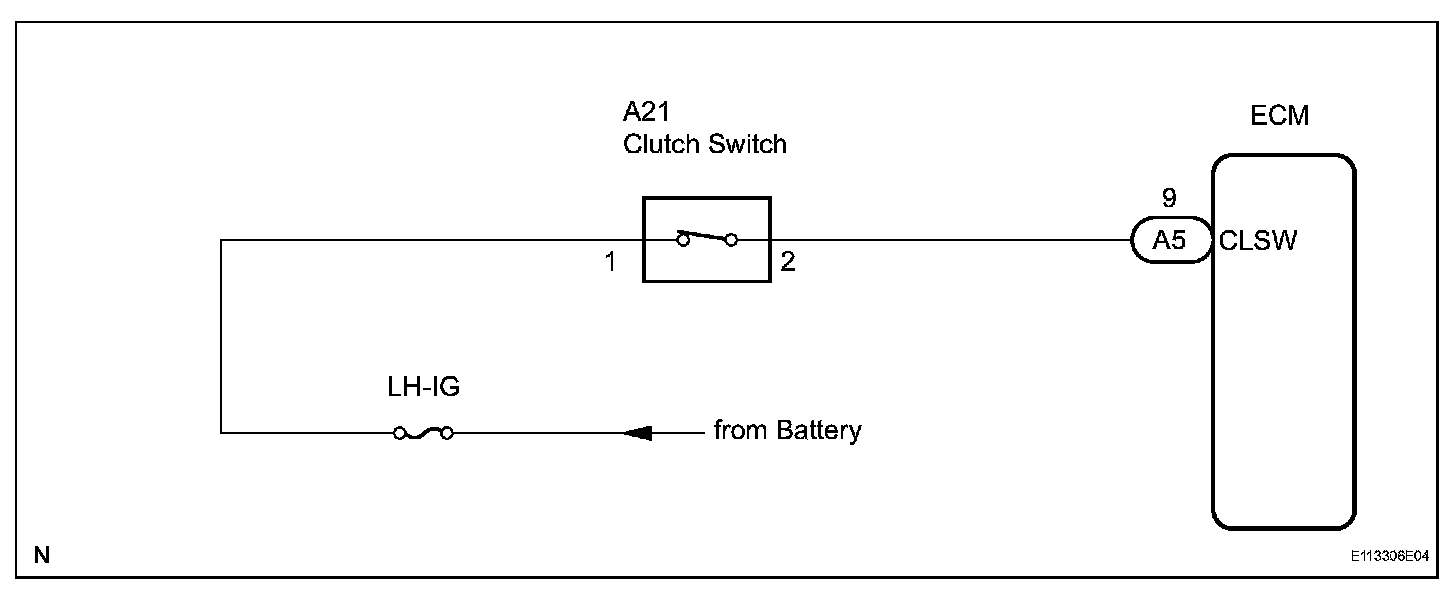

Wiring Diagram:

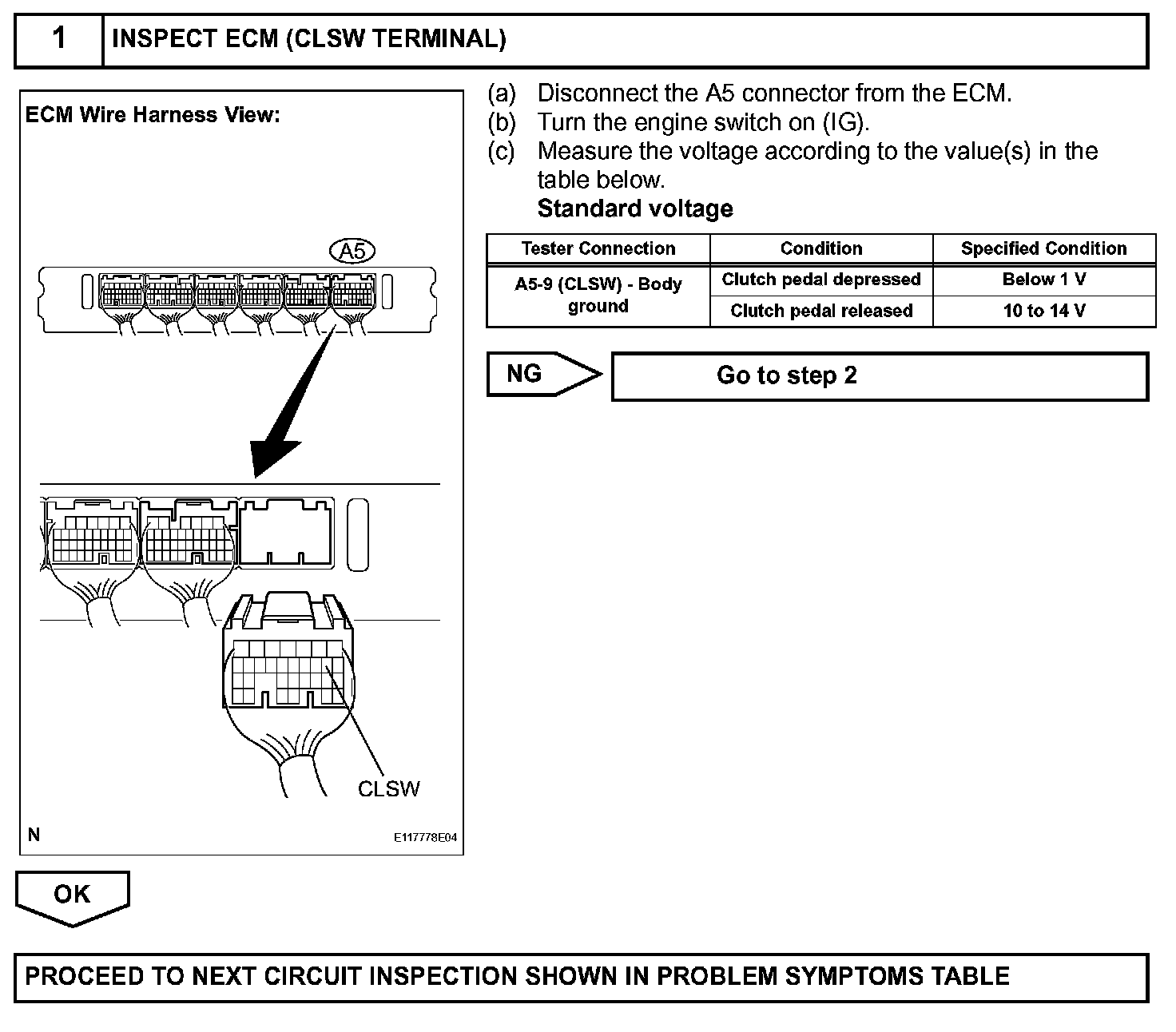

Step 1:

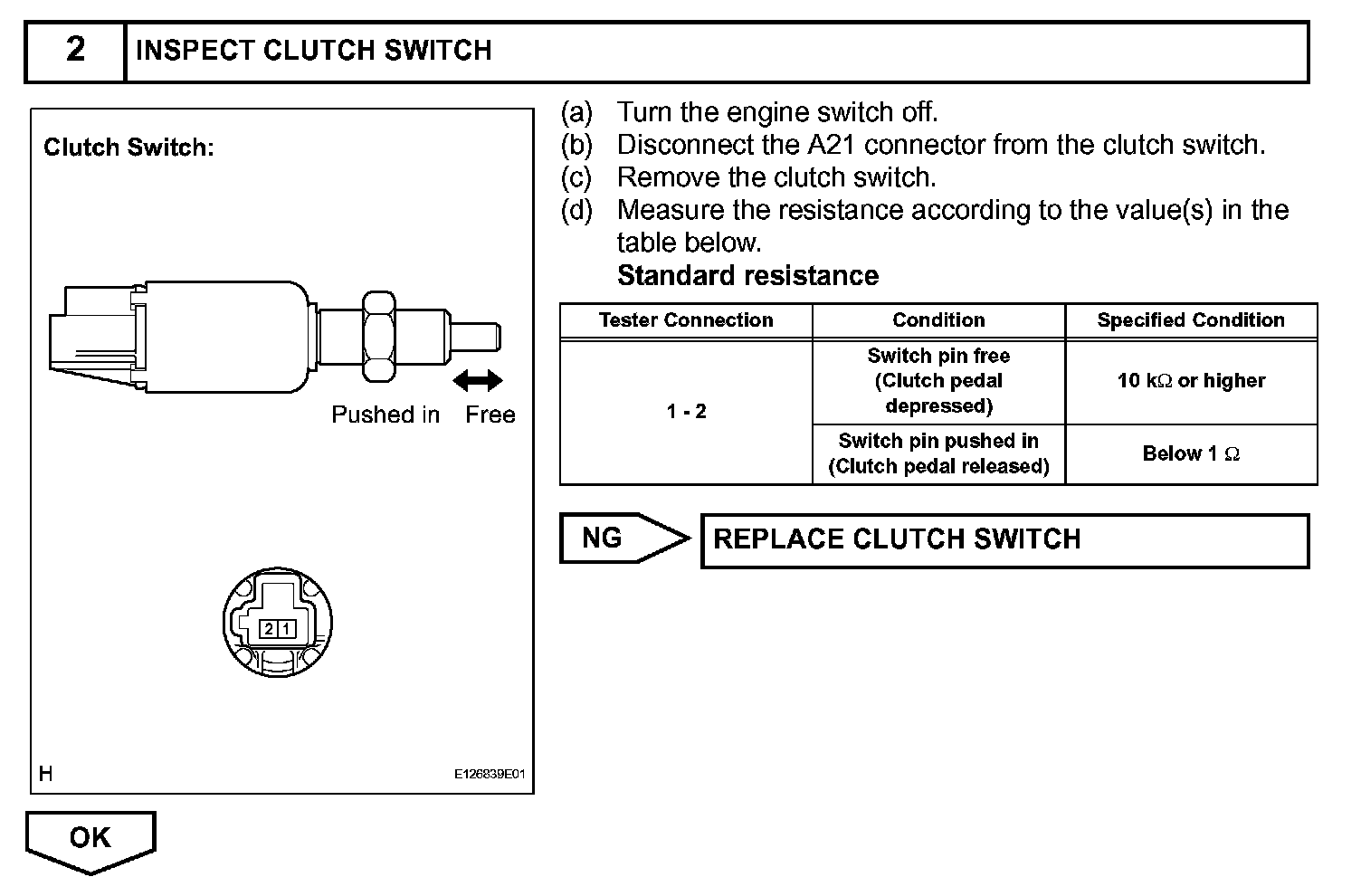

Step 2:

Step 3:

INSPECTION PROCEDURE
