VSC Warning Light Does Not Come ON

VSC Warning Light does not Come ON

DESCRIPTION

The skid control ECU is connected to the combination meter via CAN and multiplex communications.

If the ECU stores DTC, the master caution indicator light will come on and the DTC will be displayed on the multi-information display in the combination meter.

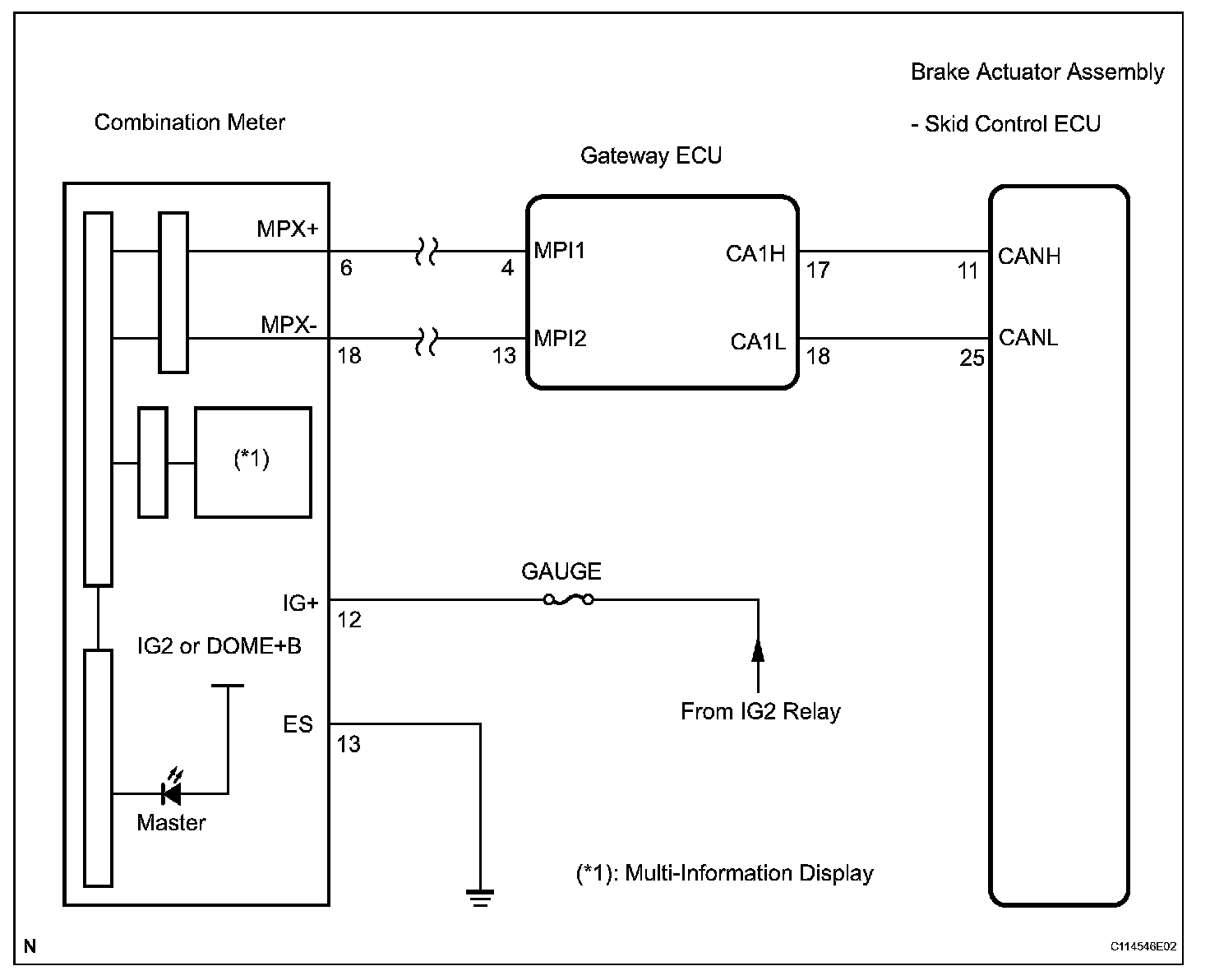

Wiring Diagram:

Step 1:

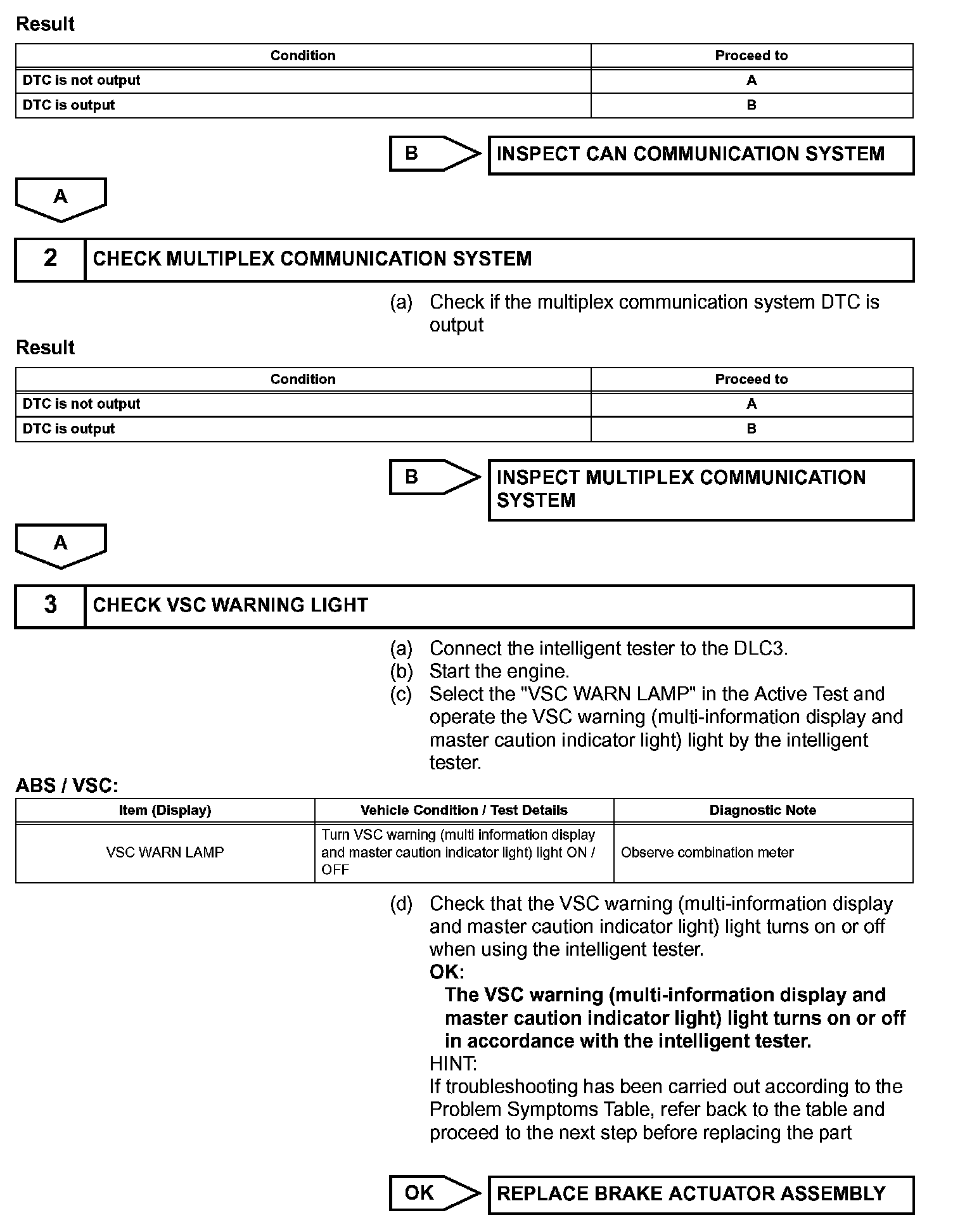

Step 1(Continued)-3:

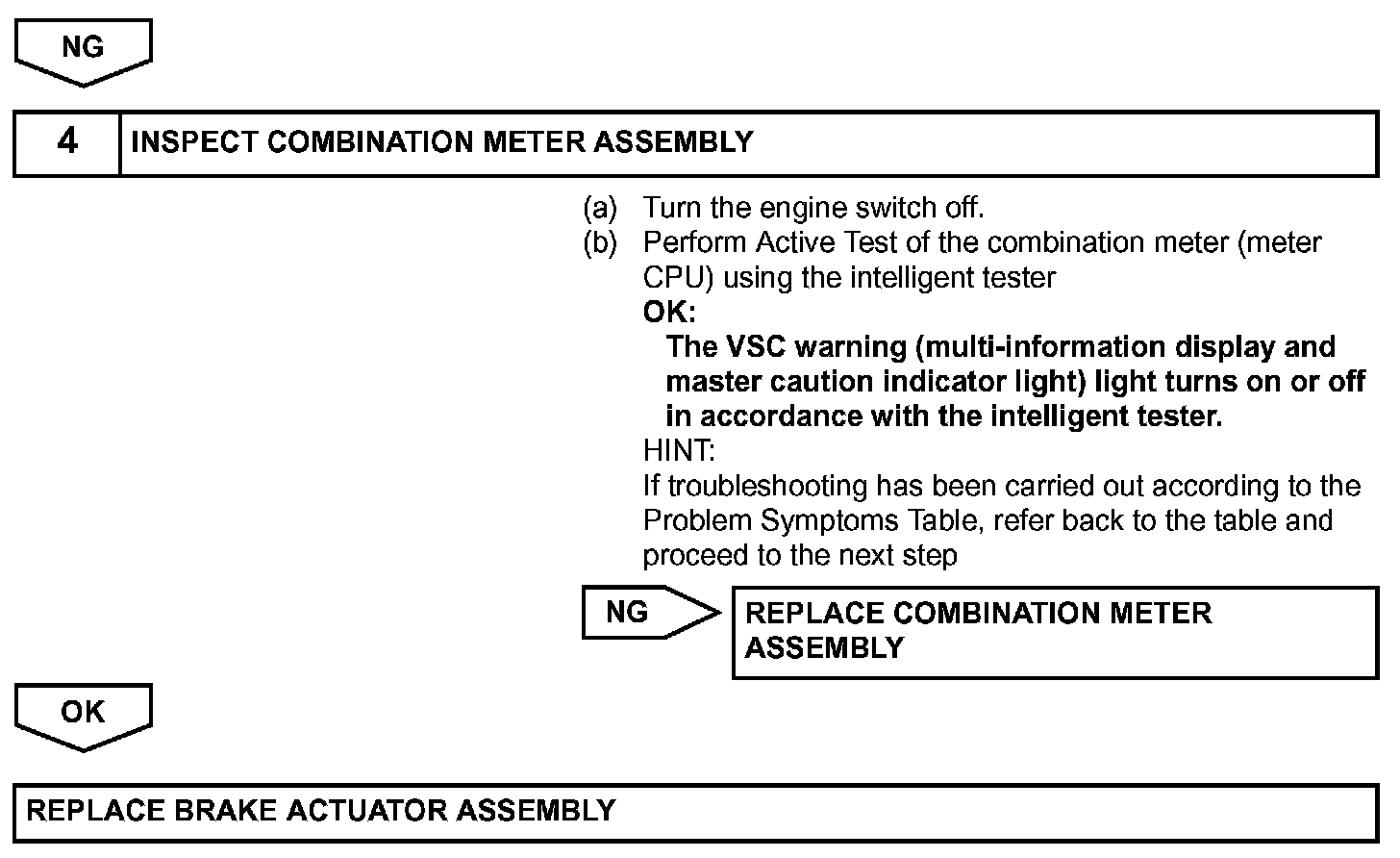

Step 3(Continued)-4:

INSPECTION PROCEDURE

NOTE: When replacing the brake actuator assembly, perform zero point calibration. Vehicle Stability Control System (W/O VDIM)
