Slip Indicator Light Does Not Come ON
Slip Indicator Light does not Come ONDESCRIPTION
The skid control ECU is connected to the combination meter via CAN and multiplex communications.
The SLIP indicator blinks during VSC and/or TRAC operation.
When the system fails, the SLIP indicator comes on to warn the driver.
The SLIP indicator comes on when traction control and VSC are terminated by pressing the VSC OFF switch.

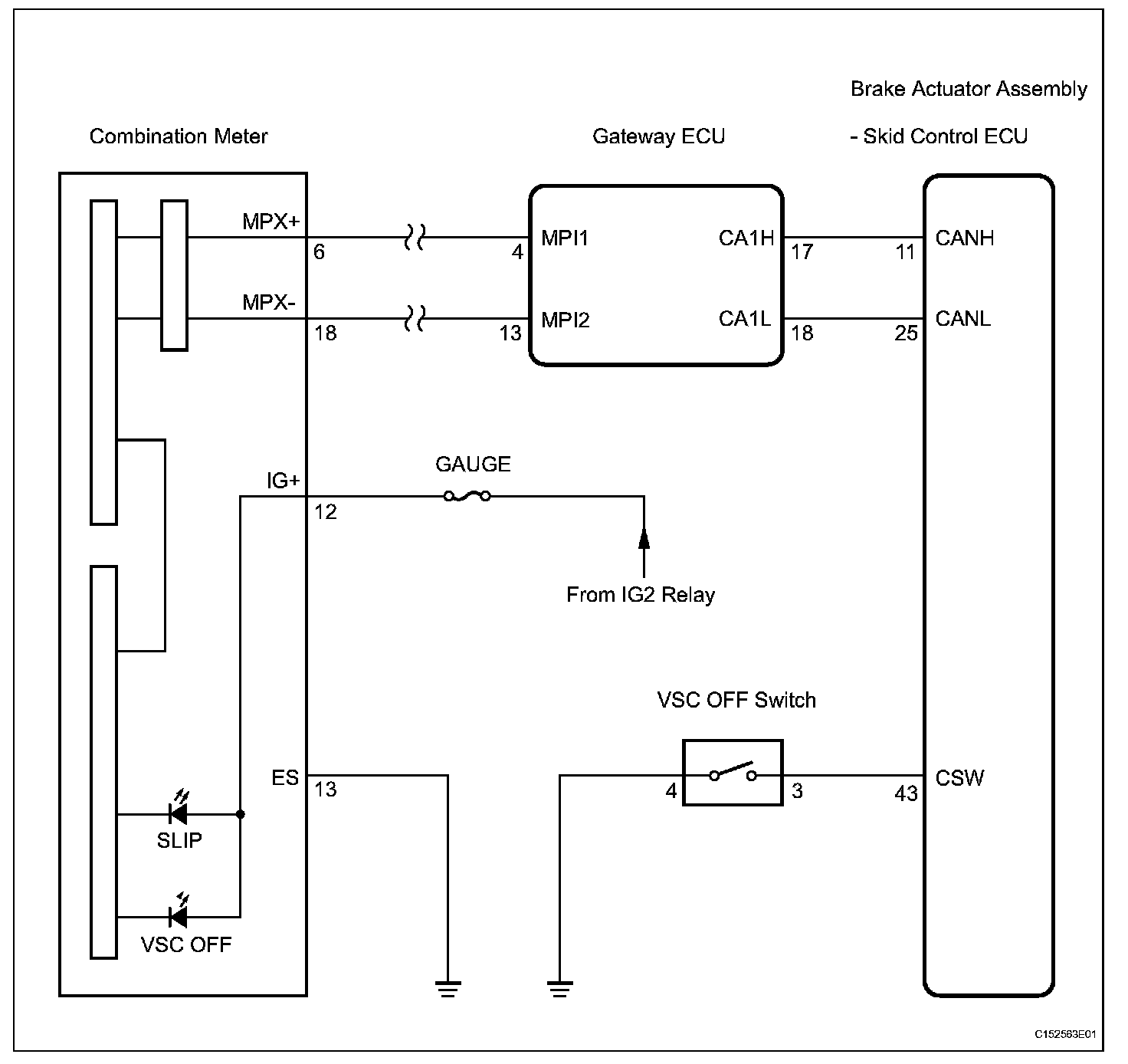

Wiring Diagram:

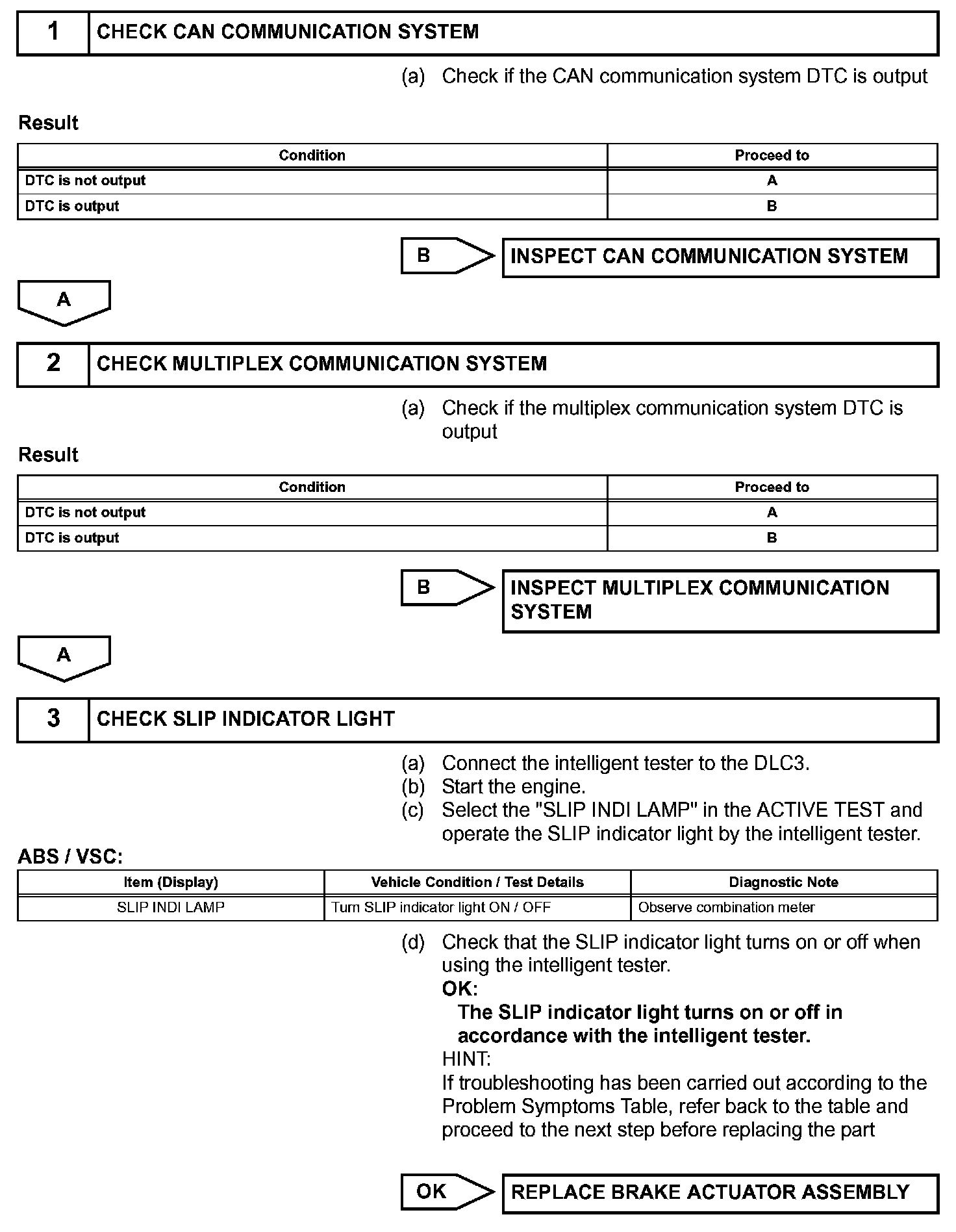

Step 1-3:

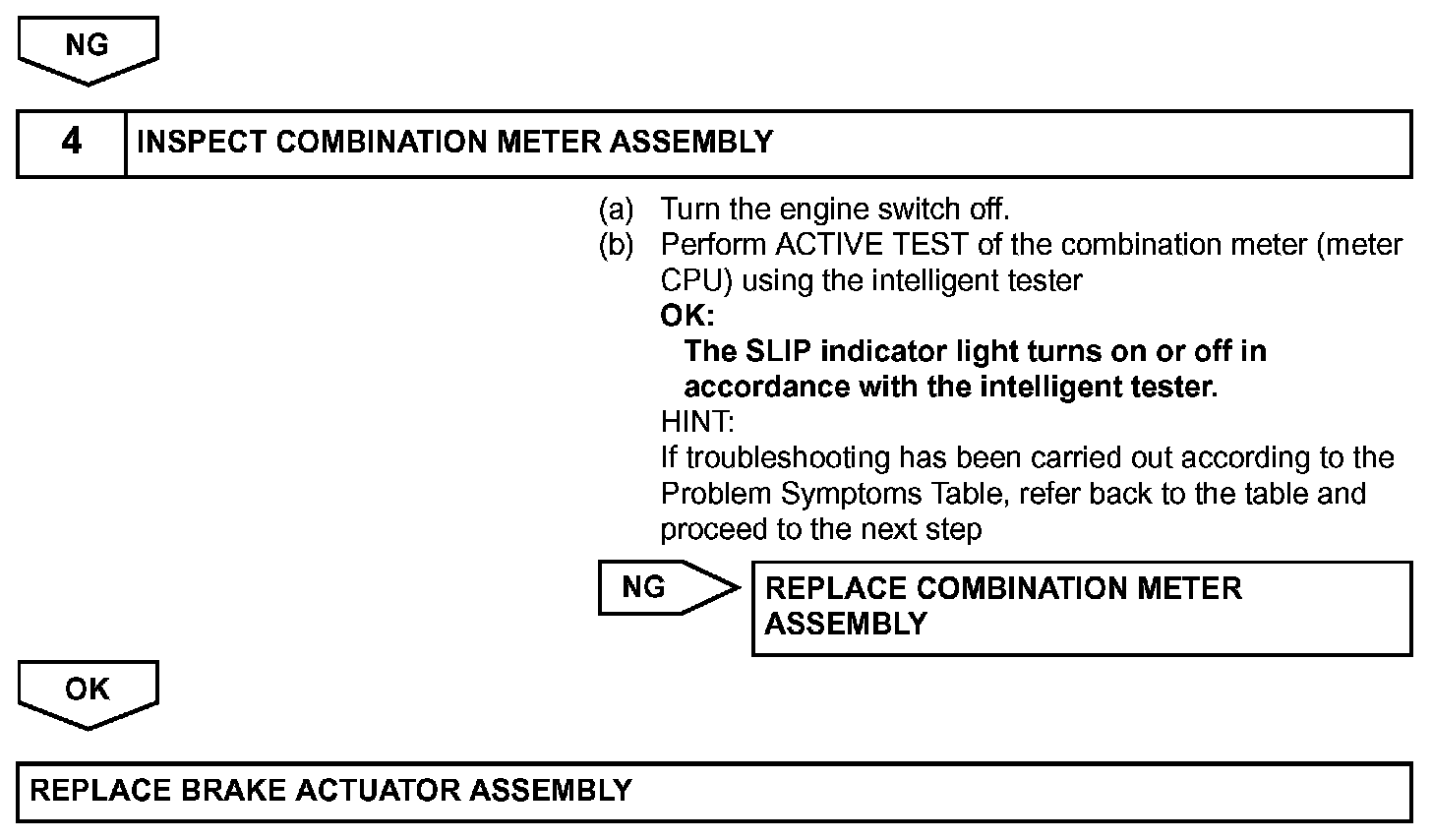

Step 3(Continued)-4:
INSPECTION PROCEDURE
NOTE: When replacing the brake actuator assembly, perform zero point calibration. Vehicle Stability Control System (W/O VDIM)
