Brake Warning Light Remains ON
Brake Warning Light Remains ONDESCRIPTION
The skid control ECU is connected to the combination meter via CAN and multiplex communications. If any of the given is detected, the BRAKE warning light remains on:
- The skid control ECU connector is disconnected from the skid control ECU.
- The brake fluid level is insufficient.
- The parking brake is applied.
- The EBD is defective.

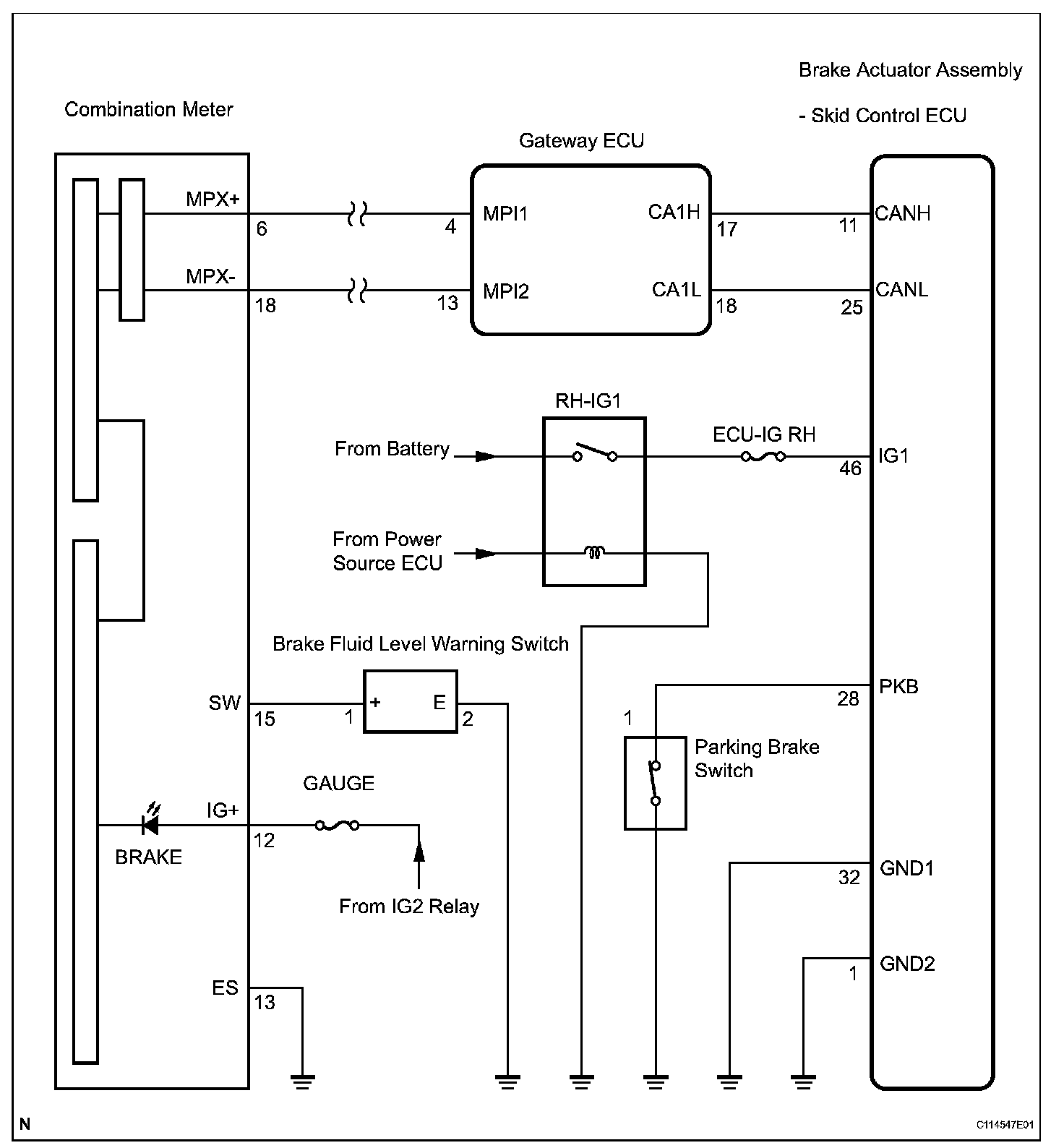

Wiring Diagram:

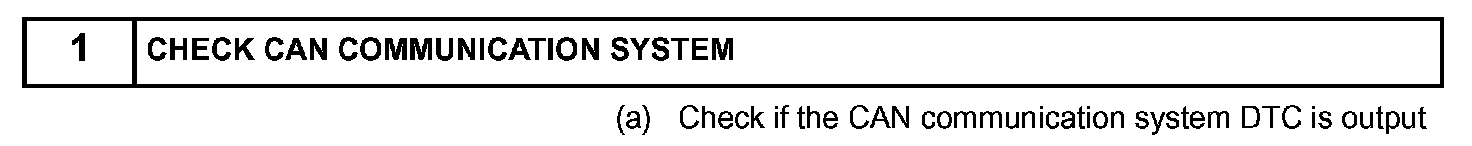

Step 1:

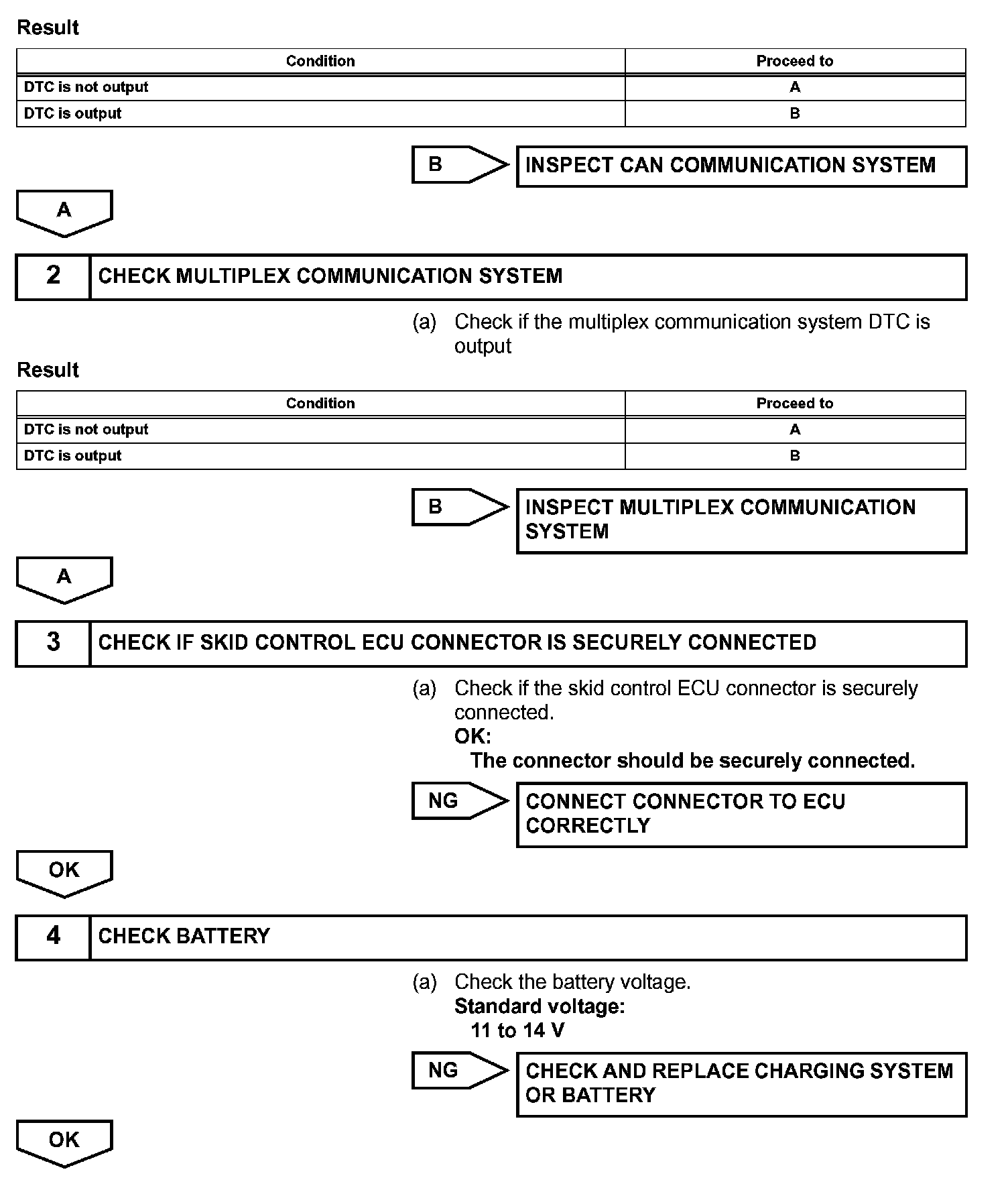

Step 1(Continued)-4:

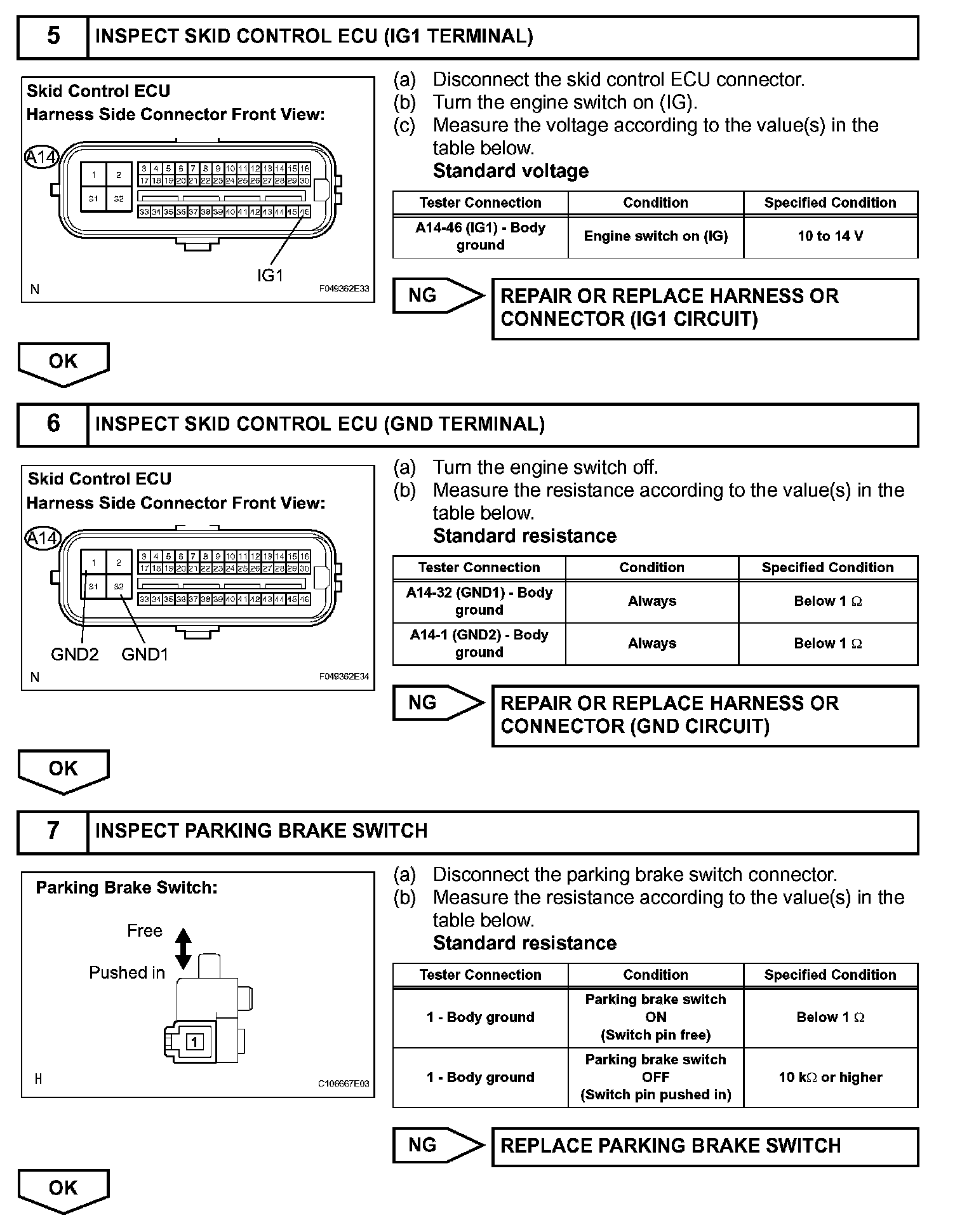

Step 5-7:

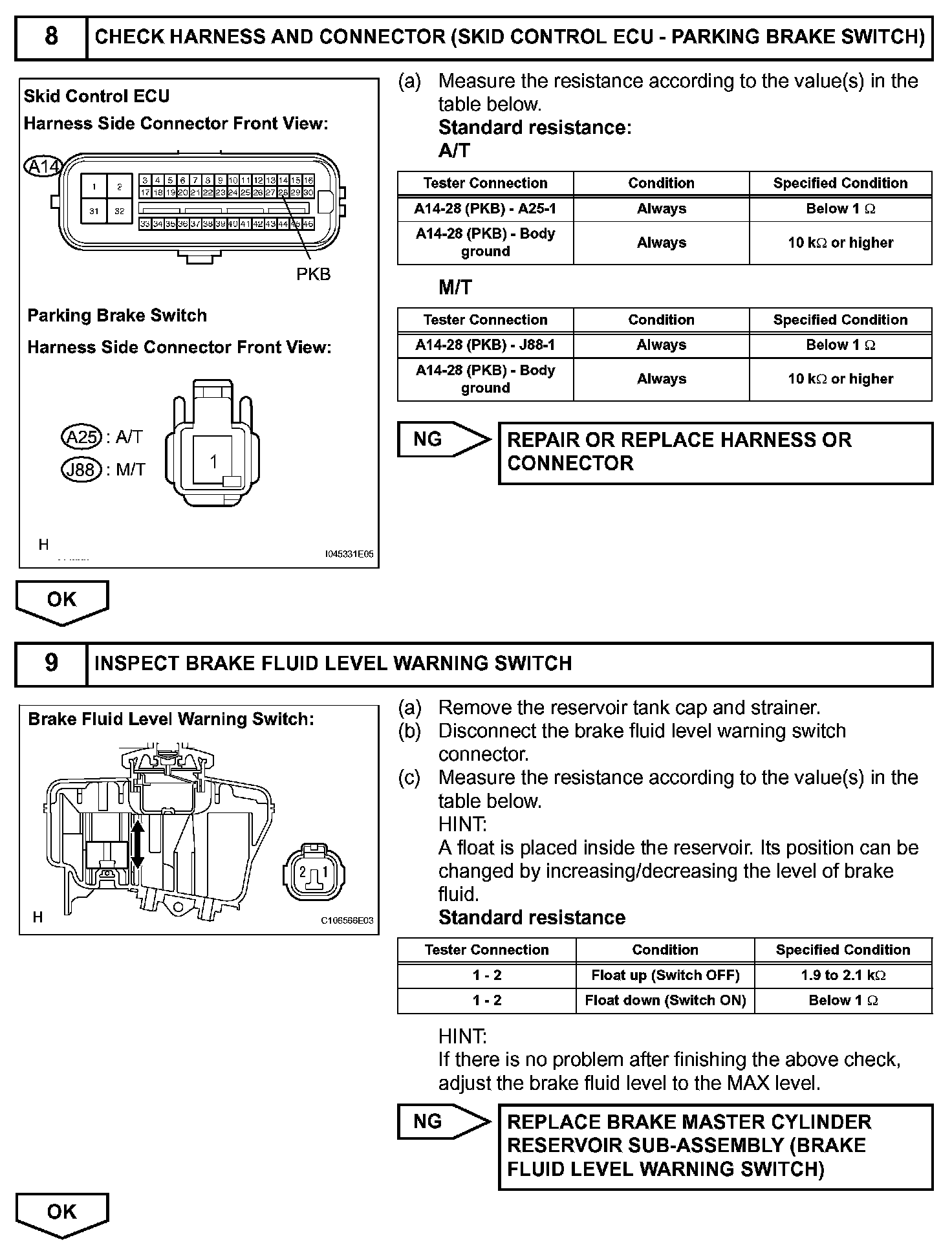

Step 8-9:

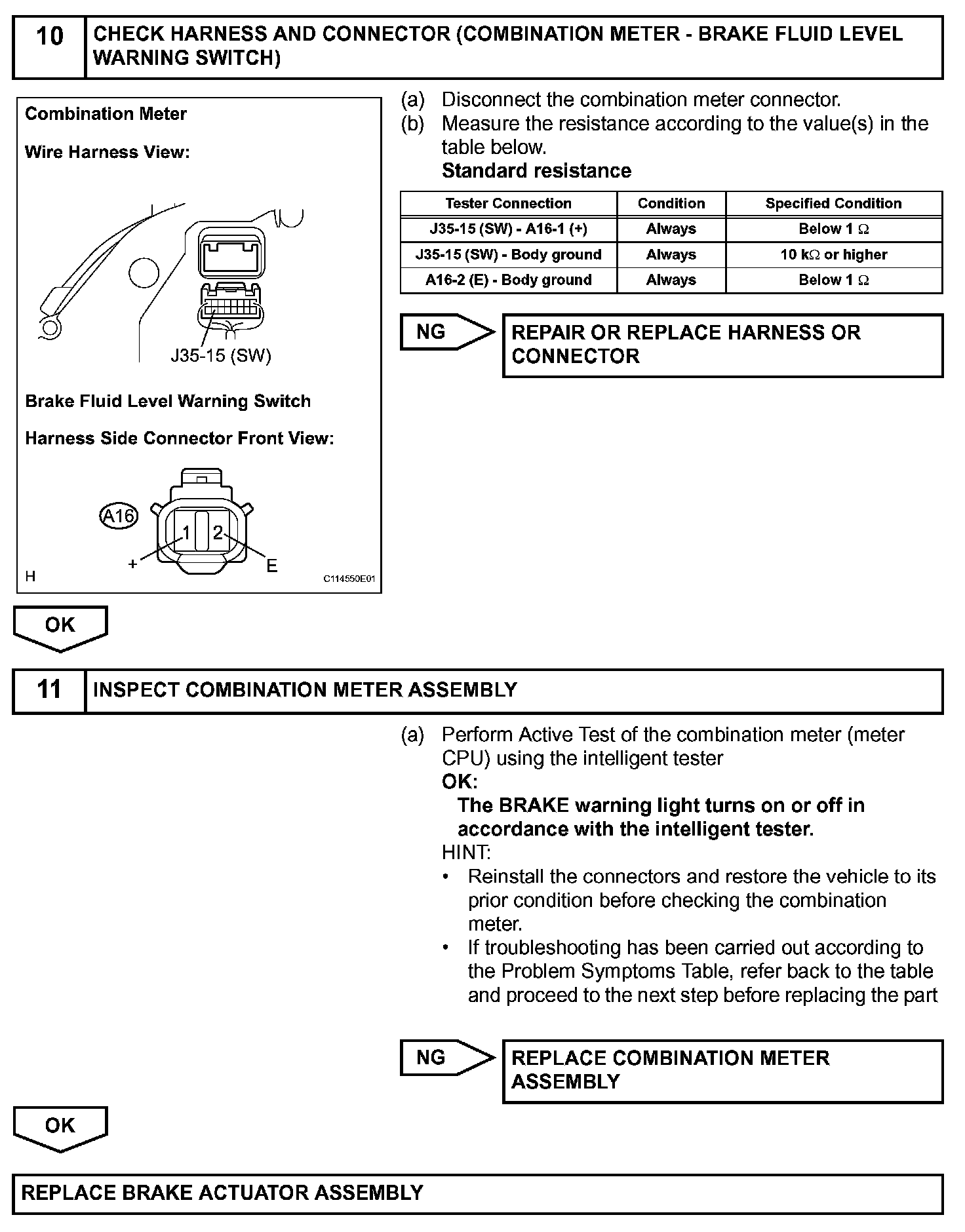

Step 10-11:
INSPECTION PROCEDURE
NOTE: When replacing the brake actuator assembly, perform zero point calibration. Vehicle Stability Control System (W/O VDIM)
