Without Scan Tool

DTC CHECK (WHEN USING SST CHECK WIRE)

Check the DTC

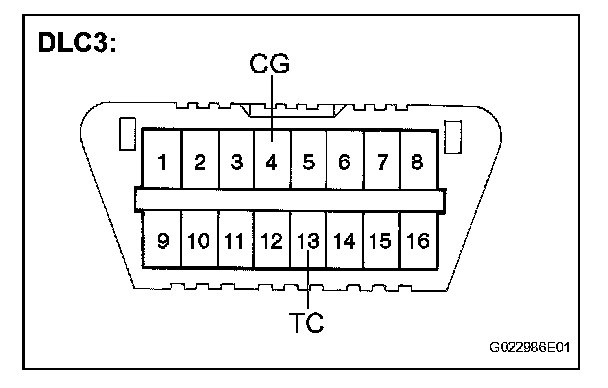

1. Using SST, connect terminals TC and CG of the DLC3.
SST 09843-18040

2. Turn the engine switch on (IG).
3. Observe the blinking pattern of the ABS warning light and read the multi-information display in order to identify the DTC.

HINT: If no code appears, inspect the TC and CG terminal circuit, ABS and VSC warning light circuits.

Trouble Area
TC and CG terminal circuit
ABS warning light circuit
VSC warning light circuit

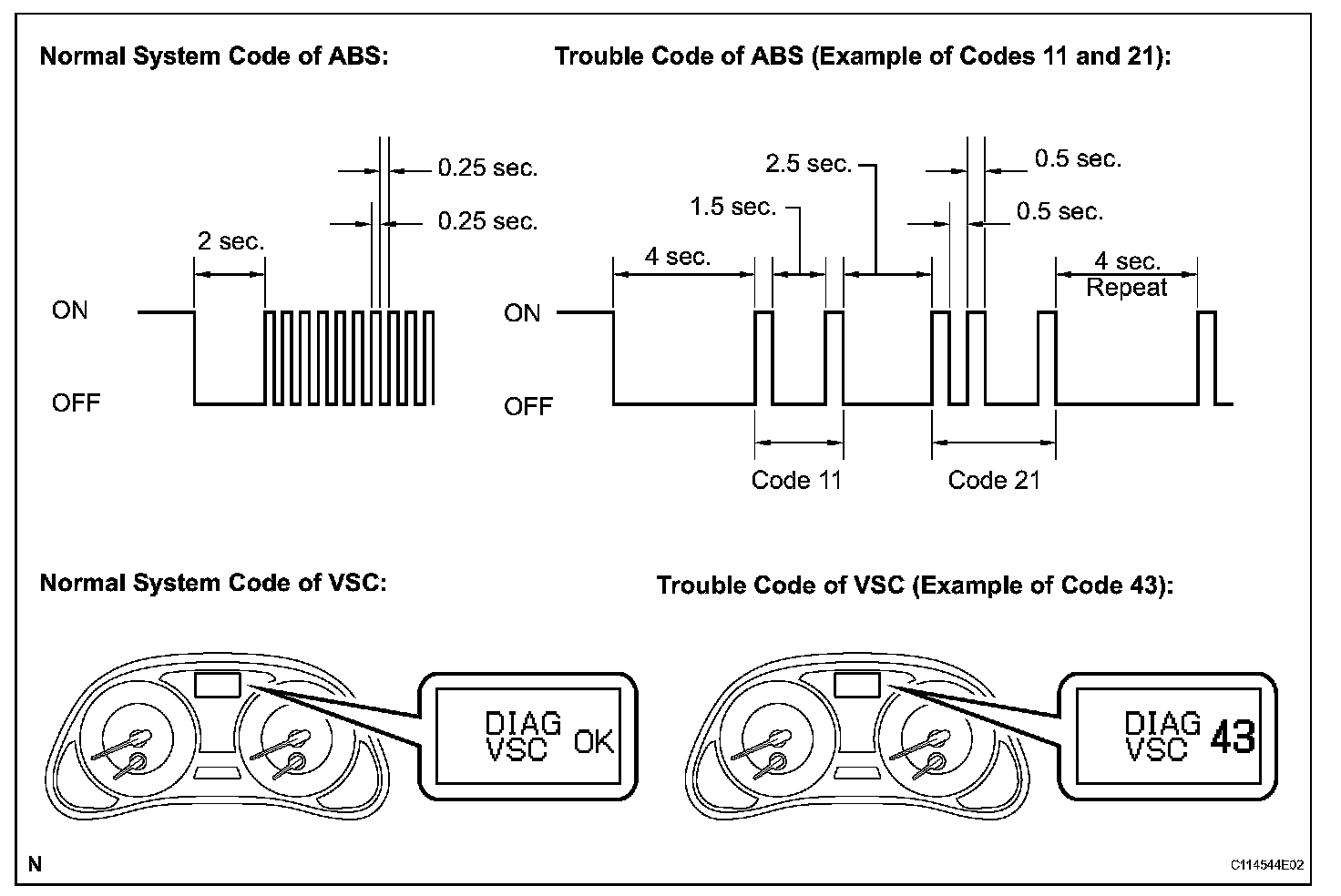

4. As an example, the illustration shows the blinking patterns of the normal system code and trouble codes 11 and 21 for ABS, and display of the normal system code and trouble code 43 for the VSC on the multi-information display.

5. The codes are explained in the code table.
6. After completing the check, disconnect terminals TC and CG of the DLC3, and turn off the display If 2 or more DTCs are detected at the same time, the DTCs will be displayed in ascending order.

END OF DTC CHECK

a. Turn the engine switch on (IG).
b. Check that the ABS warning light goes off with in approximately 3 seconds.
