Skid Control Buzzer Circuit

Skid Control Buzzer Circuit

DESCRIPTION

The skid control buzzer sounds while the accumulator pressure is abnormally low or when an abnormality causing low fluid pressure occurs, and then the VSC is activated.

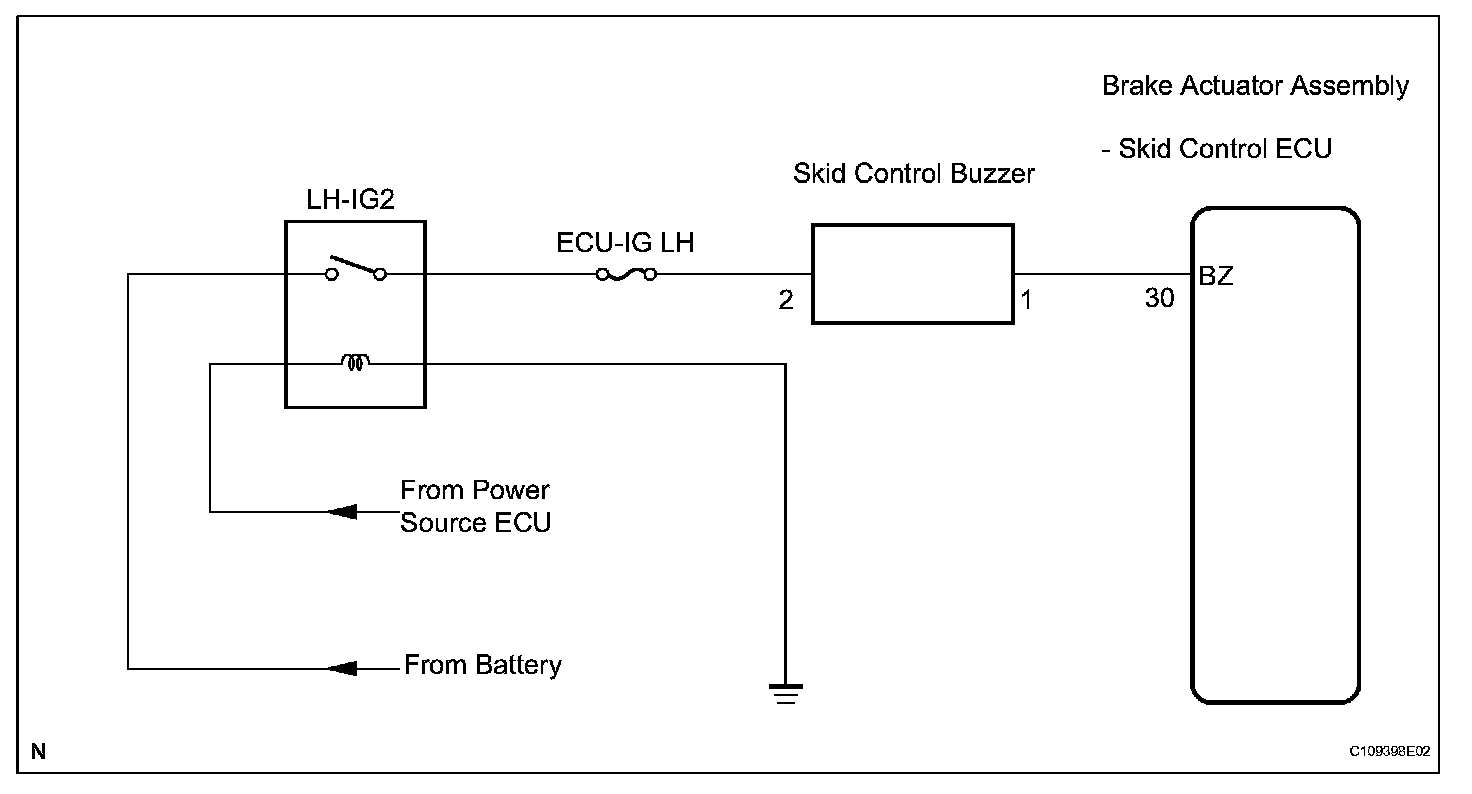

Wiring Diagram:

Step 1:

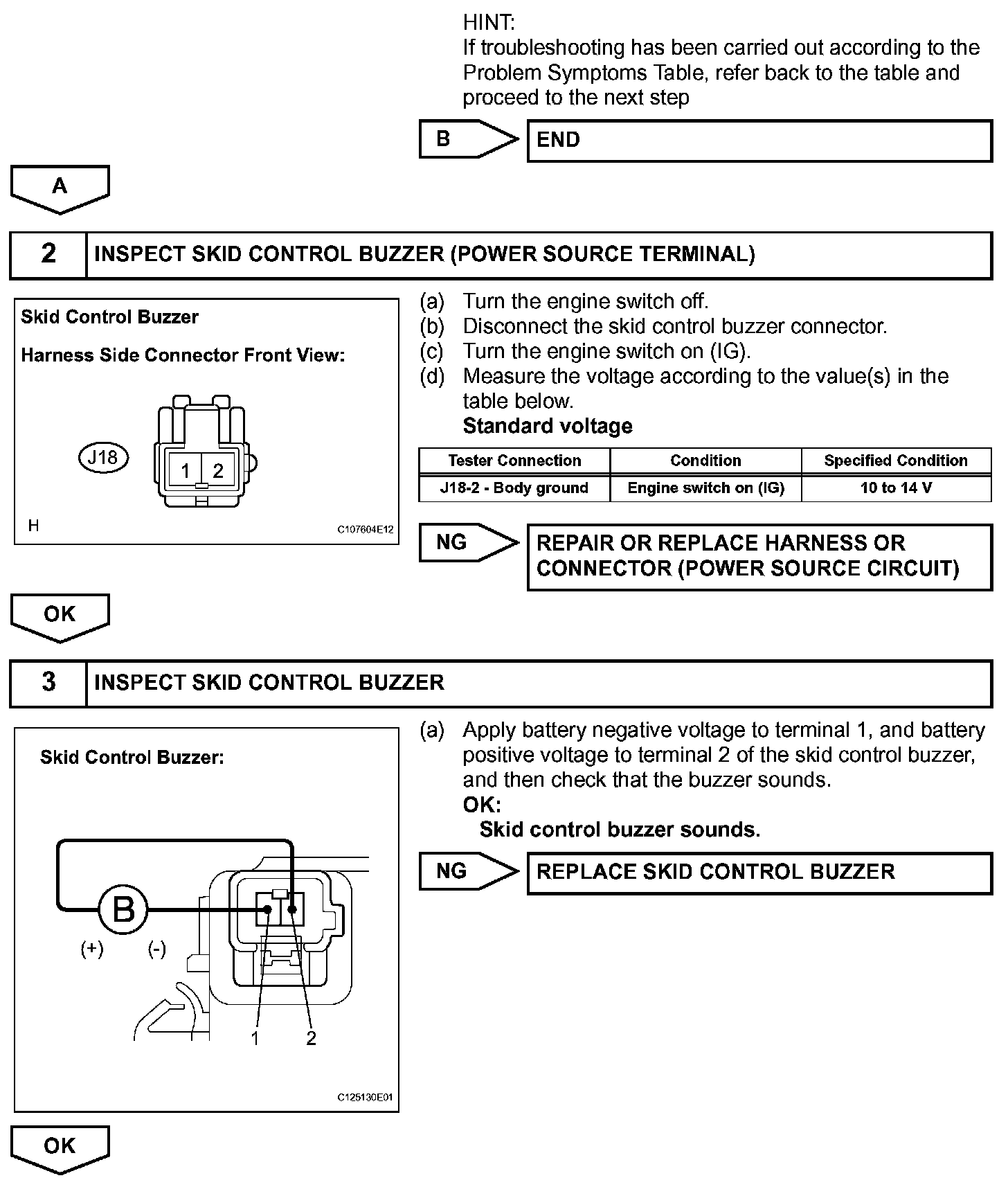

Step 1(Continued)-3:

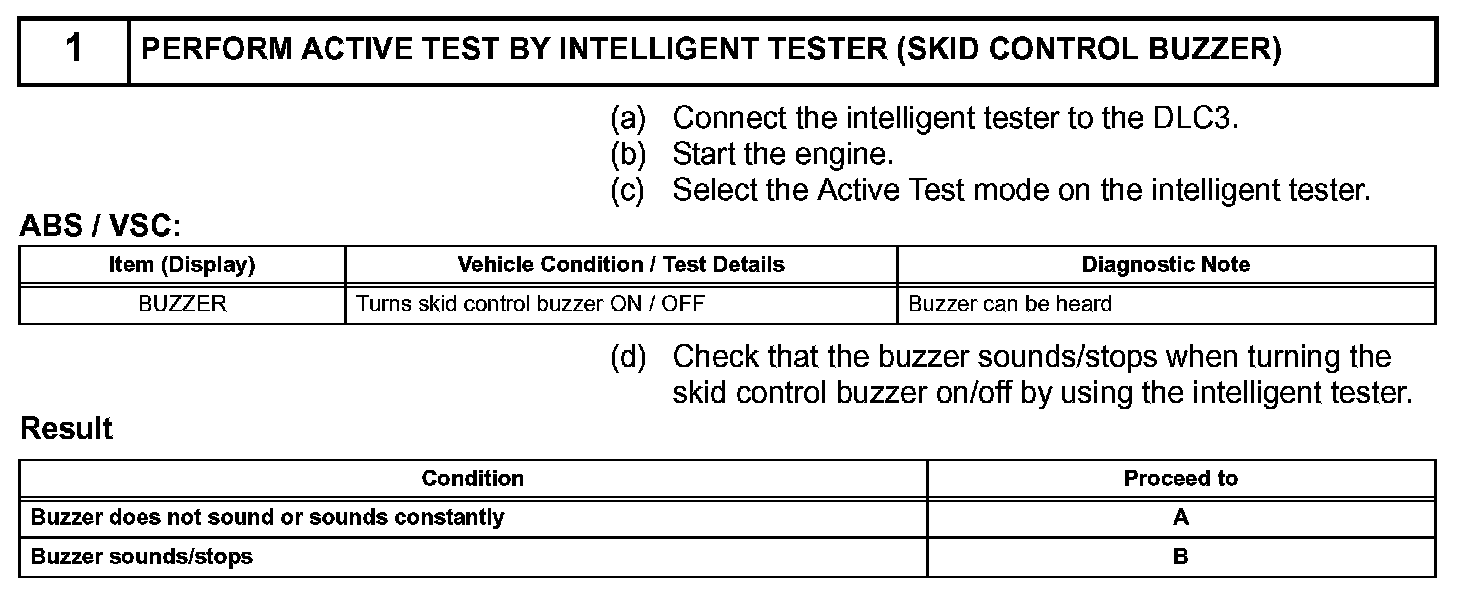

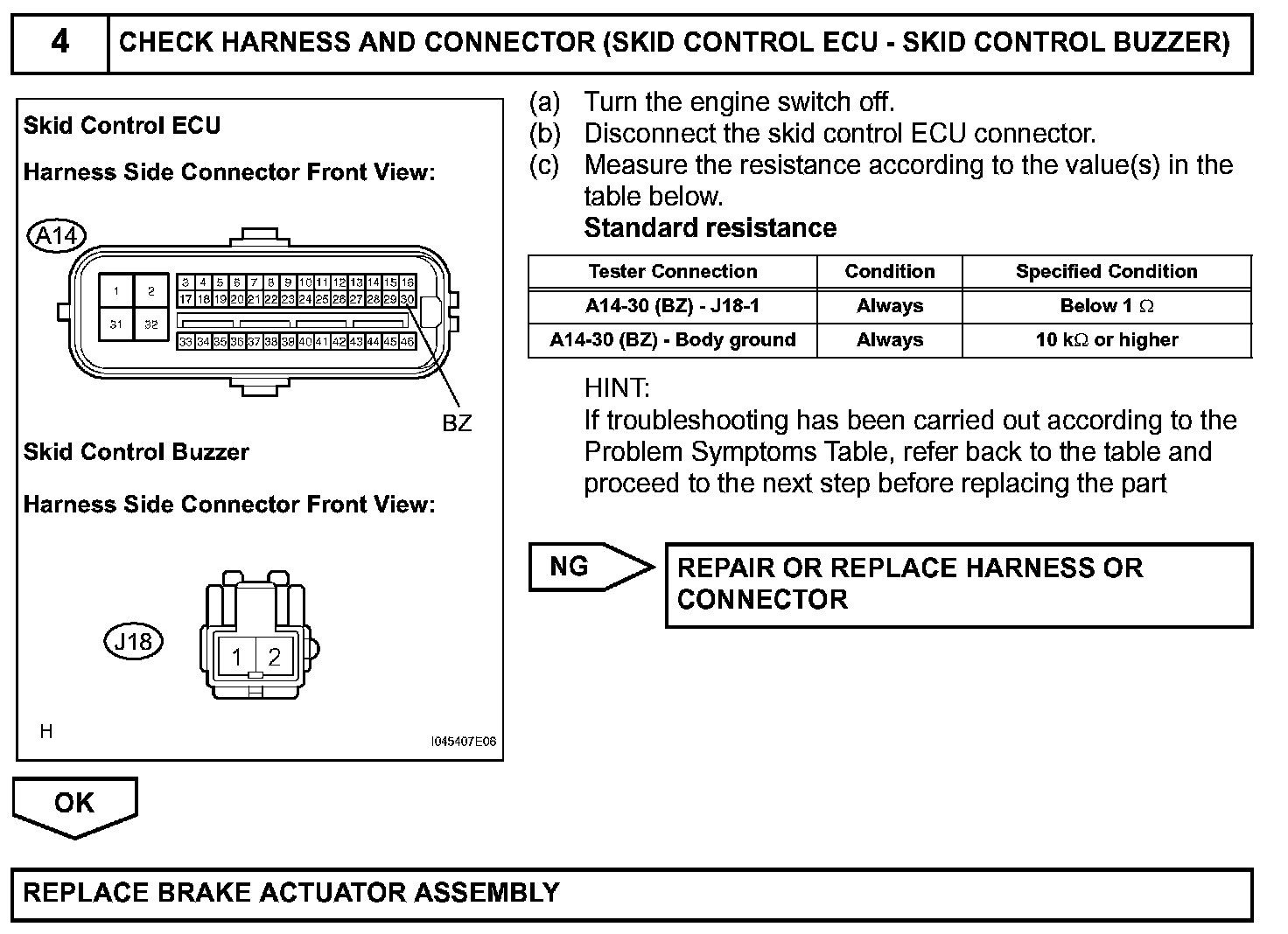

Step 4:

INSPECTION PROCEDURE

NOTE: When replacing the brake actuator assembly, perform zero point calibration. Vehicle Stability Control System (W/ VDIM)
