TC and CG Terminal Circuit

TC and CG Terminal Circuit

DESCRIPTION

Connecting terminals TC and CG of the DLC3 causes the ECU to display the DTC by blinking the ABS warning light.

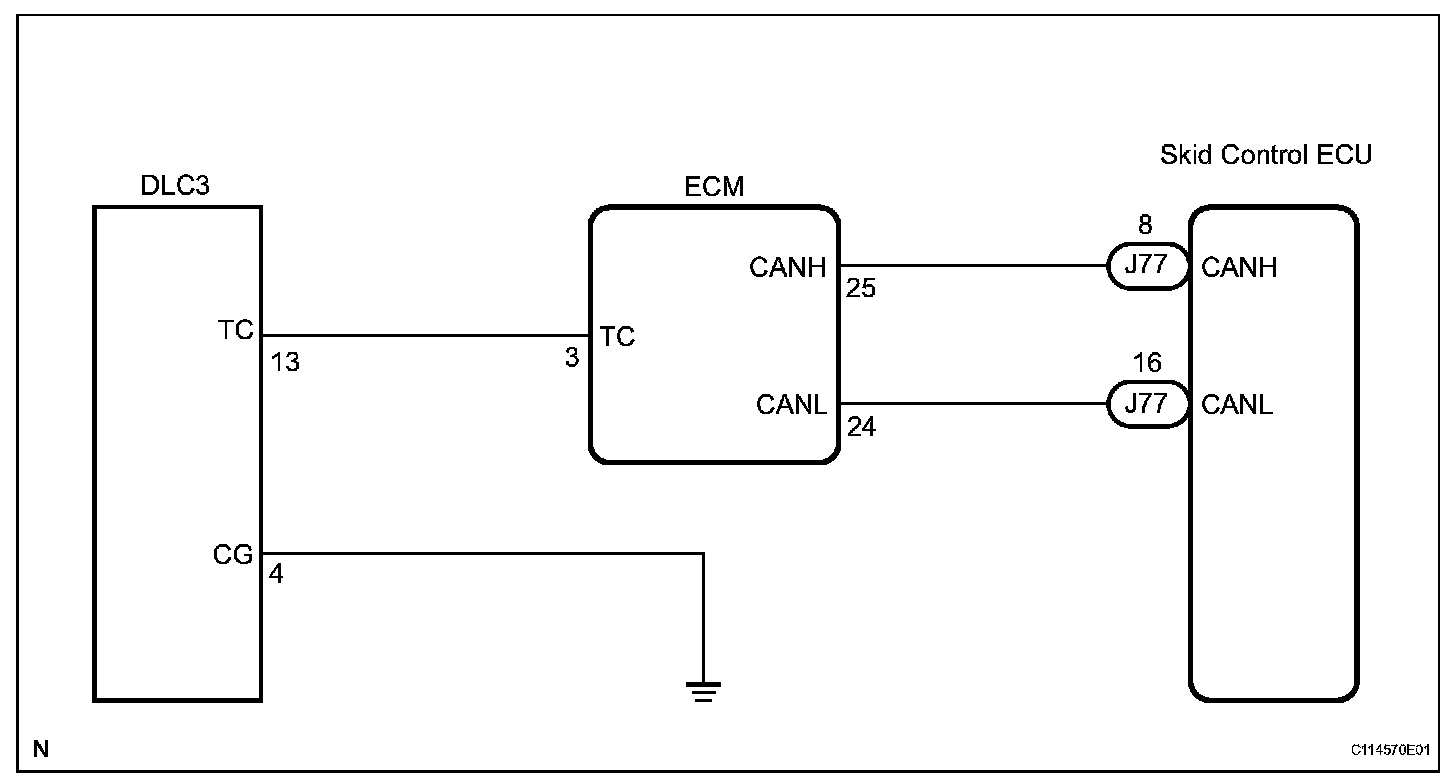

Wiring Diagram:

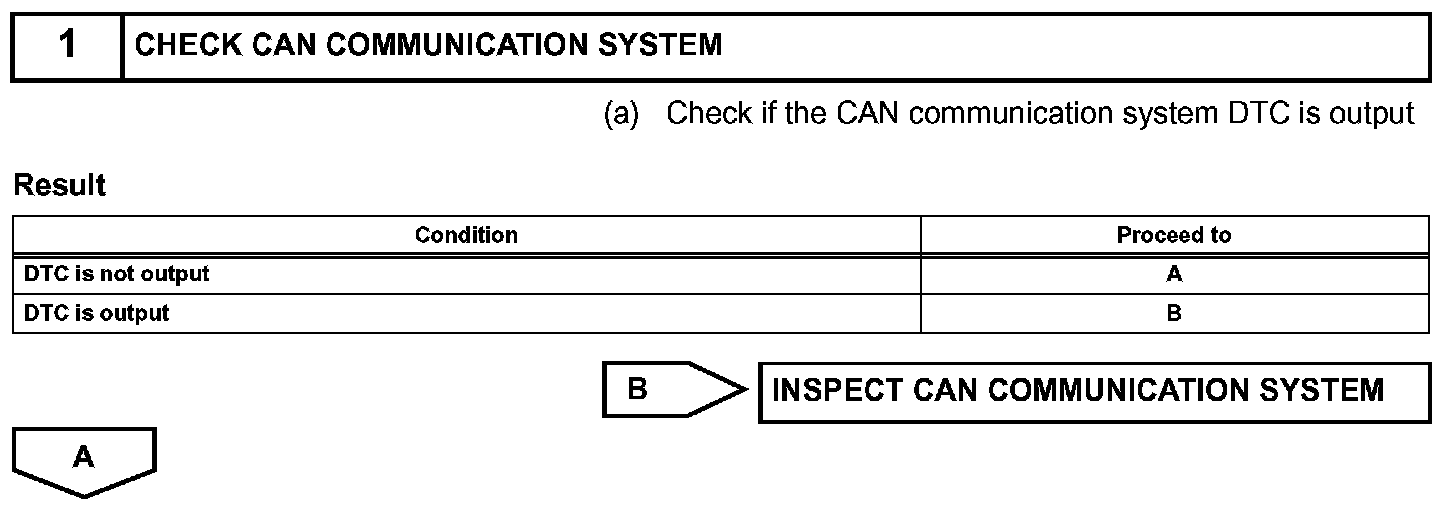

Step 1:

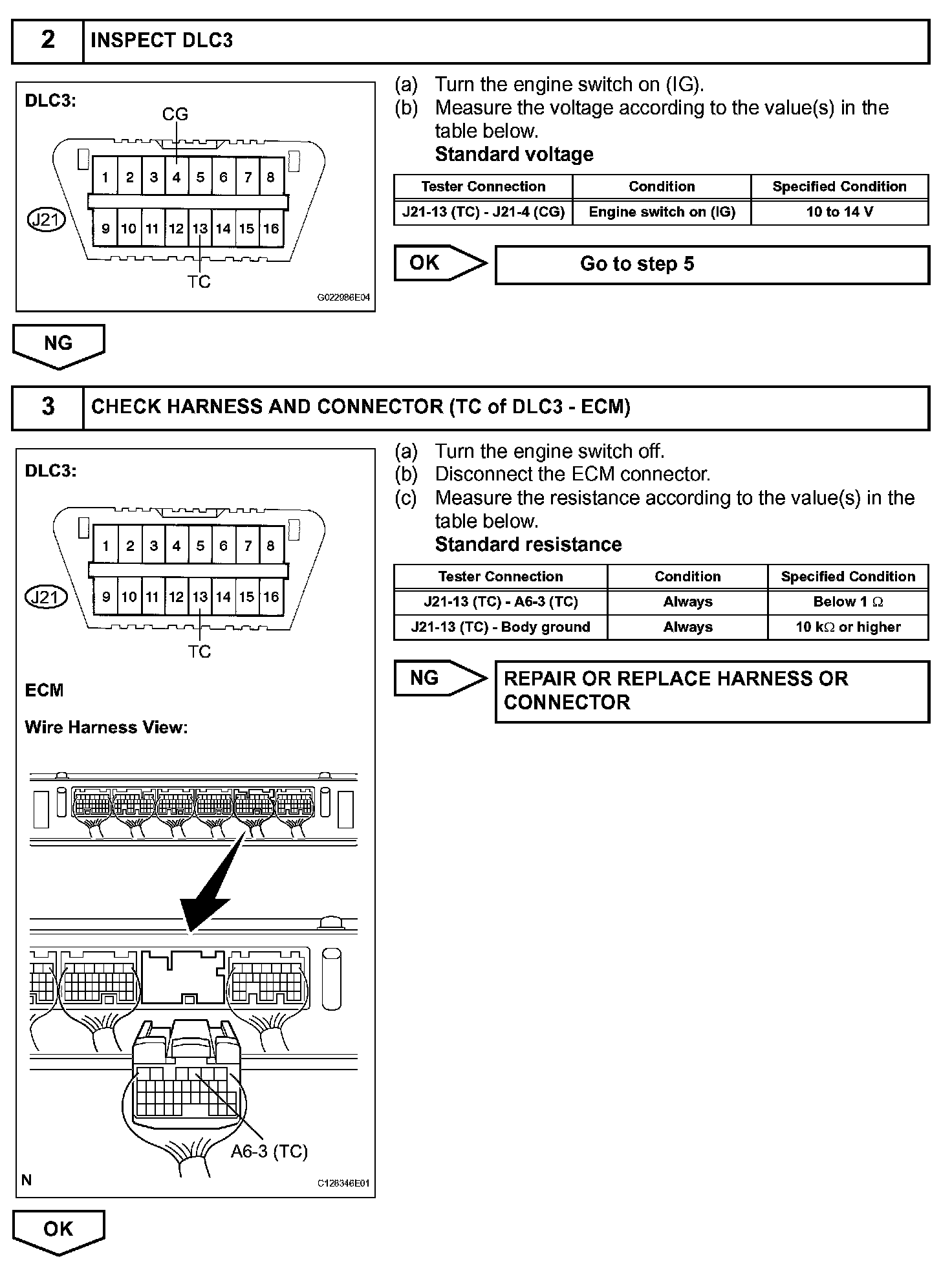

Step 2-3:

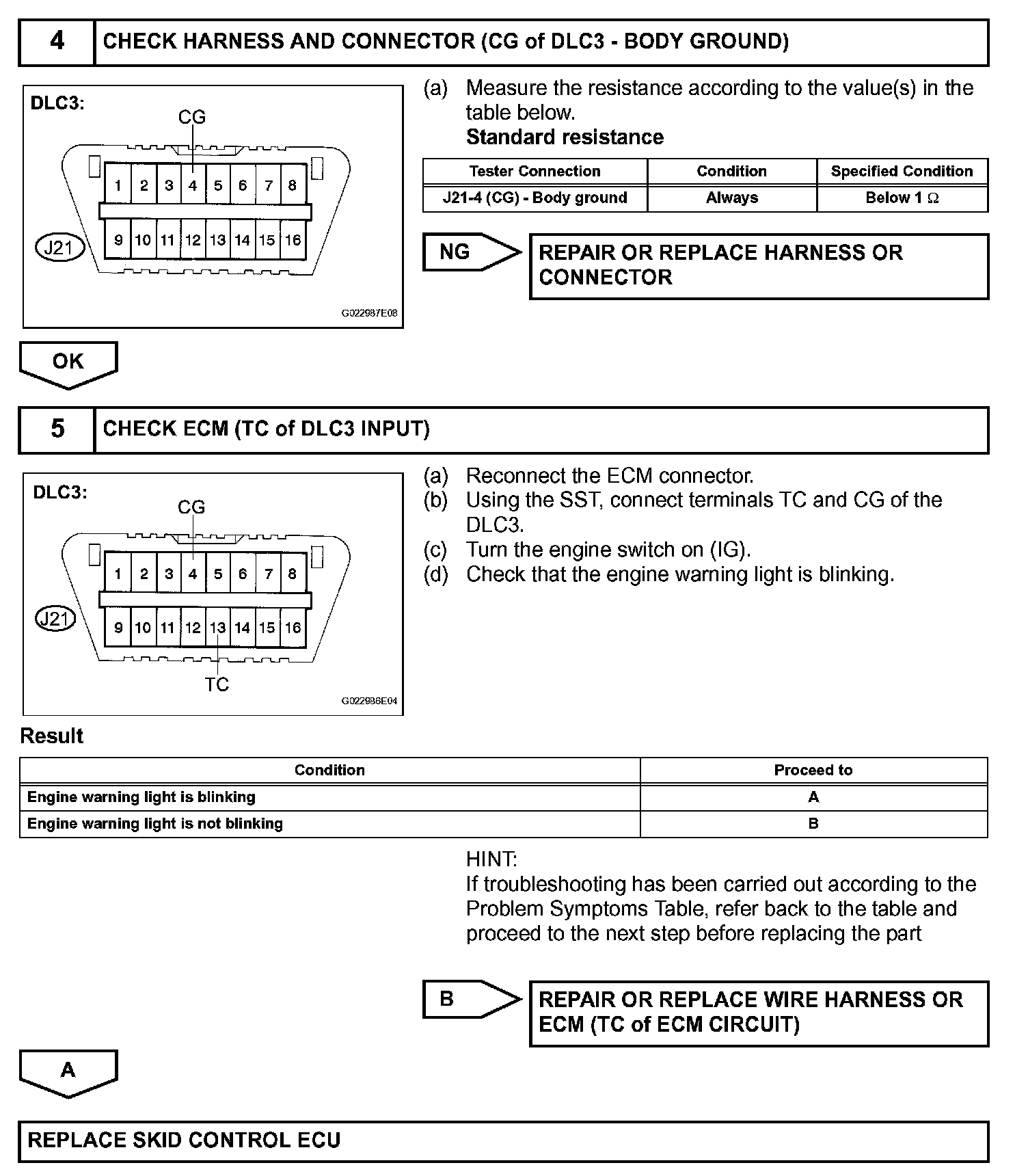

Step 4-5:

INSPECTION PROCEDURE

NOTE: When replacing the skid control ECU, perform zero point calibration and store system information. Vehicle Stability Control System (W/ VDIM)
