Skid Control Buzzer

INSPECTION




1. INSPECT SKID CONTROL BUZZER ASSEMBLY

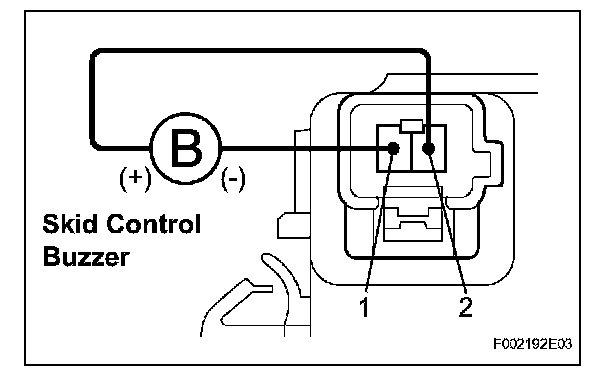

a. Apply battery negative voltage to terminal 1, and battery positive voltage to terminal 2 of the skid control buzzer, and then check that the buzzer sounds.

OK:Skid control buzzer sounds.

HINT: If the value is not as specified, replace the skid control buzzer.
