Power Seat Switch: Locations
Fr - Si:

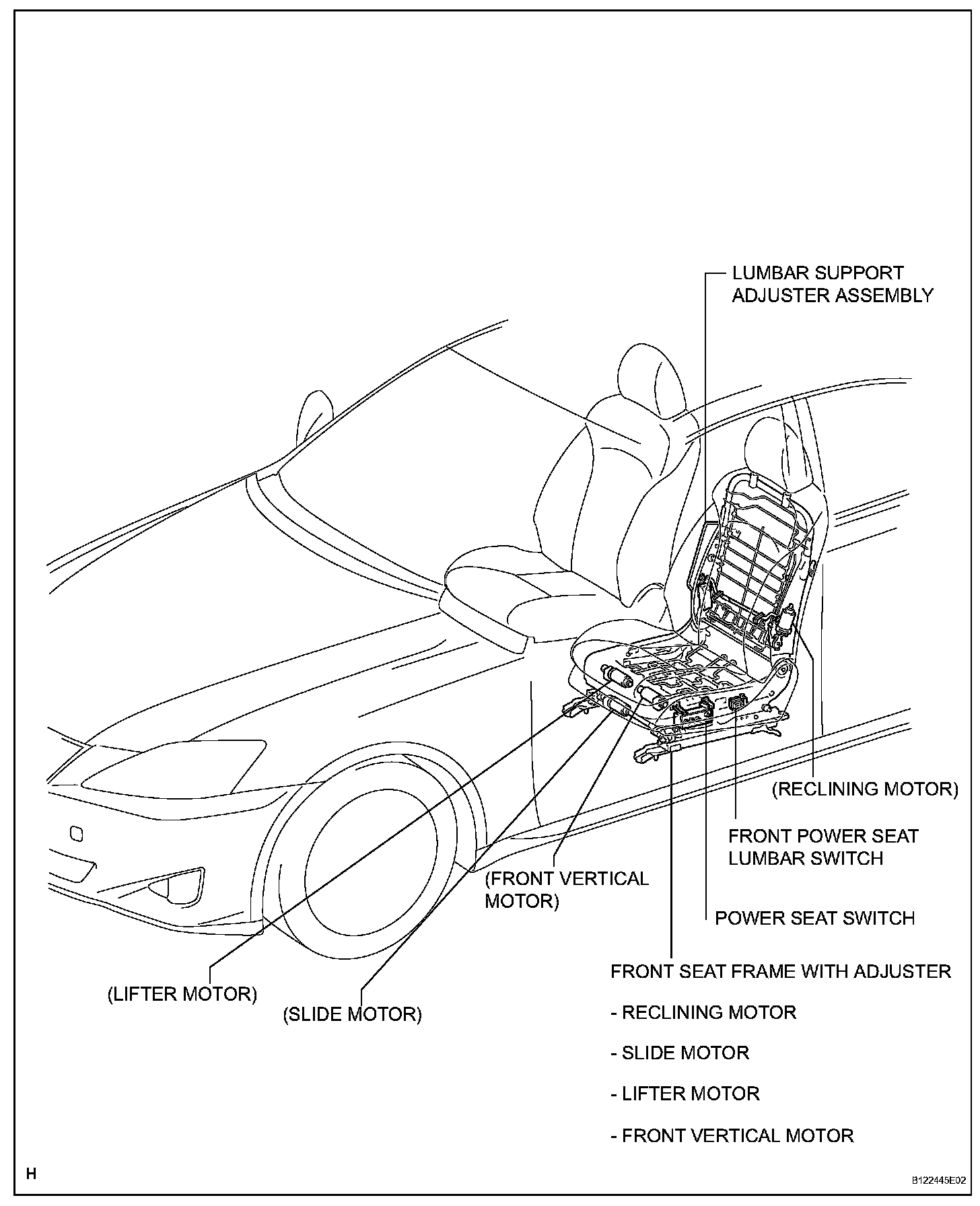

Front Power Seat Control System (w/ Seat Position Memory System):

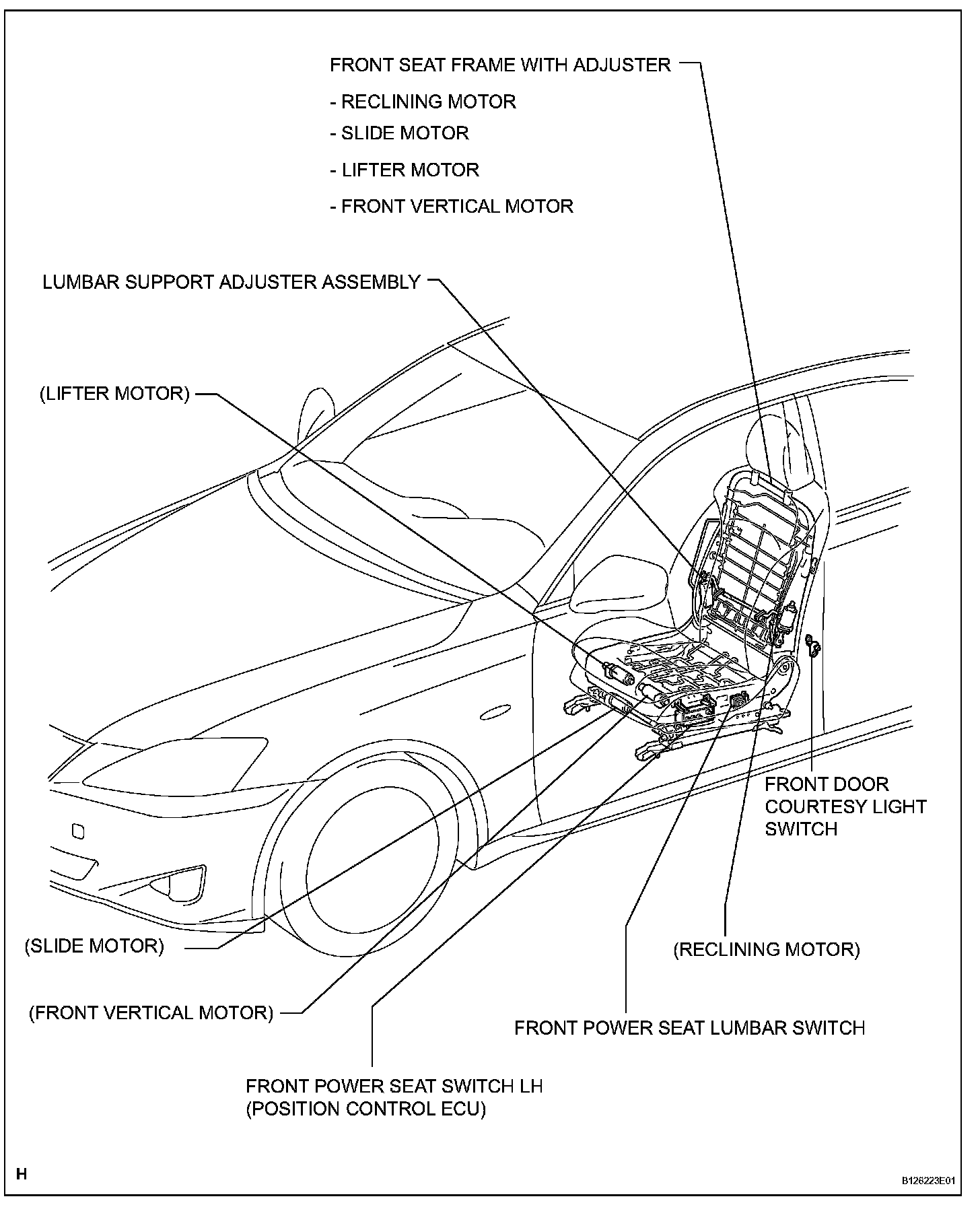

Front Power Seat Control System (w/o Seat Position Memory System):
