Memory Positioning Switch: Testing and Inspection

INSPECTION

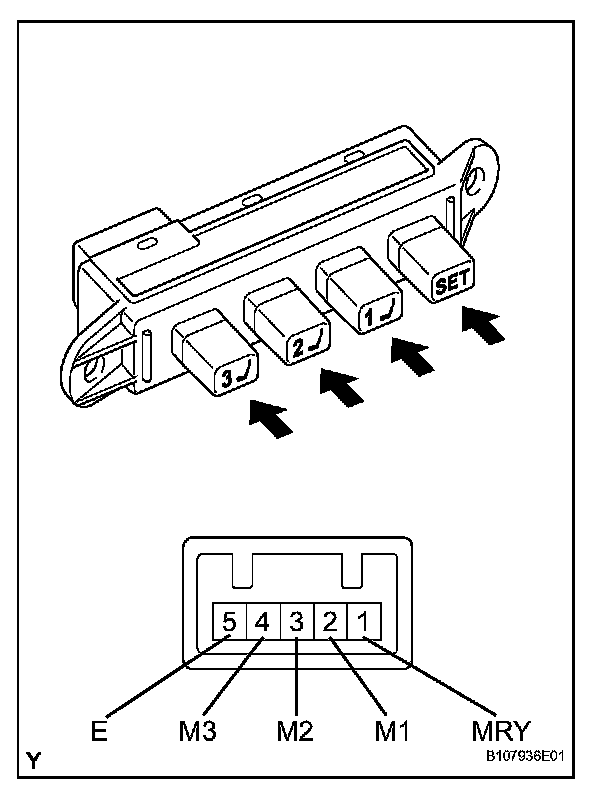

1. INSPECT SEAT MEMORY SWITCH LH

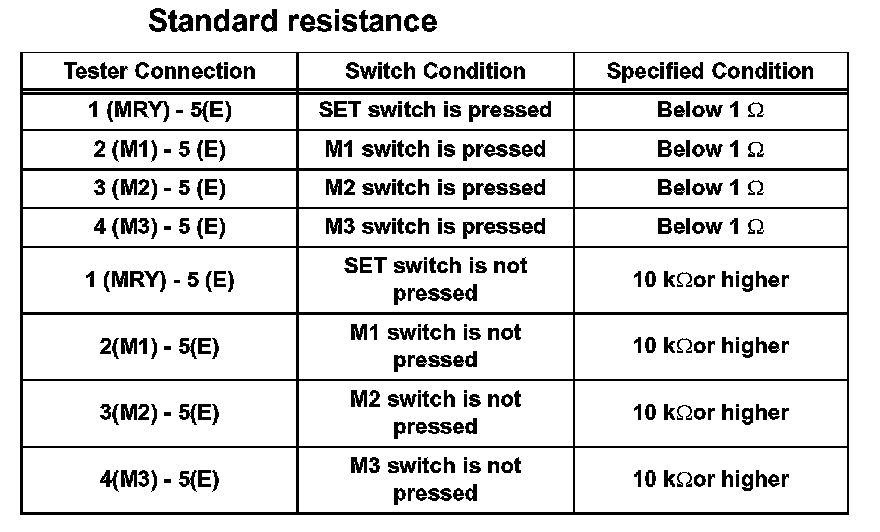

a. Measure the resistance according to the value(s) in the table.

If the result is not as specified, replace the switch.

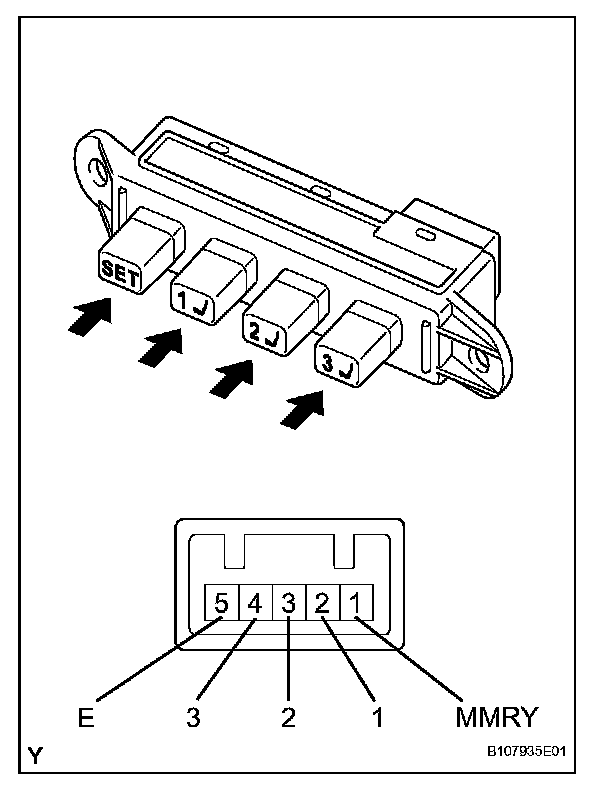

2. INSPECT SEAT MEMORY SWITCH RH

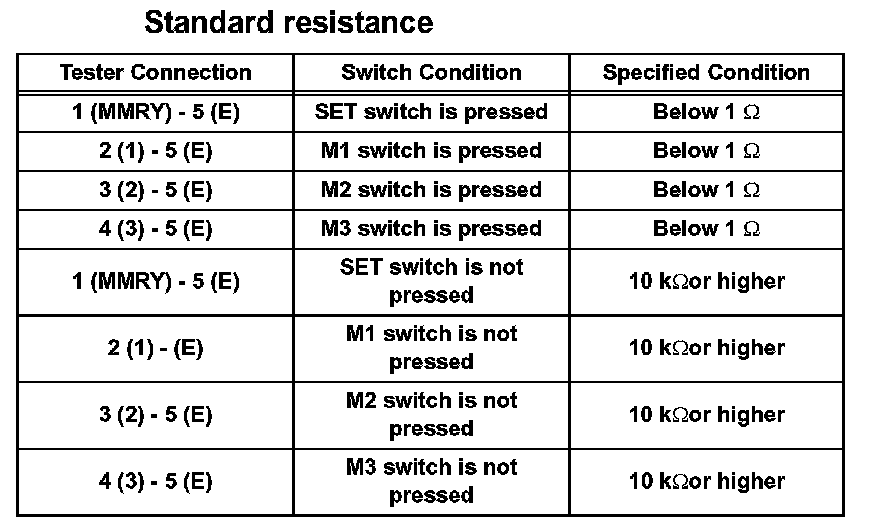

a. Measure the resistance according to the value(s) in the table.

If the result is not as specified, replace the switch.
