Hood Sensor/Switch (For Alarm): Testing and Inspection

Engine Hood Courtesy Switch Circuit

DESCRIPTION

The engine hood courtesy switch is installed together with the hood lock. This switch turns on when the engine hood is opened and turns off when the engine hood is closed.

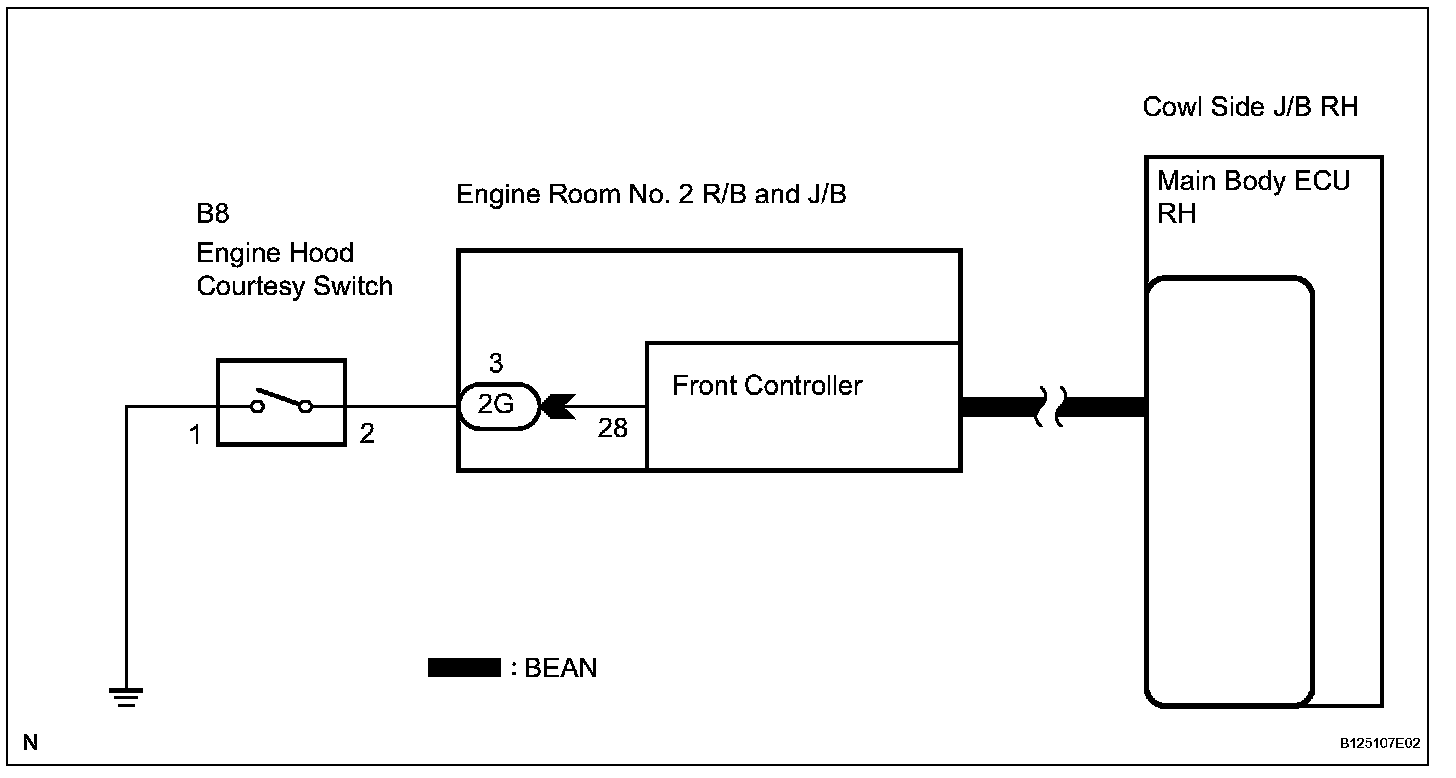

Wiring Diagram:

Step 1-2:

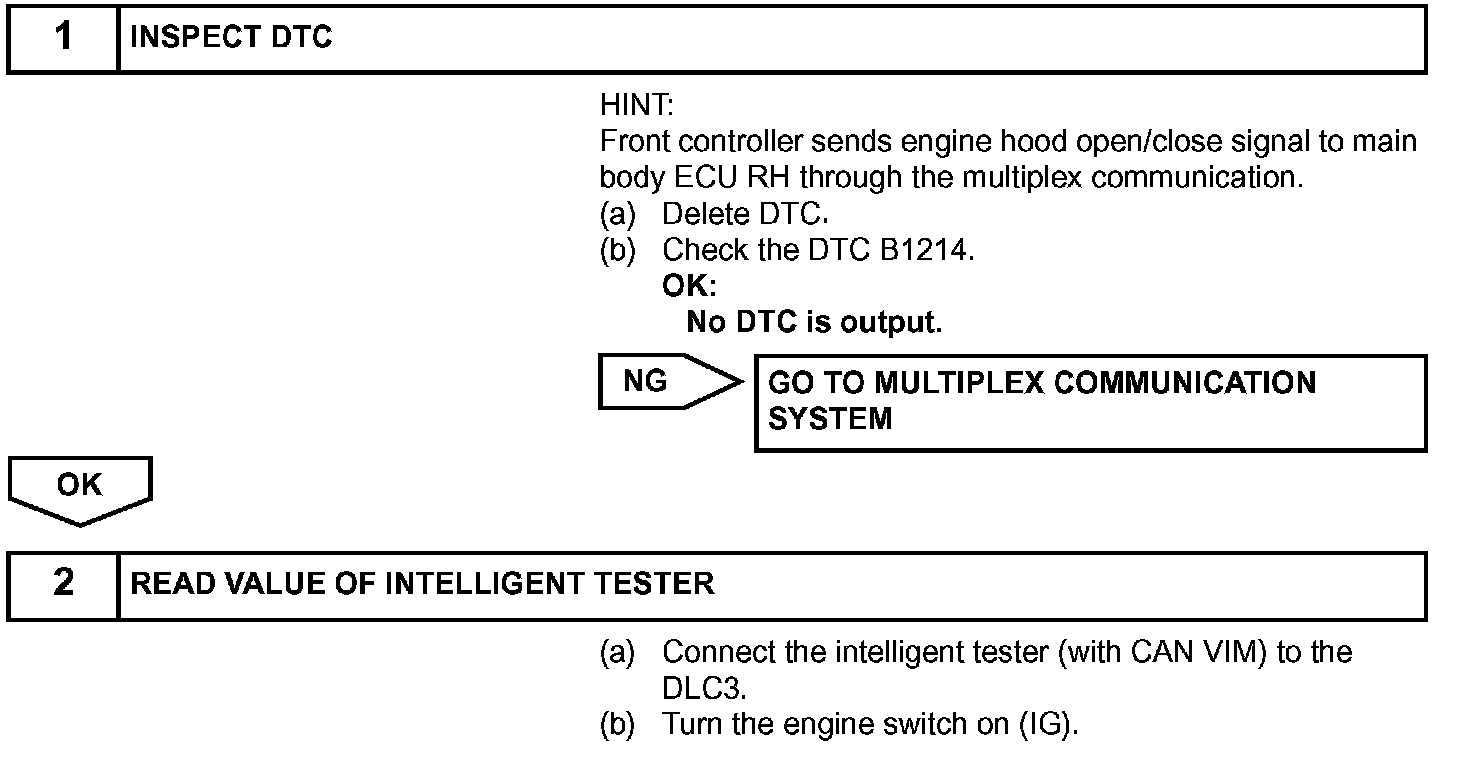

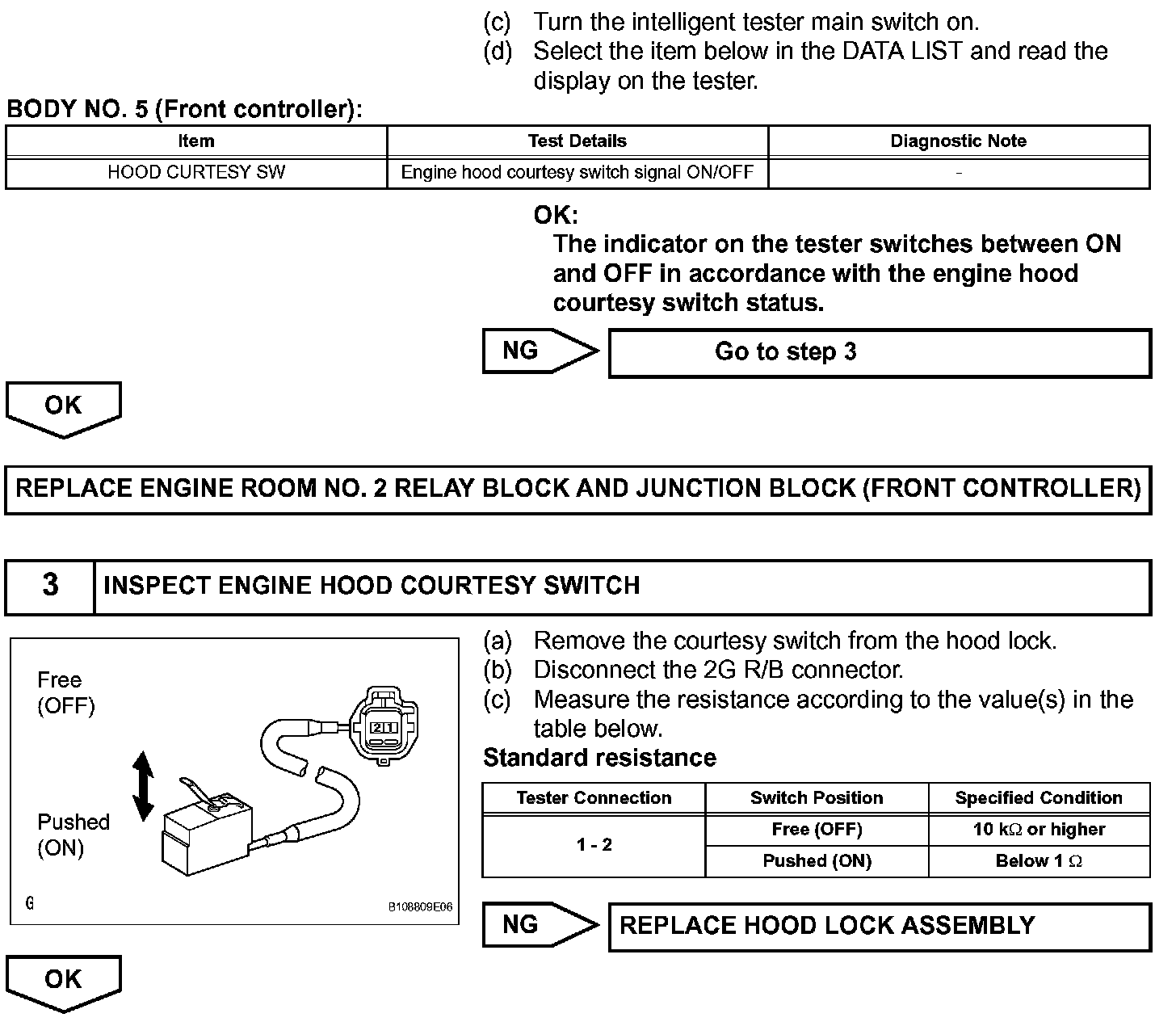

Step 2 (Continued)-3:

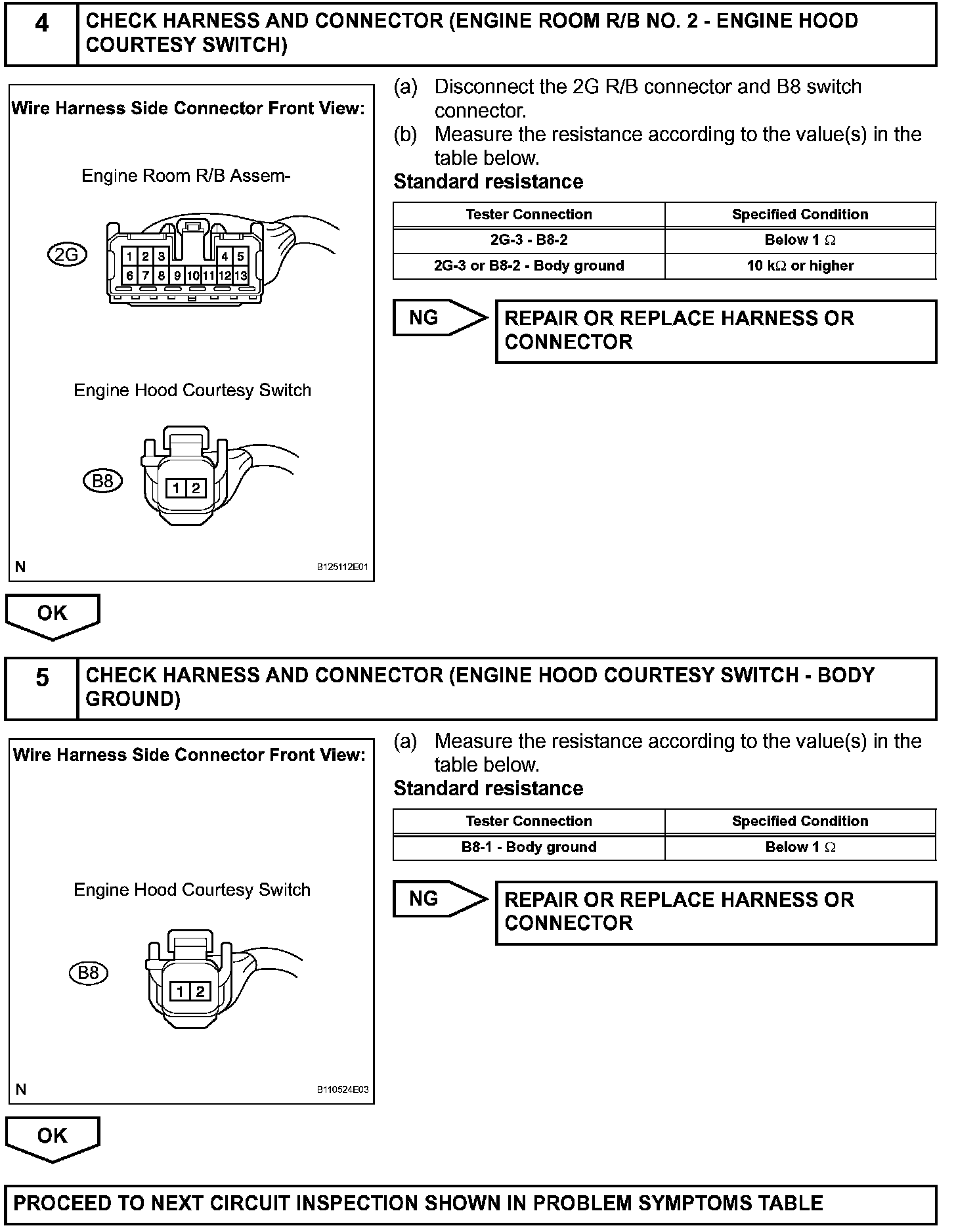

Step 4-5:

INSPECTION PROCEDURE
