Front Power Seat Control System (W/o Seat Position Memory System)

PROBLEM SYMPTOMS TABLE

HINT:
- Inspect the fuses and relays before confirming the suspected areas in the table below.
- Inspect each suspected area in numerical order for the corresponding symptom.

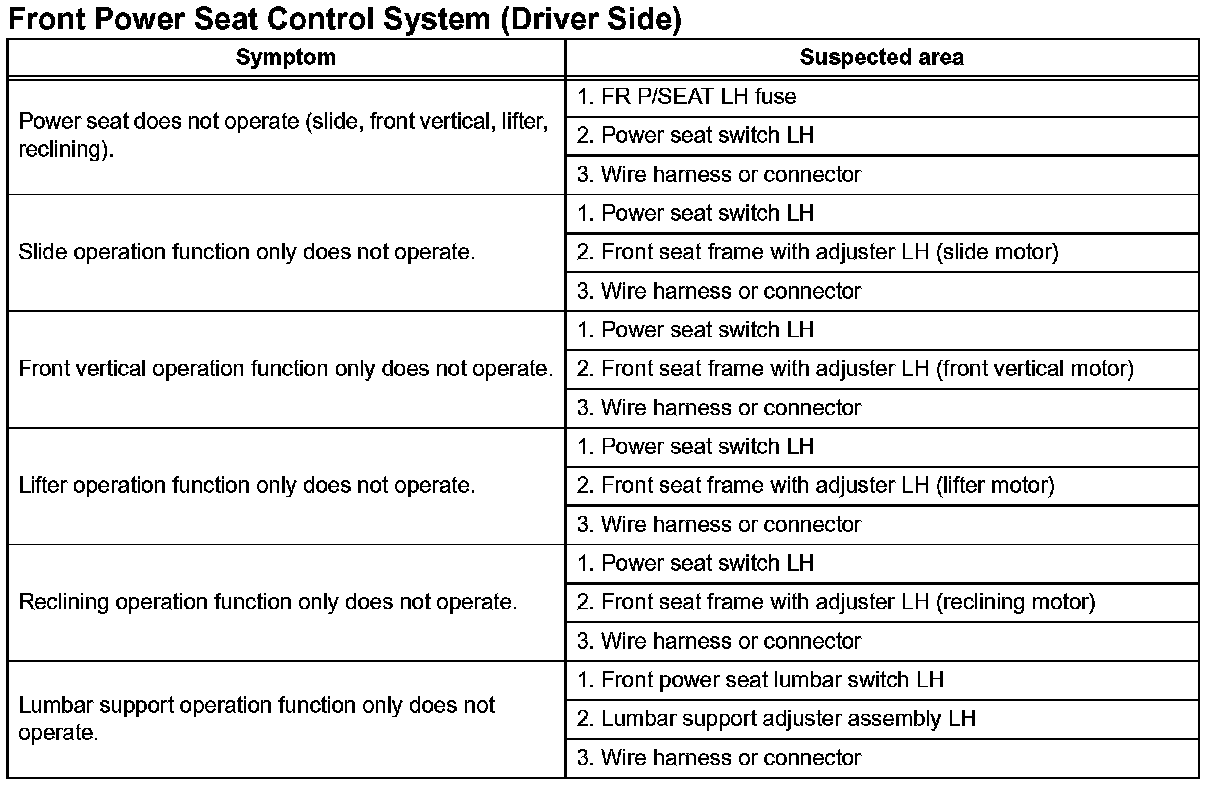

Problem Symptoms Table - Front Power Seat Control System (Driver Side):

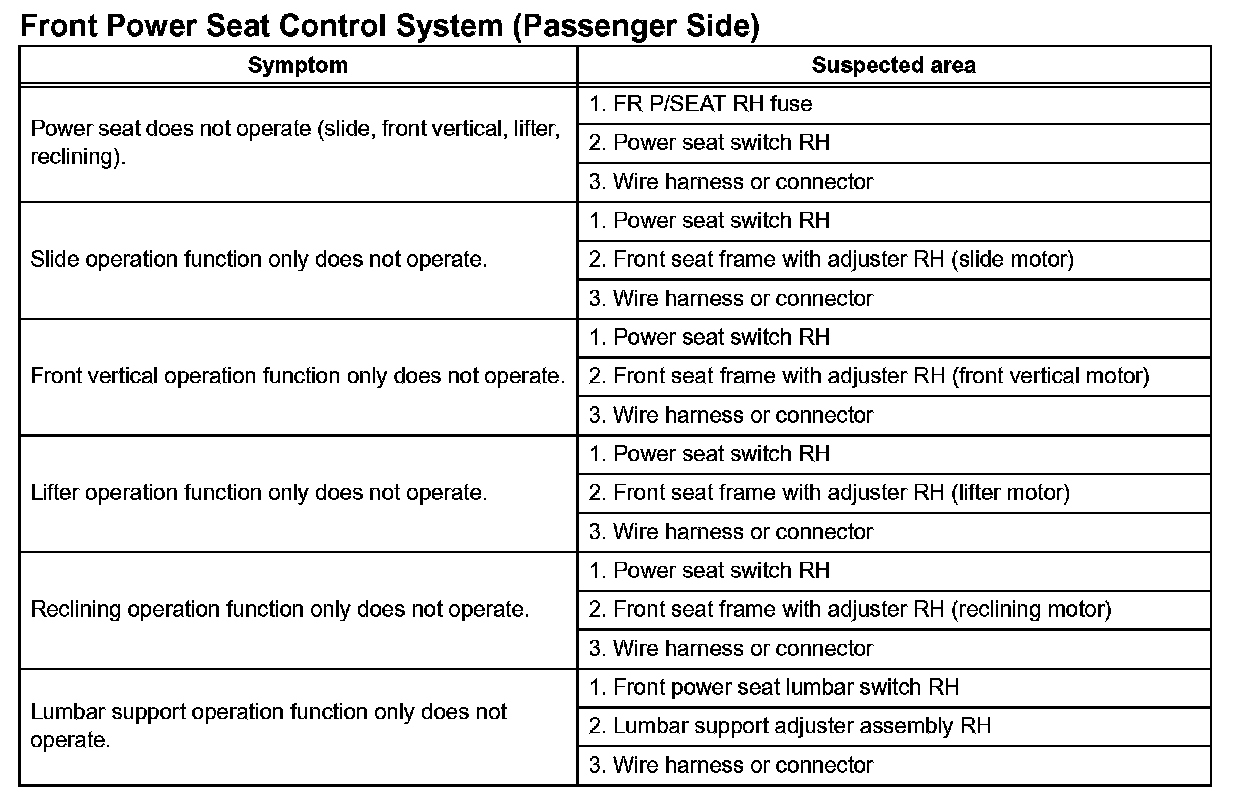

Problem Symptoms Table - Front Power Seat Control System (Passenger Side):
