Climate Control Seat System Does Not Operate
Climate Control Seat System Does Not OperateDESCRIPTION
The A/C amplifier assembly receives seat position signals when the engine switch is on (IG), and then transmits airflow amount signals to each seat climate blower.

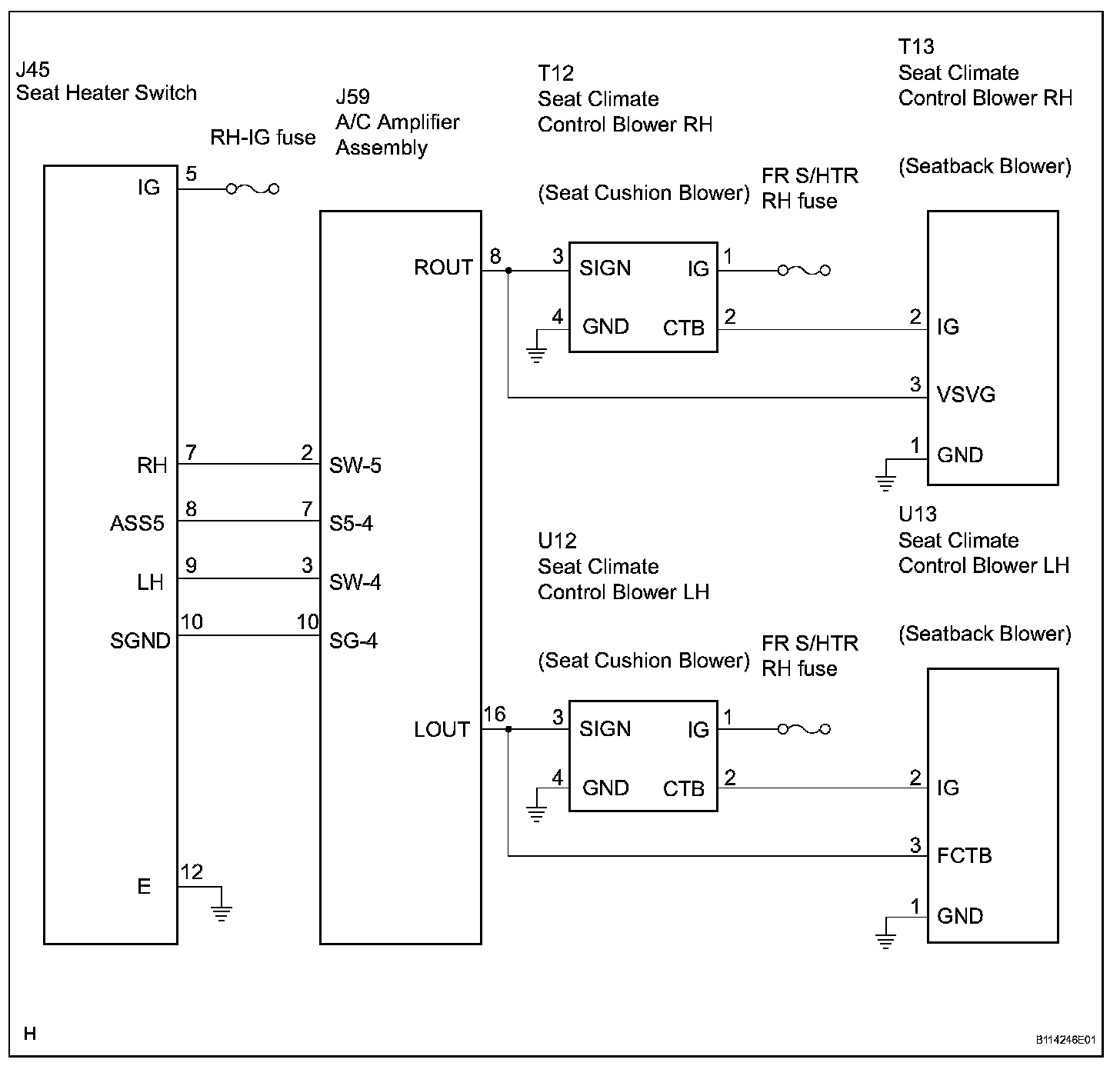

WIRING DIAGRAM
Wiring Diagram:
INSPECTION PROCEDURE

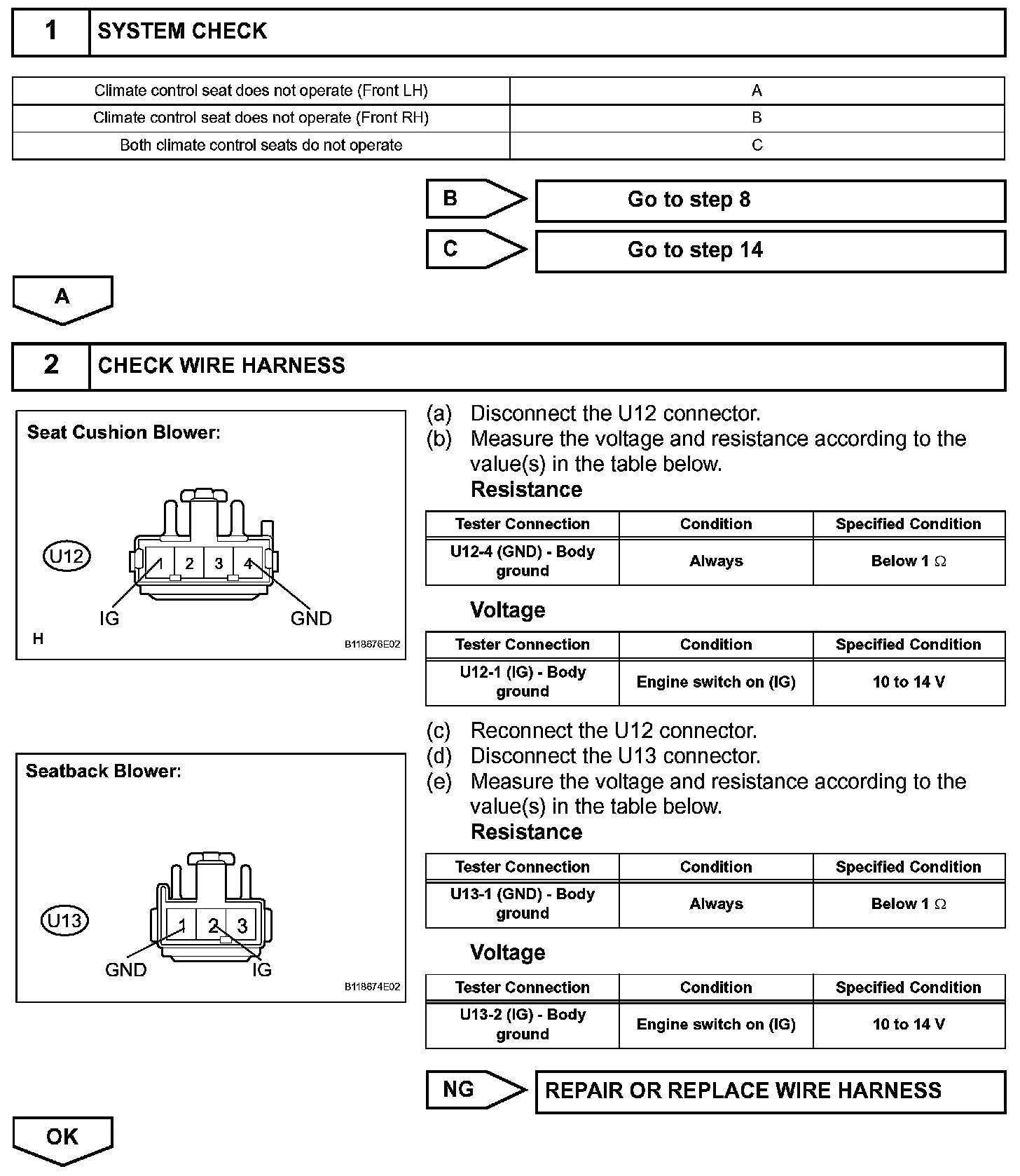

Step 1 - 2:

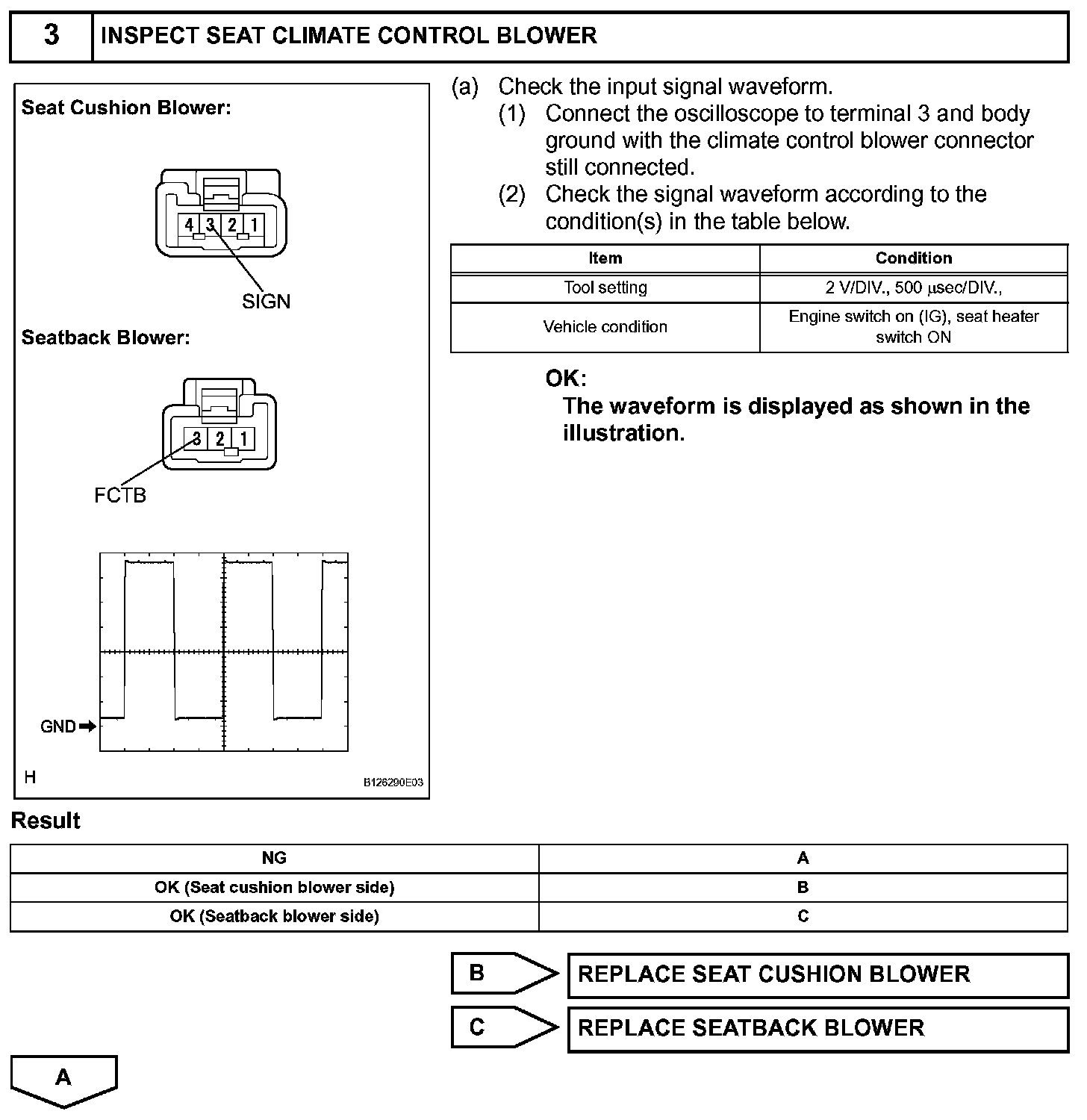

Step 3:

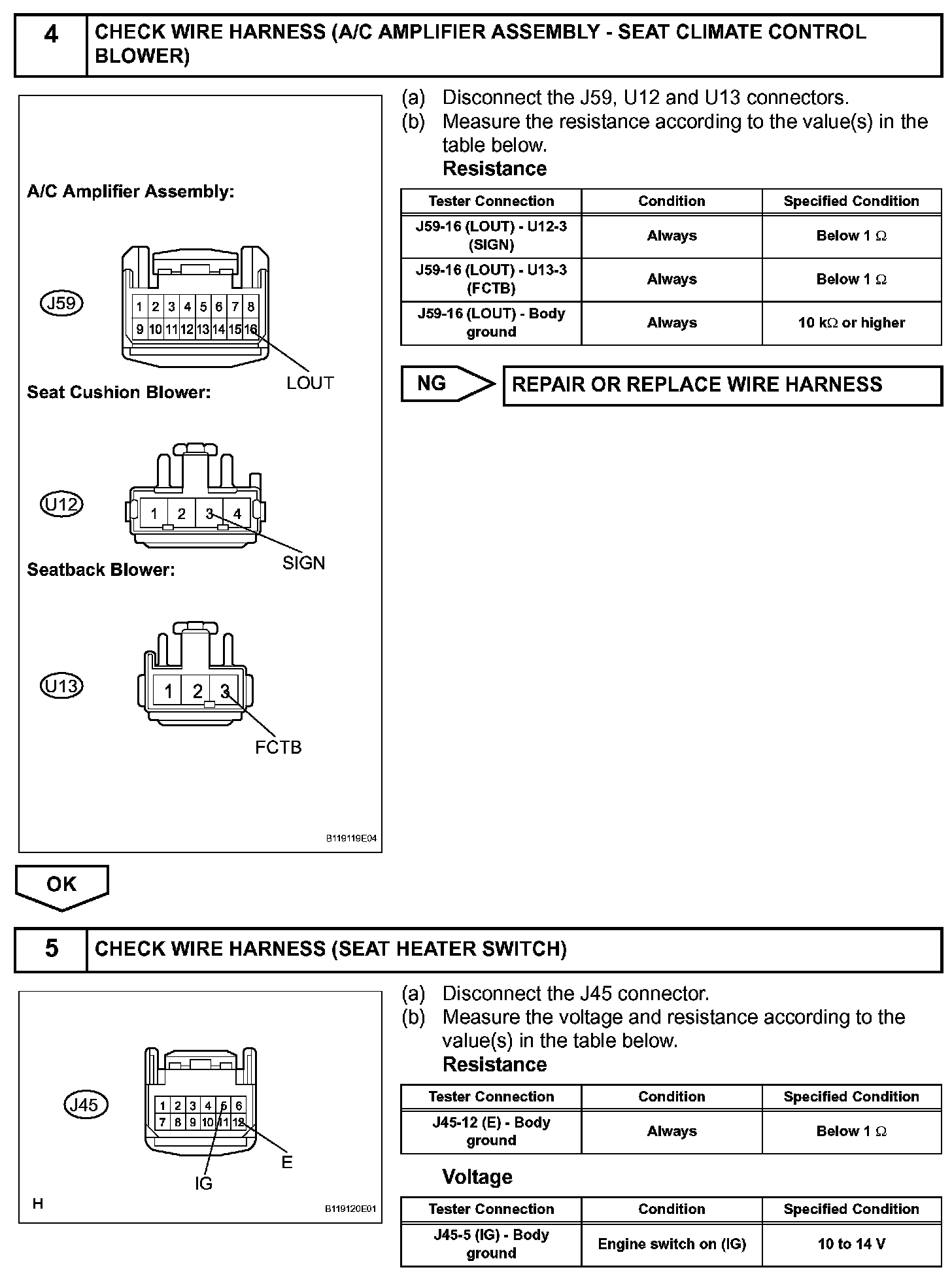

Step 4 - 5:

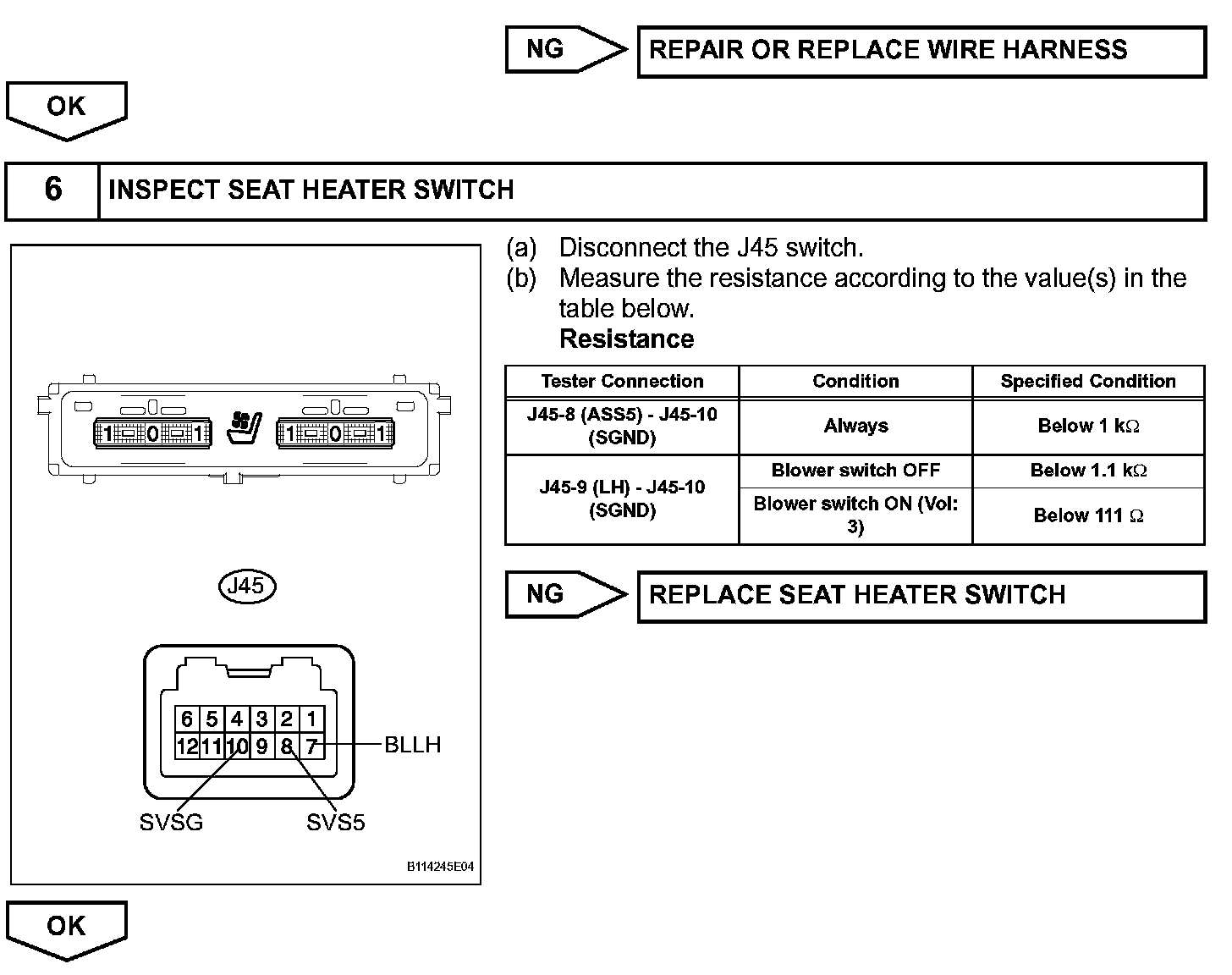

Step 5(Continued) - 6:

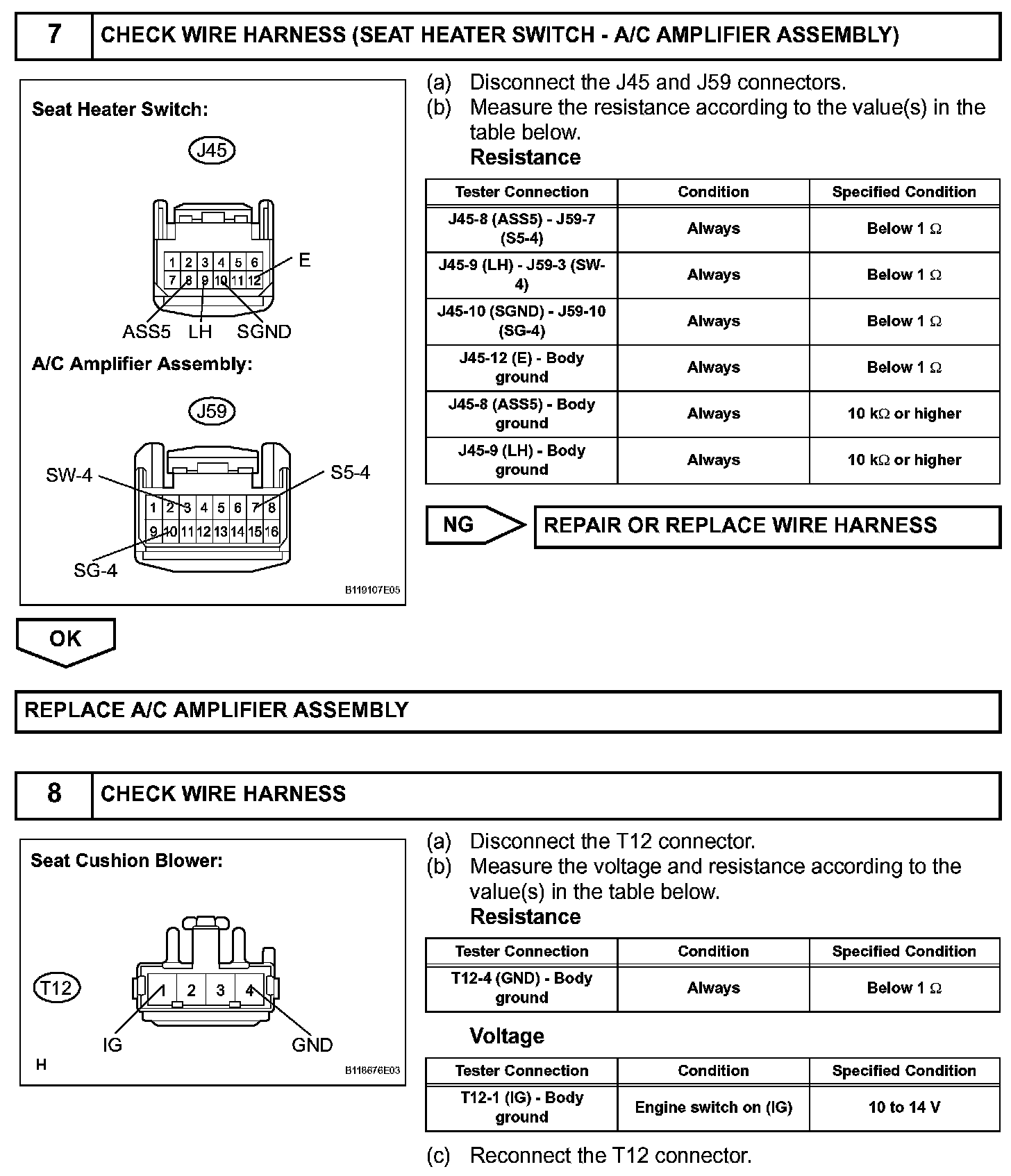

Step 7 - 8:

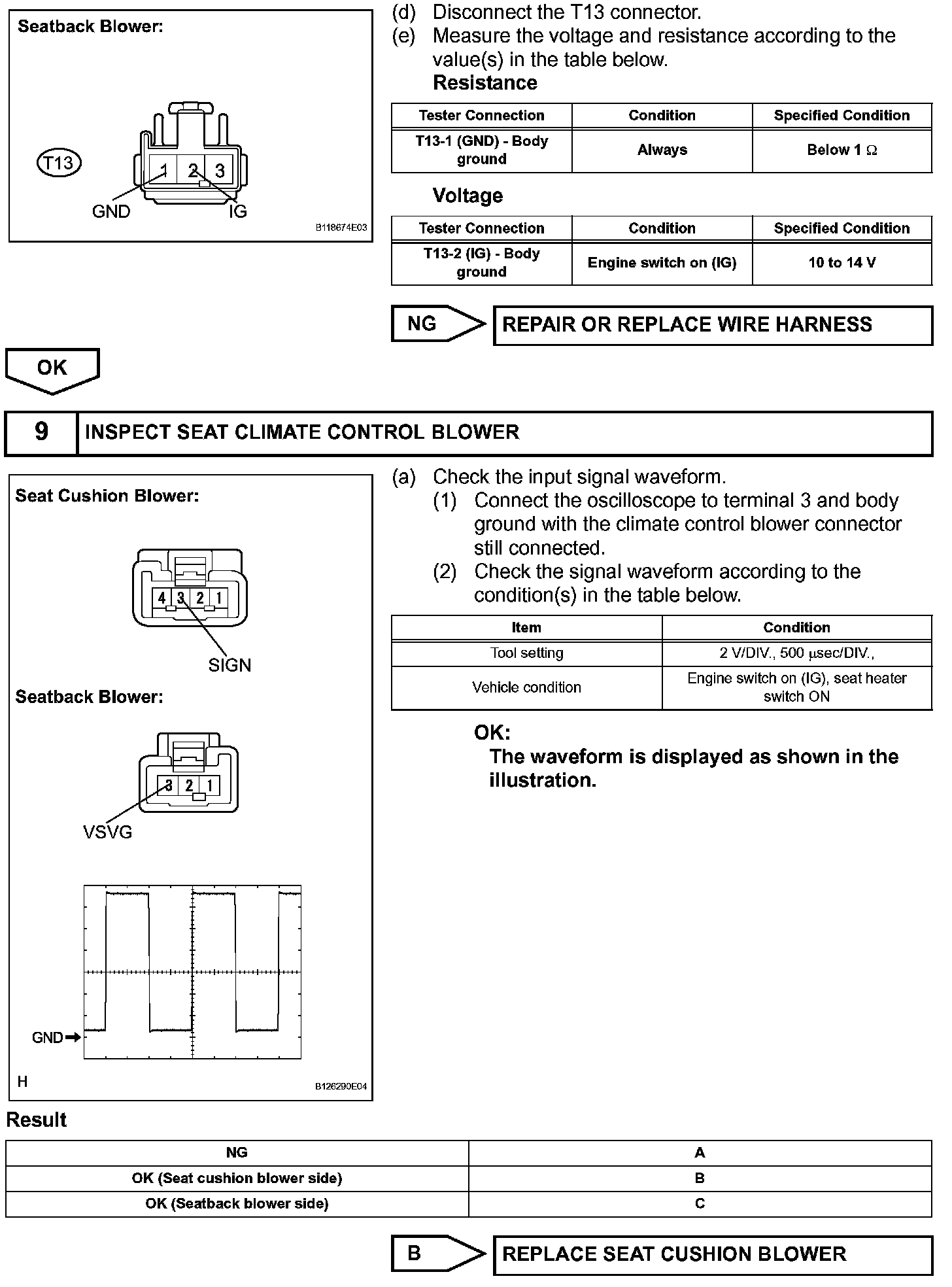

Step 8(Continued) - 9:

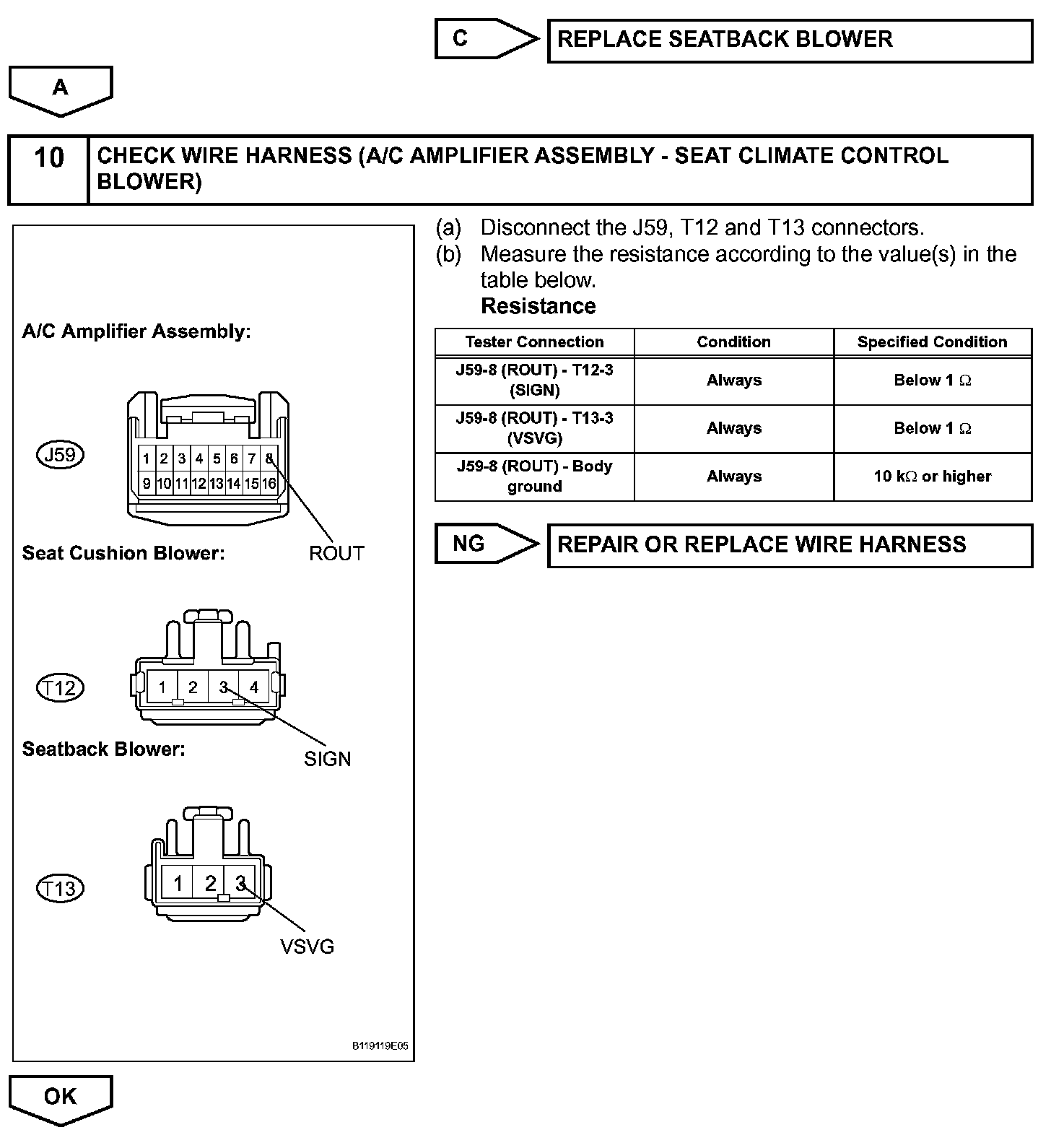

Step 9(Continued) - 10:

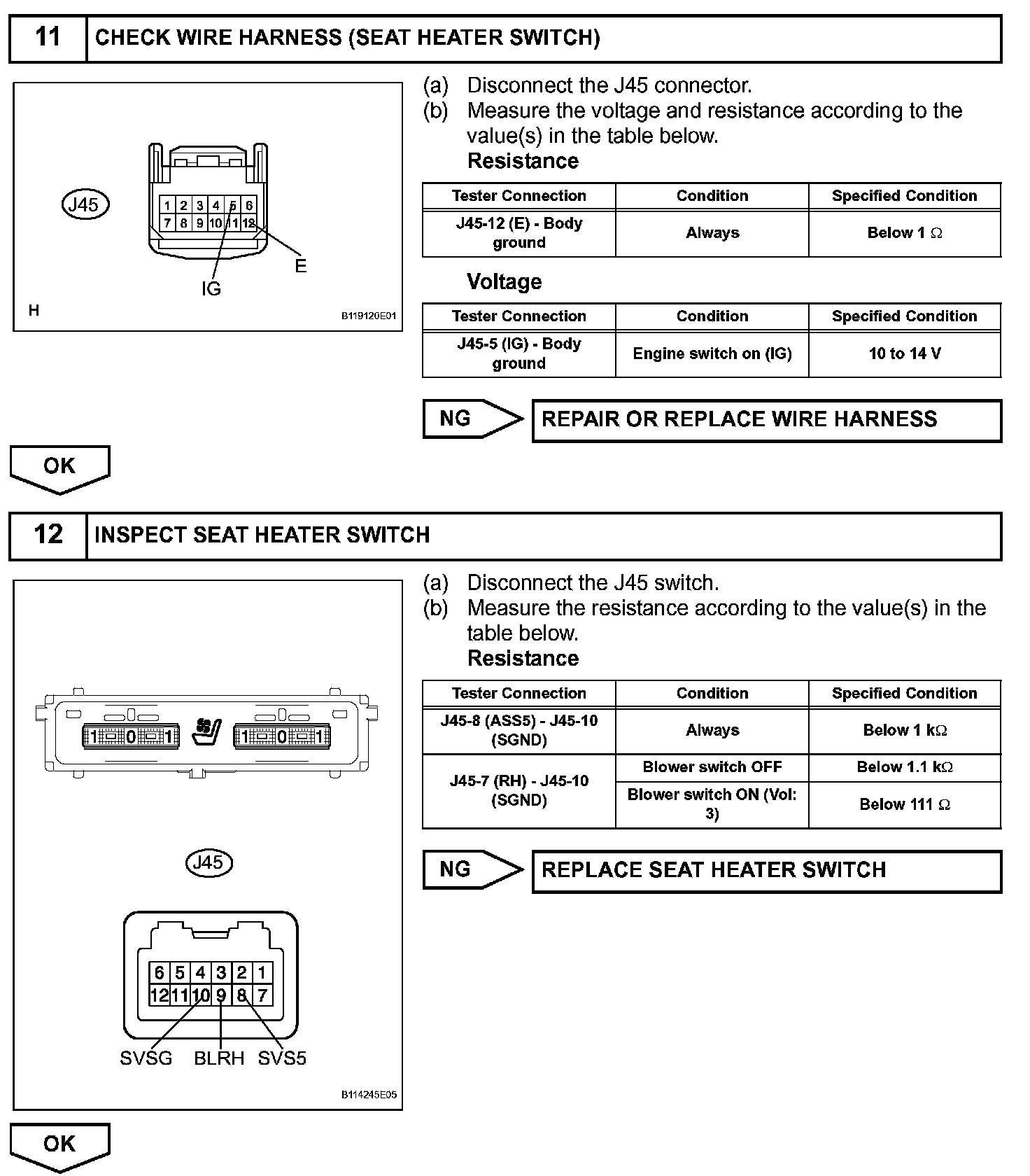

Step 11 - 12:
Step 13 - 14:

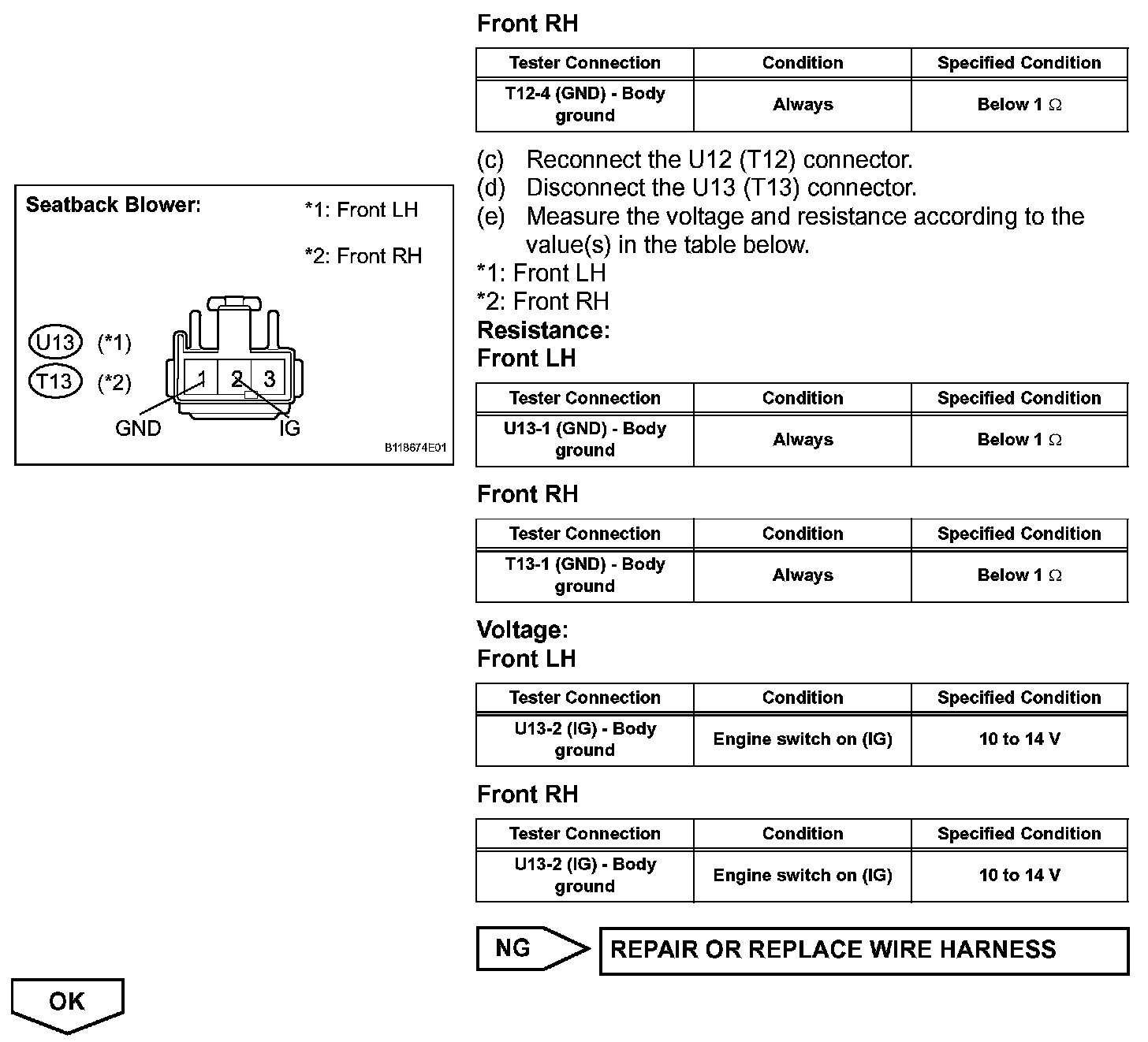

Step 14(Continued):

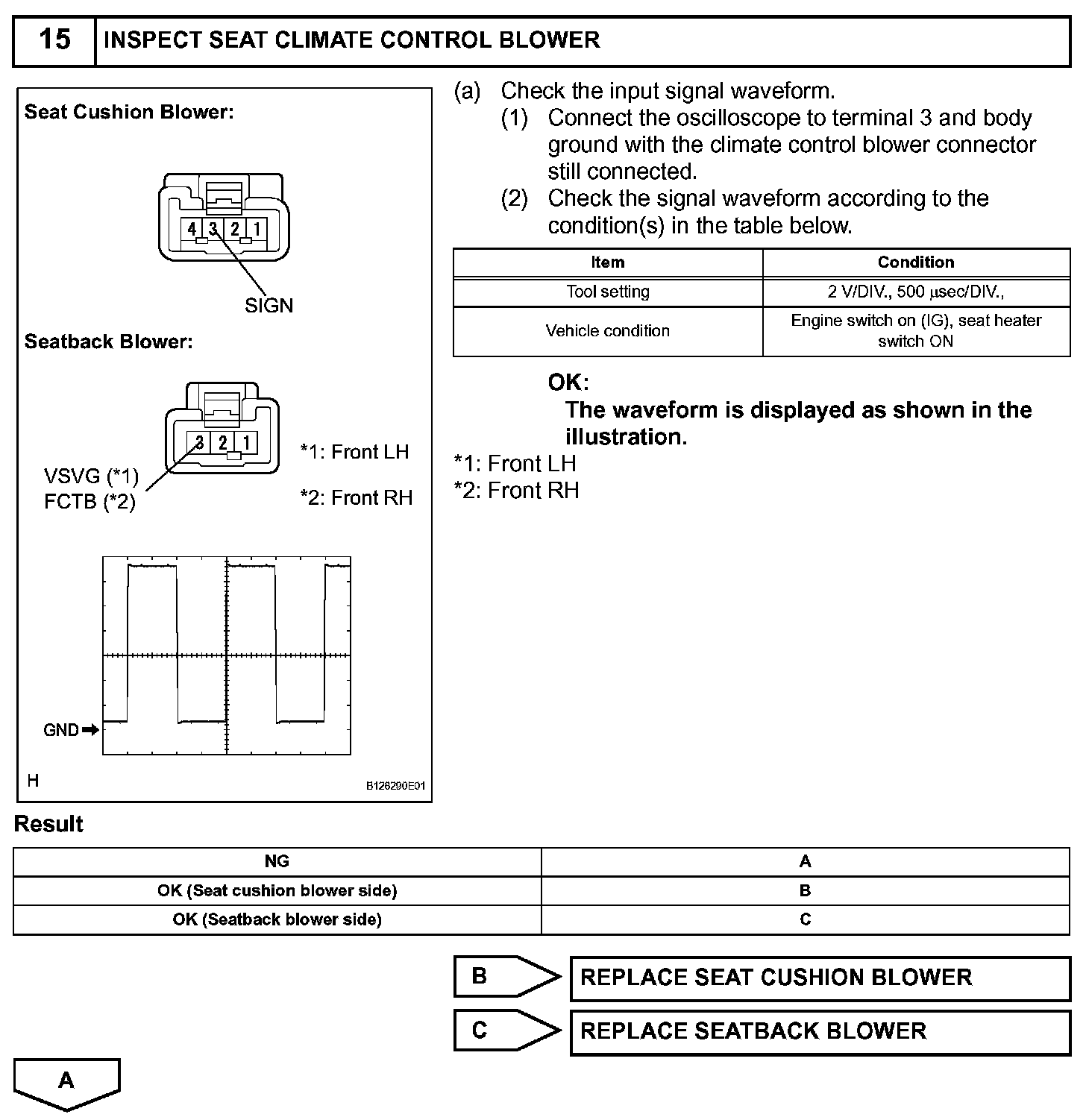

Step 15:

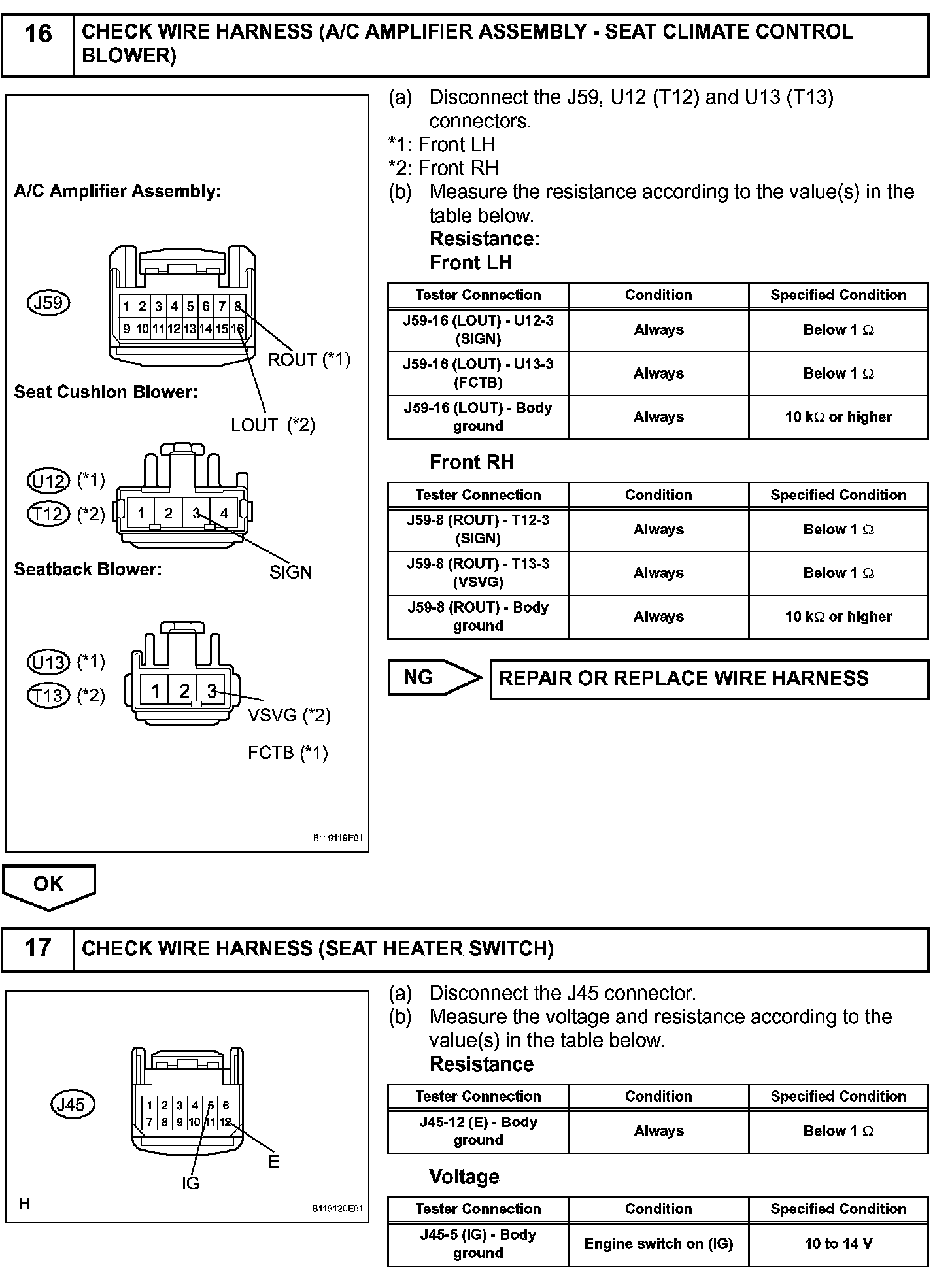

Step 16 - 17:

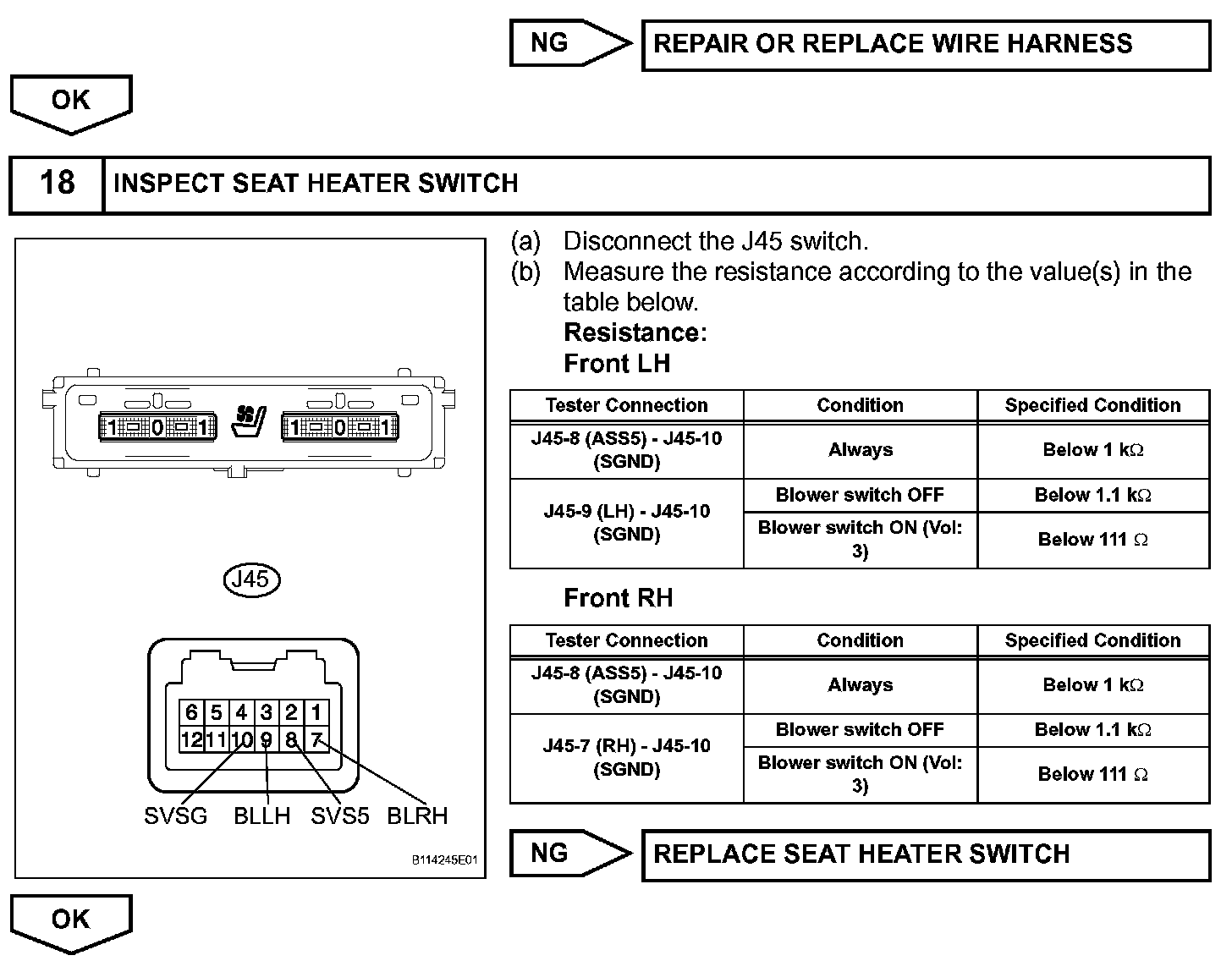

Step 17(Continued) - 18:

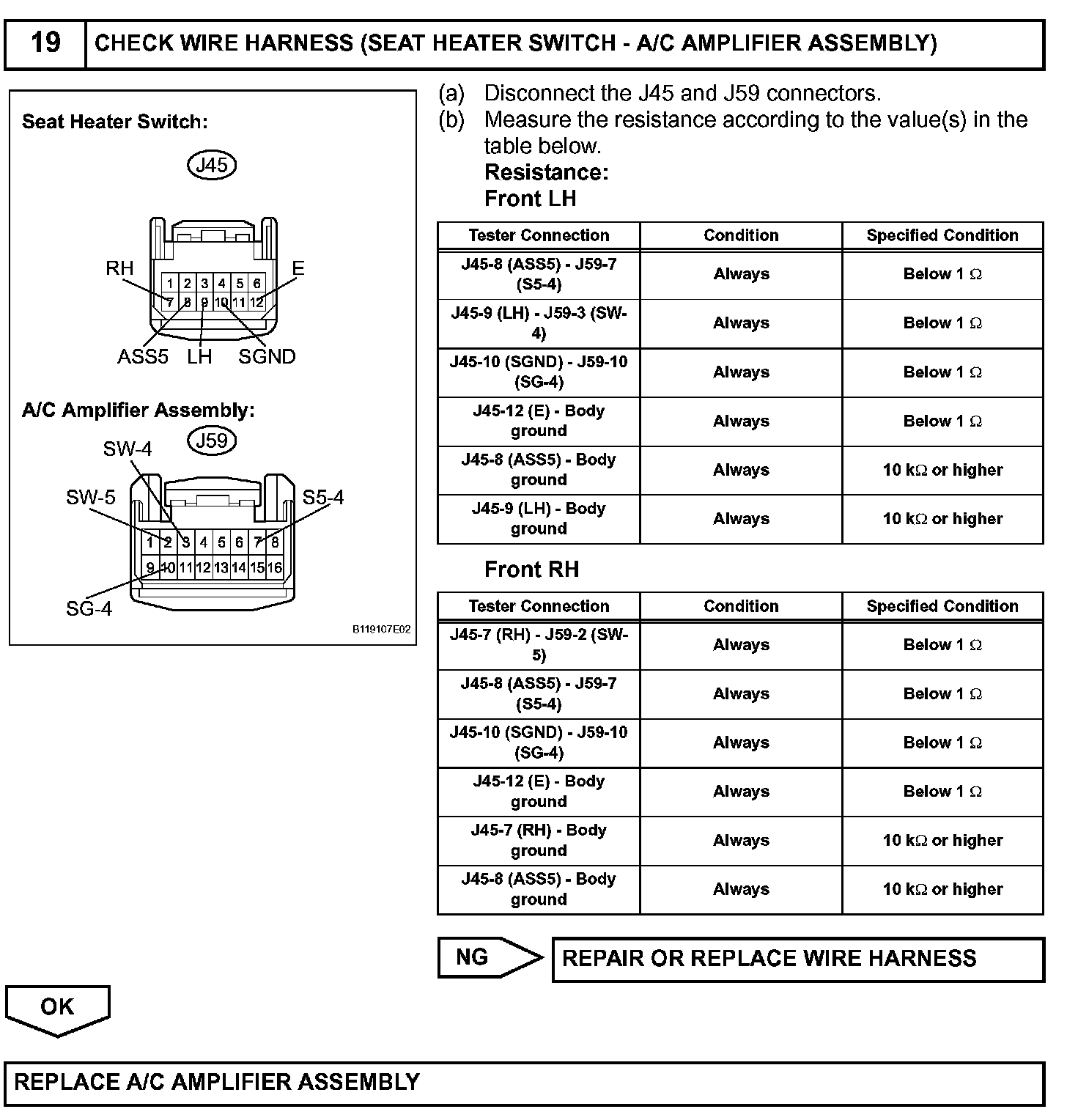

Step 19:
