Rear Seat Assembly

REAR SEAT ASSEMBLY

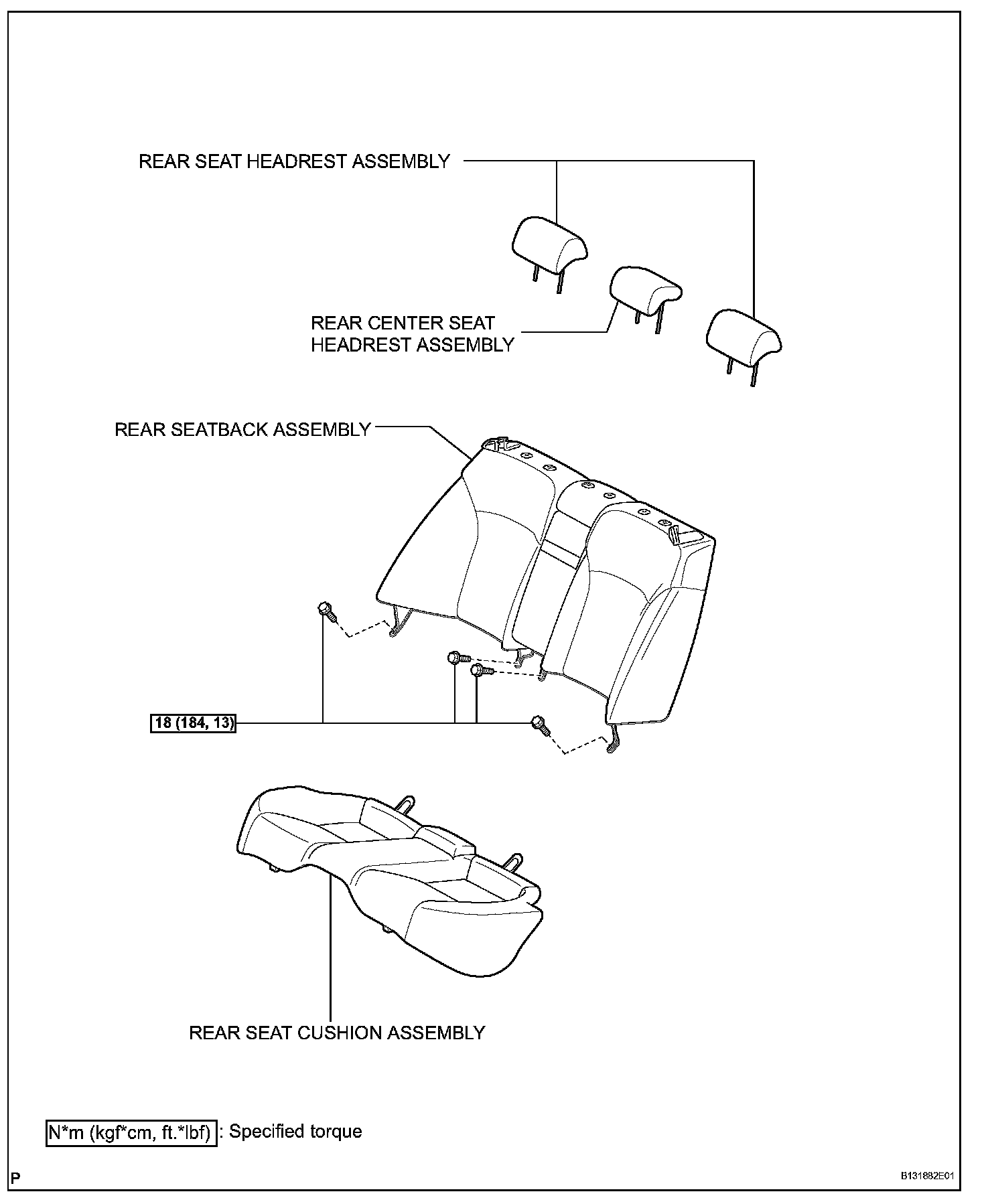

Rear Seat Assembly:

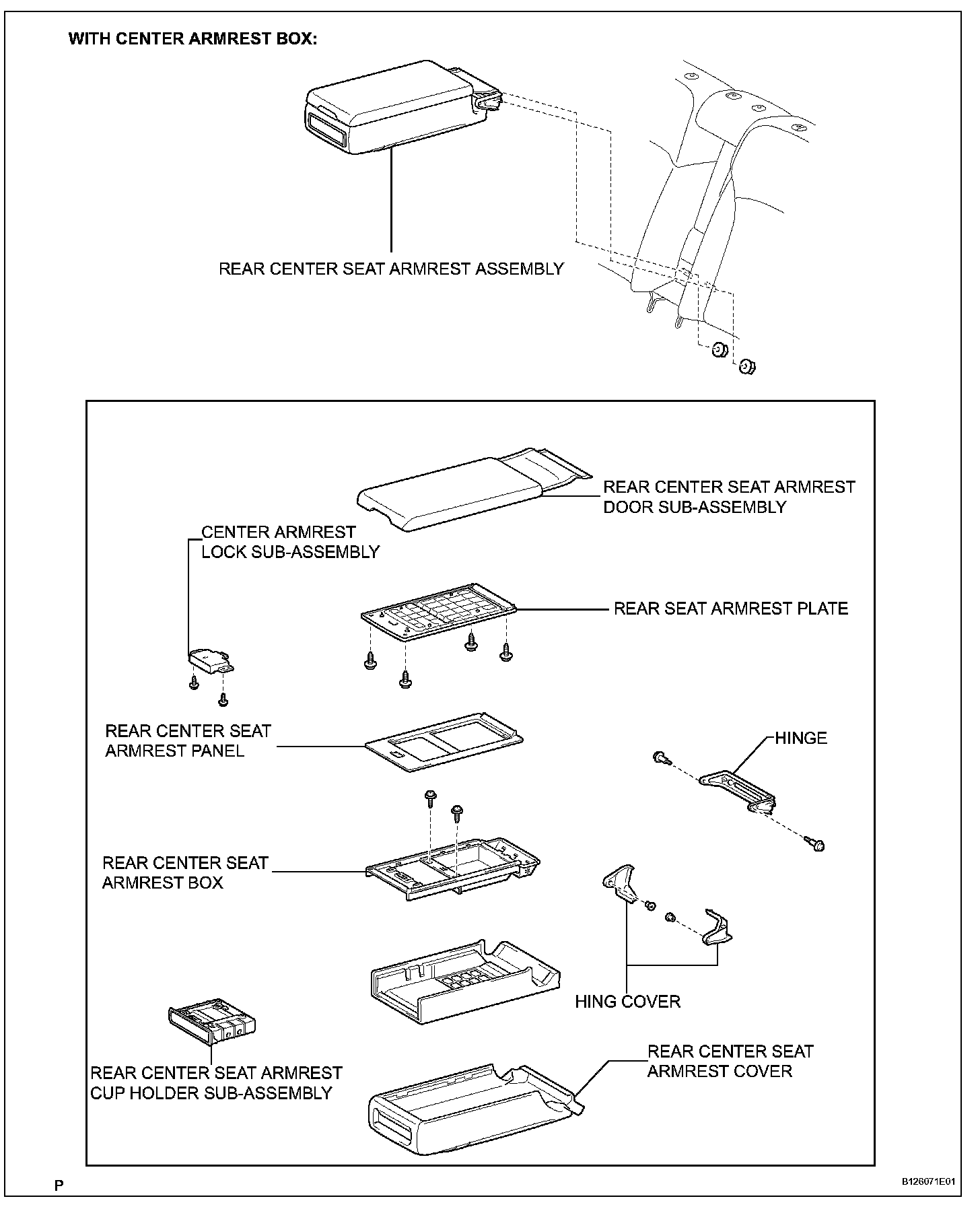

Rear Seat Assembly:

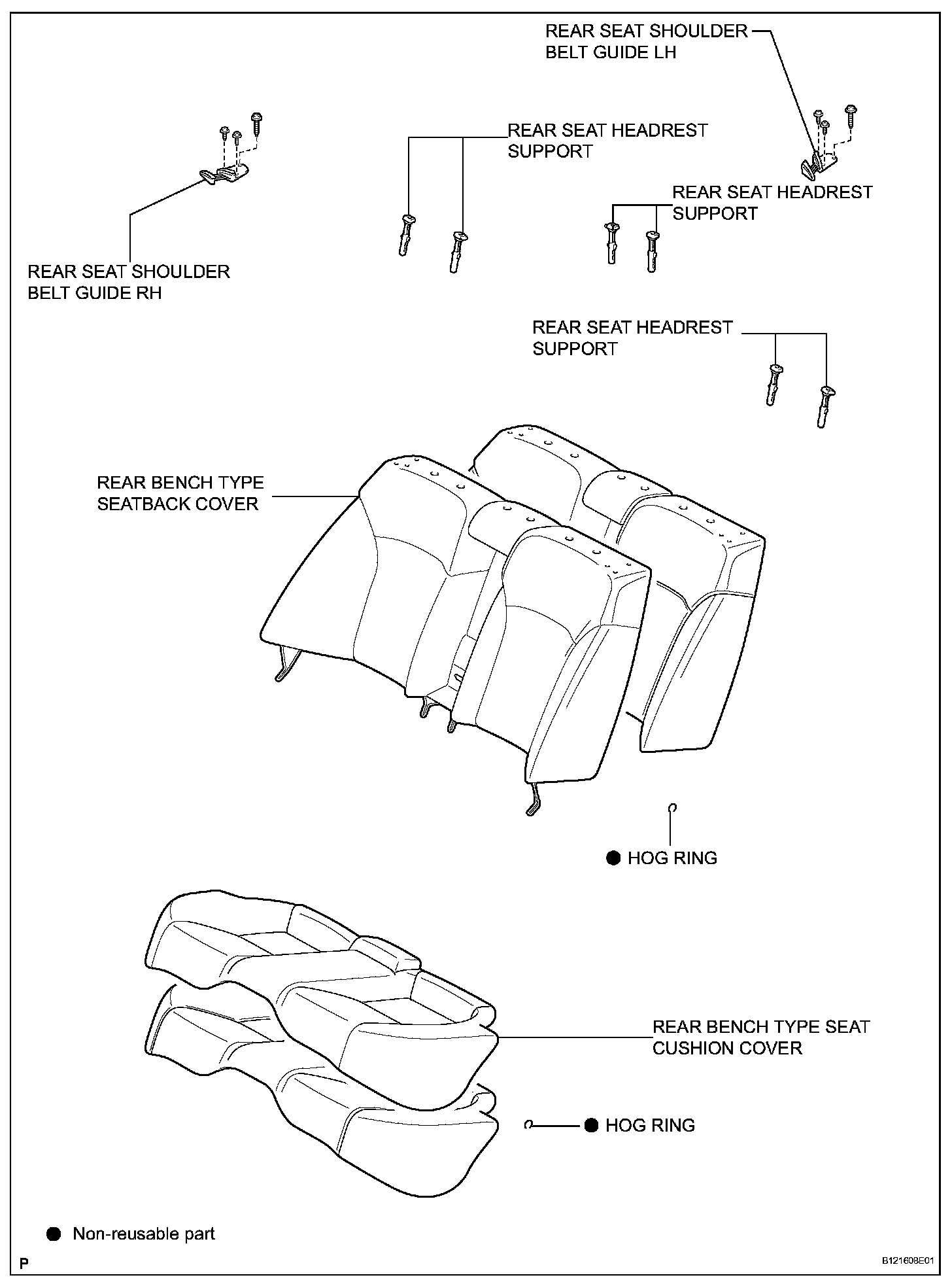

Rear Seat Assembly:

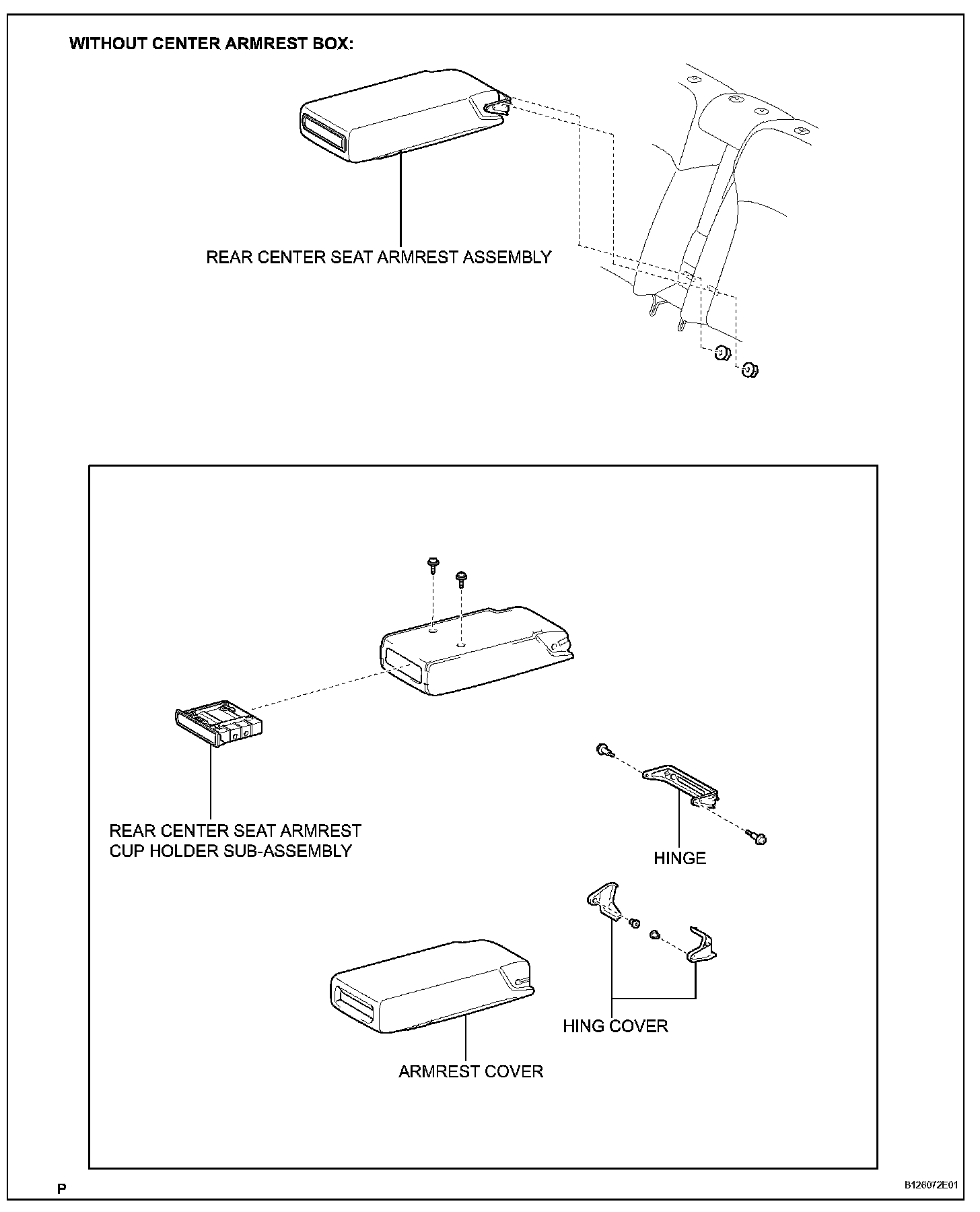

Rear Seat Assembly:

REMOVAL

1. REMOVE REAR SEAT CUSHION ASSEMBLY

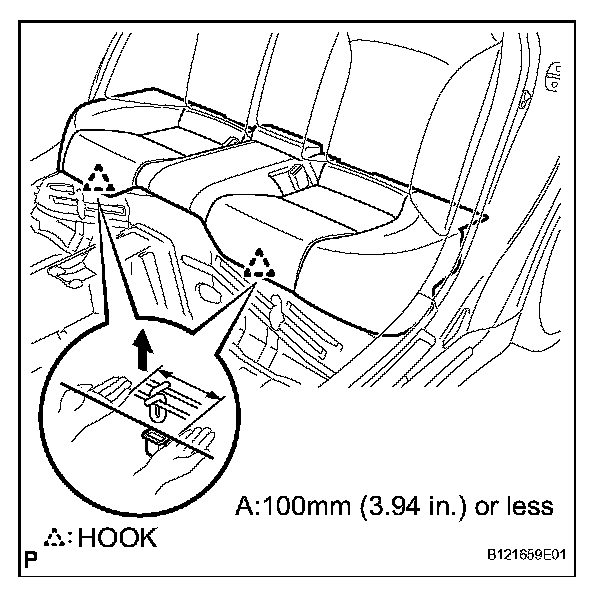

a. Detach the 2 front hooks of the seat cushion from the vehicle body.

NOTICE: Follow the instructions below carefully as the cushion frame deforms easily.

1. Choose a hook to detach first. Place your hands near the hook as shown in the illustration. Then lift the seat cushion to detach the hook.
2. Repeat for the other hook.

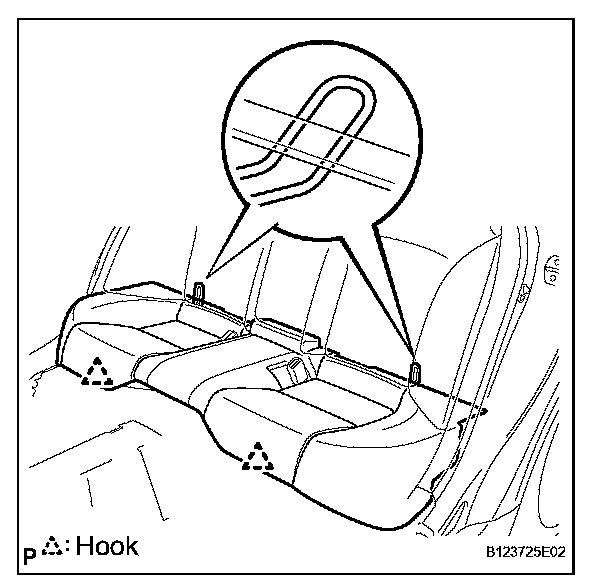

b. Detach the 2 rear hooks of the seat cushion from the seatback.
c. Remove the seat cushion.

2. REMOVE REAR SEAT HEADREST ASSEMBLY
3. REMOVE REAR CENTER SEAT HEADREST ASSEMBLY
4. REMOVE REAR SEATBACK ASSEMBLY

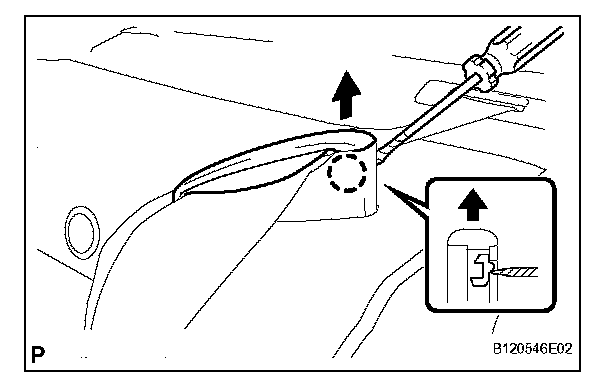

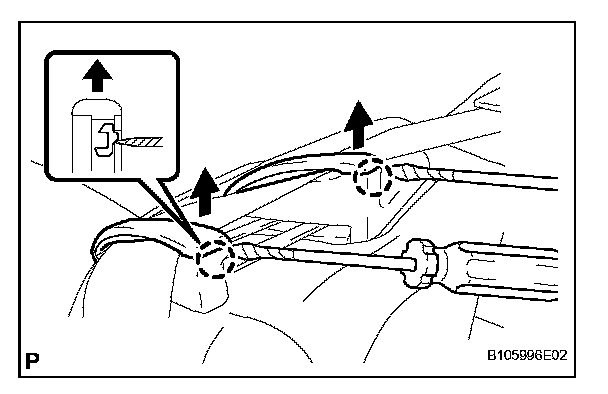

a. Using a screwdriver, detach the claws to open the cap of the 3 rear seat shoulder belt guides.





b. Using a screwdriver, detach the claw to open the cap of the 3 rear seat shoulder belt guides.

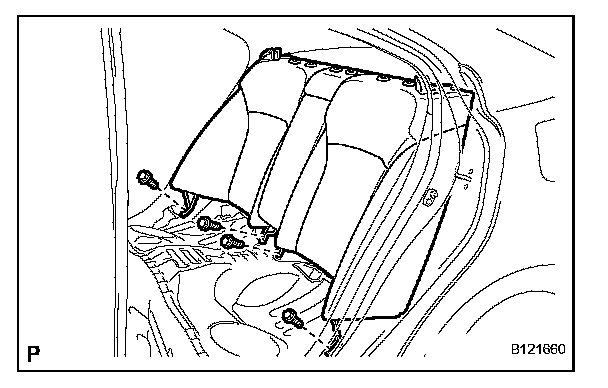

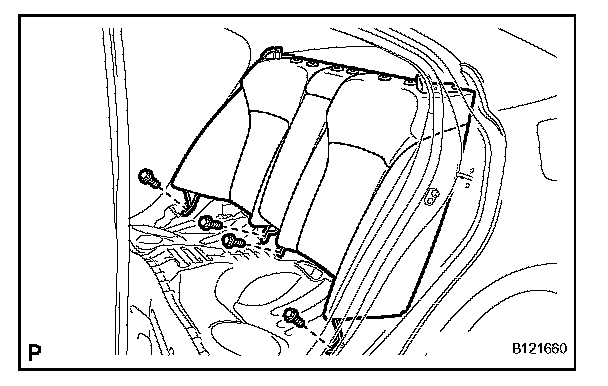

c. Remove the 4 bolts and rear seatback assembly.

INSTALLATION

1. INSTALL REAR SEATBACK ASSEMBLY





a. Place the seatback in the cabin.

NOTICE: Be careful not to damage the vehicle body.

b. Install the seatback with the 4 bolts.

Torque: 18 N.m (184 kgf.cm, 13 ft.lbf)

c. Pass the 3 seat belts through and close the cap of the 2 rear seat shoulder belt guides.
d. Install the floor anchor part with the bolt.

2. INSTALL REAR CENTER SEAT HEADREST ASSEMBLY
3. INSTALL REAR SEAT HEADREST ASSEMBLY
4. INSTALL REAR SEAT CUSHION ASSEMBLY





a. Attach the 2 rear hooks of the seat cushion to the seatback.
b. Attach the 2 front hooks of the seat cushion to the vehicle body.
c. Confirm that the seat cushion is firmly installed.

NOTICE: When installing the seat cushion, make sure the seat belt buckle is not under the seat cushion.
