Lumbar Support Adjuster Assembly

LUMBAR SUPPORT ADJUSTER ASSEMBLY

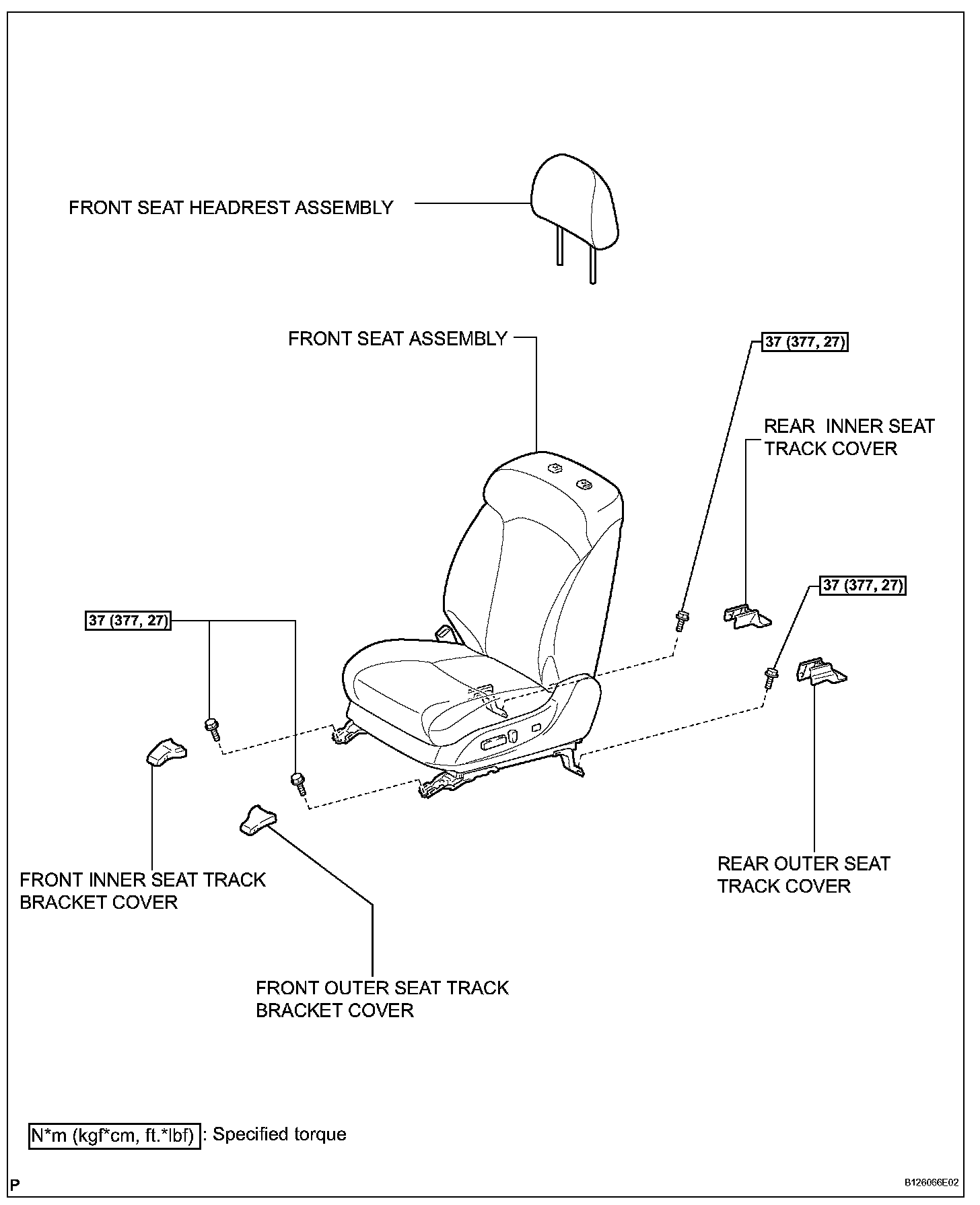

Lumbar Support Adjuster Assembly:

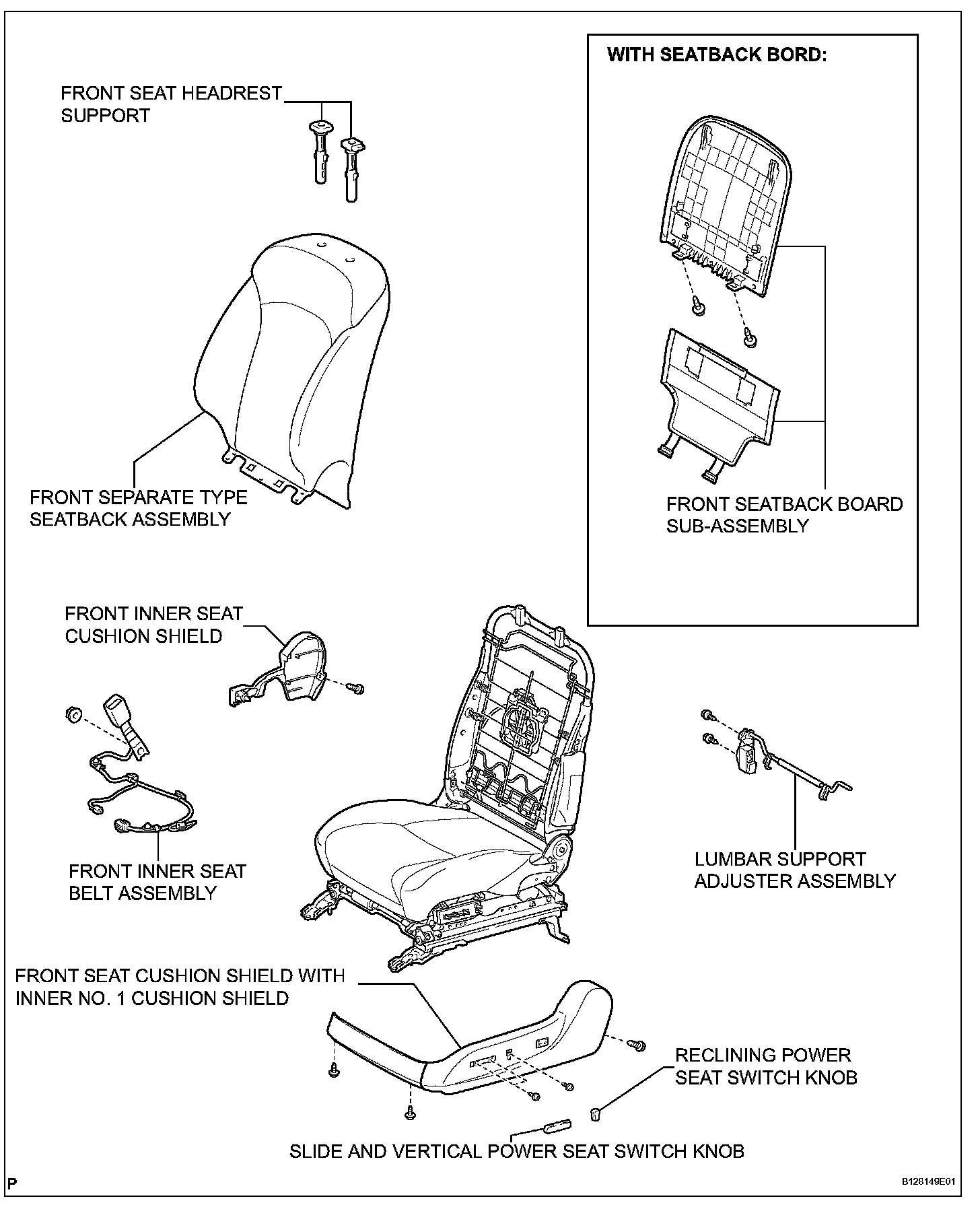

Lumbar Support Adjuster Assembly:

REMOVAL

1. REMOVE FRONT SEAT HEADREST ASSEMBLY
2. REMOVE FRONT OUTER SEAT TRACK BRACKET COVER
3. REMOVE FRONT INNER SEAT TRACK BRACKET COVER
4. REMOVE REAR OUTER SEAT TRACK COVER
5. REMOVE REAR INNER SEAT TRACK COVER
6. REMOVE FRONT SEAT ASSEMBLY
7. REMOVE FRONT INNER SEAT BELT ASSEMBLY
8. REMOVE RECLINING POWER SEAT SWITCH KNOB
9. REMOVE SLIDE AND VERTICAL POWER SEAT SWITCH KNOB
10. REMOVE FRONT SEAT CUSHION SHIELD WITH INNER NO. 1 CUSHION SHIELD
11. REMOVE FRONT INNER SEAT CUSHION SHIELD
12. REMOVE FRONT SEATBACK BOARD SUB-ASSEMBLY
13. REMOVE FRONT SEAT HEADREST SUPPORT
14. REMOVE FRONT SEAT HEADREST SUPPORT
15. REMOVE FRONT SEPARATE TYPE SEATBACK ASSEMBLY (w/o Seatback Board)
16. REMOVE FRONT SEPARATE TYPE SEATBACK ASSEMBLY (w/ Seatback Board)

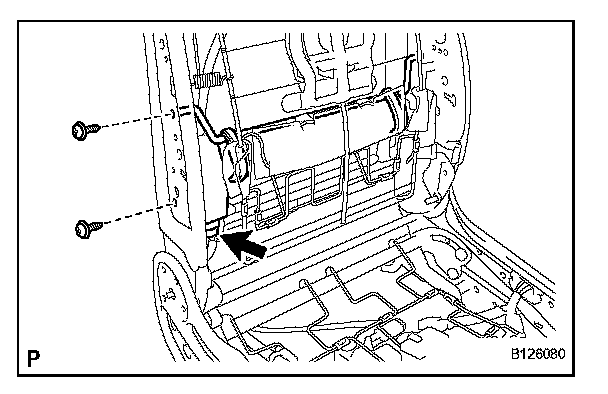

17. REMOVE LUMBAR SUPPORT ADJUSTER ASSEMBLY





a. Disconnect the connector and clamps.
b. Remove the 2 screws and lumbar support adjuster.


REASSEMBLY

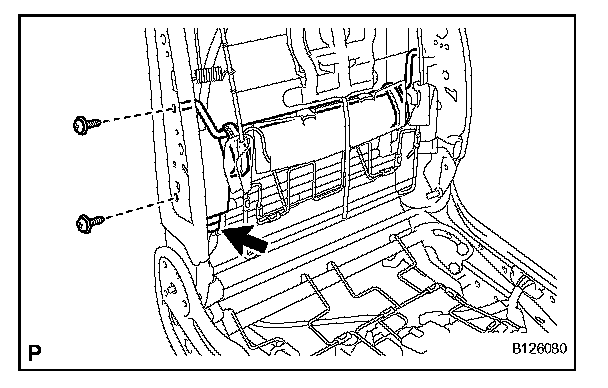

1. INSTALL LUMBAR SUPPORT ADJUSTER ASSEMBLY





a. Install the lumbar support adjuster with the 2 screws.
b. Connect the connector.

2. INSTALL FRONT SEPARATE TYPE SEATBACK ASSEMBLY (w/o Seatback Board)
3. INSTALL FRONT SEPARATE TYPE SEATBACK ASSEMBLY (w/ Seatback Board)
4. INSTALL FRONT SEAT HEADREST SUPPORT
5. INSTALL FRONT SEAT HEADREST SUPPORT
6. INSTALL FRONT SEAT BACK BOARD SUB-ASSEMBLY (w/ Seatback Board)
7. INSTALL FRONT INNER SEAT CUSHION SHIELD
8. INSTALL FRONT SEAT CUSHION SHIELD WITH INNER NO. 1 CUSHION SHIELD
9. INSTALL SLIDE AND VERTICAL POWER SEAT SWITCH KNOB
10. INSTALL RECLINING POWER SEAT SWITCH KNOB
11. INSTALL FRONT SEAT INNER BELT ASSEMBLY
12. INSTALL FRONT SEAT ASSEMBLY
13. INSTALL REAR INNER SEAT TRACK COVER
14. INSTALL REAR OUTER SEAT TRACK COVER
15. INSTALL FRONT INNER SEAT TRACK BRACKET COVER
16. INSTALL FRONT OUTER SEAT TRACK BRACKET COVER
17. INSTALL FRONT SEAT HEADREST ASSEMBLY
