Front Seat Assembly (For Power Seat)

FRONT SEAT ASSEMBLY (For Power Seat)

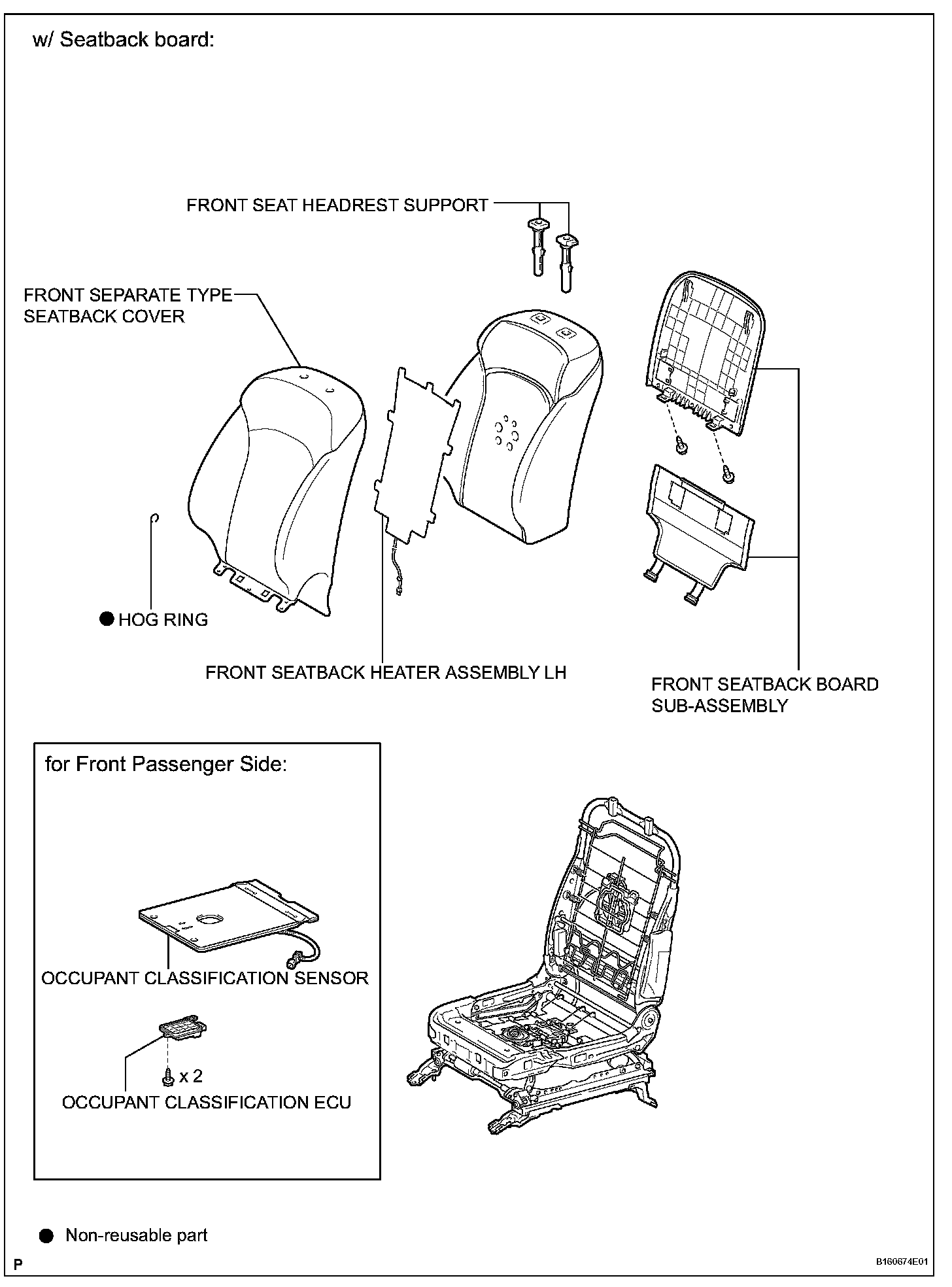

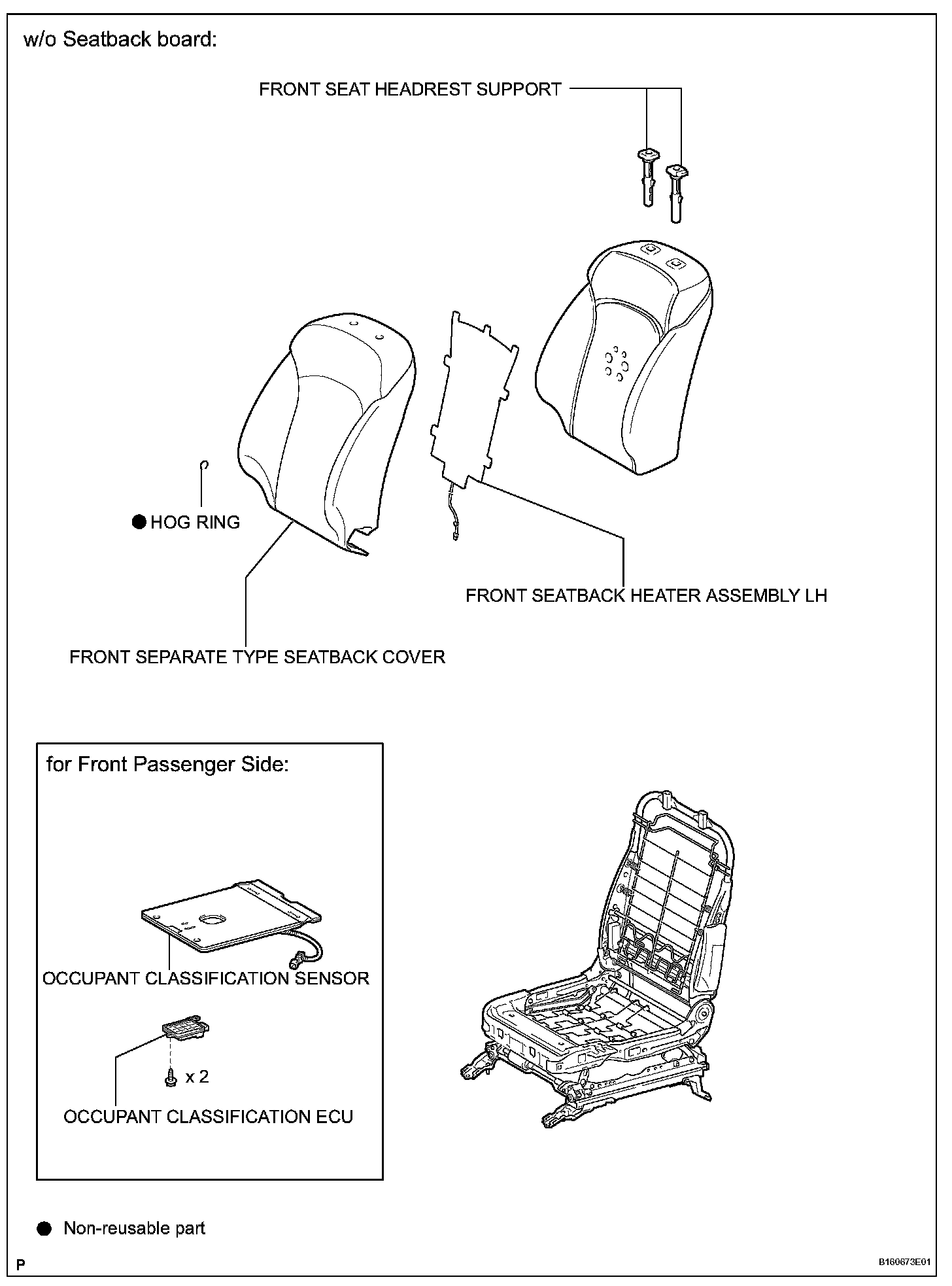

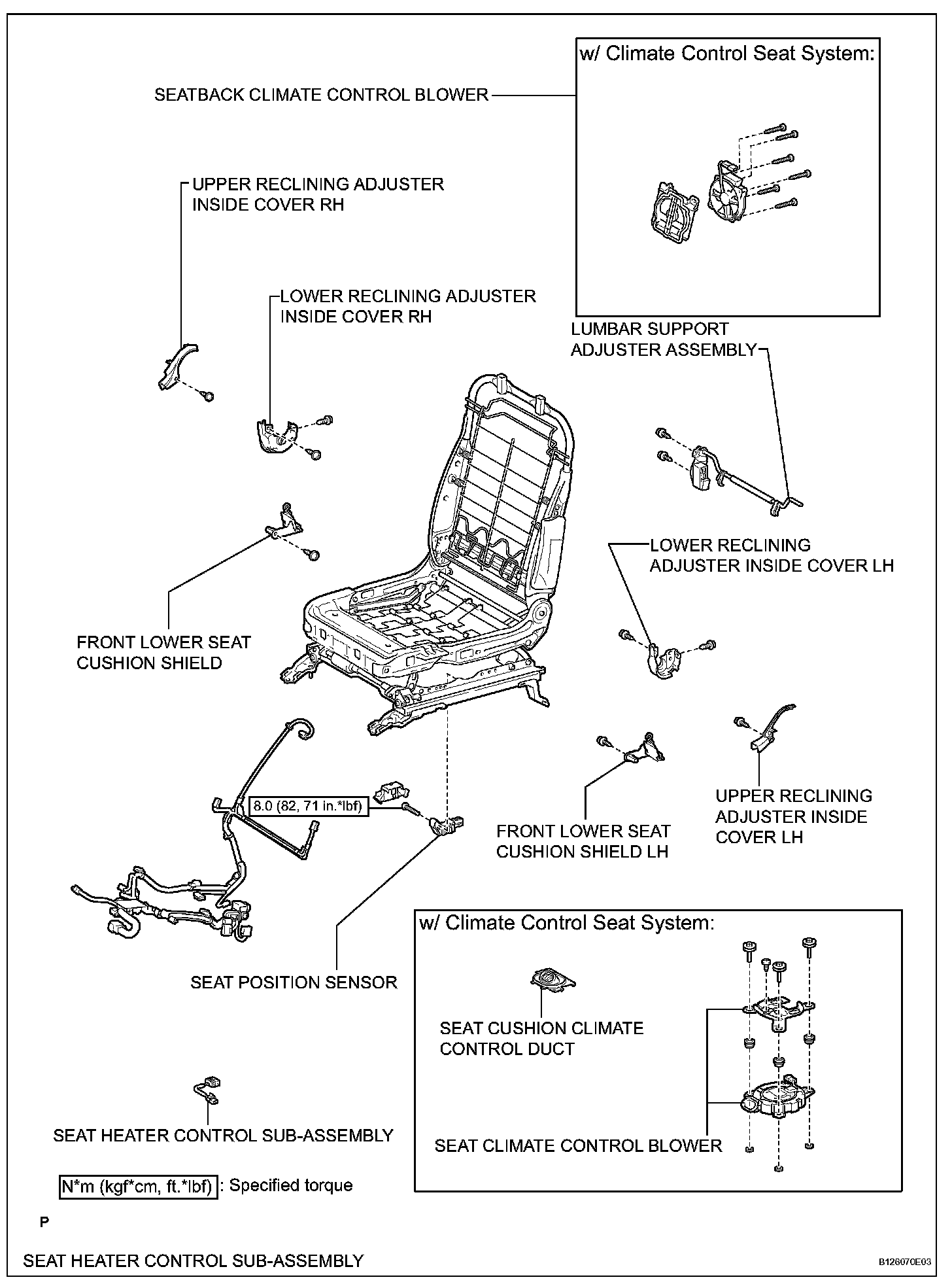

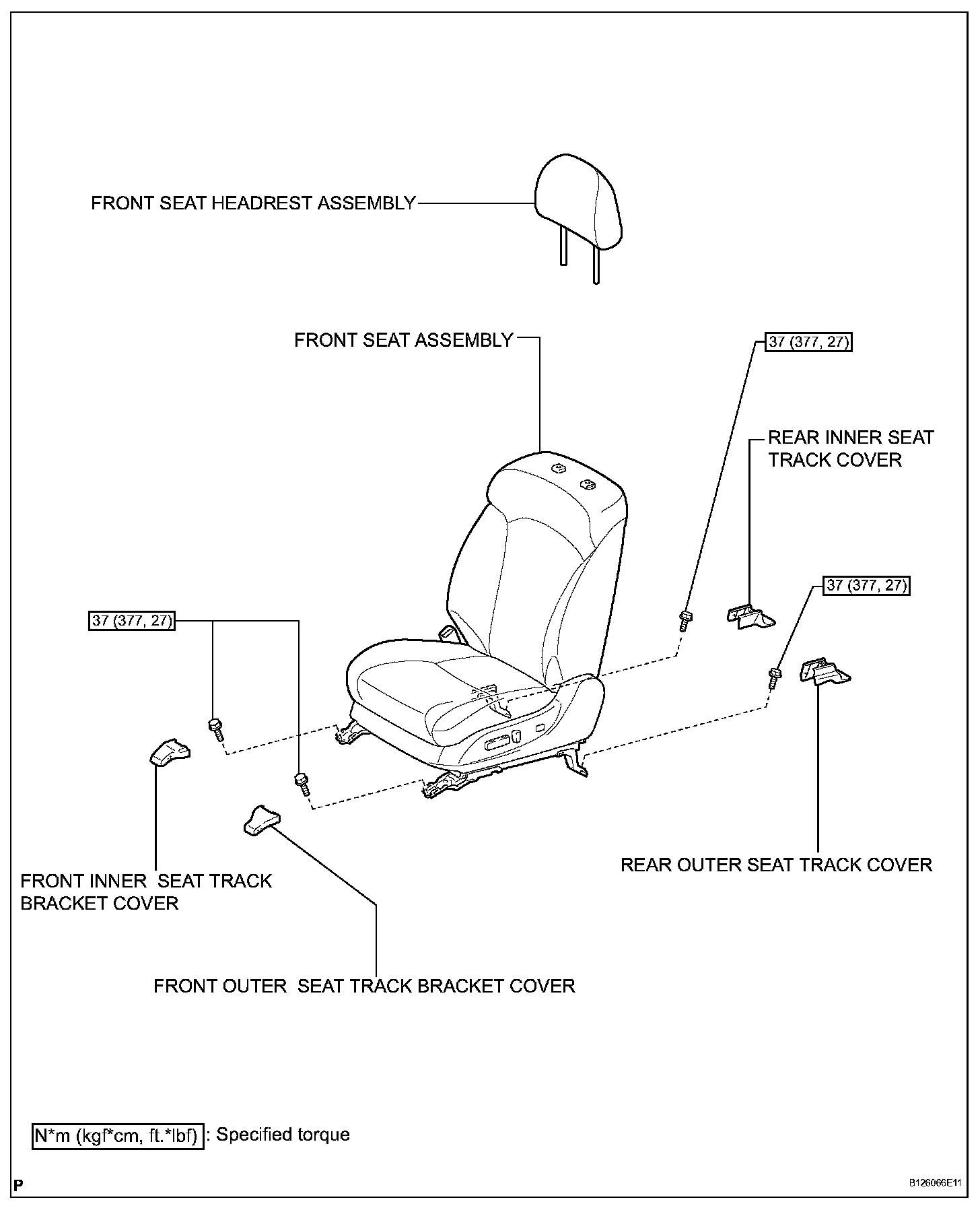

Front Seat Assembly (For Power Seat):

REMOVAL

HINT: Use the same procedures for the LH side and RH side.

1. REMOVE FRONT SEAT HEADREST ASSEMBLY
2. REMOVE FRONT OUTER SEAT TRACK BRACKET COVER
a. Operate the power seat switch knob and move the seat to the rearmost position.

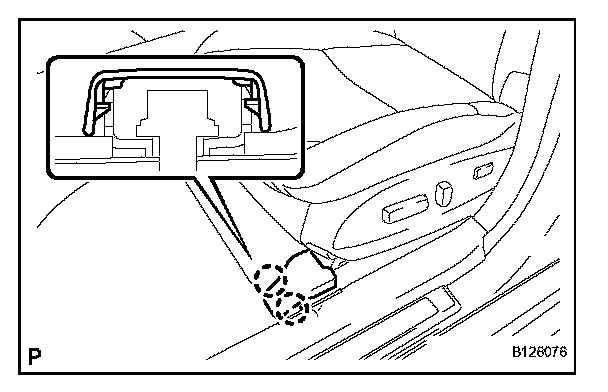

b. Using a screwdriver, detach the 2 claws and remove the seat track bracket cover outer front LH.

HINT: Tape the screwdriver tip before use.

3. REMOVE FRONT INNER SEAT TRACK BRACKET COVER
4. REMOVE REAR OUTER SEAT TRACK COVER
a. Operate the power seat switch knob and move the seat to the position farthest forward.

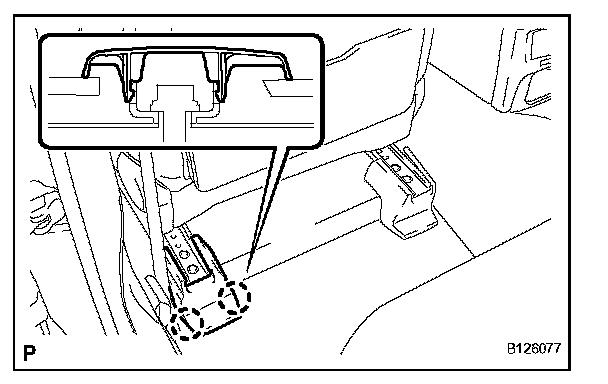

b. Using a screwdriver, detach the 2 claws and remove the front seat track cover rear outer LH.

HINT: Tape the screwdriver tip before use.

5. REMOVE REAR INNER SEAT TRACK COVER
6. REMOVE FRONT SEAT ASSEMBLY
a. Operate the power seat switch knob and move the seat to the rearmost position.

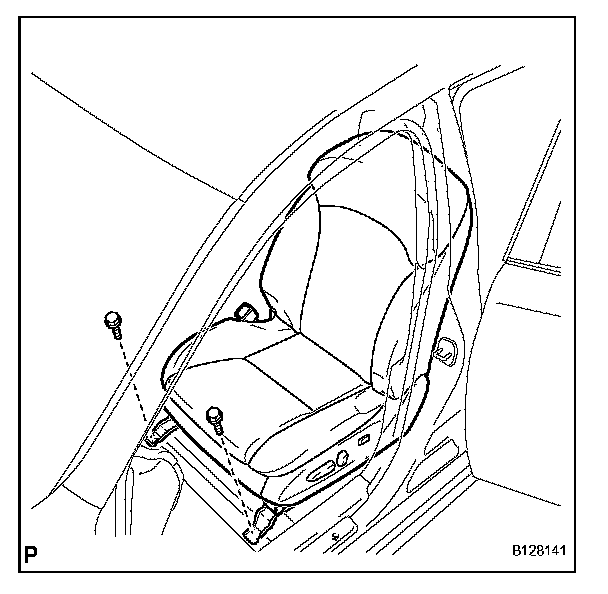

b. Remove the 2 bolts on the front seat track bracket.
c. Operate the power seat switch knob and move the seat to the position farthest forward.

d. Remove the 2 bolts on the rear seat track bracket.
e. Disconnect the cable from the negative (-) battery terminal.

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent the airbag and seat belt pretensioner from deploying.

f. Disconnect the connectors under the seat. Then remove the seat.

INSTALLATION

HINT: Use the same procedures for the LH side and RH side.

1. INSTALL FRONT SEAT ASSEMBLY
a. Place the seat in the cabin.
b. Connect the connectors under the seat.
c. Connect the cable to the negative (-) battery terminal.
d. Operate the power seat switch knob and move the seat to the position farthest forward.

e. Tighten the 2 bolts on the rear seat track bracket.

Torque: 37 N.m (377 kgf.cm, 27 ft.lbf)

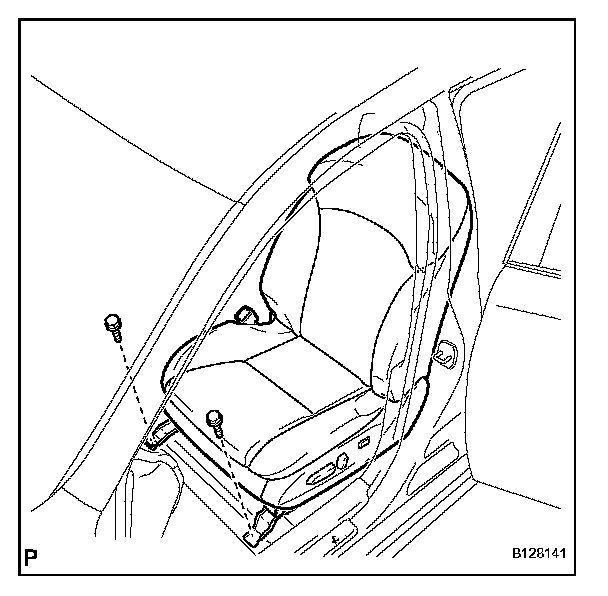

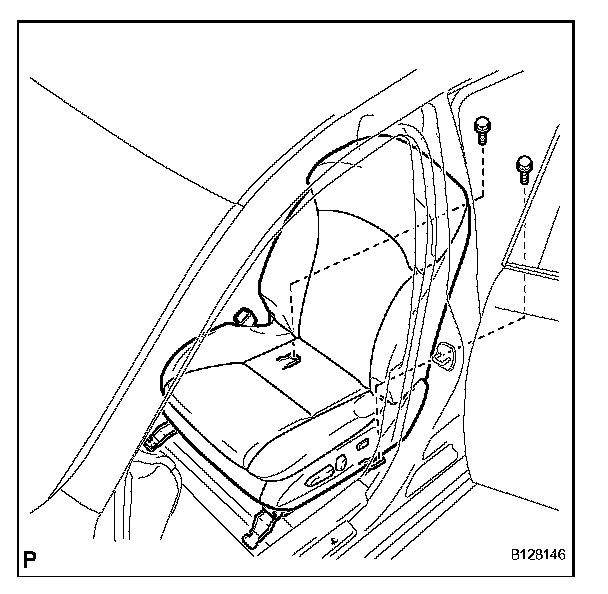

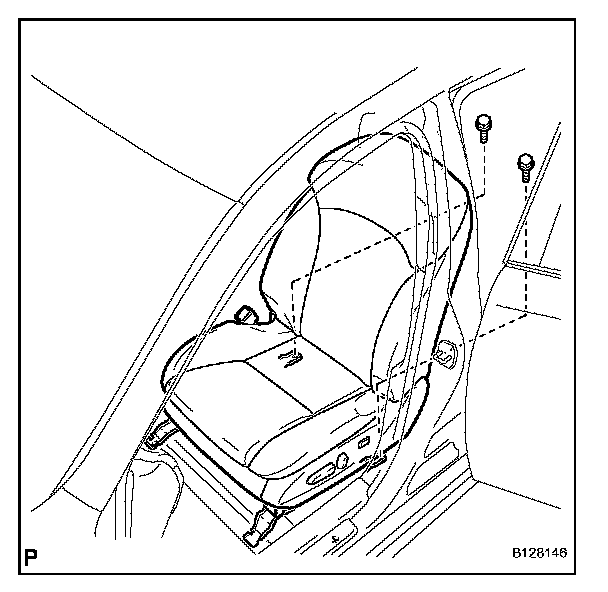

HINT: Tighten the 2 bolts in the order indicated in the illustration.

f. Operate the power seat switch knob and move the seat to the rearmost position.

g. Tighten the 2 bolts on the rear seat track bracket.

Torque: 37 N.m (377 kgf.cm, 27 ft.lbf)

2. INSTALL REAR INNER SEAT TRACK COVER LH
3. INSTALL REAR OUTER SEAT TRACK COVER LH
4. INSTALL FRONT OUTER SEAT TRACK BRACKET COVER LH
5. INSTALL FRONT OUTER SEAT TRACK BRACKET COVER LH
6. INSTALL FRONT SEAT HEADREST ASSEMBLY
7. PERFORM INITIALIZATION
Perform initialization.

NOTICE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

8. CHECK SRS WARNING LIGHT
Check the SRS warning light.

9. INSPECT FRONT SEAT ASSEMBLY
a. Check the power seat operation.
b. Check the seat heater operation (with seat heater system).
1. Turn the engine switch on (IG).
2. Turn the seat heater switch ON.
3. Wait 5 minutes or more and confirm that the seat surface becomes warm.
