Front Seat Assembly (For Manual Seat)

FRONT SEAT ASSEMBLY (For Manual Seat)

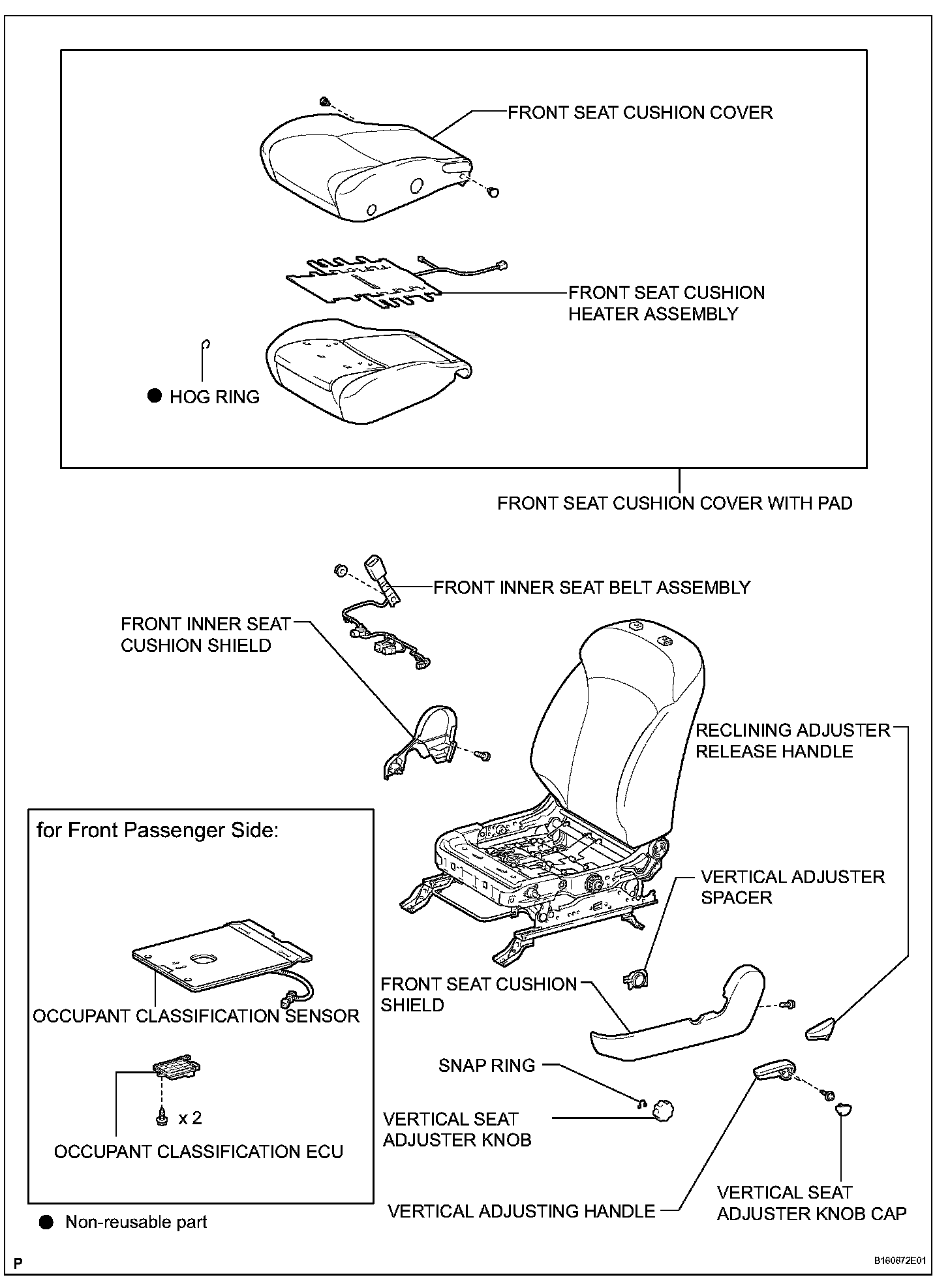

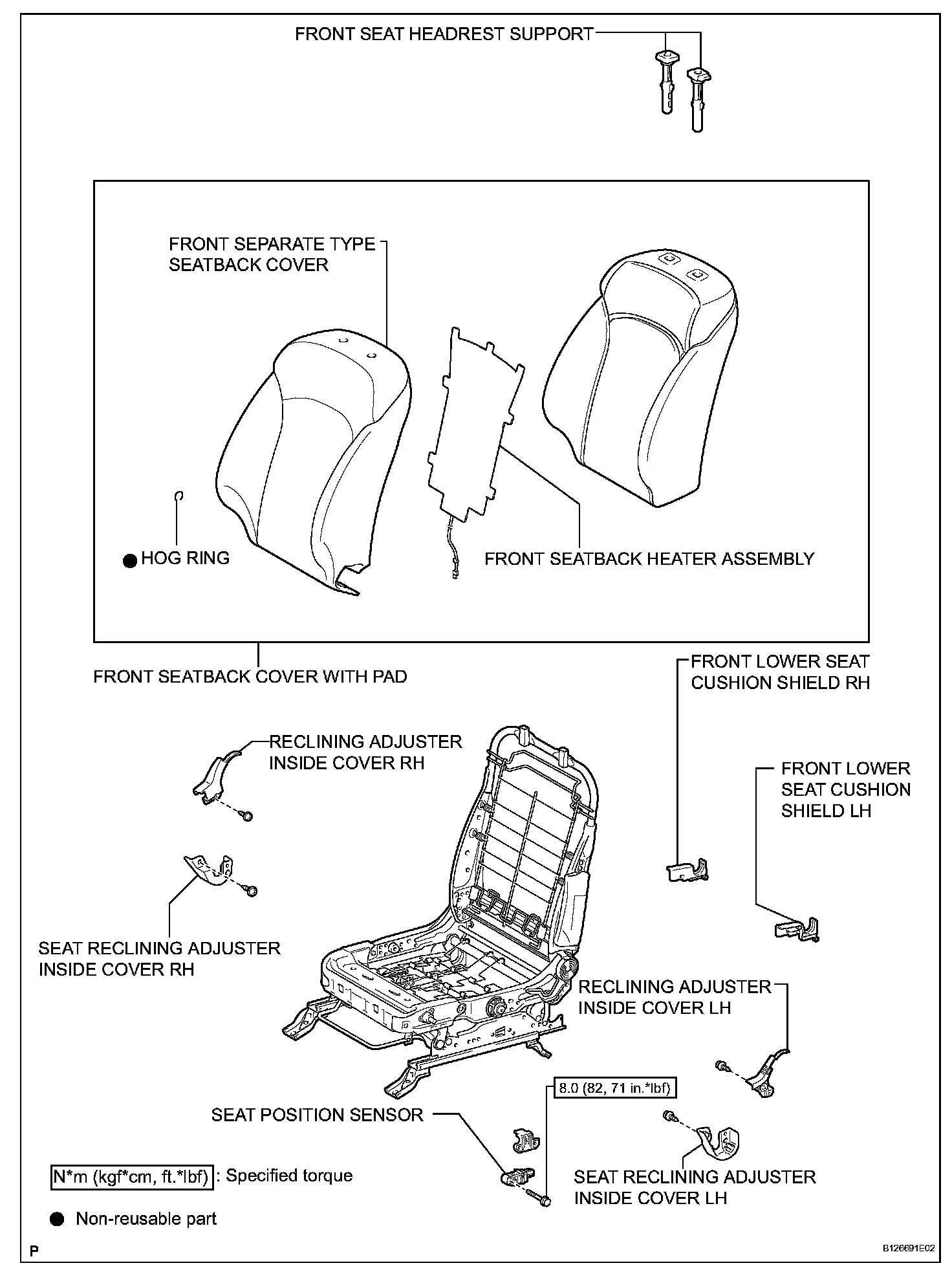

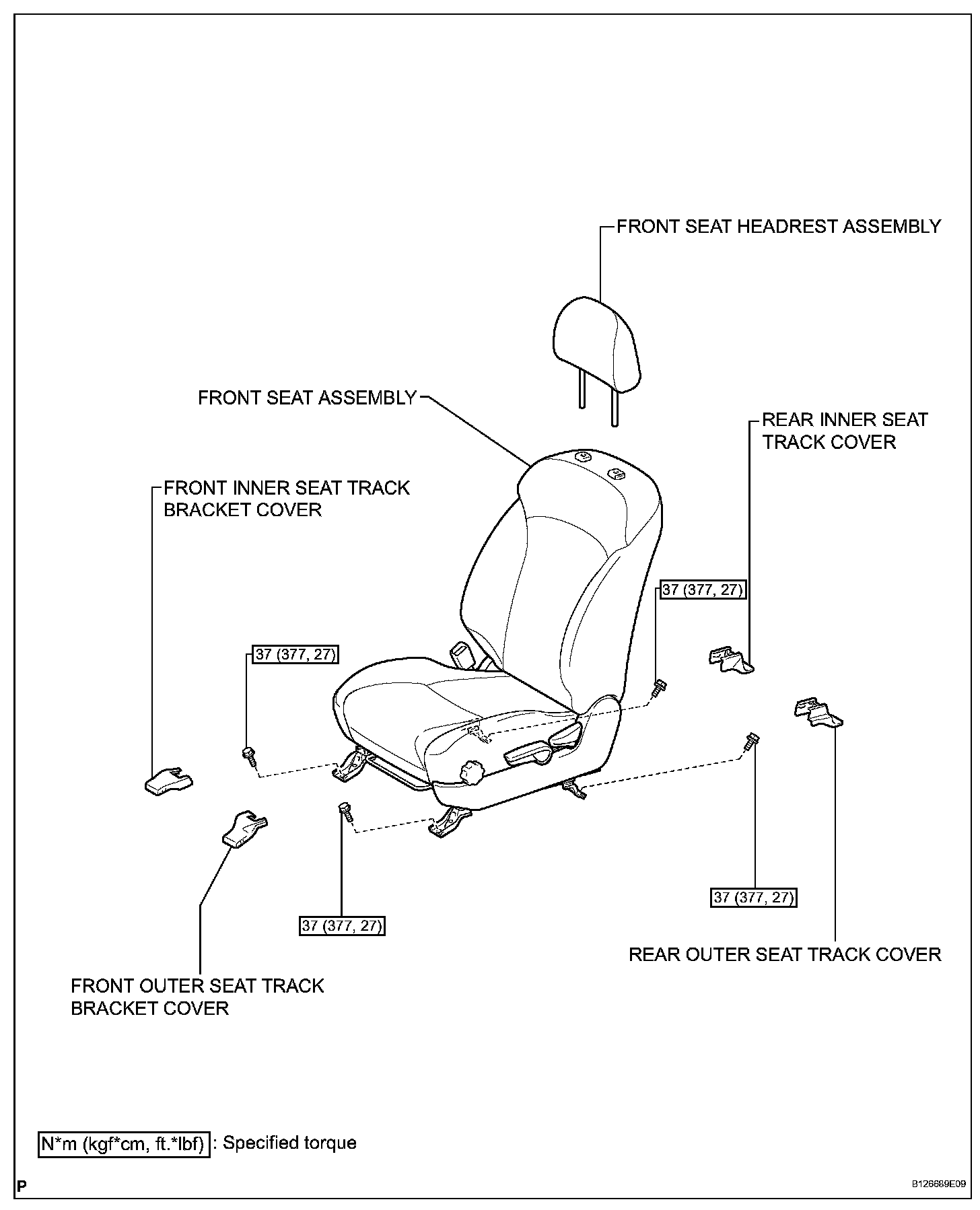

Front Seat Assembly (For Manual Seat):

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait for 90 seconds after disconnecting the cable to prevent the airbag and seat belt pretensioner from deploying.

2. REMOVE FRONT SEAT HEADREST ASSEMBLY
3. REMOVE FRONT INNER SEAT TRACK BRACKET COVER
a. Move the front seat assembly to the rearmost position by operating the slide handle.

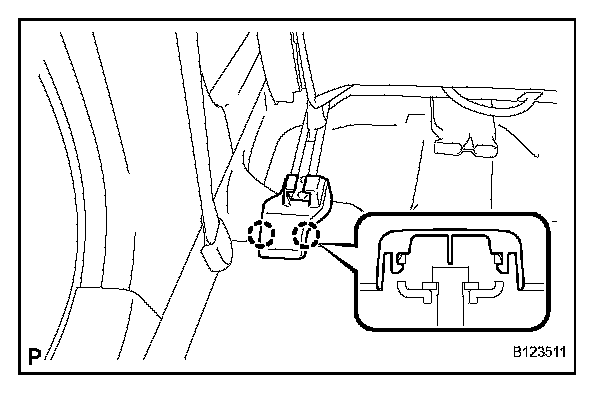

b. Using a screwdriver, disengage the 2 claws and remove the front inner seat track bracket cover.

HINT: Tape the screwdriver tip before use.

4. REMOVE FRONT OUTER SEAT TRACK BRACKET COVER

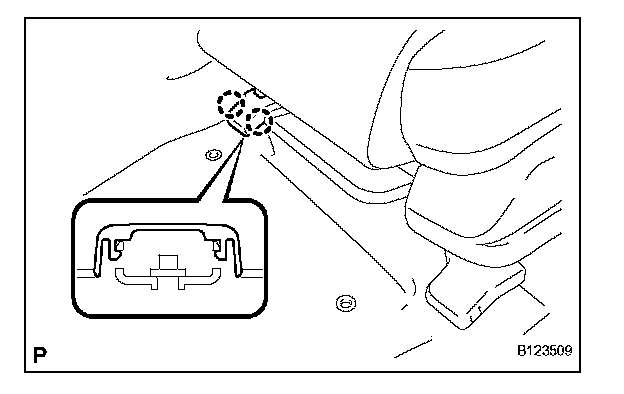

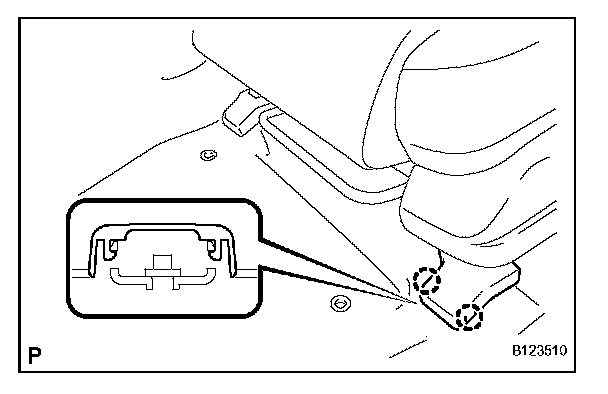

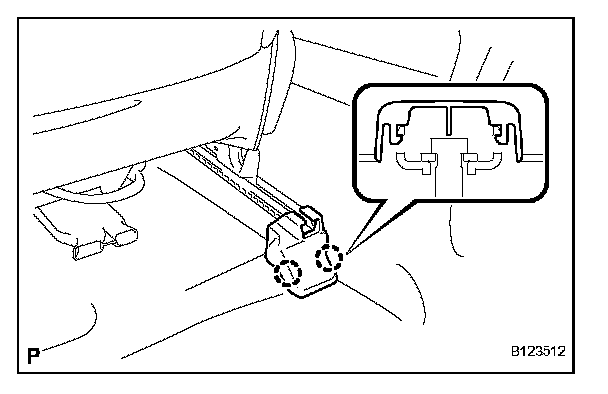

a. Using a screwdriver, disengage the 2 claws and remove the front outer seat track bracket cover.

HINT: Tape the screwdriver tip before use.

5. REMOVE REAR OUTER SEAT TRACK COVER
a. Move the front seat assembly fully forward by operating the slide handle.

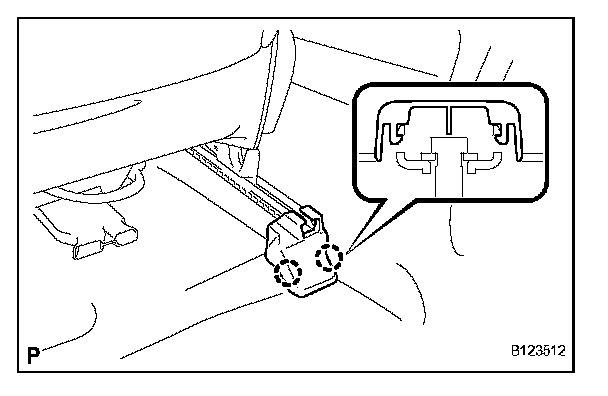

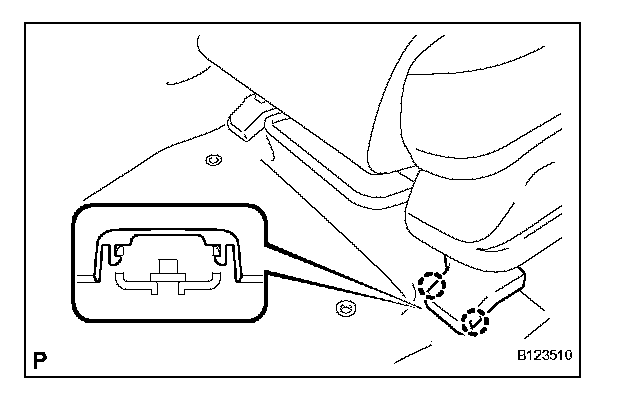

b. Using a screwdriver, disengage the 2 claws and remove the rear seat outer track bracket cover.

HINT: Tape the screwdriver tip before use.

6. REMOVE REAR INNER SEAT TRACK COVER

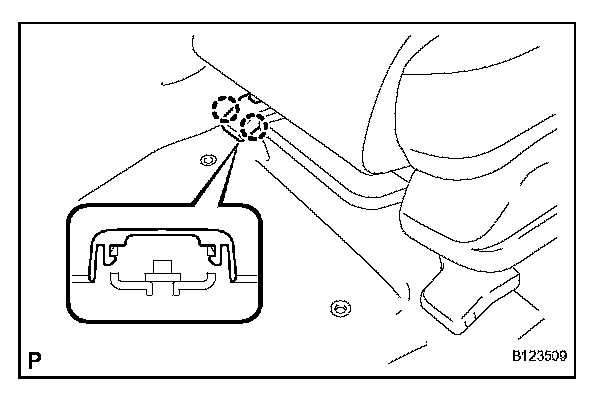

a. Using a screwdriver, disengage the 2 claws and remove the rear inner seat track bracket cover.

HINT: Tape the screwdriver tip before use.

7. REMOVE FRONT SEAT ASSEMBLY
a. Move the front seat assembly to the rearmost position by operating the slide handle.

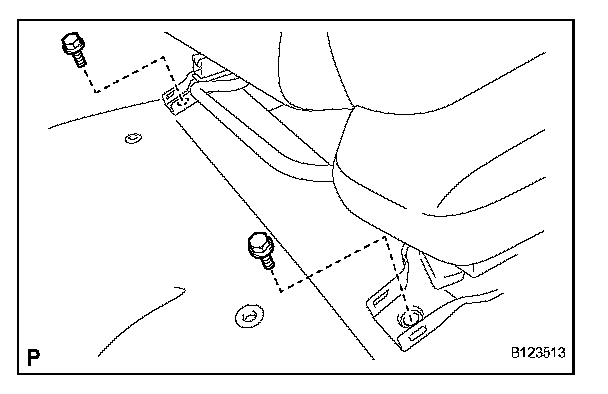

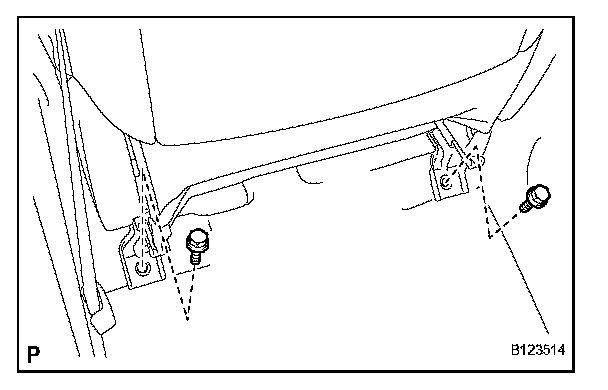

b. Remove the 2 bolts on the front seat track bracket.
c. Move the front seat assembly fully forward by operating the slide handle.

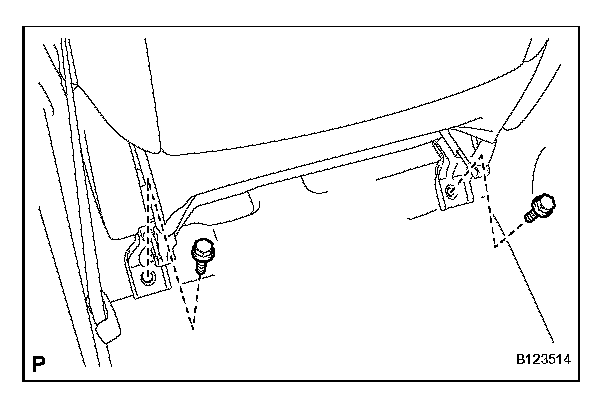

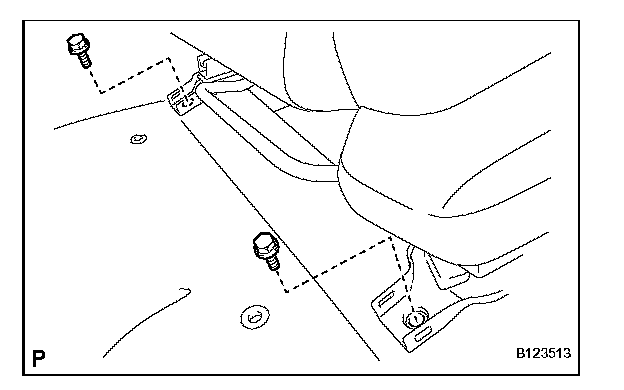

d. Remove the 2 bolts on the rear seat track bracket.
e. Move the front seat assembly to the center position and adjust the seatback to the vertical position by operating the slide and reclining adjuster release handle.
f. Disconnect the connectors and clamp.
g. Remove the front seat assembly.

NOTICE: When removing the passenger side front seat assembly, be careful not to step on the yaw rate sensor mounted on the floor under the seat.

INSTALLATION

1. INSTALL FRONT SEAT ASSEMBLY
a. Place the front seat assembly in the vehicle and align the adjuster pin with the hole on the vehicle side.

NOTICE: When installing the passenger side front seat assembly, be careful not to step on the yaw rate sensor mounted on the floor under the seat.

b. Connect the connector.
c. Move the front seat assembly to the rearmost position by operating the slide handle.

NOTICE: Check that the seat is locked.

d. Temporarily install the front seat track bracket with the 2 bolts.
e. Move the front seat assembly fully forward by operating the slide handle.

NOTICE: Check that the seat is locked.

f. Temporarily install the rear seat track bracket with the 2 bolts.
g. Move the front seat assembly to the rearmost position by operating the slide handle.

NOTICE: Check that the seat is locked.

h. Fully tighten the 2 bolts on the front seat track bracket in the order of the inner side bolt and then the outer side bolt.

Torque: 37 N.m (377 kgf.cm, 27 ft.lbf)

i. Move the front seat assembly fully forward by operating the slide handle.

NOTICE: Check that the seat is locked.

j. Fully tighten the 2 bolts on the rear seat track bracket in the order of the inner side bolt and then the outer side bolt.

Torque: 37 N.m (377 kgf.cm, 27 ft.lbf)

2. INSTALL REAR INNER SEAT TRACK BRACKET COVER LH

a. Engage the 2 claws and install the rear inner seat track bracket cover.

3. INSTALL REAR OUTER SEAT TRACK BRACKET COVER LH

a. Engage the 2 claws and install the rear outer seat track bracket cover.

4. INSTALL FRONT OUTER SEAT TRACK BRACKET COVER LH

a. Engage the 2 claws and install the front outer seat track bracket cover.

5. INSTALL FRONT INNER SEAT TRACK BRACKET COVER LH

a. Engage the 2 claws and install the front inner seat track bracket cover.

6. INSTALL FRONT SEAT HEADREST ASSEMBLY
7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
8. PERFORM INITIALIZATION

NOTICE: Some systems need initialization when disconnecting the cable from the negative battery terminal.

9. INSPECT SLIDE ADJUSTER LOCK
10. INSPECT SRS WARNING LIGHT
