Front Power Seat Control System (w/o Seat Position Memory System)
Front Power Seat Control System (w/o Seat Position Memory System)

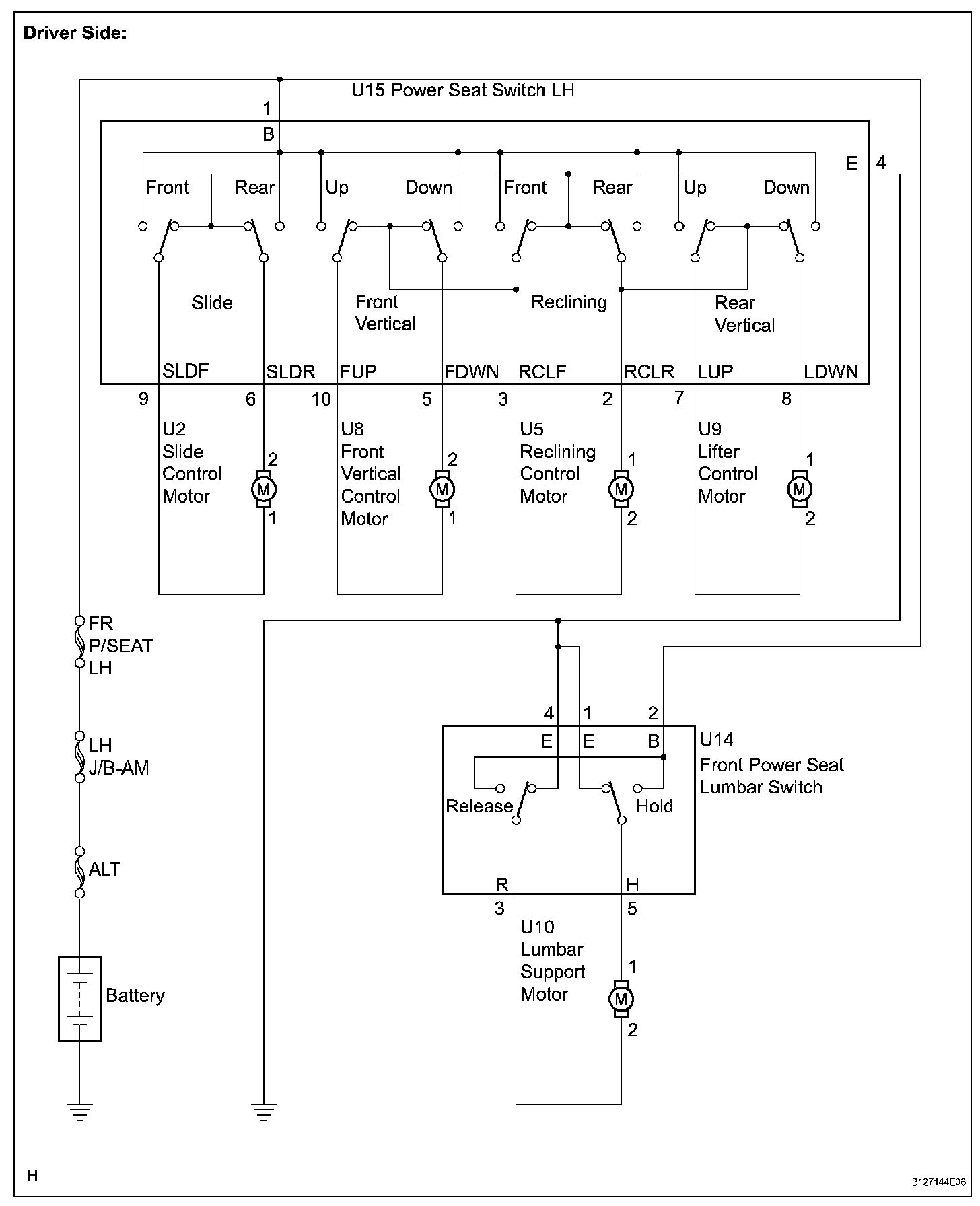

System Diagram:
System Diagram:
