Sliding Roof Control Switch Circuit

Sliding Roof Control Switch Circuit

DESCRIPTION
The sliding roof drive gear sub-assembly (sliding roof ECU) receives slide switch and tilt switch signals and drives its built-in motor.

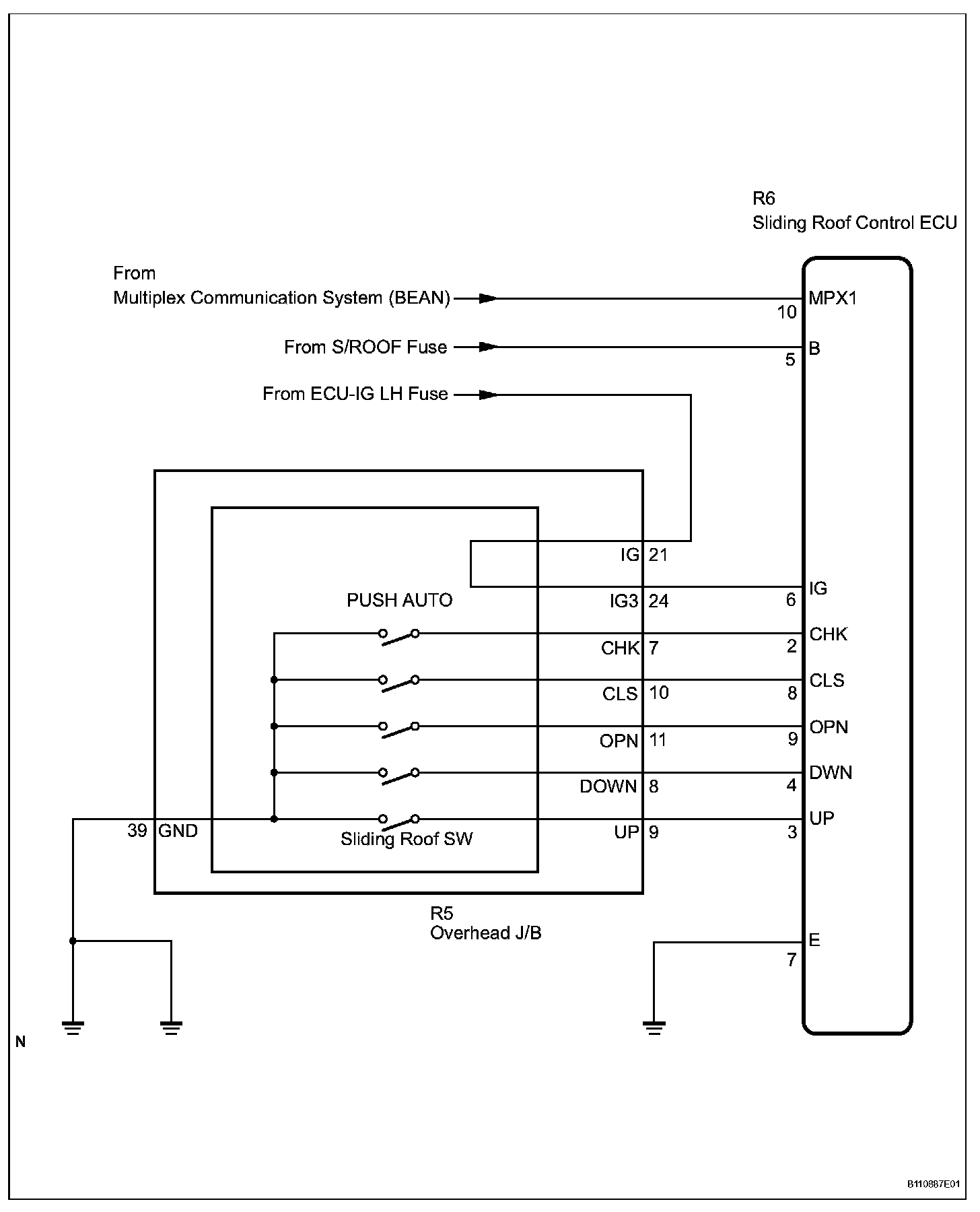

WIRING DIAGRAM

Wiring Diagram:





INSPECTION PROCEDURE

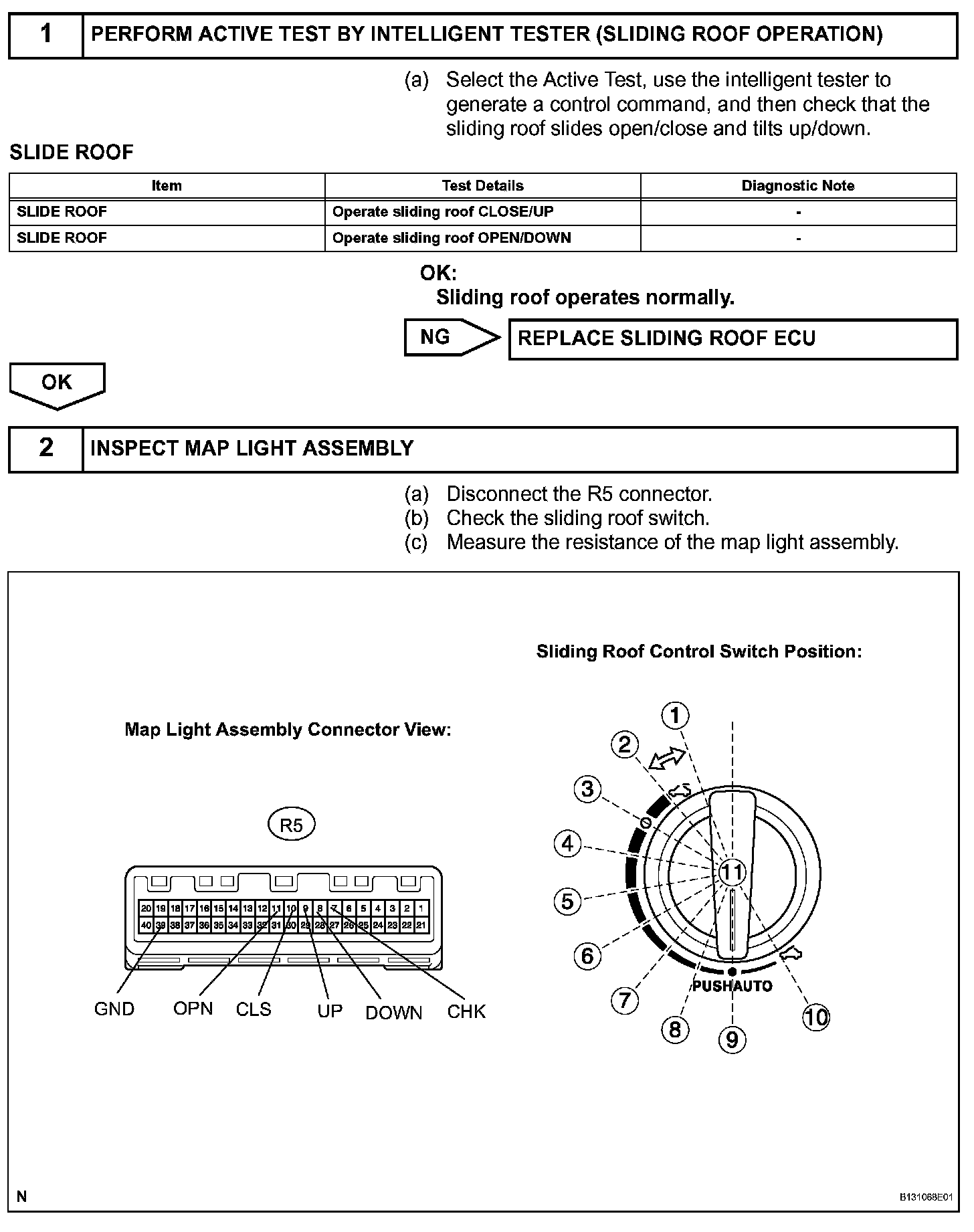

Step 1 - 2:

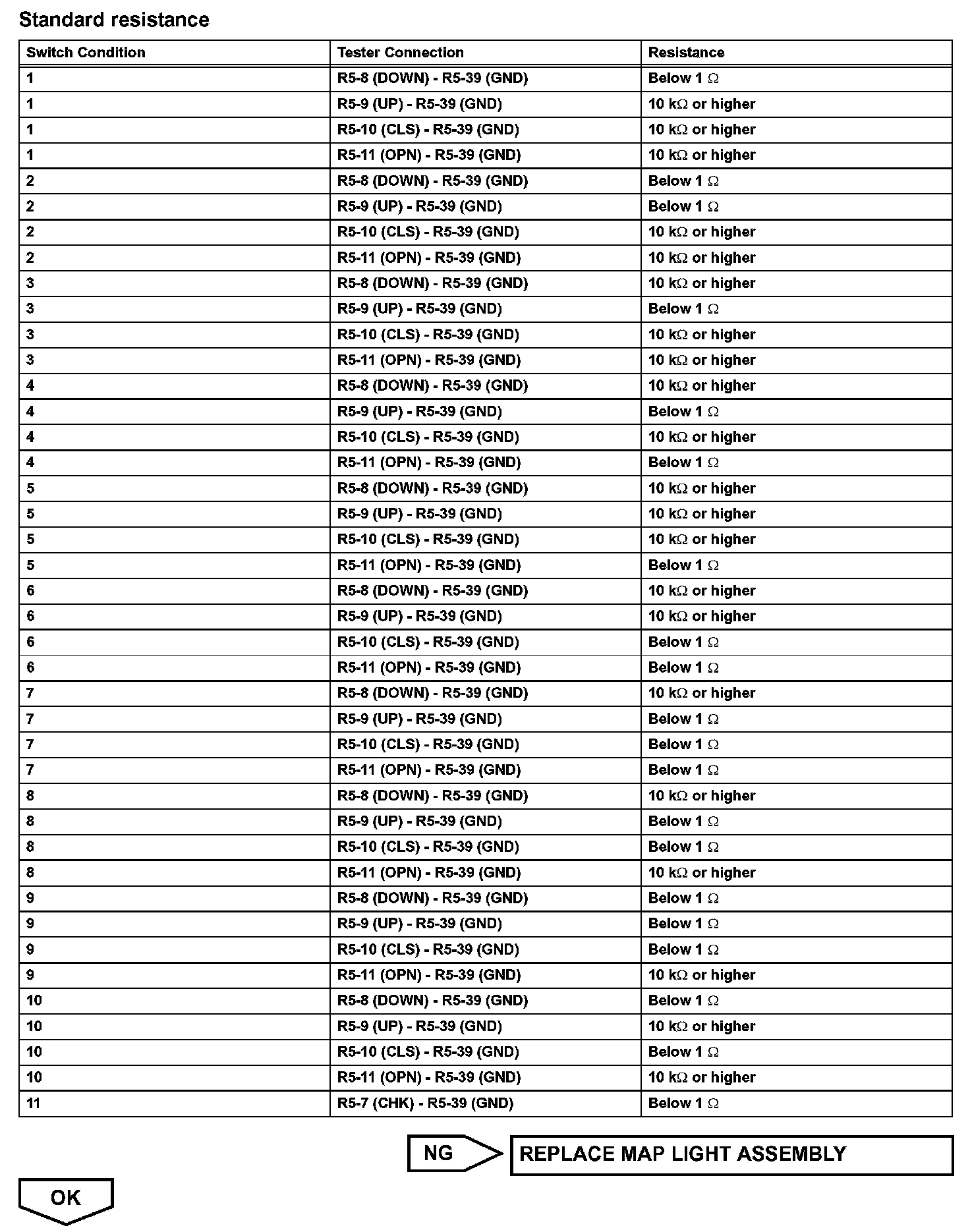

Step 2(Continued):

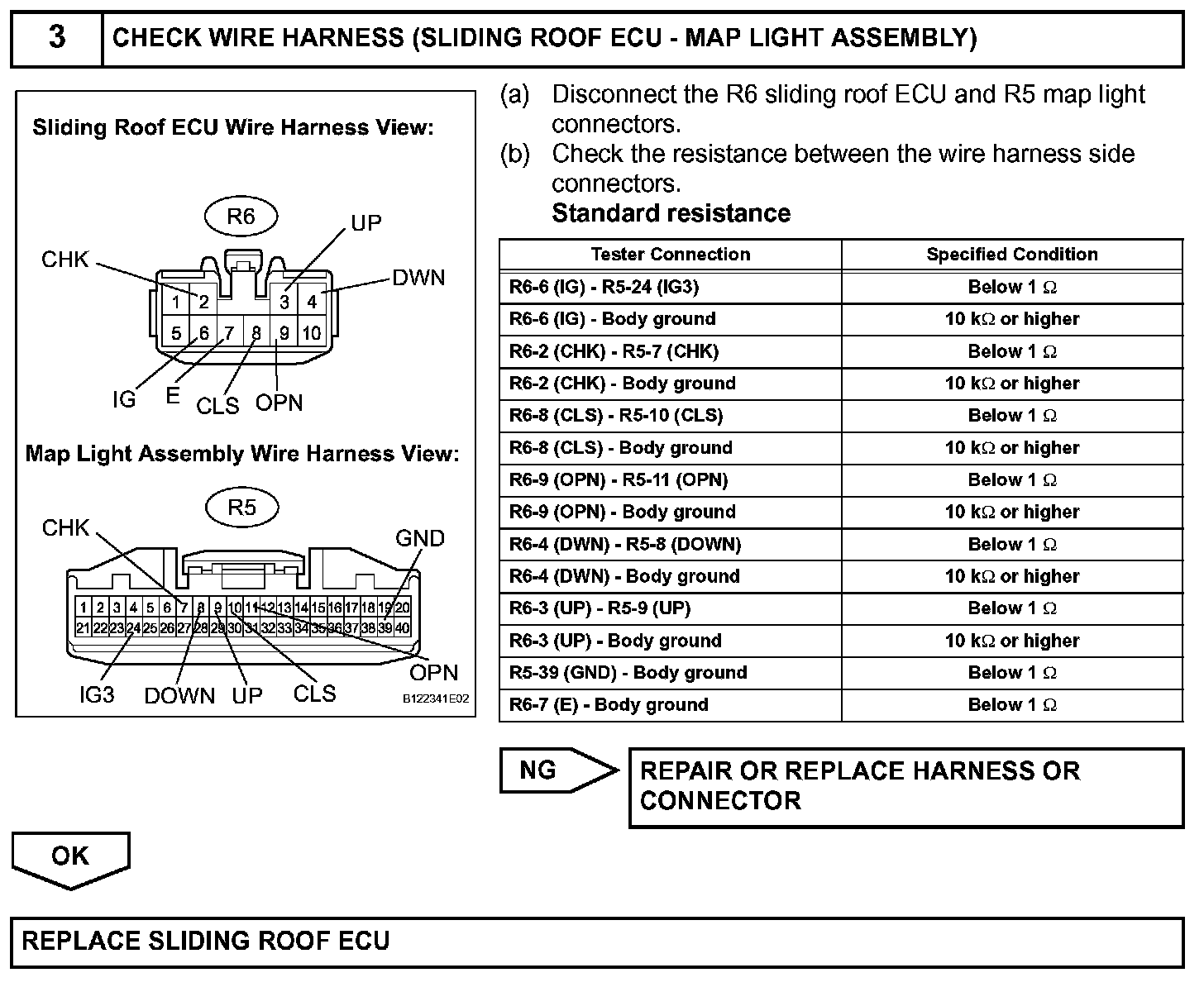

Step 3:
