Reverse Shift-Linked Function Of Power Mirrors Do Not Operate

Reverse Shift-linked Function of Power Mirrors Do Not Operate

DESCRIPTION

A/T models:
After the ECM receives a reverse signal from the park/neutral position switch, the ECM sends a reverse signal to the outer mirror control ECU via the CAN and BEAN communication systems. The outer mirror control ECU activates the mirror motor in response to the reverse signal.

M/T models:
After the main body ECU RH (cowl side J/B RH) receives a reverse signal from the back up light switch, the ECU sends a reverse signal to the outer mirror control ECU via the BEAN communication system. The outer mirror control ECU activates the mirror motor in response to the reverse signal.

WIRING DIAGRAM

Wiring Diagram:

INSPECTION PROCEDURE

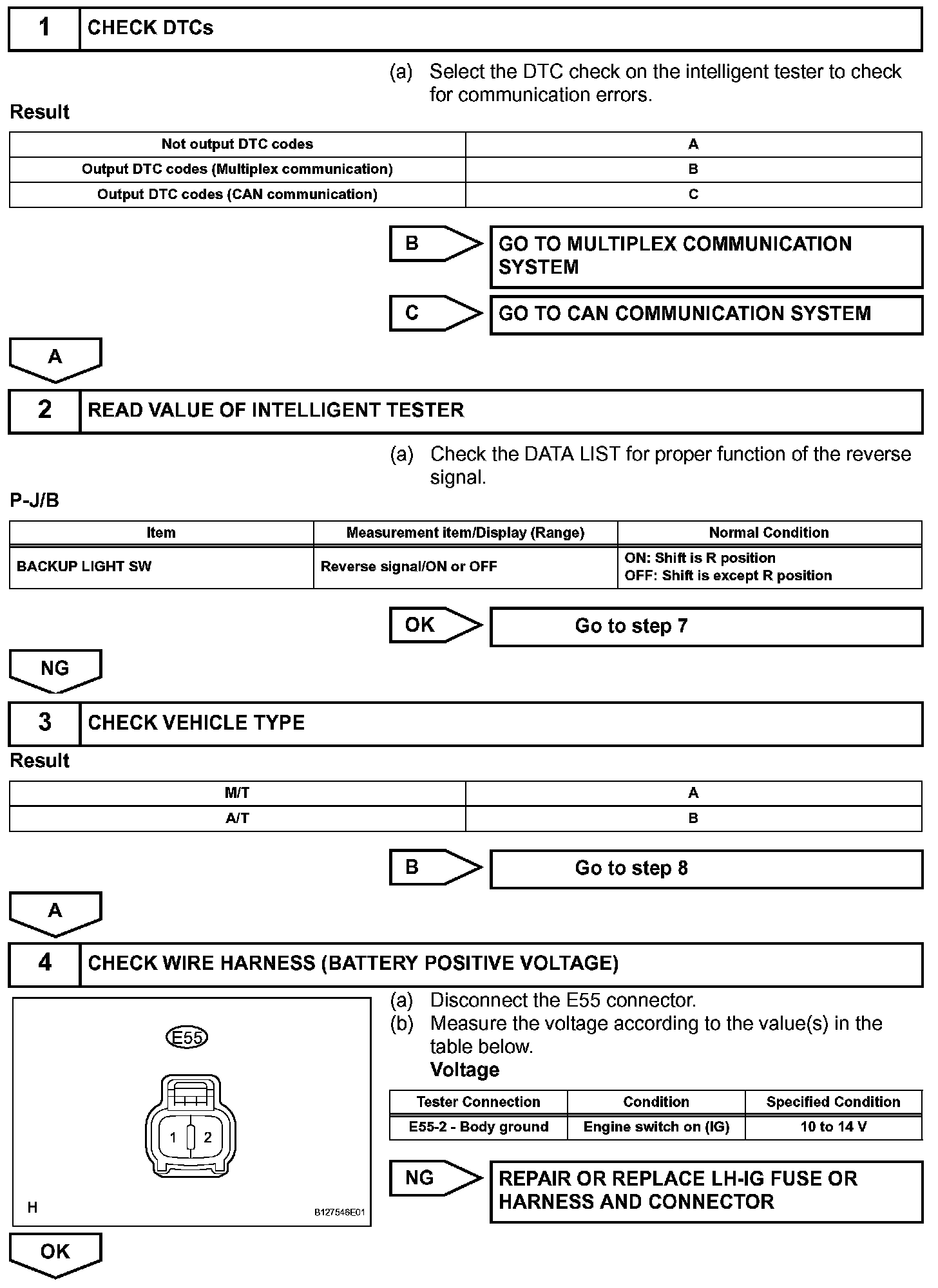

Step 1 - 4:

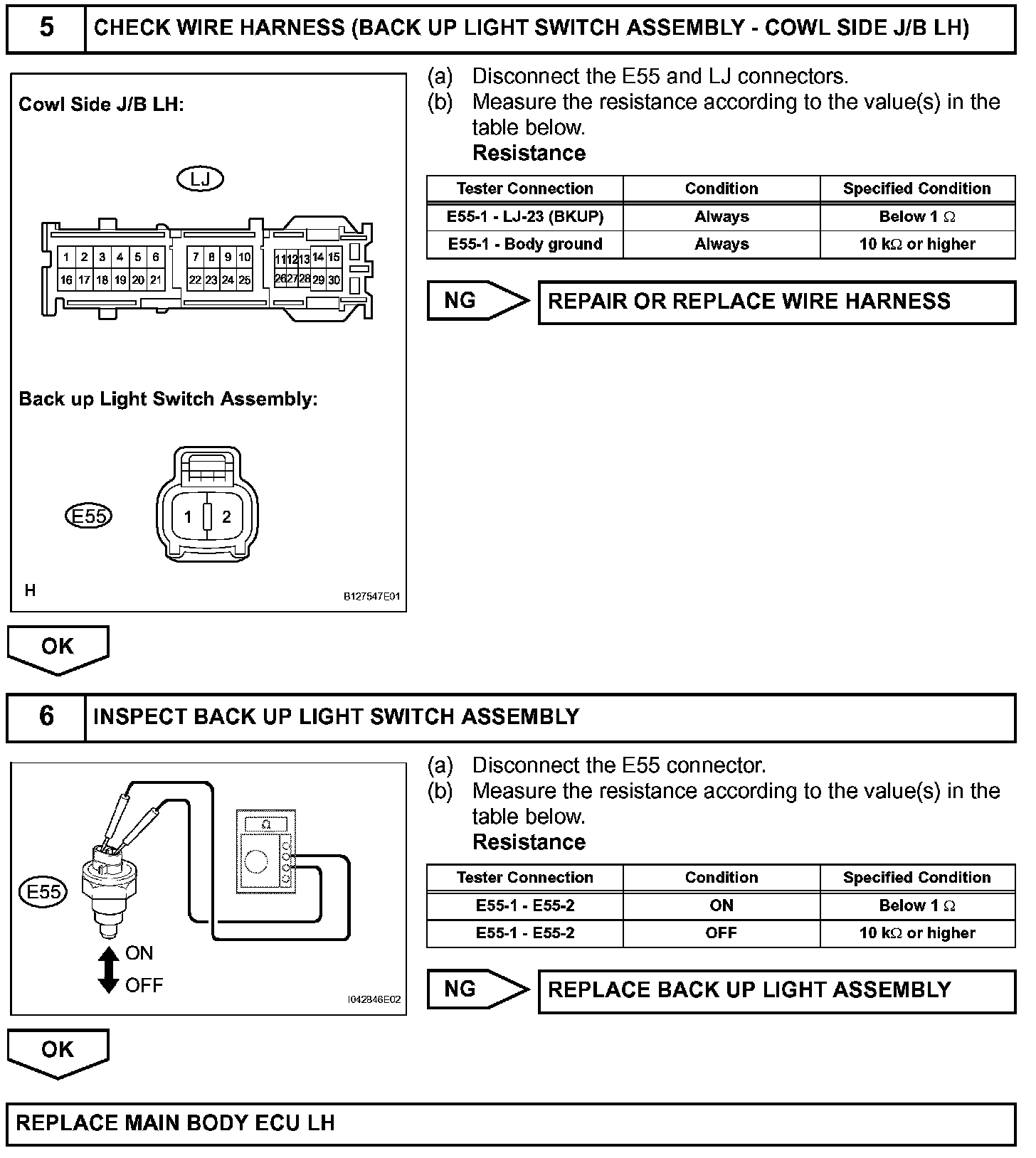

Step 5 - 6:

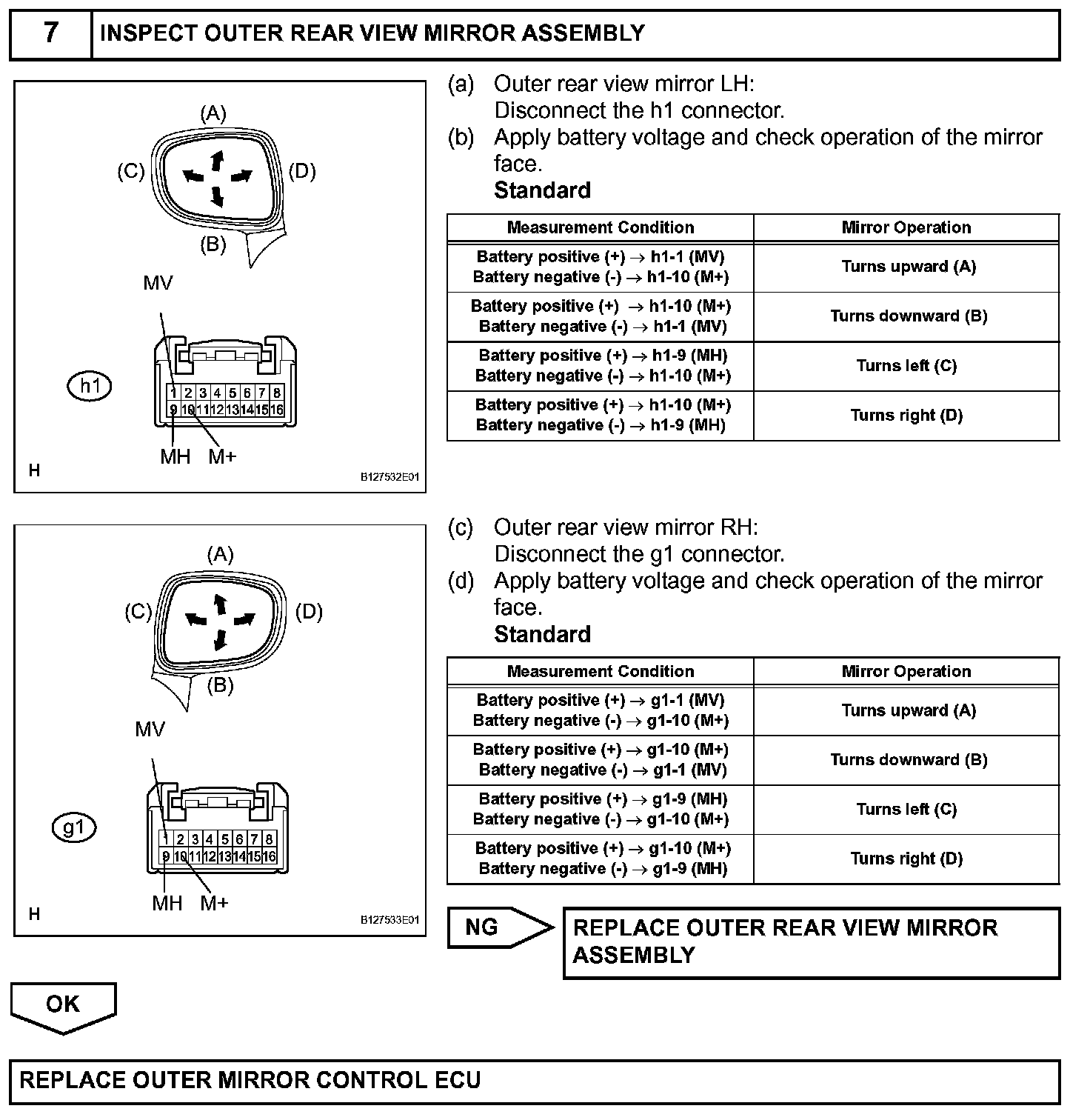

Step 7:

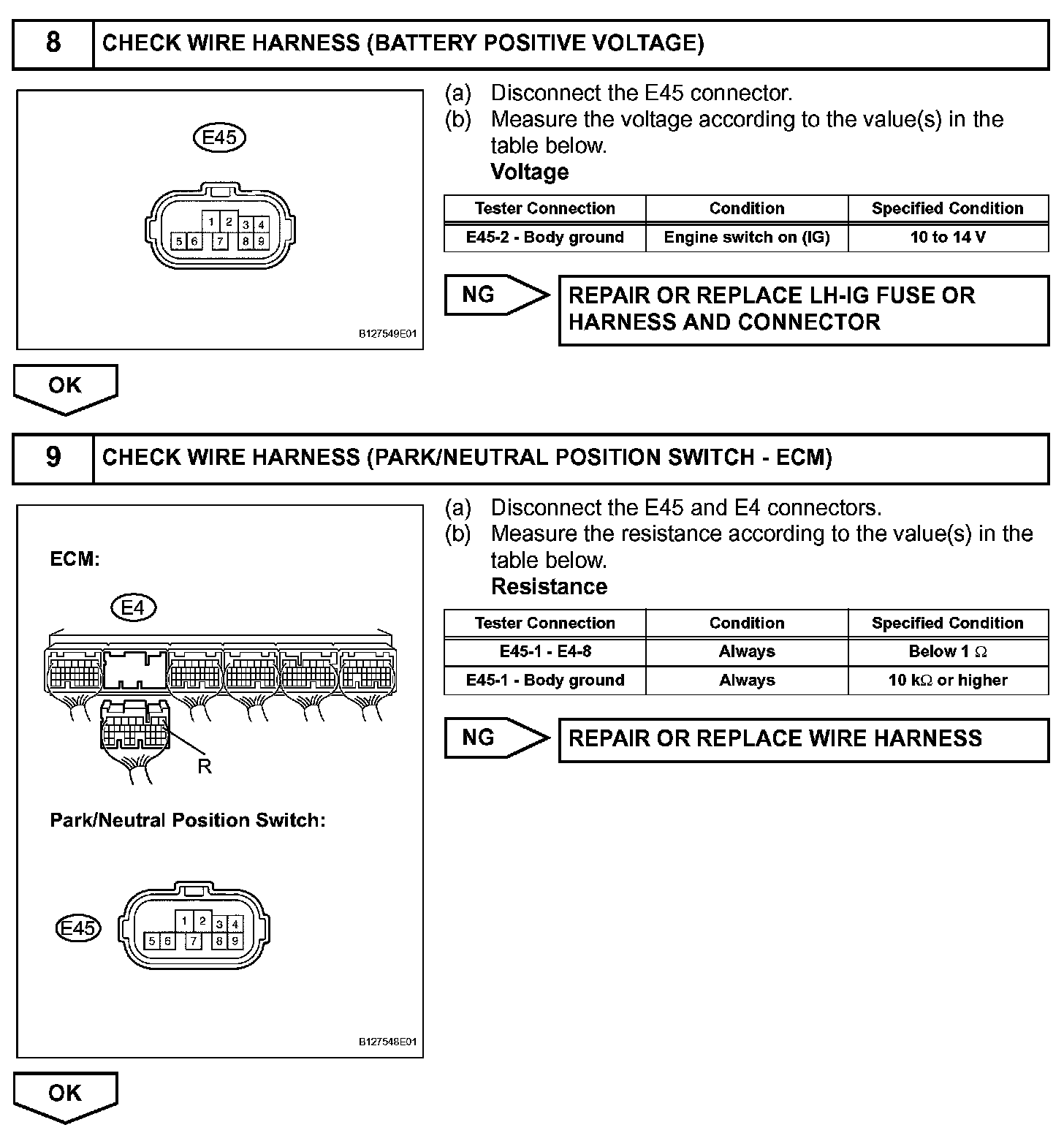

Step 8 - 9:

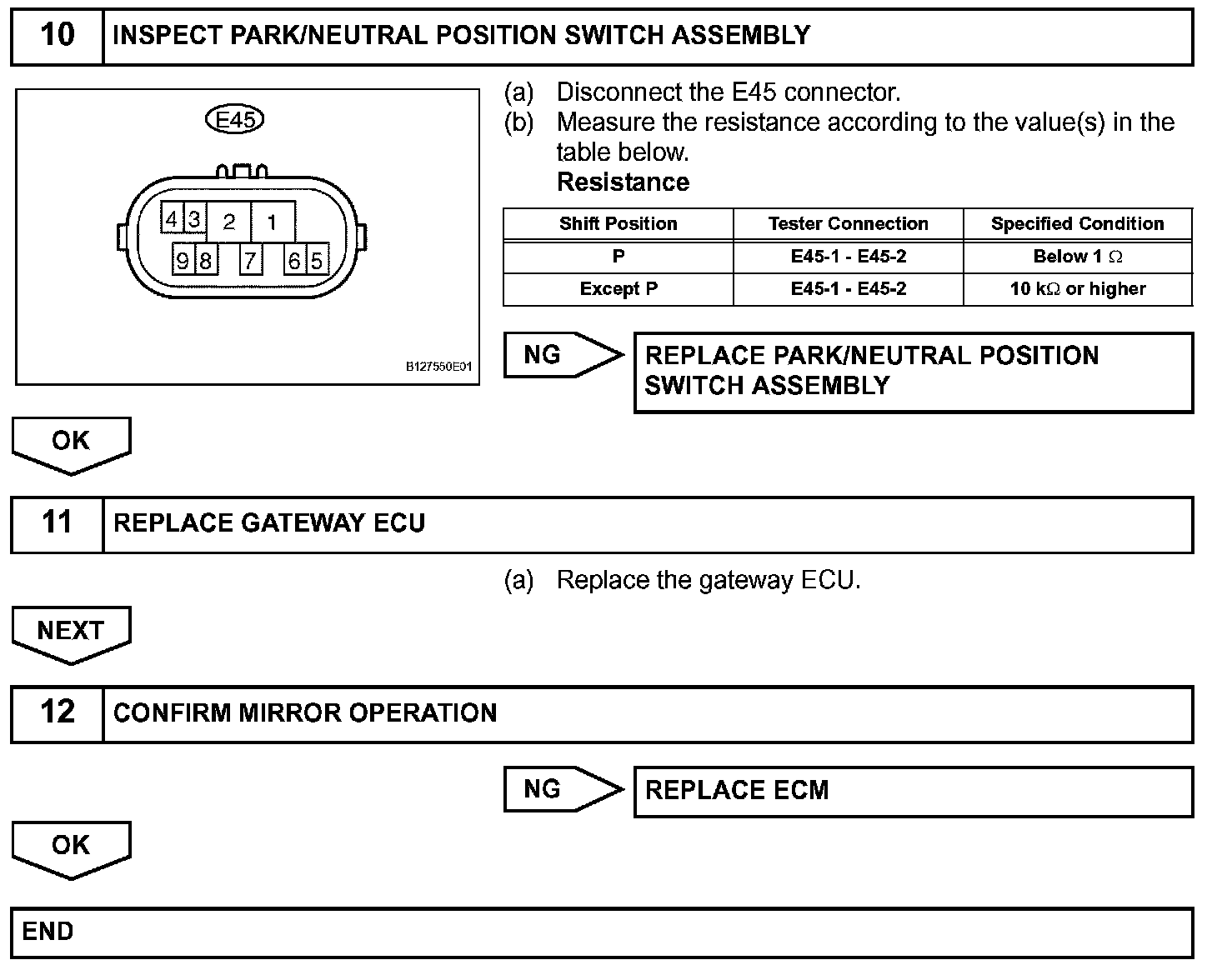

Step 10 - 12:
