Inner Rear View Mirror

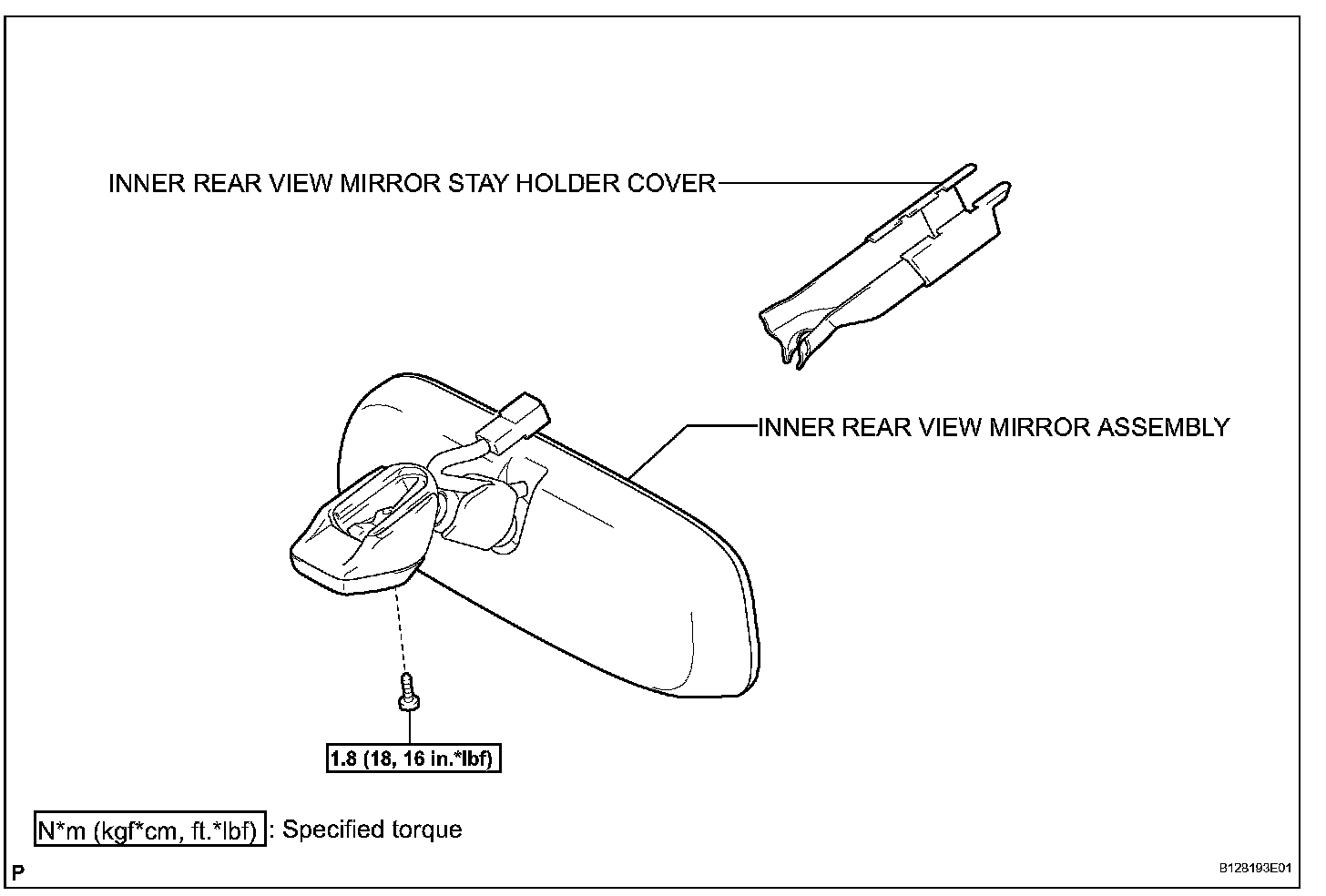

INNER REAR VIEW MIRROR

Inner Rear View Mirror:

REMOVAL

1. REMOVE INNER REAR VIEW MIRROR STAY HOLDER COVER





a. Disengage the 2 claws and remove the inner rear view mirror stay holder cover as shown in the illustration.

2. REMOVE INNER REAR VIEW MIRROR ASSEMBLY

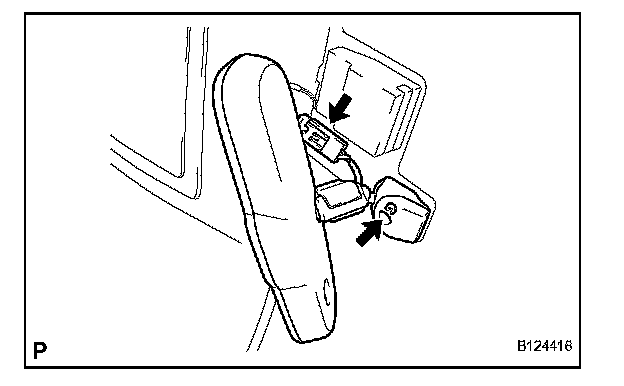

a. Disconnect the connector.
b. Using a "torx" socket wrench (T20), remove the screw and the inner rear view mirror.

INSTALLATION

1. INSTALL INNER REAR VIEW MIRROR ASSEMBLY

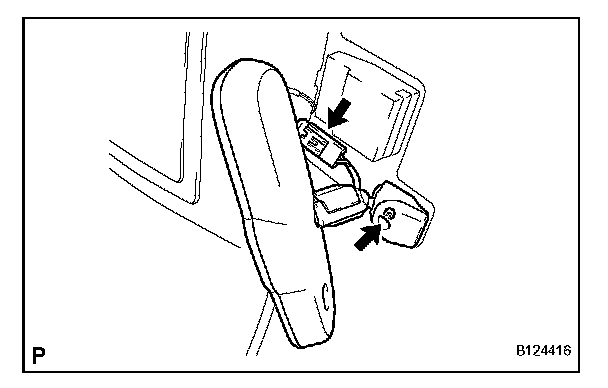

a. Using a "torx" socket wrench (T20), install the inner rear view mirror with the screw.

Torque: 1.8 N.m (18 kgf.cm, 16 in.lbf)

b. Connect the connector.

2. INSTALL INNER REAR VIEW MIRROR STAY HOLDER COVER

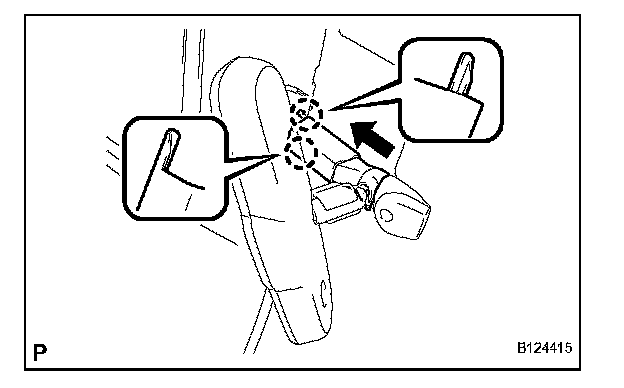

a. Engage the 2 claws and install the inner rear view mirror stay holder cover as shown in the illustration.
