Power Mirror Control System (w/o Memory)

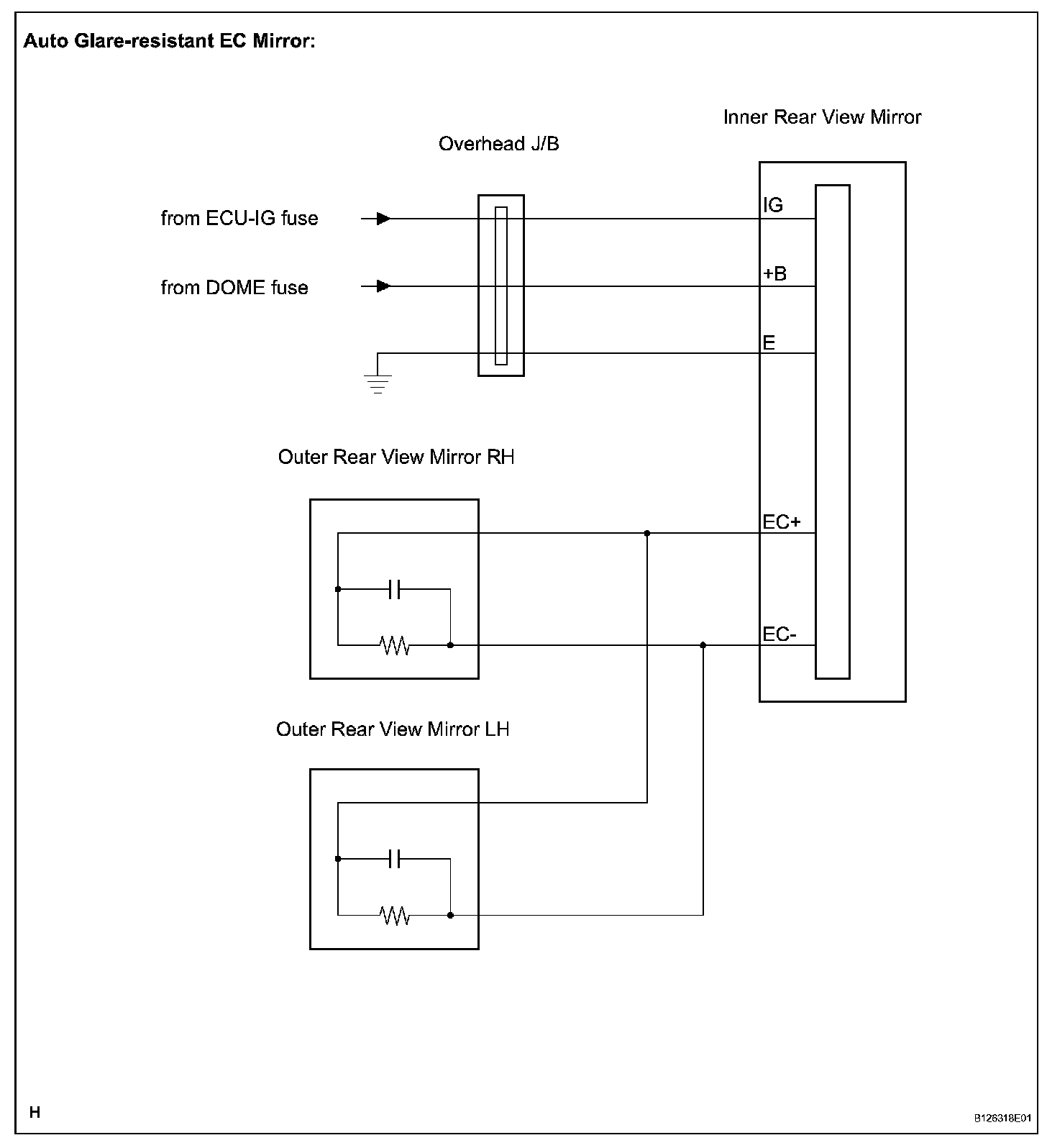

System Diagram (Part 1):

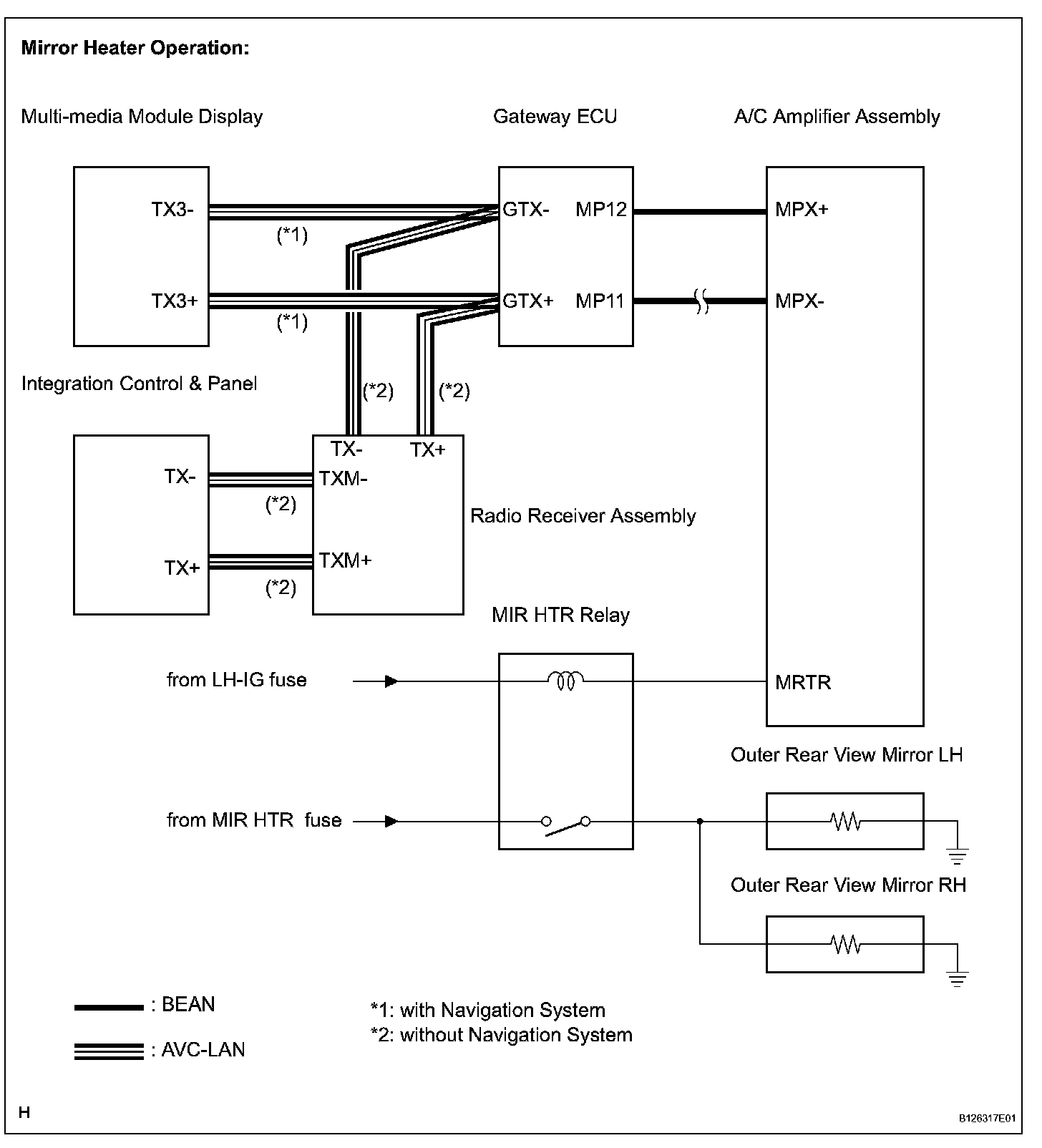

System Diagram (Part 2):

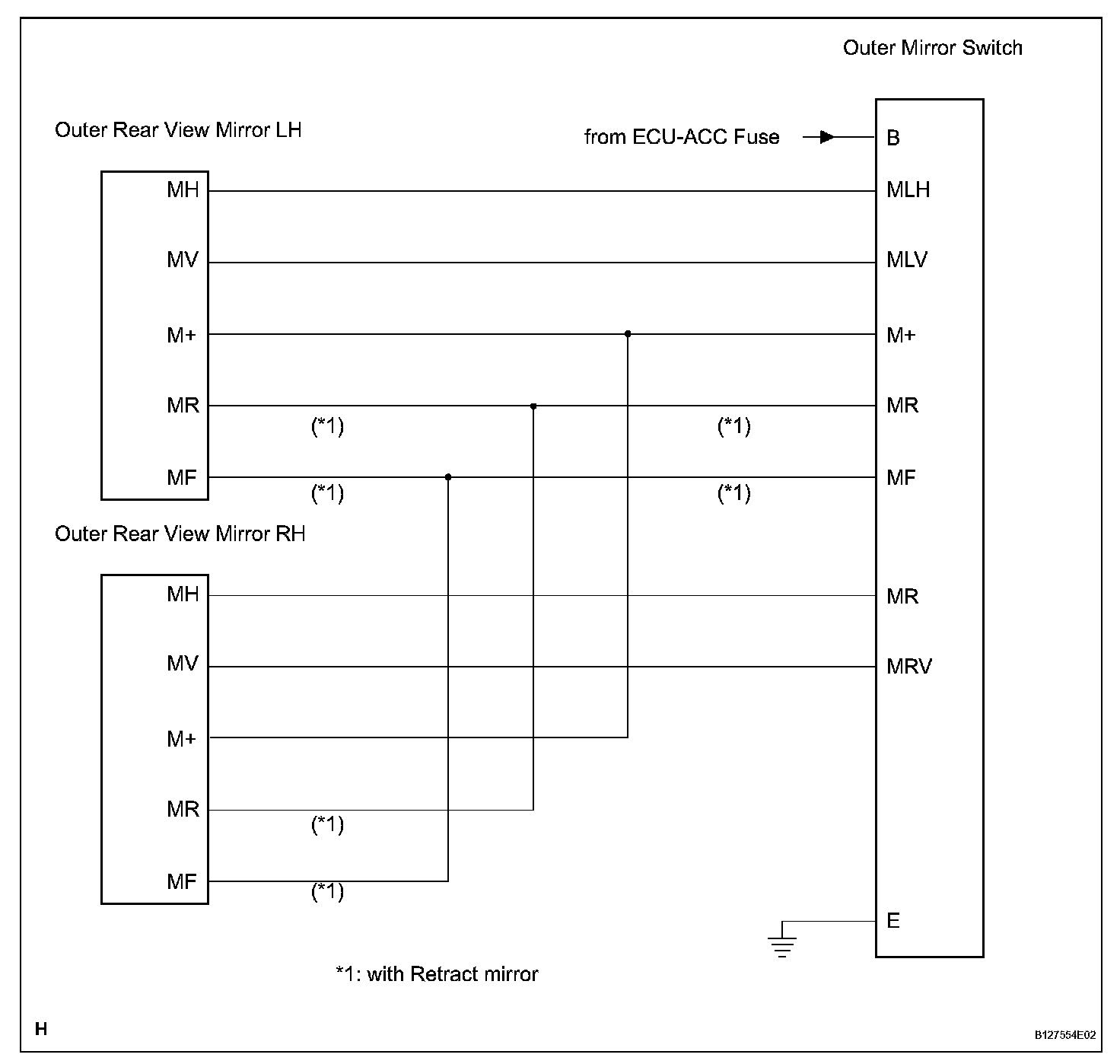

System Diagram (Part 3):
