Power Mirror Control System (w/ Memory)

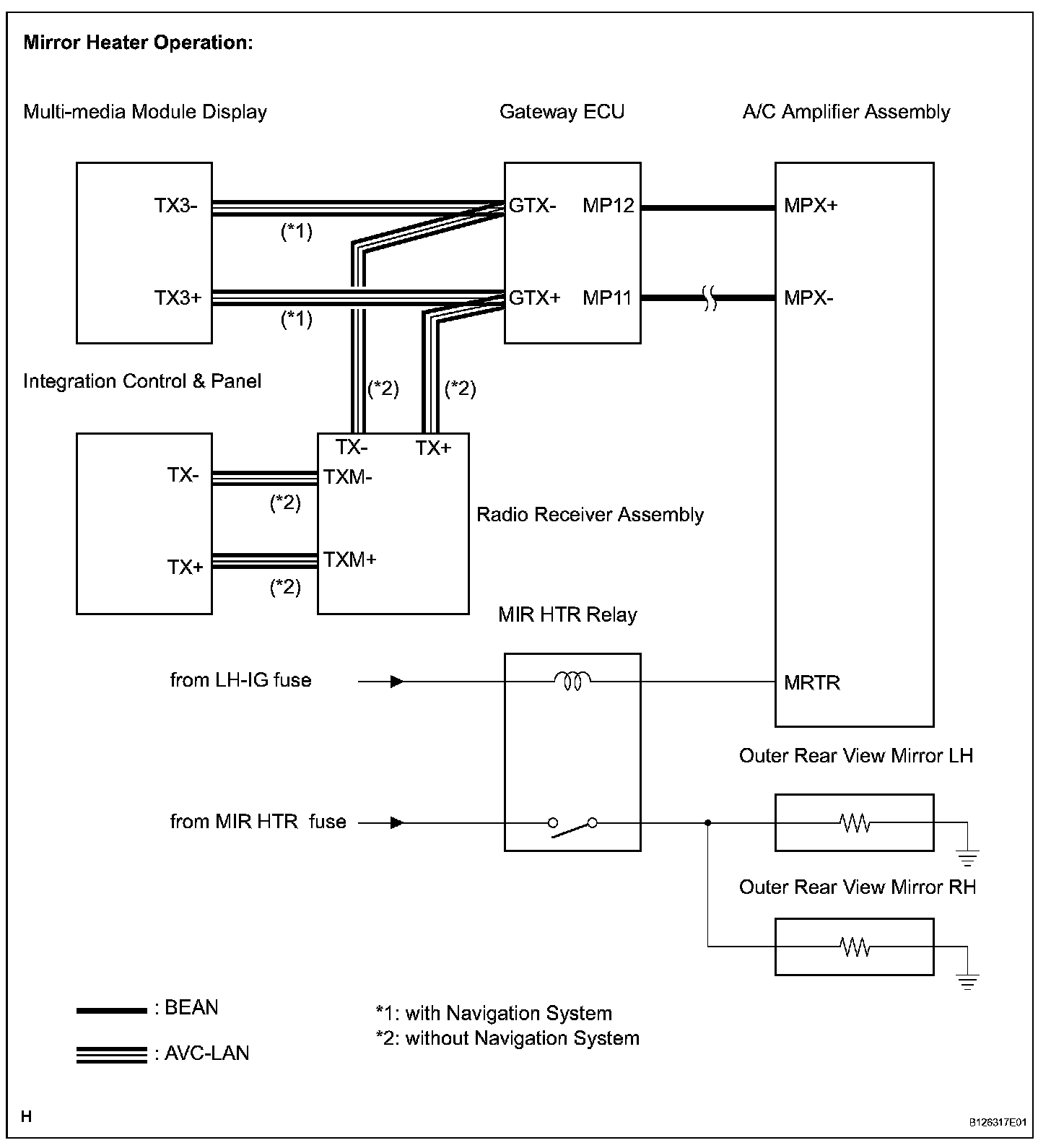

System Diagram (Part 1):

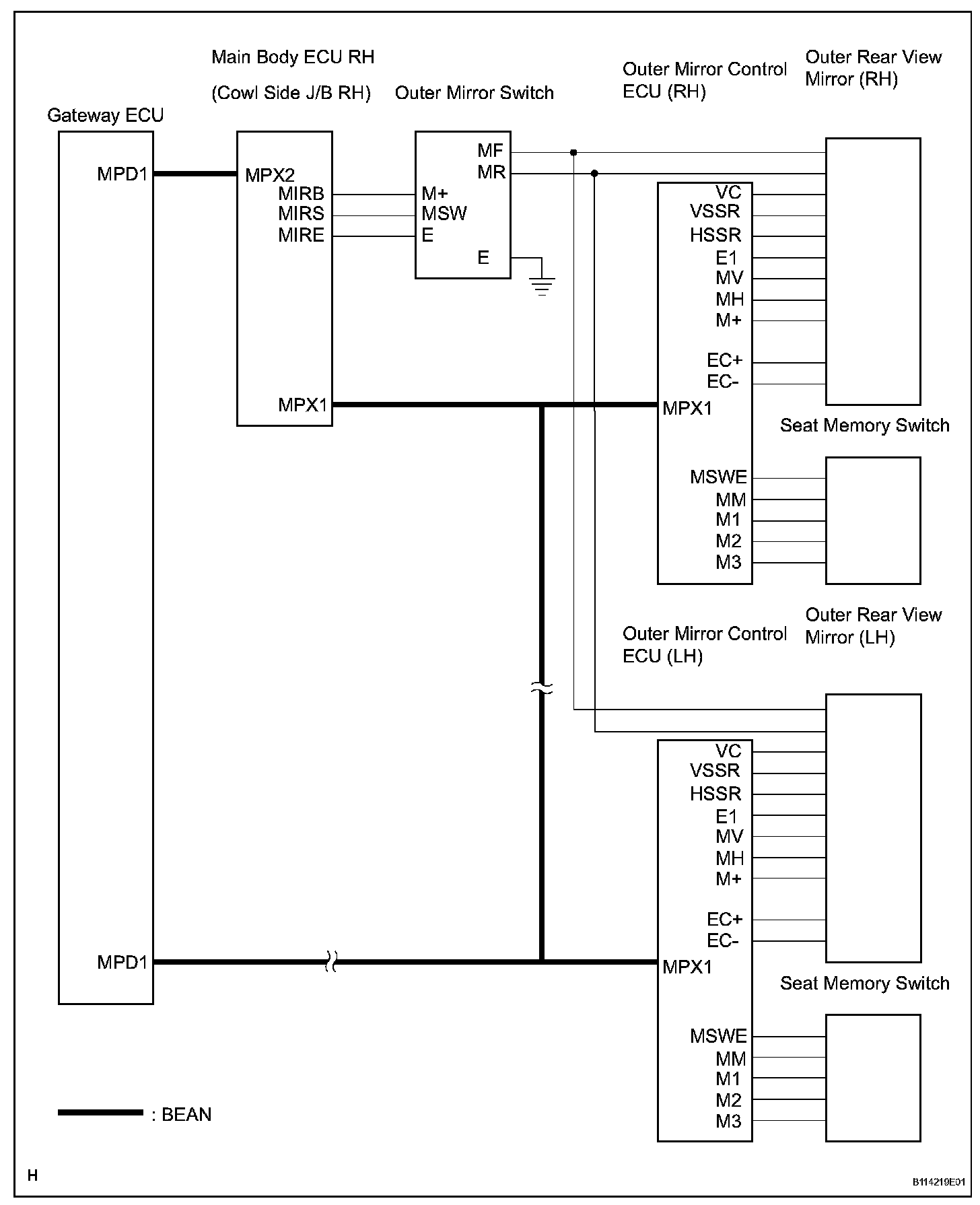

System Diagram (Part 2):

SYSTEM DESCRIPTION

The memory system can store the driver seat, front passenger seat, outside rear view mirror positions and tilt & telescopic position. Up to 3 memory positions can be stored in the system memory and recalled. Three positions can be saved for the driver memory switch or front passenger memory switch.

- Each seat ECU stores the seat position (seat slide, front vertical, rear vertical and reclining) in its memory. Each seat ECU is built into the power seat switch.
- Each mirror ECU stores the outside rear view mirror position in its memory.
- The tile & telescopic ECU stores the tilt & telescopic position in its memory.
- The seat ECU (Driver) outputs a reproduction signal to each ECU.
