Pinout Values and Diagnostic Parameters

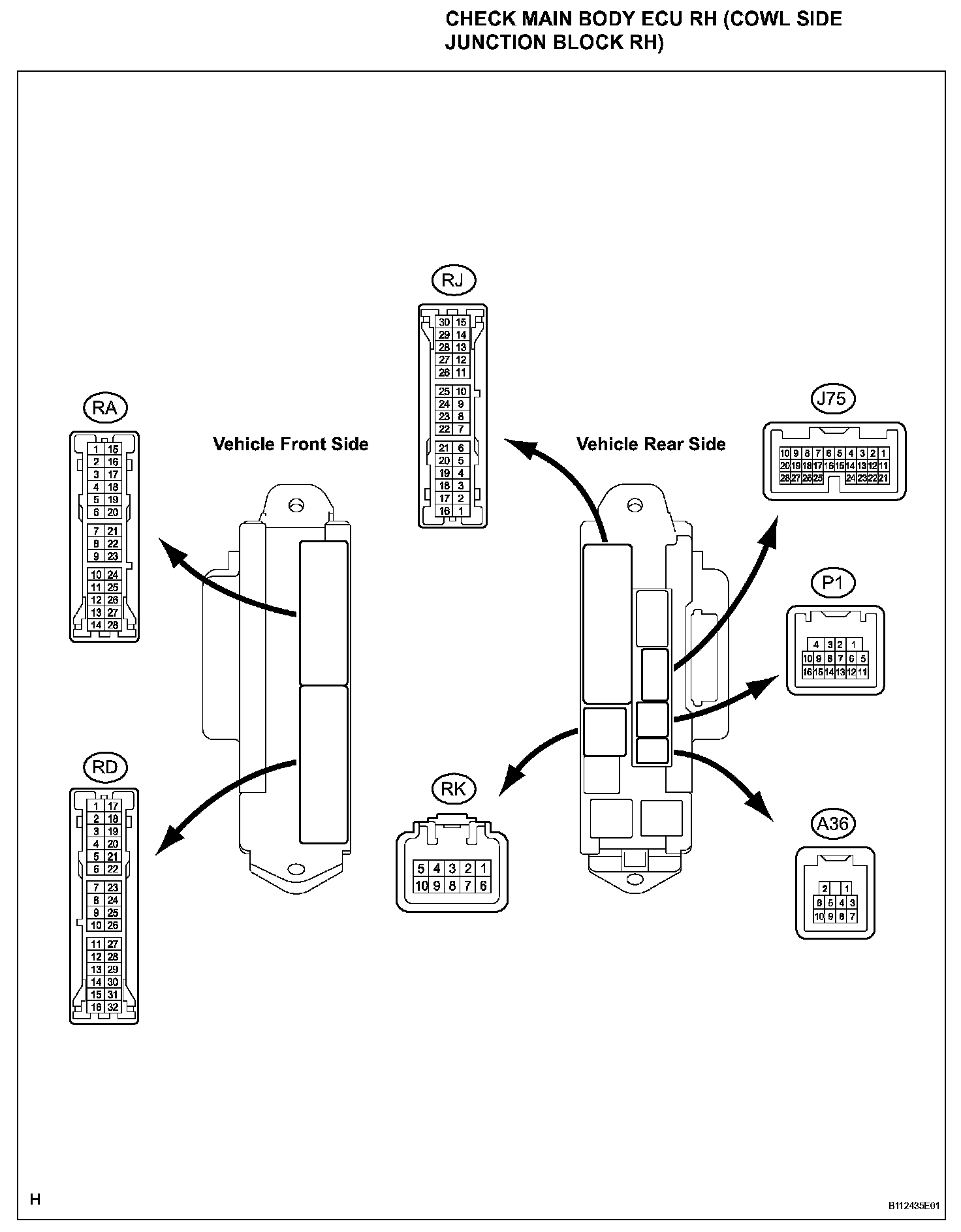

Terminals Of Control Module/Pinouts - Check Main Body ECU RH (Cowl Side Junction Block RH) (Part 1):

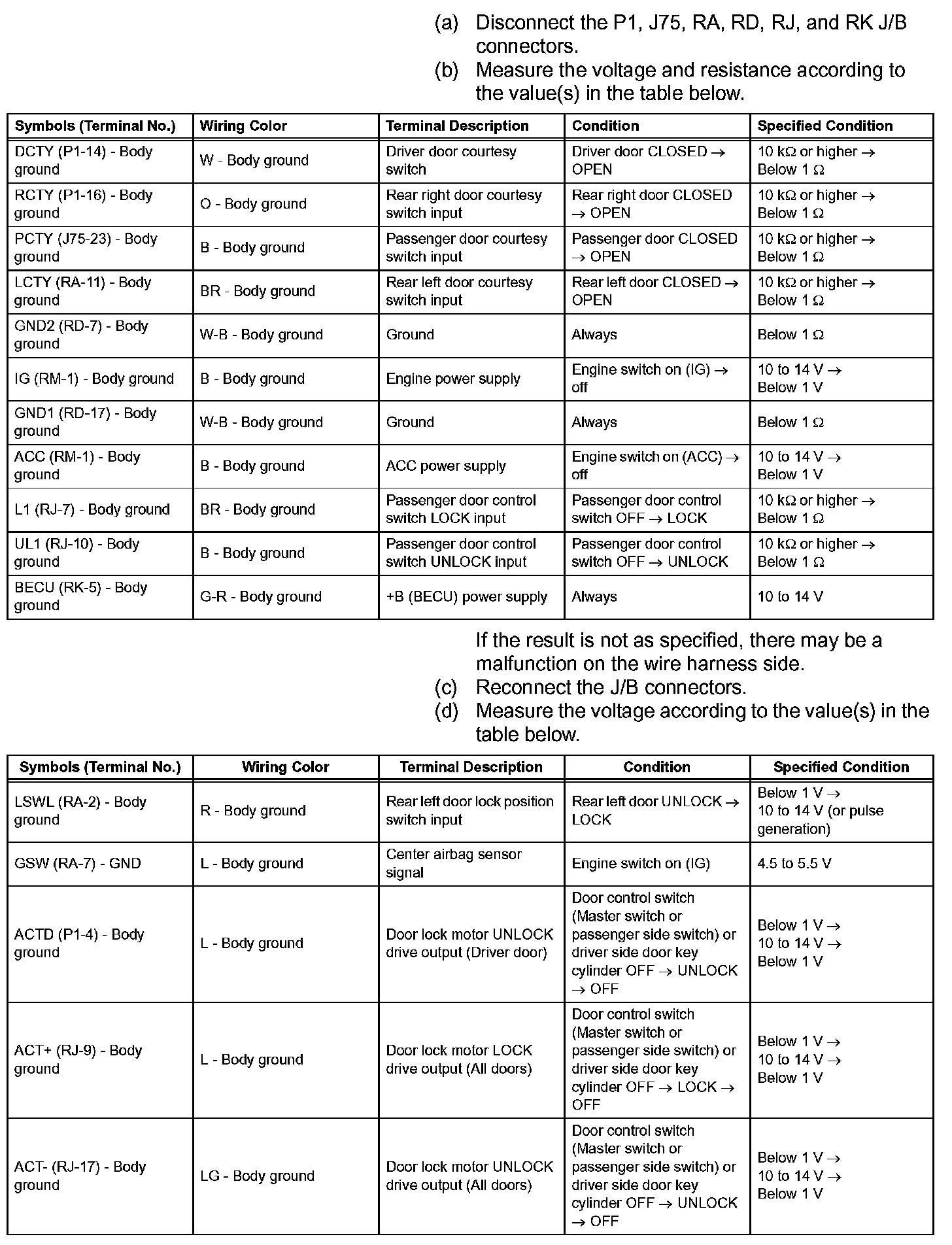

Terminals Of Control Module/Pinouts - Check Main Body ECU RH (Cowl Side Junction Block RH) (Part 2):

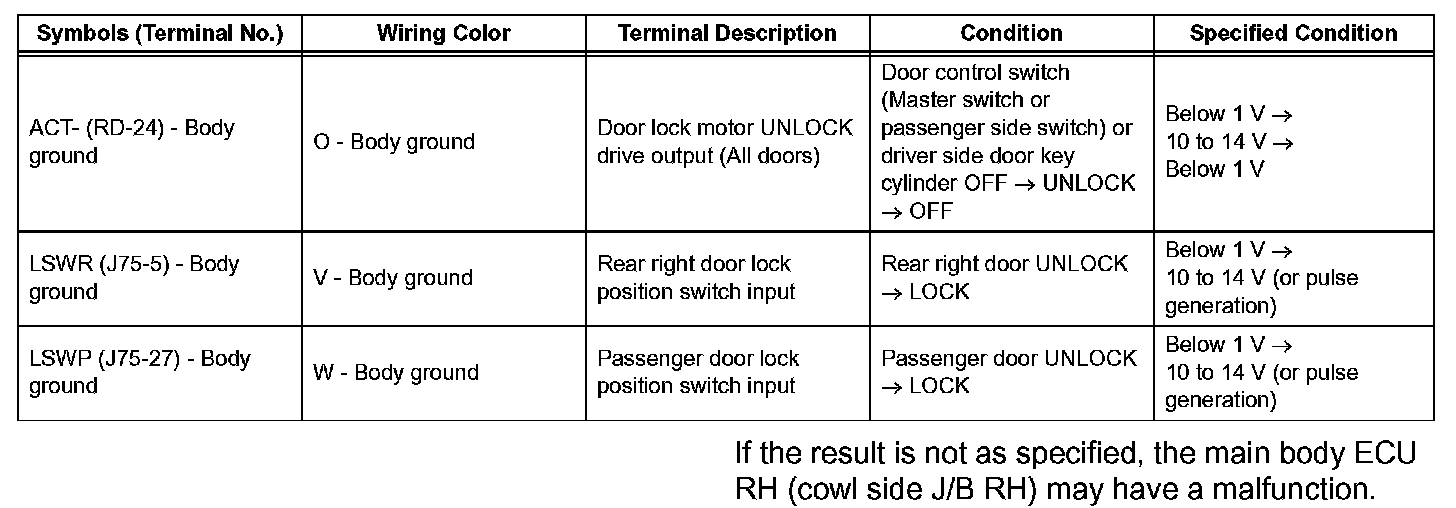

Terminals Of Control Module/Pinouts - Check Main Body ECU RH (Cowl Side Junction Block RH) (Part 3):

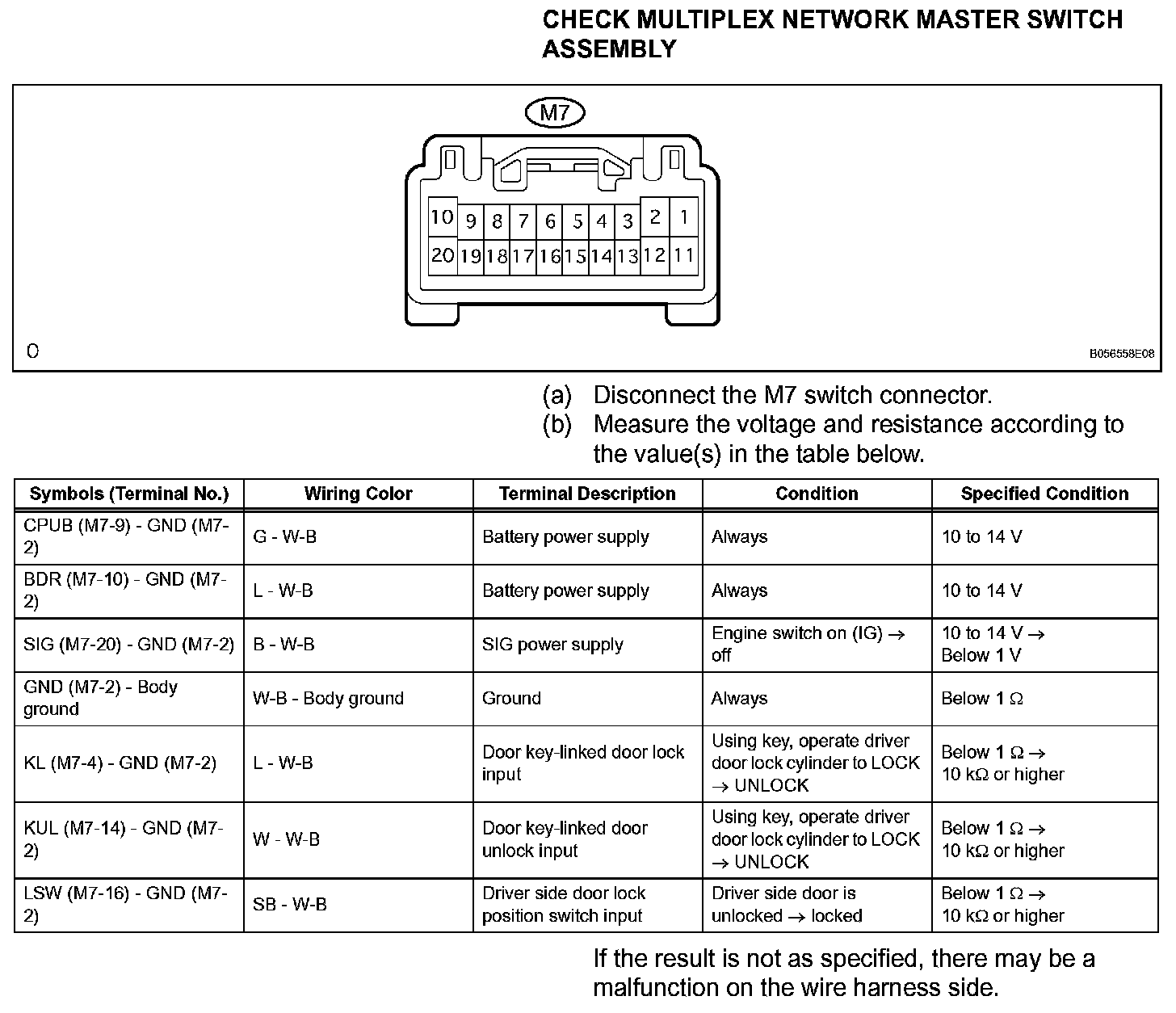

Terminals Of Control Module/Pinouts - Check Multiplex Network Master Switch Assembly:
