Front Passenger Side Door Lock Motor Circuit

Front Passenger Side Door Lock Motor Circuit

DESCRIPTION

The front passenger door lock motor is built into the front passenger door lock assembly.

The main body ECU RH controls the front passenger door lock motor to lock/unlock the front passenger door. This ECU applies current from terminal ACT+ to terminal ACT- to operate the motor to lock the door. It reverses the direction of the current flow to operate the motor to unlock the door.

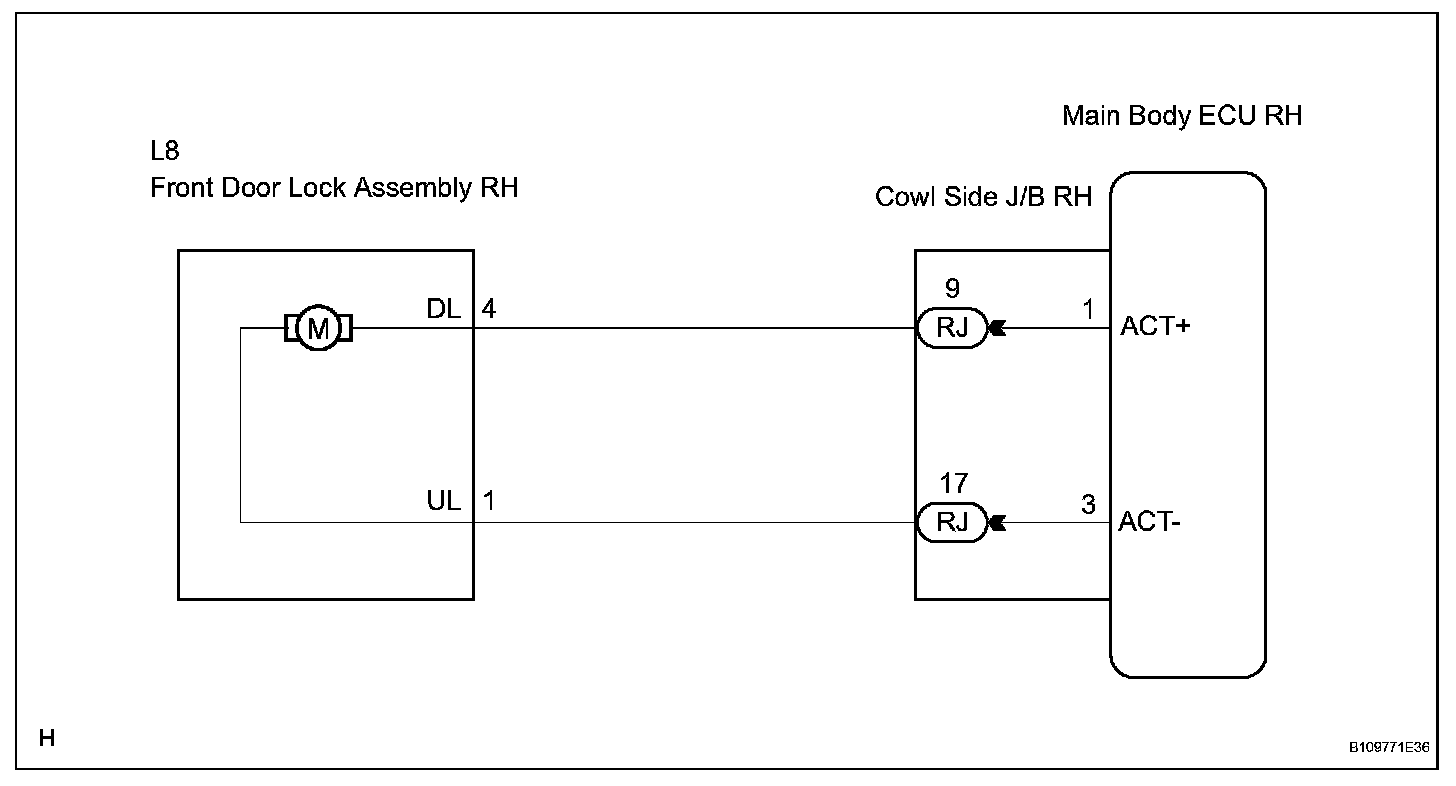

Wiring Diagram:

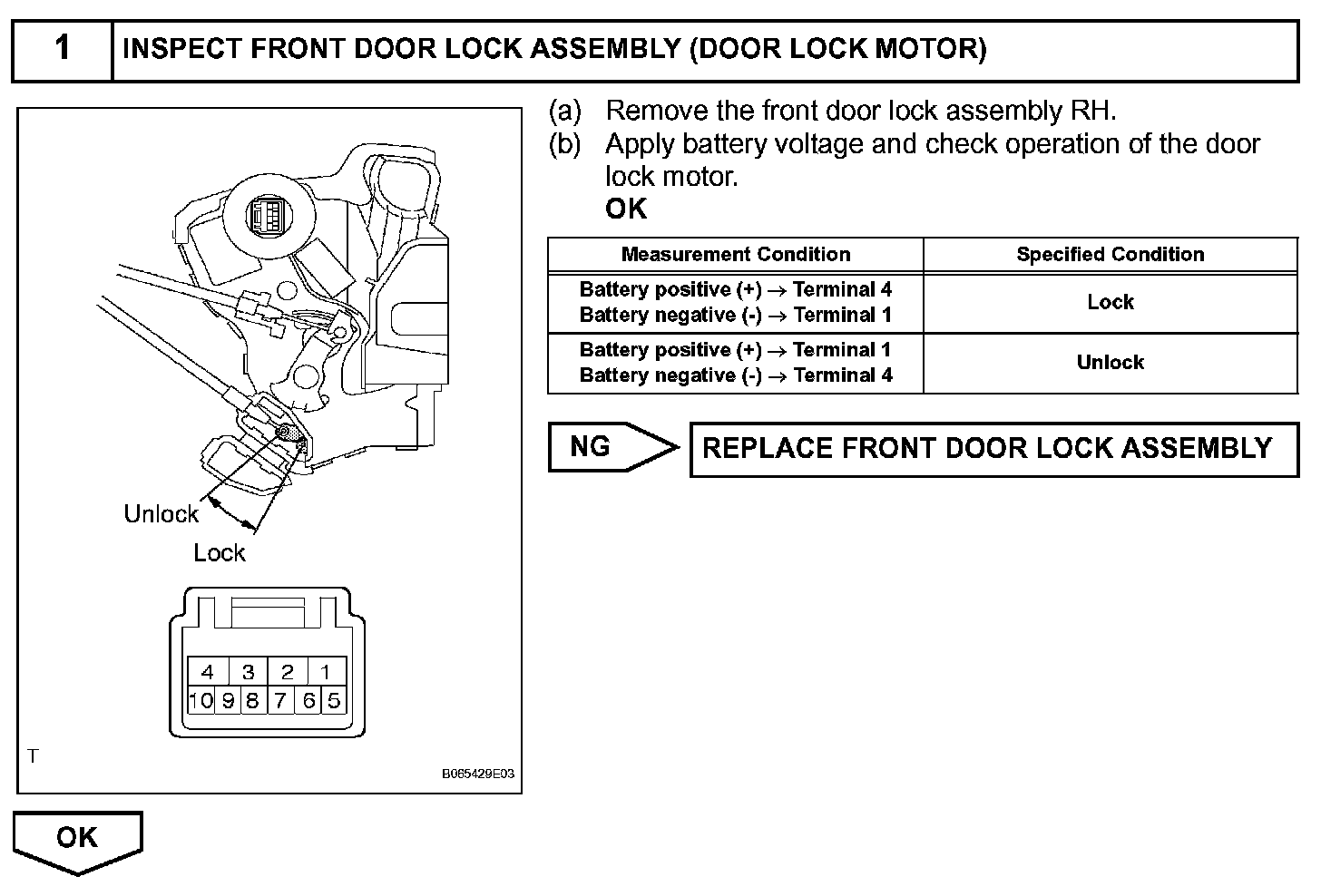

Step 1:

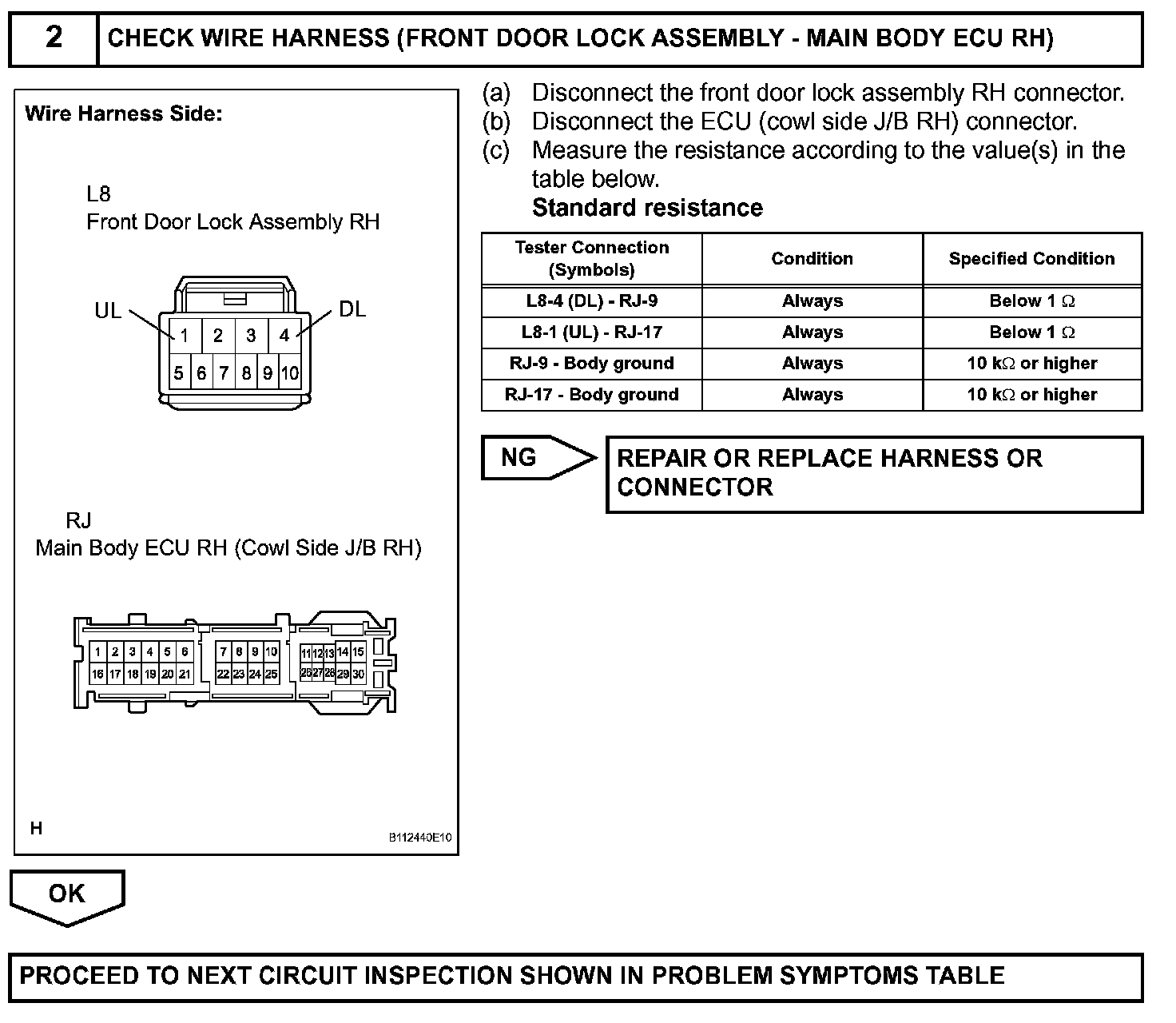

Step 2:

INSPECTION PROCEDURE
