Driver Side Door Lock Motor Circuit

Driver Side Door Lock Motor Circuit

DESCRIPTION

The driver's door lock motor is built into the driver's door lock assembly.

The main body ECU RH controls the driver's door lock motor to lock/unlock the driver's door. This ECU applies current from terminal ACT+ to terminal ACTD to operate the motor to lock the door. It reverses the direction of the current flow to operate the motor to unlock the door.

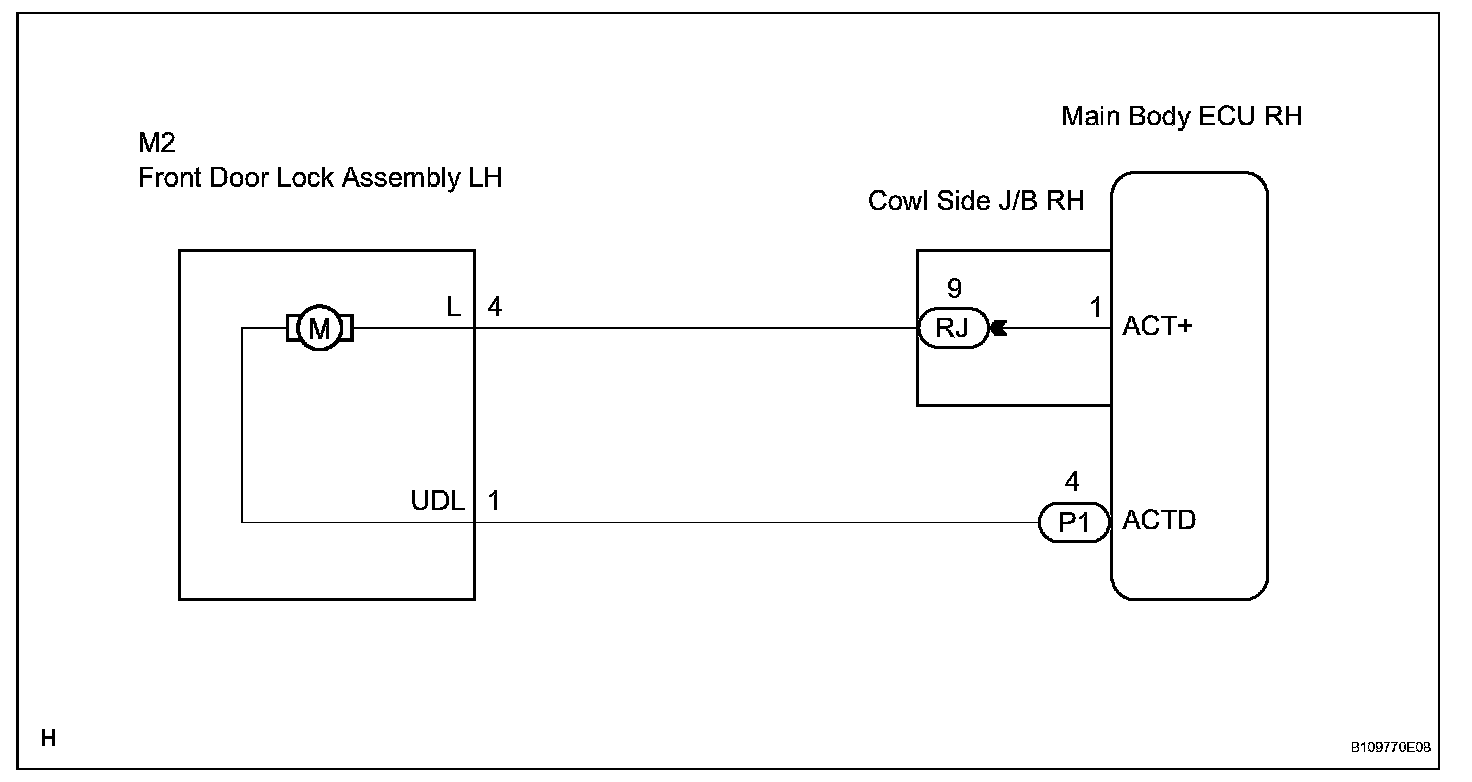

Wiring Diagram:

Step 1:

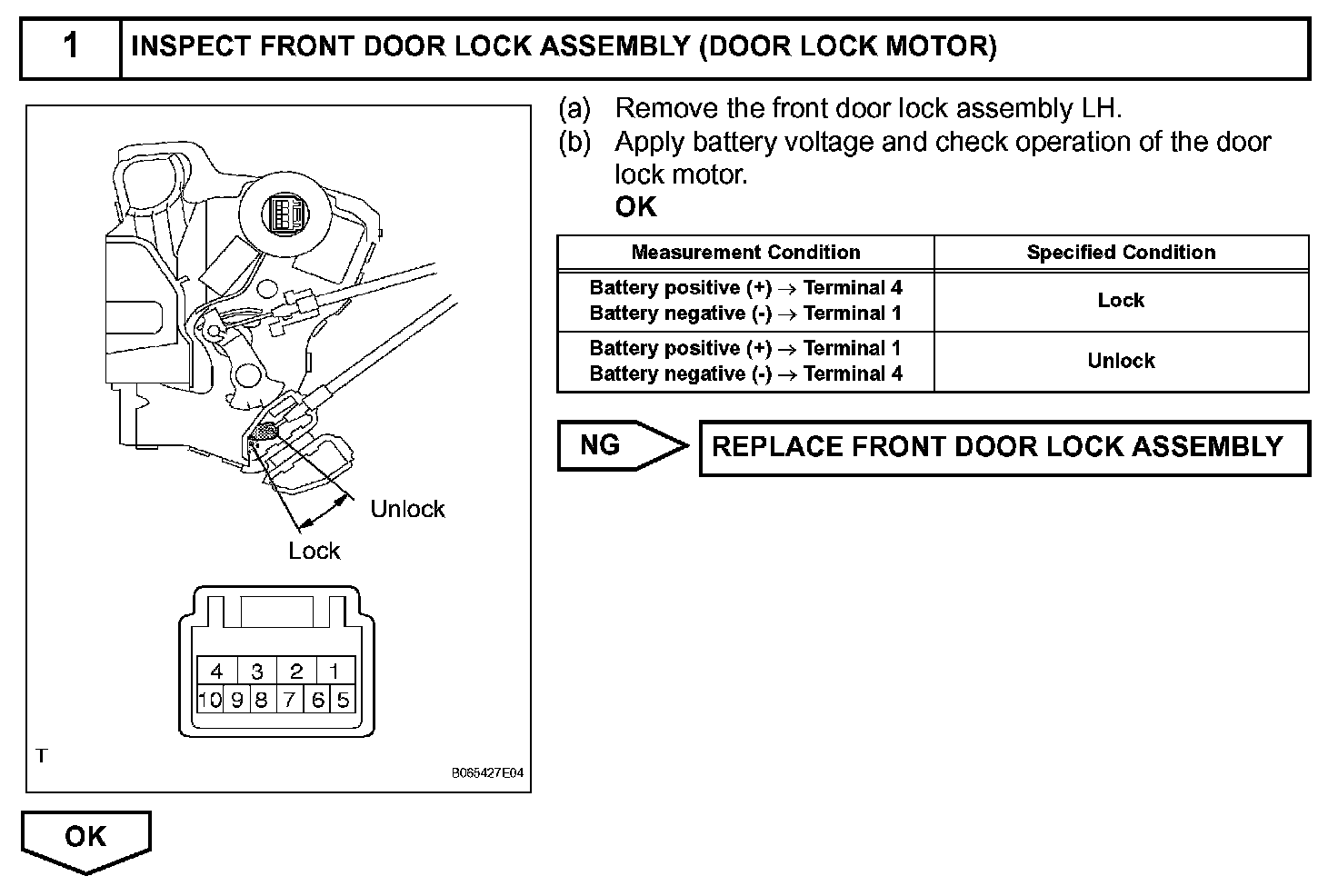

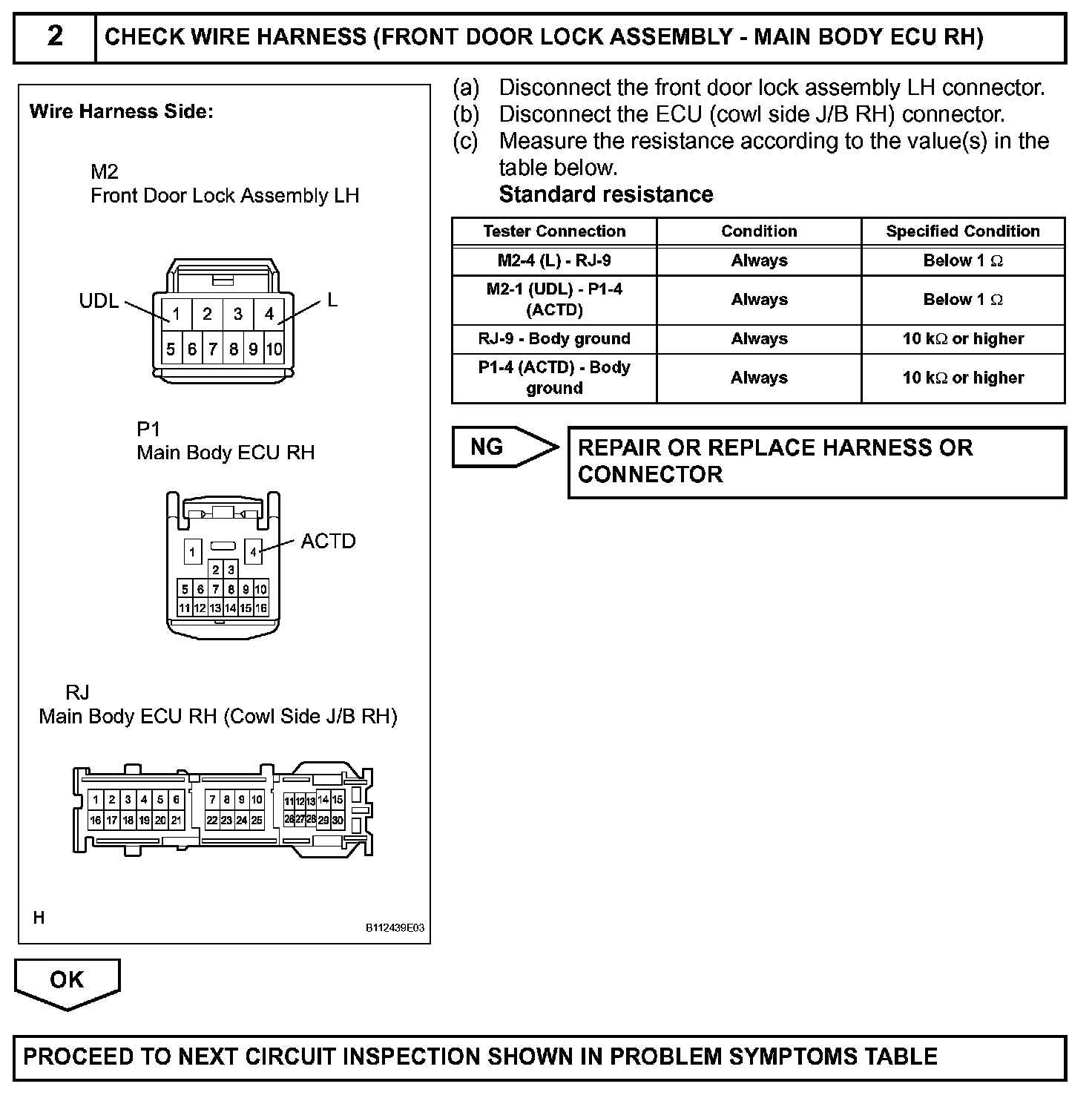

Step 2:

INSPECTION PROCEDURE
