Power Source Circuit

Power Source Circuit

DESCRIPTION

Certification ECU provides power for the door control receiver operation.

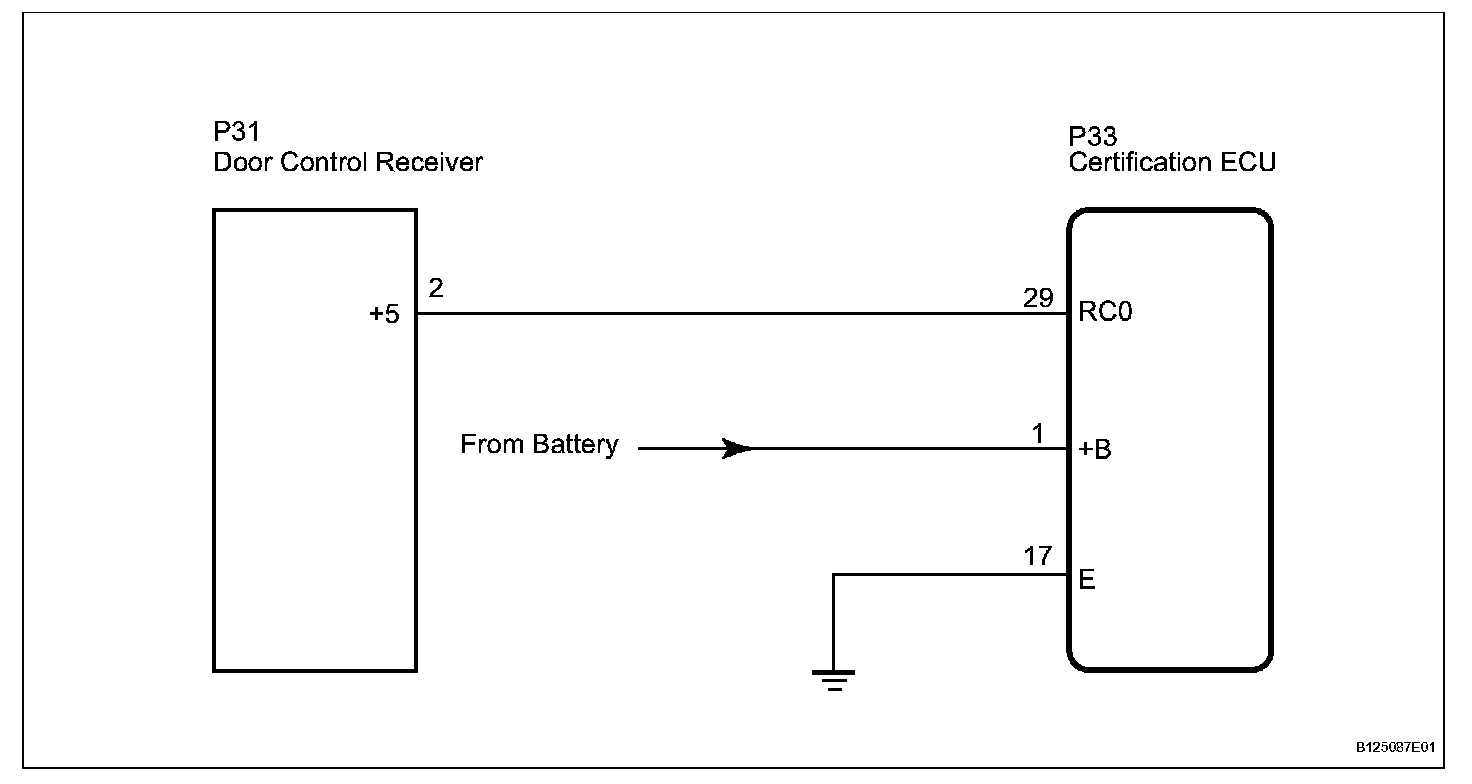

Wiring Diagram:






Step 1-2:

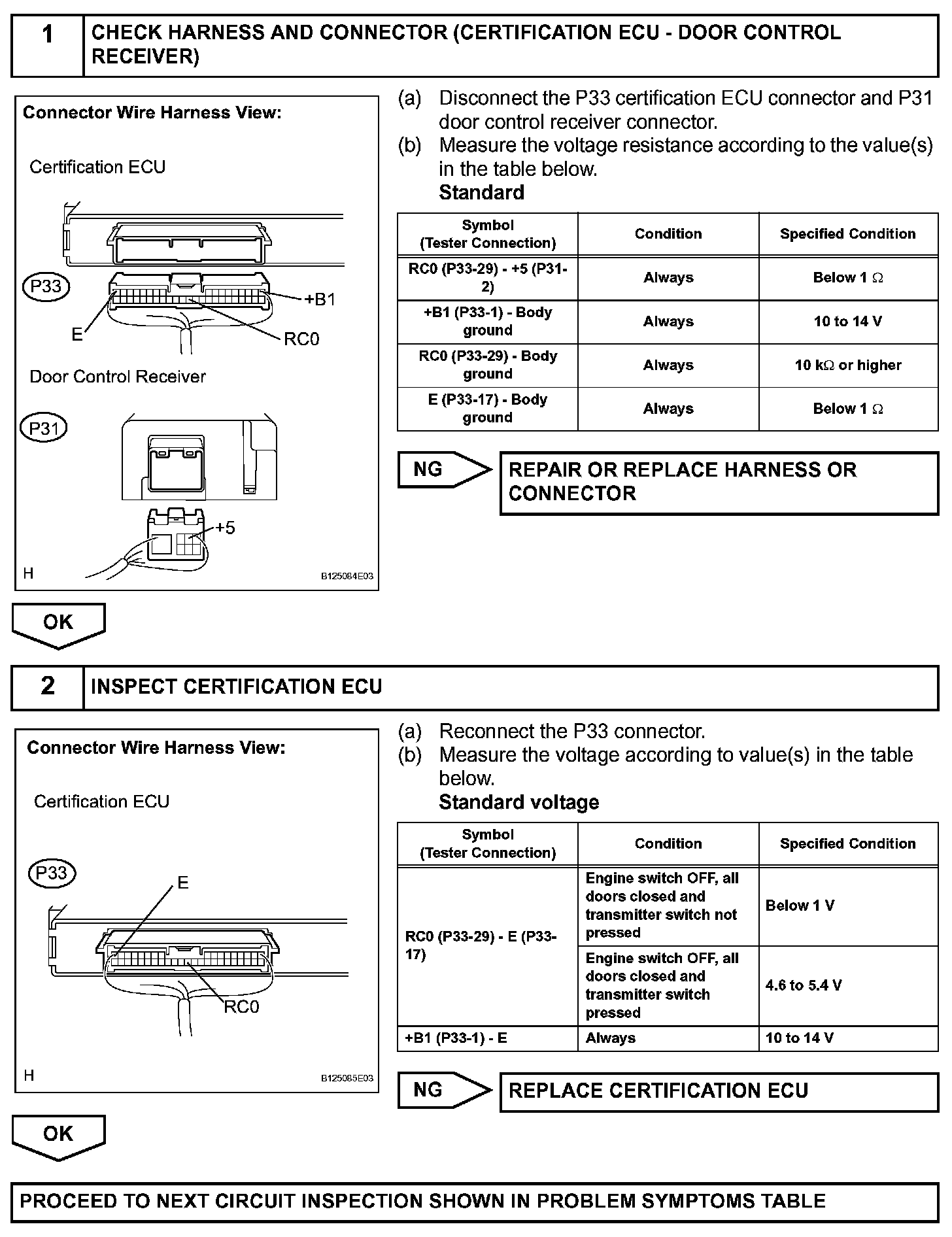

INSPECTION PROCEDURE
