Overhaul

REAR CONSOLE BOX

Rear Console Box:

DISASSEMBLY

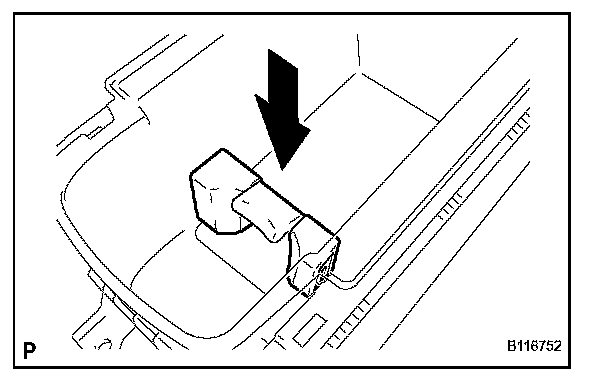

1. REMOVE CONSOLE BOX CUP HOLDER SUBASSEMBLY

a. Remove the console box cup holder sub-assembly.

NOTE: When removing the console box cup holder sub-assembly, do not hold the center part of the sub-assembly in order to prevent the cup holder from breaking.

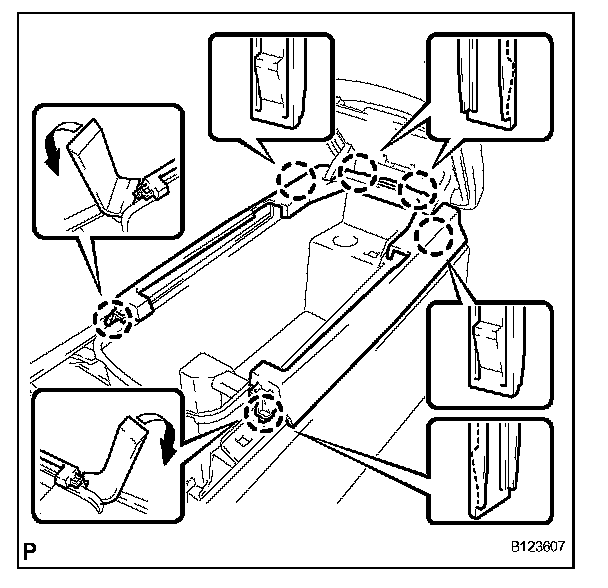

2. REMOVE FRONT UPPER CONSOLE PANEL GARNISH

a. Using a moulding remover, disengage the 2 claws.
b. Disengage the 4 claws and remove the front upper console panel garnish.

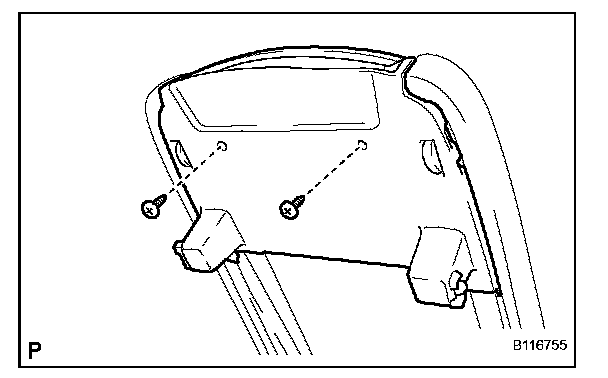

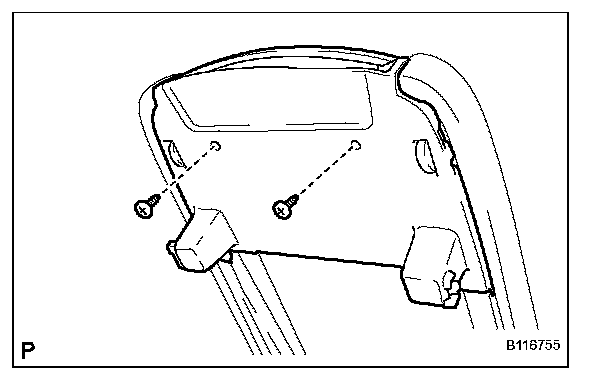

3. REMOVE CONSOLE COMPARTMENT DOOR LOCK SUB-ASSEMBLY

a. Remove the 2 screws.

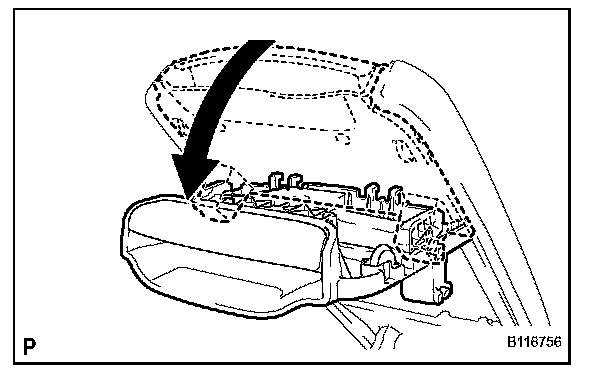

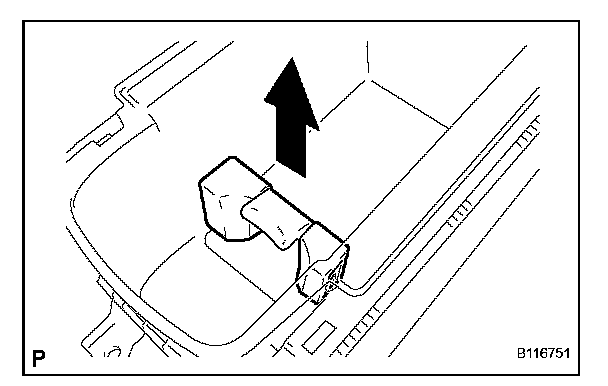

b. Open the console compartment door lock subassembly in the direction indicated by the arrow to remove it.

4. REMOVE CONSOLE COMPARTMENT DOOR SUBASSEMBLY

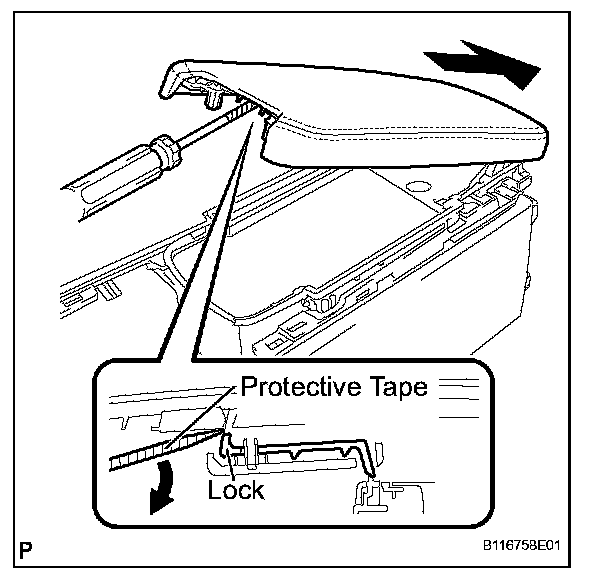

a. While pushing down on the lock using a screwdriver with its tip taped, slide the console door in the direction shown by the arrow to remove it.

5. REMOVE CONSOLE COMPARTMENT DOOR CUSHION
a. Remove the 2 console compartment door cushions from the console box.

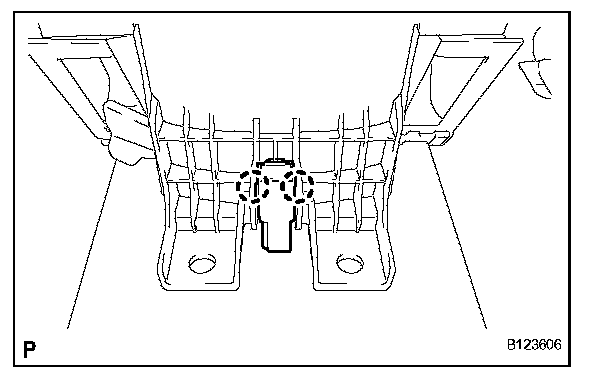

6. REMOVE CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY

a. Disengage the 2 claws and remove the console box illumination light assembly.

7. REMOVE POWER OUTLET SOCKET ASSEMBLY
8. REMOVE POWER POINT SOCKET COVER
9. REMOVE AUDIO TERMINAL

REASSEMBLY

1. INSTALL AUDIO TERMINAL
2. INSTALL POWER POINT SOCKET COVER
3. INSTALL POWER OUTLET SOCKET ASSEMBLY
4. INSTALL CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY
5. INSTALL CONSOLE COMPARTMENT DOOR CUSHION
6. INSTALL CONSOLE COMPARTMENT DOOR SUBASSEMBLY

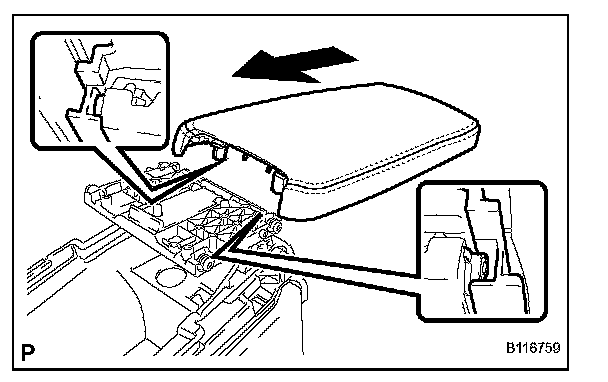

a. Aligning the inside groove of the console compartment door with the console compartment door hinge, slide the console compartment door sub-assembly and install it.

7. INSTALL CONSOLE COMPARTMENT DOOR LOCK SUB-ASSEMBLY

a. Install the console compartment door lock subassembly with the 2 screws.

8. INSTALL FRONT UPPER CONSOLE PANEL GARNISH

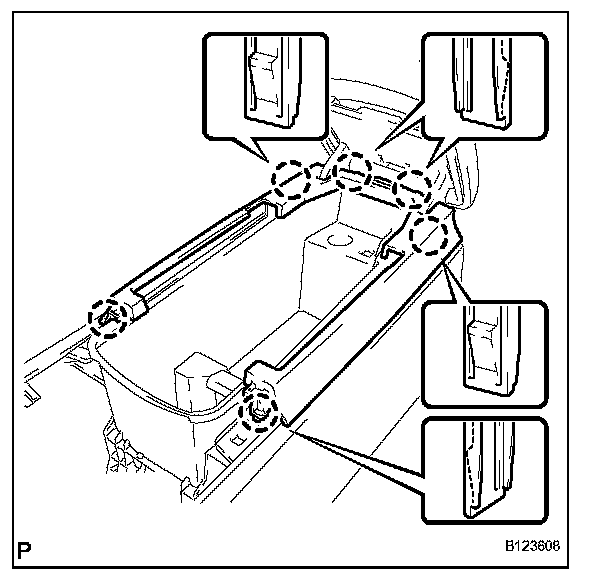

a. Engage the 6 claws and install the front upper console panel garnish.

9. INSTALL CONSOLE BOX CUP HOLDER SUBASSEMBLY

a. Install the console box cup holder sub-assembly.
