Procedures

DISPOSAL

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

1. DISPOSE OF LUGGAGE COMPARTMENT DOOR SUPPORT ASSEMBLY
a. Horizontally fix the luggage compartment door support in a vise with the piston-rod pulled out.

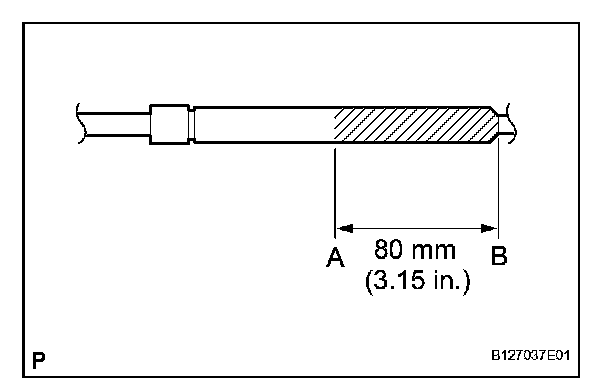

b. Wear safety glasses. Gradually cut a part between A and B shown in the illustration using a metal saw and gradually release the gas.

NOTICE: Although the gas inside the luggage compartment door support is colorless, odorless and harmless, there is a possibility that metal debris could scatter. Therefore, cover it with a piece of cloth or other material.
