Trunk / Liftgate Lock: Service and Repair

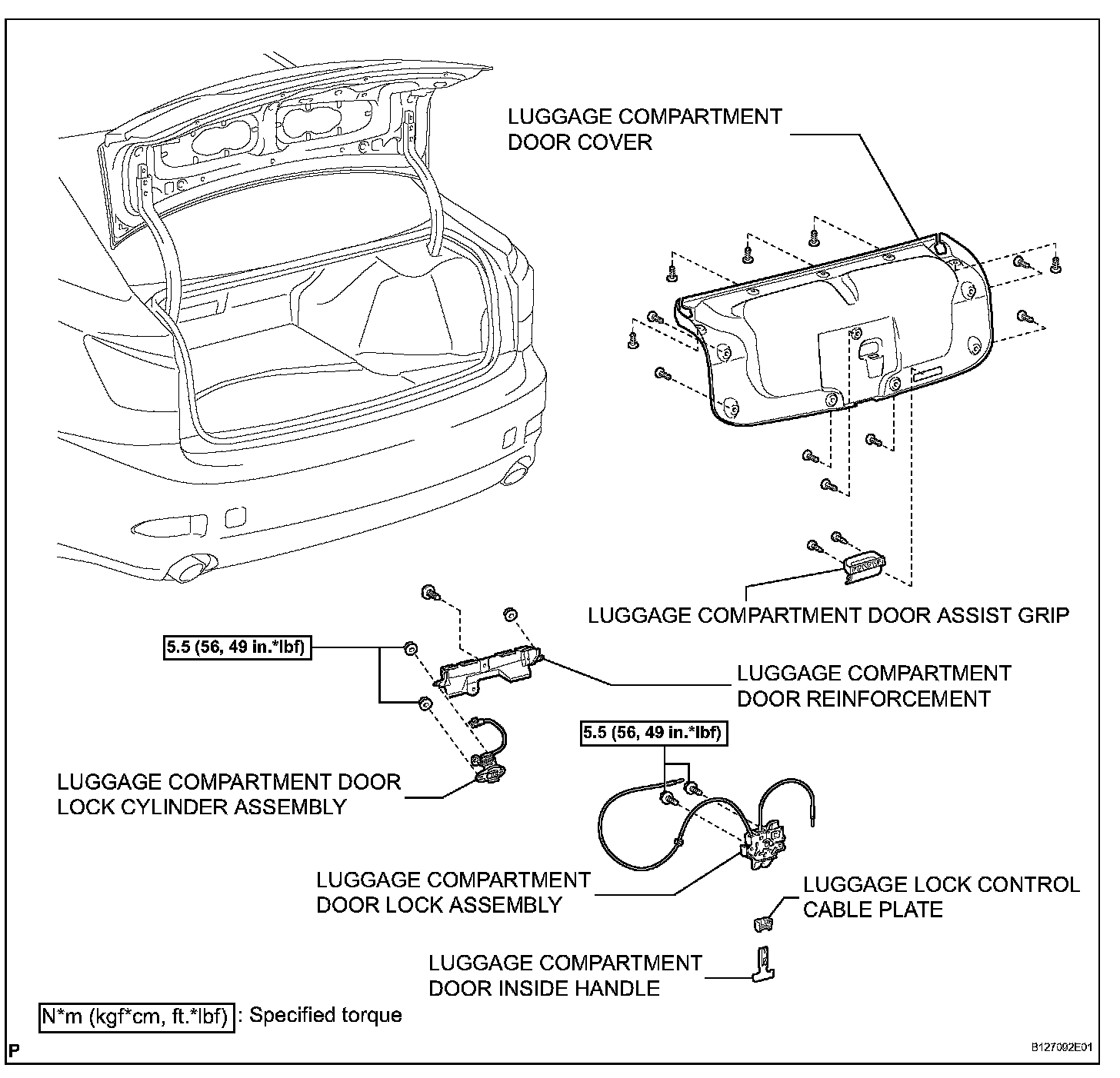

LUGGAGE COMPARTMENT DOOR LOCK

Luggage Compartment Door Lock:

REMOVAL

1. REMOVE LUGGAGE COMPARTMENT DOOR ASSIST GRIP
2. REMOVE LUGGAGE LOCK CONTROL CABLE PLATE
3. REMOVE LUGGAGE COMPARTMENT DOOR INSIDE HANDLE
4. REMOVE LUGGAGE COMPARTMENT DOOR COVER
5. REMOVE LUGGAGE COMPARTMENT DOOR REINFORCEMENT
6. REMOVE LUGGAGE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY

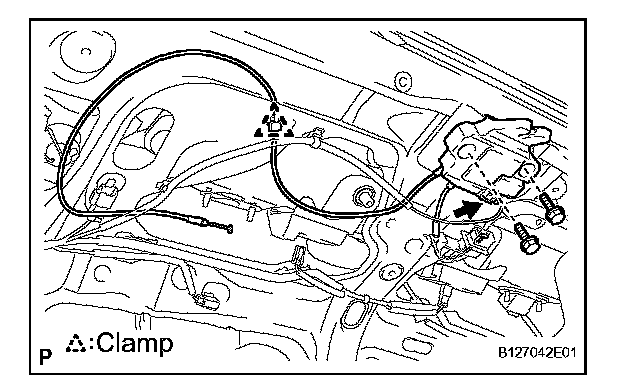

7. REMOVE LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY





a. Disconnect the connector.
b. Disengage the clamp.
c. Remove the 2 bolts and luggage compartment door lock assembly.

INSTALLATION

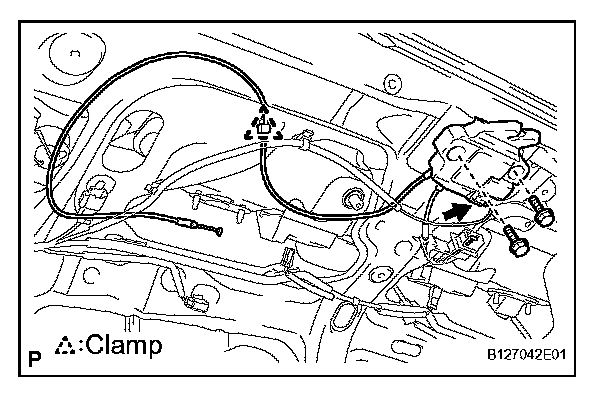

1. INSTALL LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY





a. Install the luggage compartment door lock assembly with the 2 bolts.

Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)

b. Engage the clamp.
c. Connect the connector.

2. INSTALL LUGGAGE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY
3. INSTALL LUGGAGE COMPARTMENT DOOR REINFORCEMENT
4. INSTALL LUGGAGE COMPARTMENT DOOR COVER
5. INSTALL LUGGAGE COMPARTMENT DOOR INSIDE HANDLE
6. INSTALL LUGGAGE LOCK CONTROL CABLE PLATE
7. INSTALL LUGGAGE COMPARTMENT DOOR ASSIST GRIP
