Luggage Compartment Door Opener Circuit
Luggage Compartment Door Opener CircuitDESCRIPTION
While the main body ECU RH has received the OFF signal from the luggage compartment opener main switch, the main body ECU RH activates the luggage compartment door lock motor when the ON signal from the luggage compartment door opener inner switch is received.

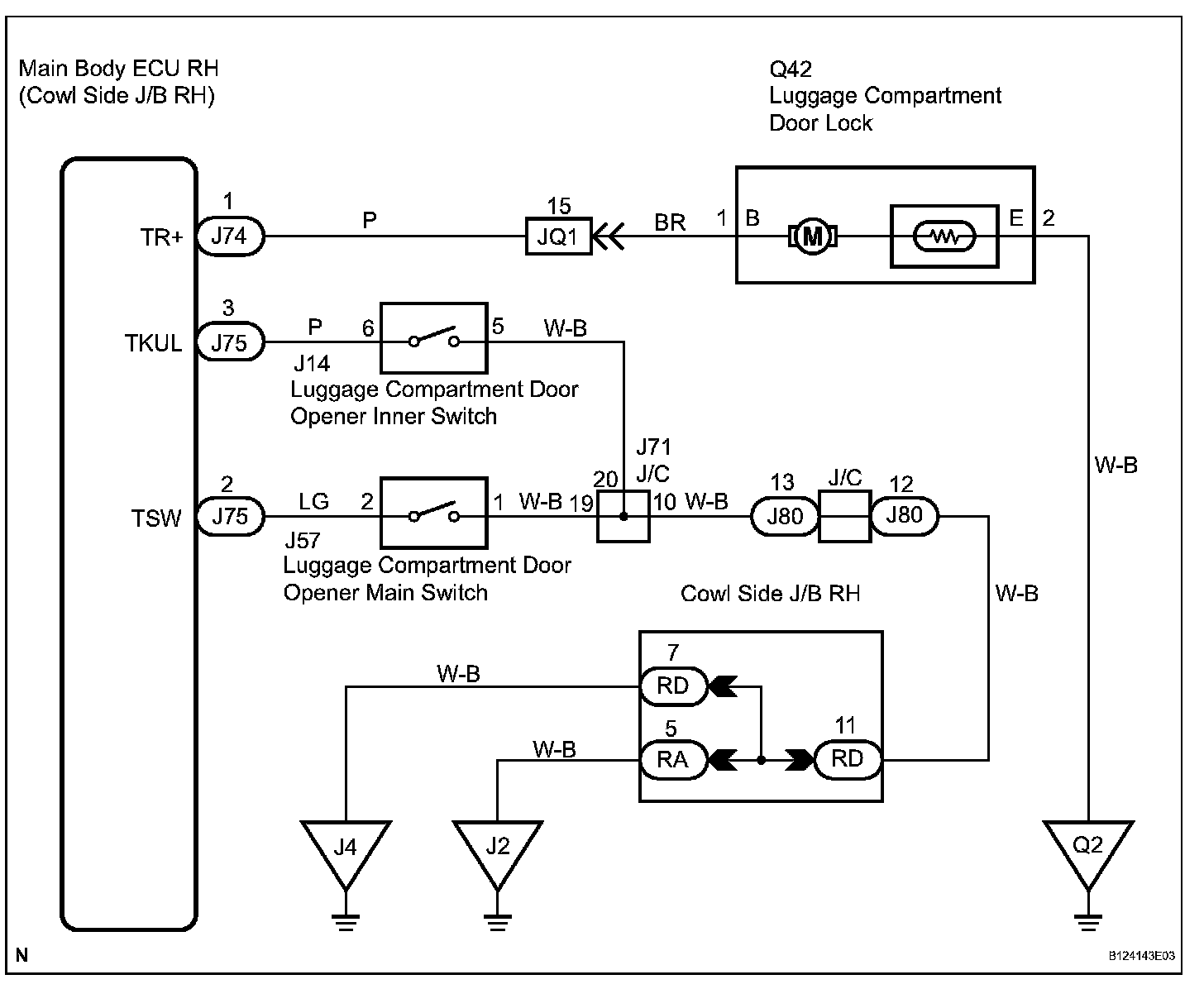

WIRING DIAGRAM
Wiring Diagram:
INSPECTION PROCEDURE

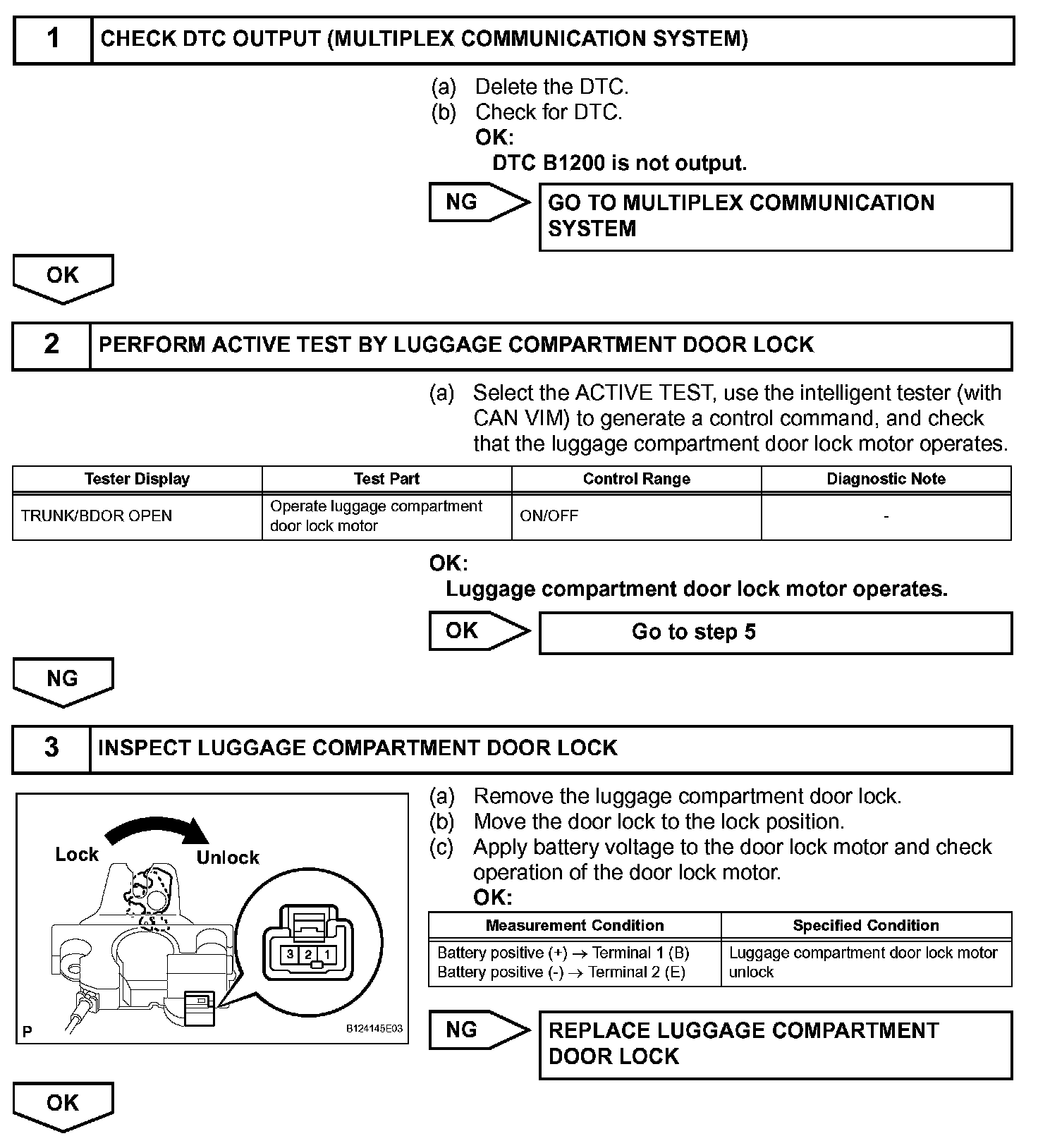

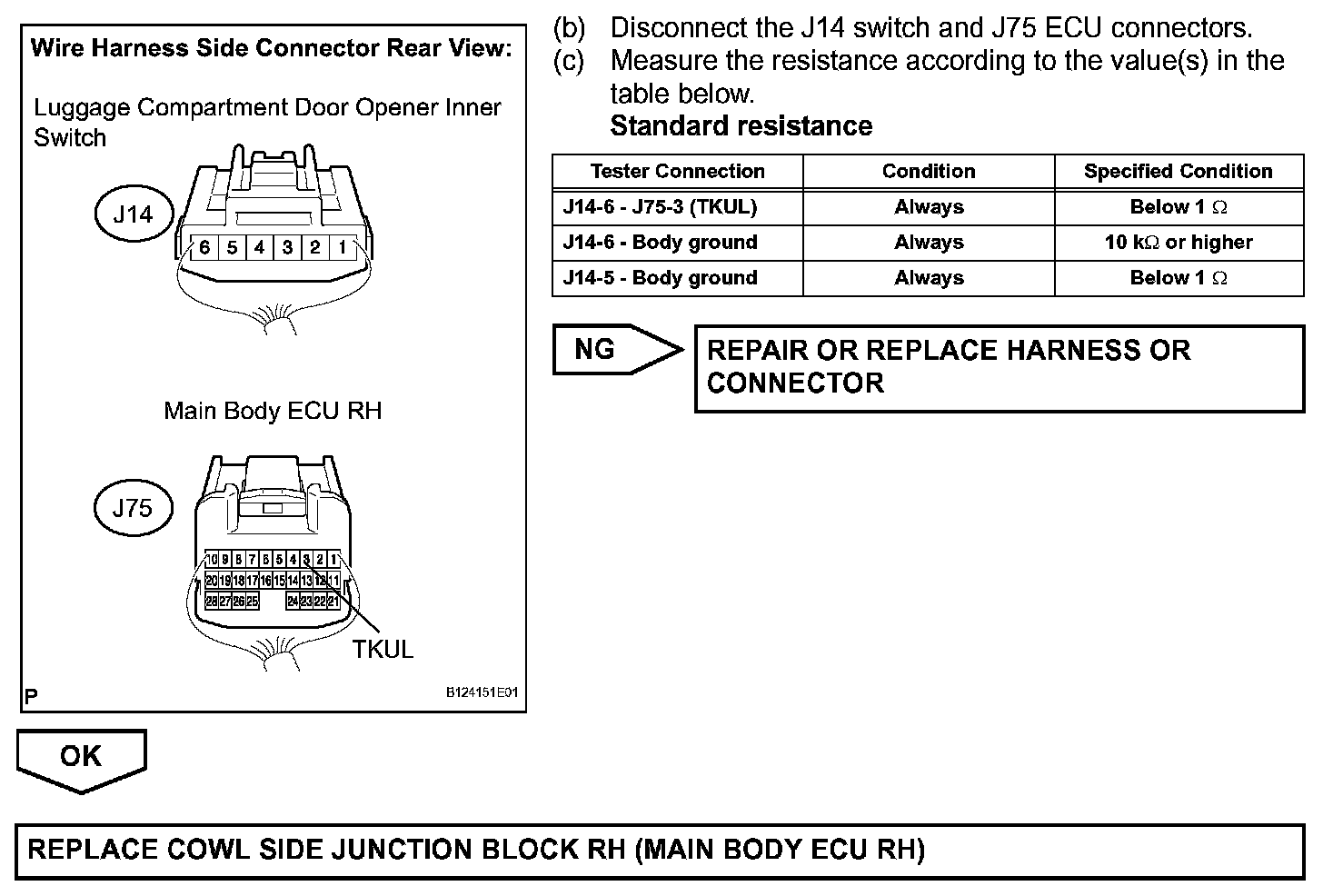

Step 1 - 3:

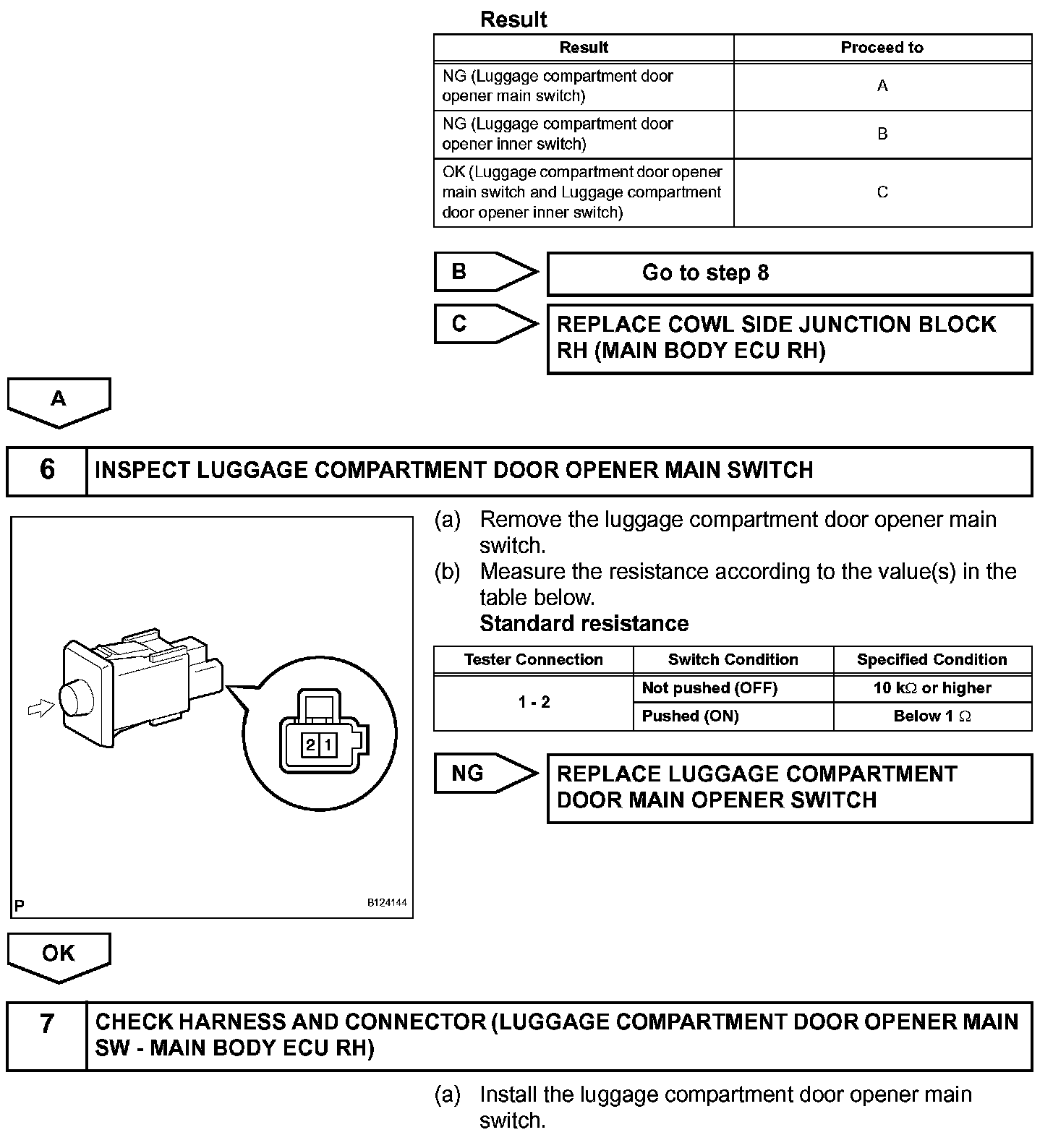

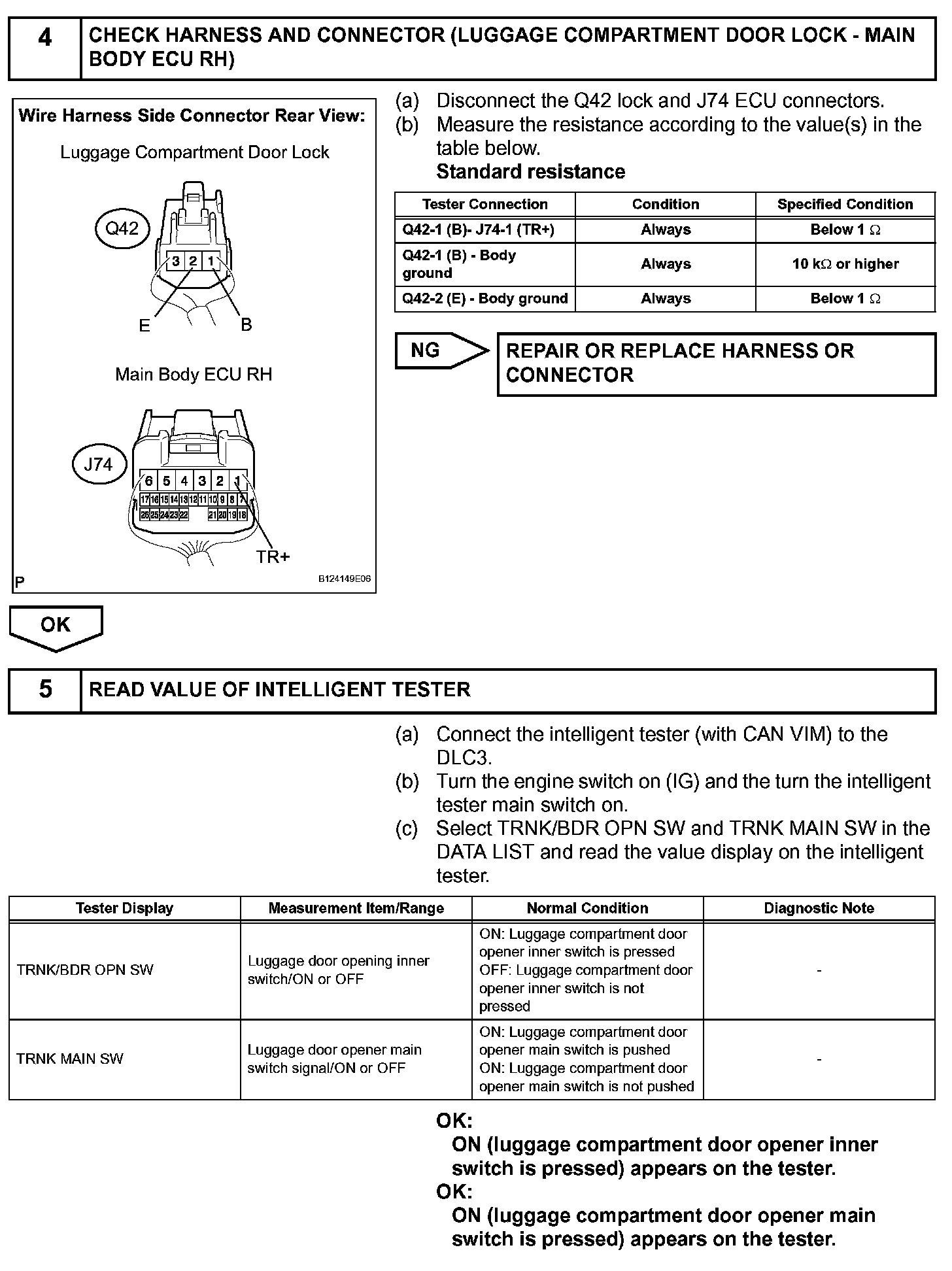

Step 4 - 5:

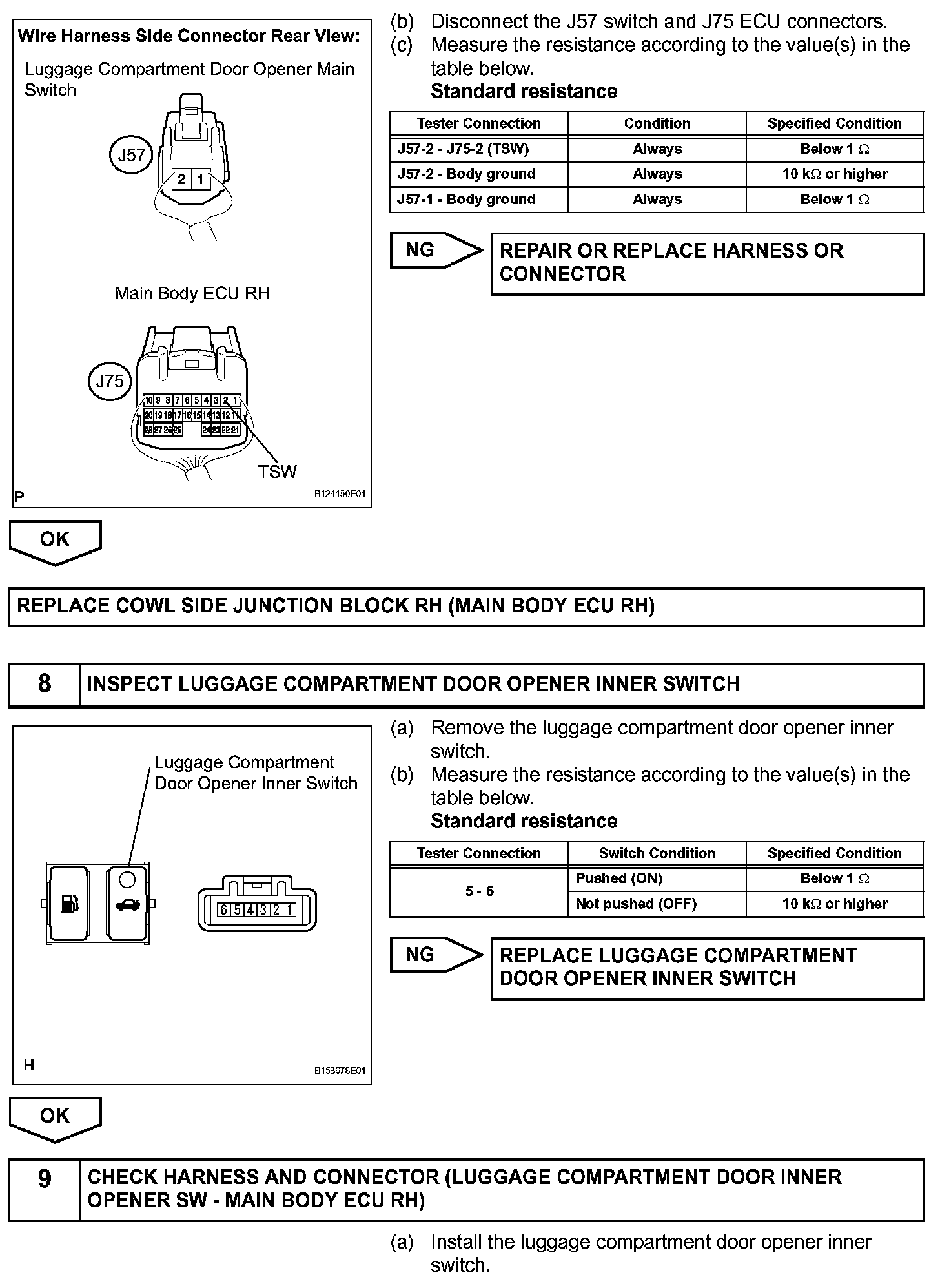

Step 5(Continued) - 7:
Step 7(Continued) - 9:
Step 9(Continued):
