Back Door Courtesy Switch

INSPECTION

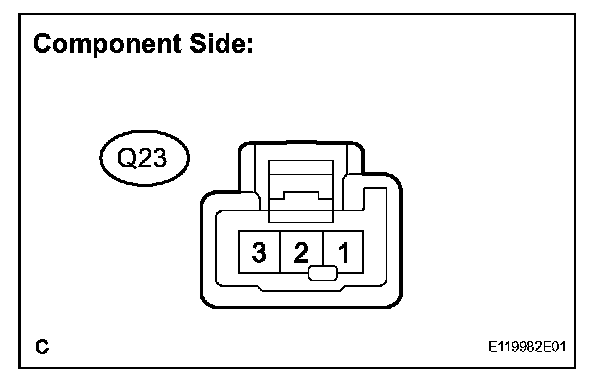

1. INSPECT BACK DOOR COURTESY SWITCH

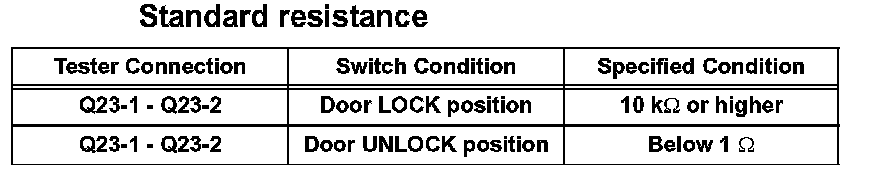

a. Measure the resistance according to the value(s) in the table given.

If the result is not as specified, replace the switch.
