Overhaul

LUGGAGE COMPARTMENT DOOR

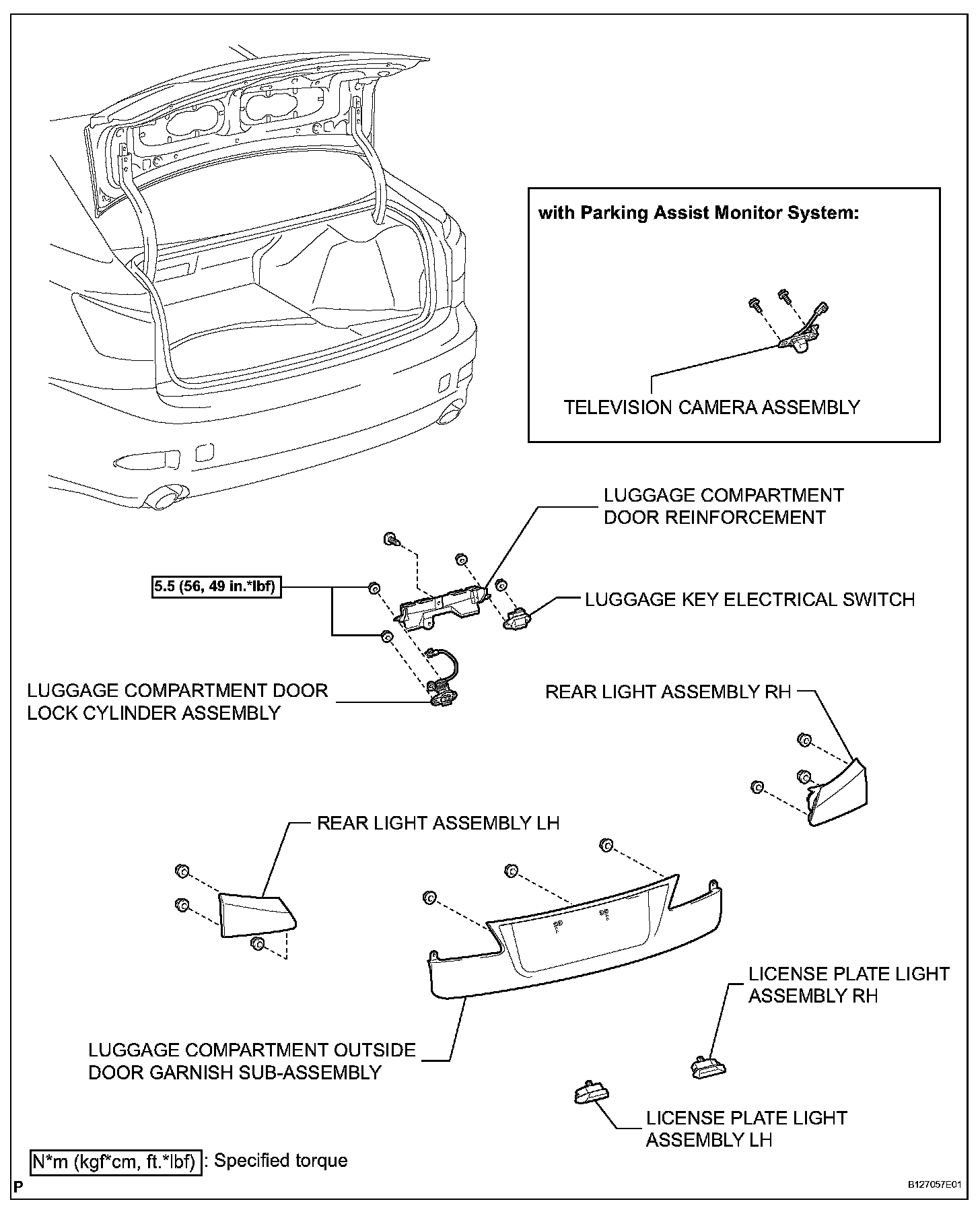

Luggage Compartment Door:

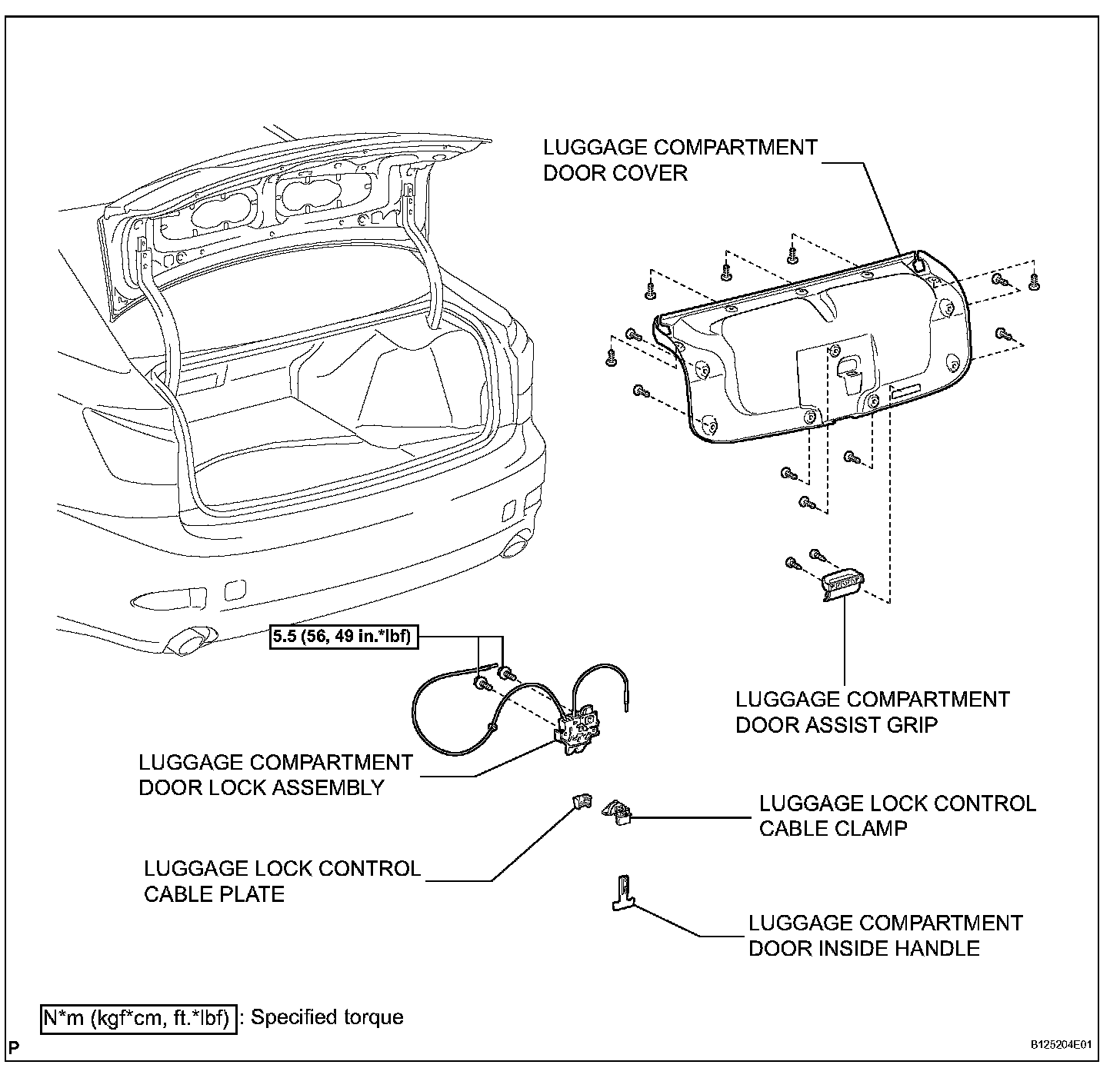

Luggage Compartment Door:

DISASSEMBLY

1. REMOVE LUGGAGE COMPARTMENT DOOR ASSIST GRIP

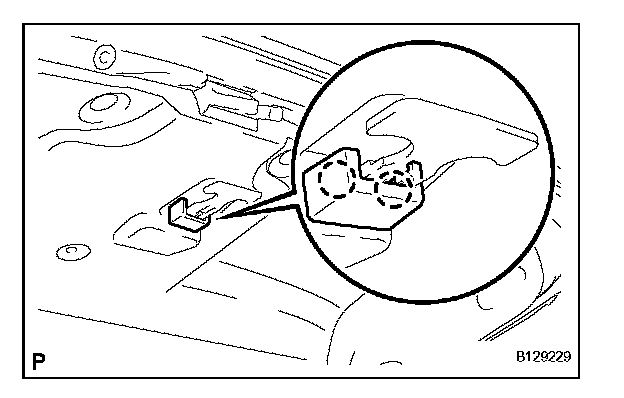

2. REMOVE LUGGAGE LOCK CONTROL CABLE PLATE





a. Disengage the 2 claws and remove the luggage lock control cable plate.

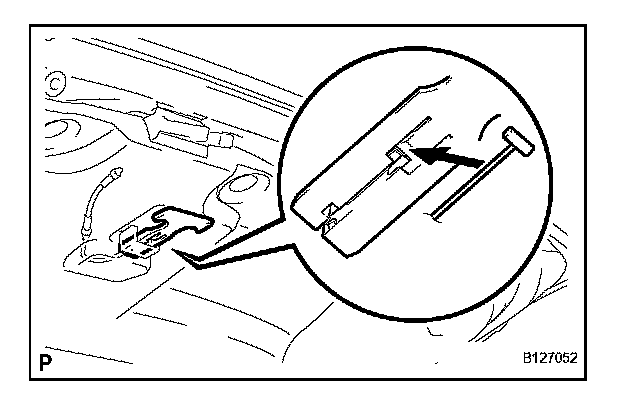

3. REMOVE LUGGAGE COMPARTMENT DOOR INSIDE HANDLE





a. Disconnect the luggage compartment door lock control cable and remove the luggage compartment inside door handle.

4. REMOVE LUGGAGE COMPARTMENT DOOR COVER
5. REMOVE LUGGAGE COMPARTMENT DOOR REINFORCEMENT
6. REMOVE LUGGAGE KEY ELECTRICAL SWITCH
7. REMOVE LUGGAGE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY

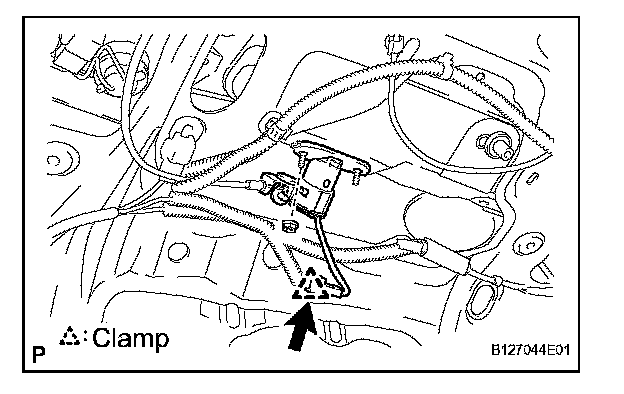

a. Disconnect the connector and clamp.
b. Remove the nut.
c. Disconnect the luggage compartment door lock control cable and remove the luggage compartment door lock cylinder assembly.

8. REMOVE LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY

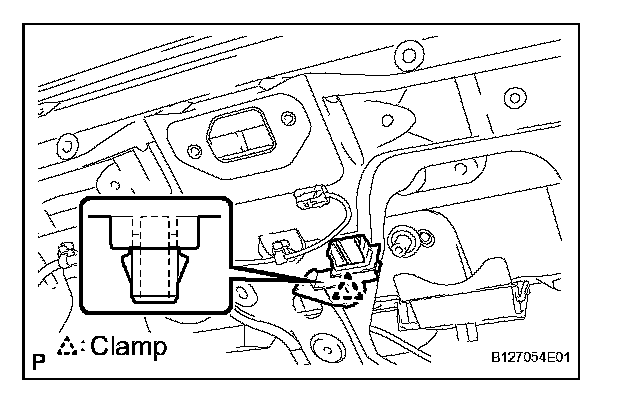

9. REMOVE LUGGAGE LOCK CONTROL CABLE CLAMP





a. Disengage the clamp and remove the luggage lock control cable clamp.

10. REMOVE TELEVISION CAMERA ASSEMBLY (w/ Parking Assist Monitor System)
11. REMOVE REAR LIGHT ASSEMBLY LH
12. REMOVE REAR LIGHT ASSEMBLY RH
13. REMOVE LUGGAGE COMPARTMENT OUTSIDE DOOR GARNISH SUB-ASSEMBLY
14. REMOVE LICENSE PLATE LIGHT ASSEMBLY LH
15. REMOVE LICENSE PLATE LIGHT ASSEMBLY RH

REASSEMBLY

1. INSTALL LICENSE PLATE LIGHT ASSEMBLY LH
2. INSTALL LICENSE PLATE LIGHT ASSEMBLY RH
3. INSTALL LUGGAGE COMPARTMENT OUTSIDE DOOR GARNISH SUB-ASSEMBLY
4. INSTALL REAR LIGHT ASSEMBLY LH
5. INSTALL REAR LIGHT ASSEMBLY RH
6. INSTALL TELEVISION CAMERA ASSEMBLY (w/ Parking Assist Monitor System)
7. INSTALL LUGGAGE LOCK CONTROL CABLE CLAMP





a. Engage the clamp and install the luggage lock control cable clamp.

8. INSTALL LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY
9. INSTALL LUGGAGE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY





a. Connect the luggage compartment door lock control cable.
b. Install the luggage compartment door lock cylinder with the nut.

Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)

c. Connect the connector and clamp.

10. INSTALL LUGGAGE KEY ELECTRICAL SWITCH
11. INSTALL LUGGAGE COMPARTMENT DOOR REINFORCEMENT
12. INSTALL LUGGAGE COMPARTMENT DOOR COVER

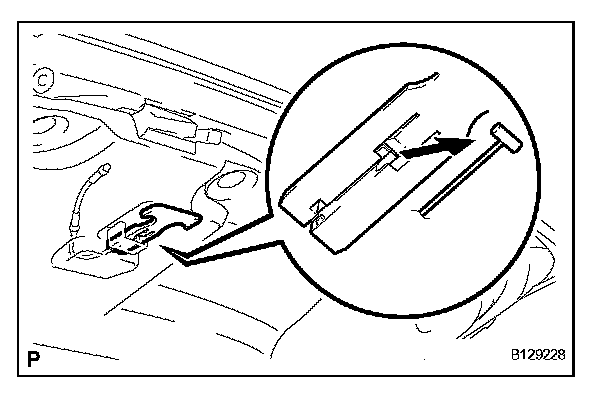

13. INSTALL LUGGAGE COMPARTMENT DOOR INSIDE HANDLE





a. Install the luggage compartment inside door handle to the luggage compartment door lock control cable.

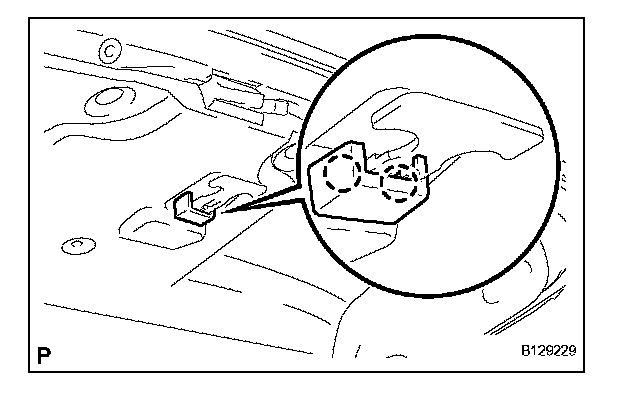

14. INSTALL LUGGAGE LOCK CONTROL CABLE PLATE





a. Engage the 2 claws and install the luggage lock control cable plate.

15. INSTALL LUGGAGE COMPARTMENT DOOR ASSIST GRIP
